MTN20-PP-02-95: DescriptionRF Twinaxial-TNC Connector, Female, Cable Mount, Clamp Terminal,; CategoryThe connector The connector; File Size288KB，3 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

MTN20-PP-02-95 Overview

RF Twinaxial-TNC Connector, Female, Cable Mount, Clamp Terminal,

MTN20-PP-02-95 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG 58
Characteristic impedance	95 Ω
Connector type	RF TWINAXIAL-TNC CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPROPYLENE
MIL compliance	NO
Manufacturer's serial number	TN
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP

Preview

Download Datasheet

View All

Twinax Series

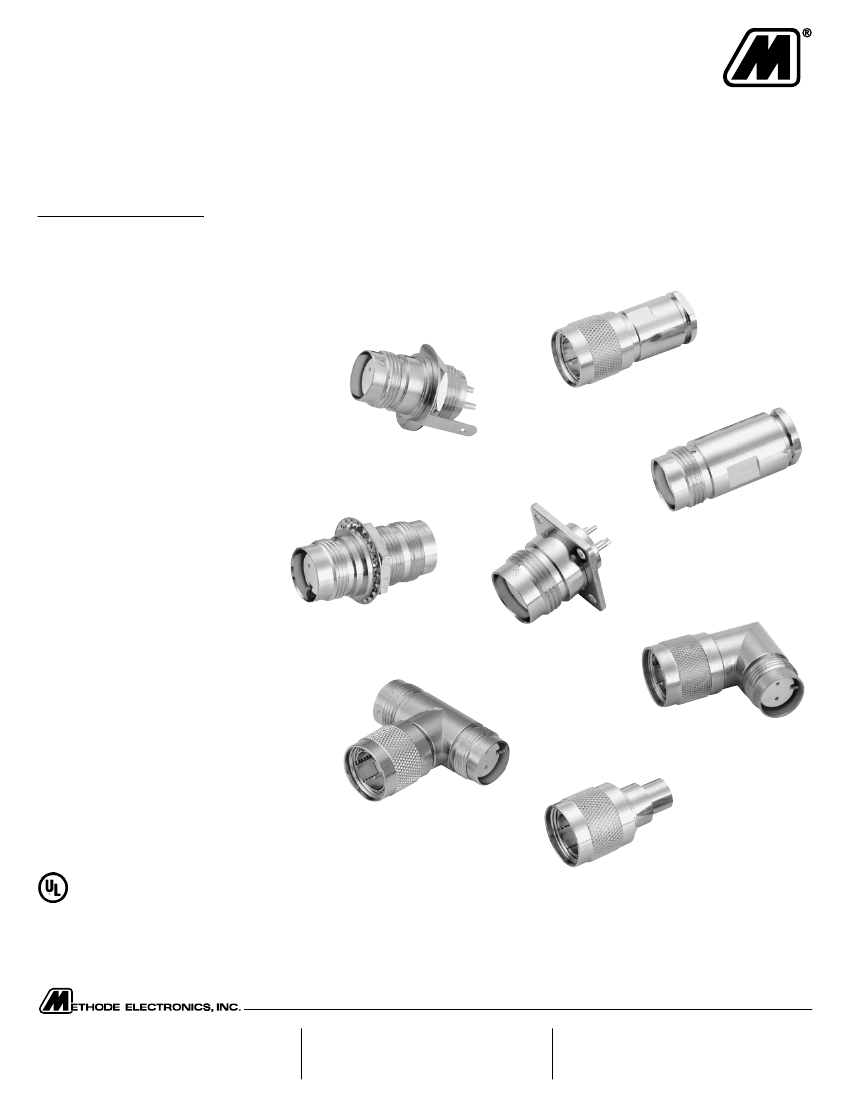

The TWINAX Series is characterized by twin contact inserts and an independent polarized keyway to properly align the mating

connectors before coupling. Typical applications are Data Transmission and Computer Networks.

Electrical Speciﬁcations:

Frequency Range:

0-200 MHz

Voltage Rating:

AC 500V RMS

Withstanding Voltage:

AC 1500V one minute

Insulation Resistance:

1000 MΩ min at DC 500V

Contact Resistance:

4m

Ω

max at DC 1A

Impedance:

95

Ω

nominal

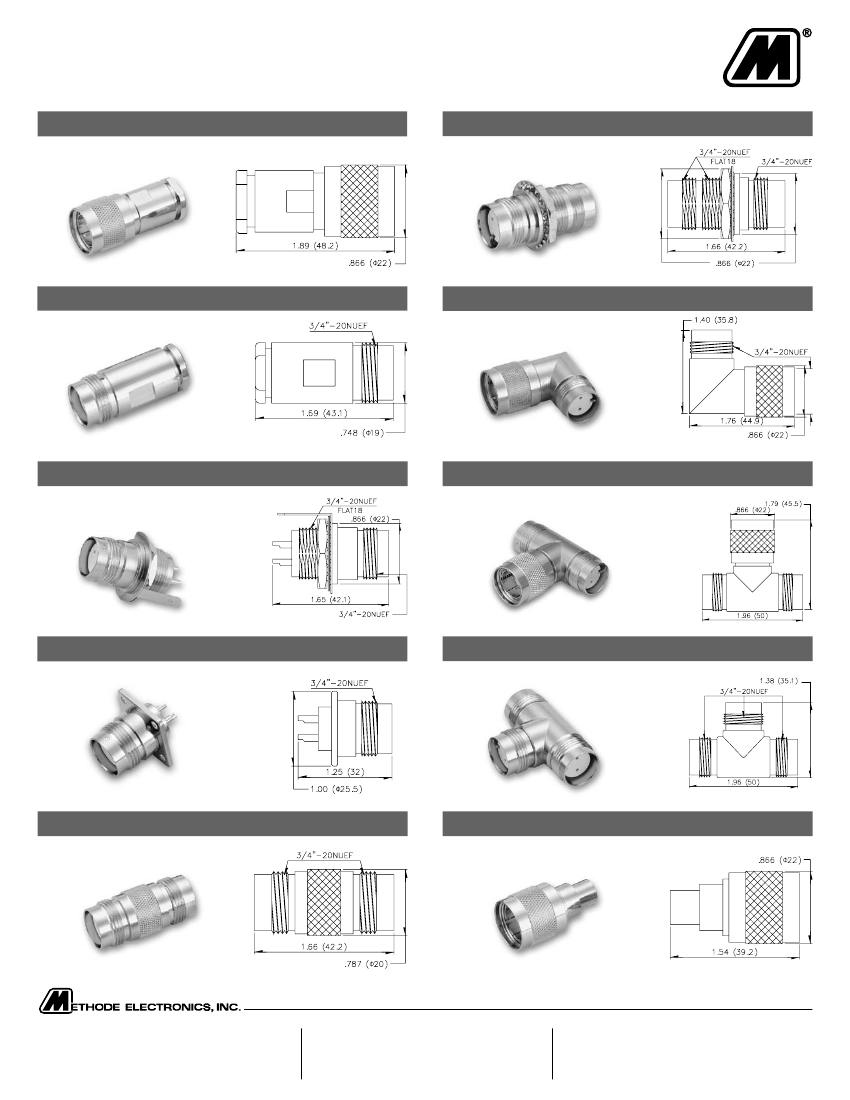

E191630

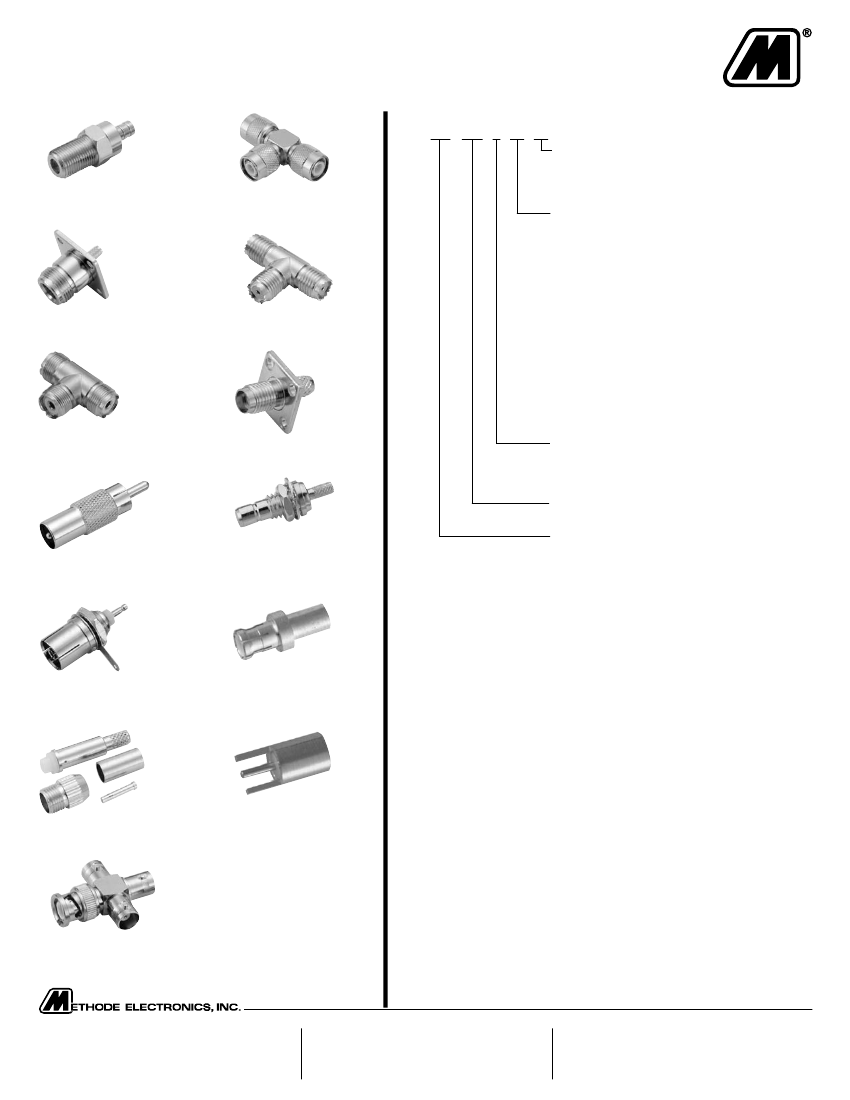

*Consult Factory

Methode offers additional products and options, not illustrated in the catalog. Please contact the factory if you require additional assistance

to resolve your design needs.
