G6KU-2P-Y-TR5VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> G6KU-2P-Y-TR5VDC

G6KU-2P-Y-TR5VDC: DescriptionPower/Signal Relay, DPDT, Latched, 0.021A (Coil), 5VDC (Coil), 100mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size283KB，12 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

G6KU-2P-Y-TR5VDC Overview

Power/Signal Relay, DPDT, Latched, 0.021A (Coil), 5VDC (Coil), 100mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

G6KU-2P-Y-TR5VDC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OMRON
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	6.5 mm
body height	5 mm
Body length or diameter	10 mm
Maximum coil current (DC)	0.021 A
Coil operating voltage (DC)	3.75 V
Coil power	100 mW
Coil release voltage (DC)	3.75 V
Coil resistance	237 Ω
Maximum coil voltage (DC)	7.5 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.3A@125VAC
Maximum contact current (AC)	0.3 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver
Input switching control type	Random
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	8
operating hours	3 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	8
method of packing	TR, 13 INCH
physical size	10mm x 6.5mm x 5mm
Guideline	BSI; CSA; UL
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	SEALED TYPE
surface mount	NO
Terminal length	3.5 inch
Termination type	SOLDER
weight	0.7 g

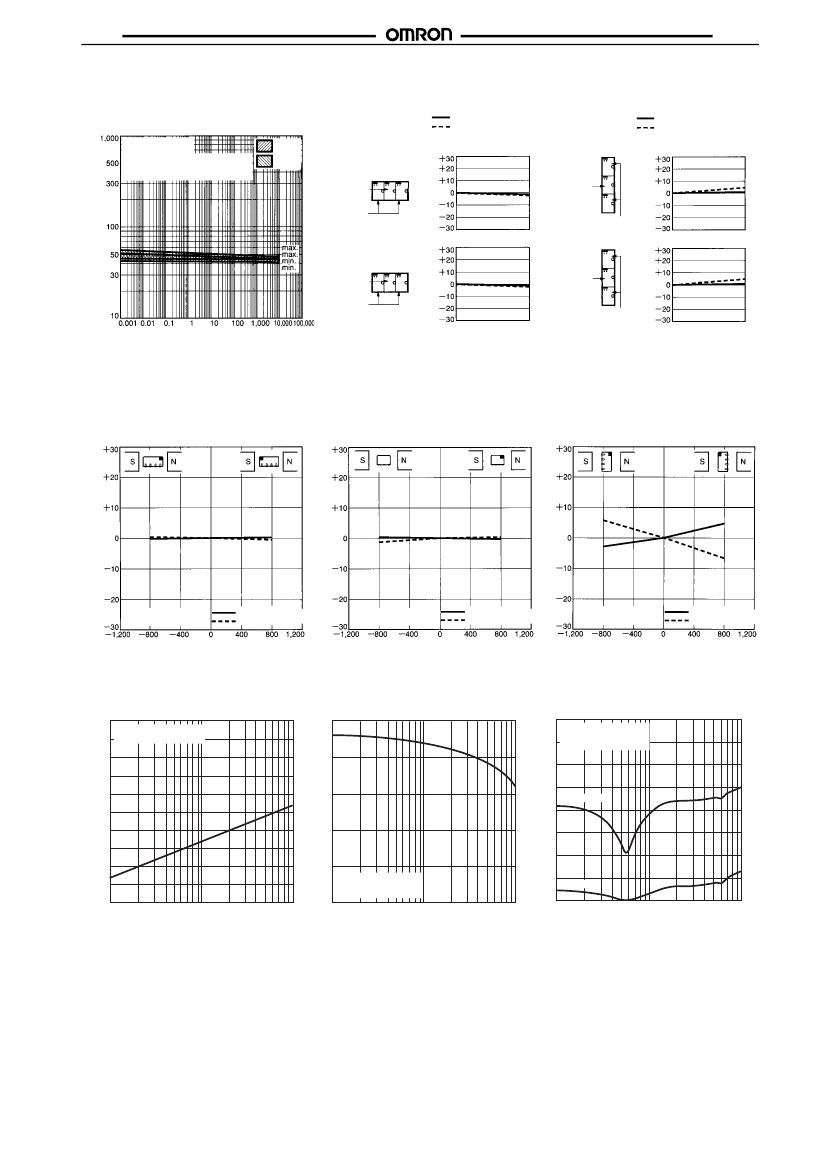

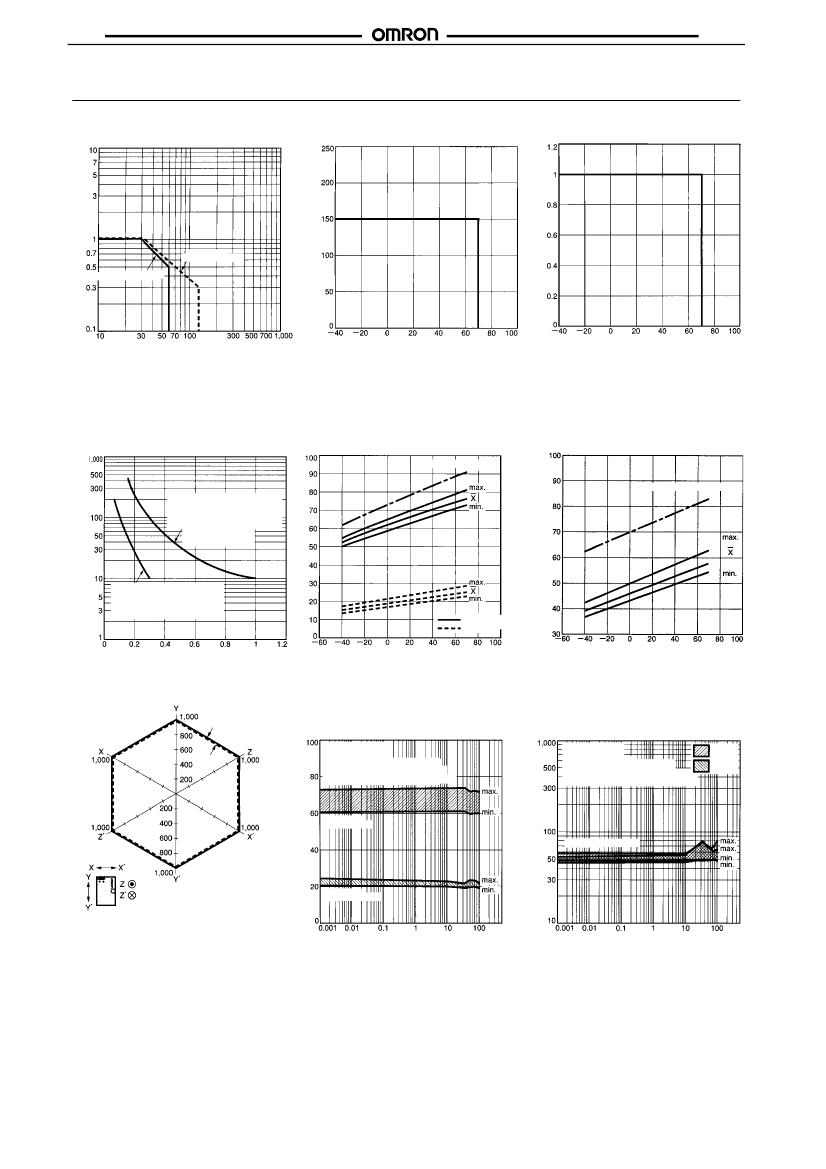

Preview

Download Datasheet

View All

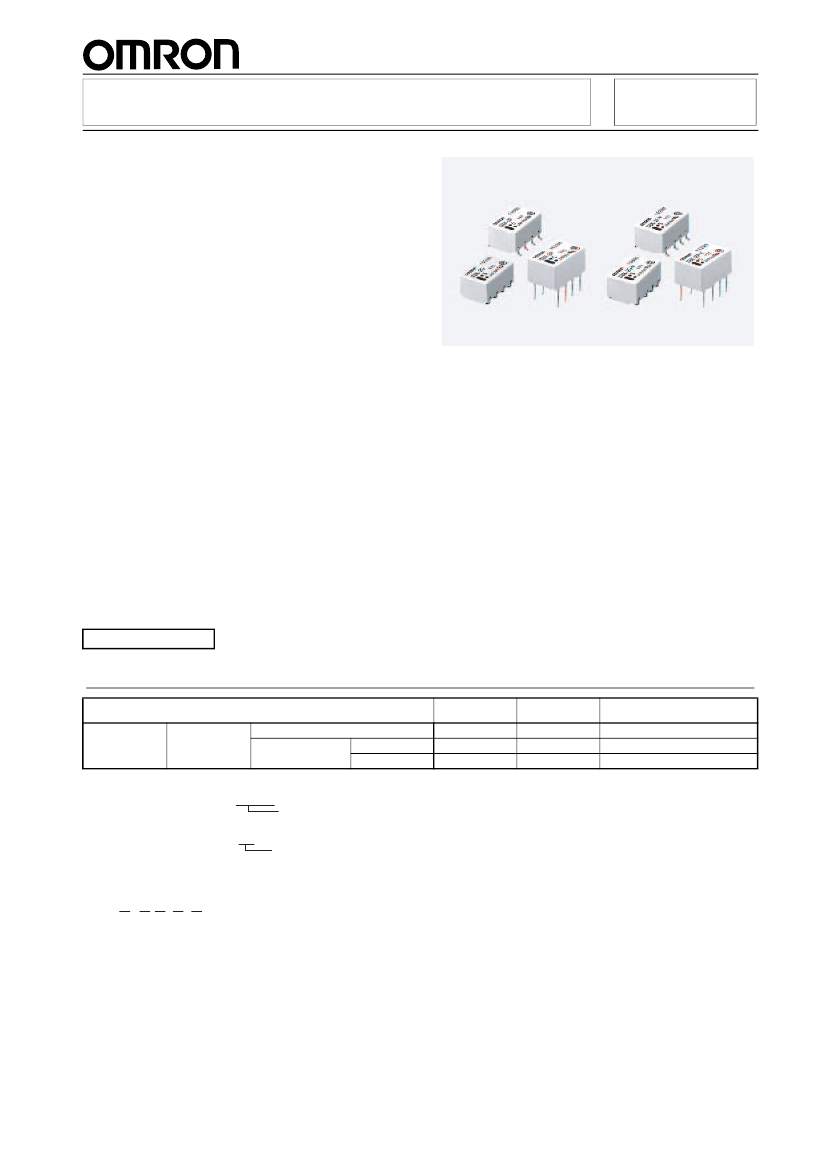

Surface Mounting Relay

Surface Mounting Relay with the World’s

Smallest Mounting Area and a Height of

Only 5.2 mm

■

G6K

■

Subminiature model as small as 5.2 (H) x 6.5 (W)

x 10 (L) mm is ideal for high-density mounting.

Low profile of 5.2 mm and weight of only 0.7 g

combine to improve mounting efficiency.

Models with inside-L surface mounting terminals

are available.

Consumes approximately 70% the power of a

conventional OMRON model and operates at a

current that is as low as 100 mW.

Surface mounting terminal models incorporate a

unique terminal structure with high infrared irradi-

ation efficiency which allows the terminal temper-

ature to rise easily when mounting the IRS, thus

ensuring excellent soldering.

Ensures a dielectric strength of 1,500 VAC and

conforms to FCC Part 68 (i.e., withstanding an

impulse withstand voltage of 1,500 V for 10 x

160

µs).

New-Y models offer an impulse withstand voltage

of 2,500 V for 2 x 10

µs

(conforms to Telcordia

specifications) by optimizing the distance between

coil and contacts.

Conforms to UL1950 (File No. E41515)/CSA

C22.2 No. 950 (File No. LR24825)

RoHS Compliant

The above specifications are ensured as of August 1999.

Ordering Information

Classification

DPDT

Fully sealed

PCB terminal

Surface mounting

terminal

Inside-L

Outside-L

Single-side

stable

G6K-2P

G6K-2G

G6K-2F

Single-winding

latching

G6KU-2P-Y

G6KU-2G-Y

G6KU-2F-Y

Single-side stable Bellcore:

2, 500 V for 2x10

µs

G6K-2P-Y

G6K-2G-Y

G6K-2F-Y

Note:

1. When ordering, add the rated coil voltage to the model number.

Example: G6K-2F 12 VDC

Rated coil voltage

2. When ordering tape packing, add -TR" to the model number.

Example: G6K-2F-TR 12 VDC

Tape packing

Be sure since -TR" is not part of the relay model number, it is not marked on the relay case.

3. Terminal shape

Model Number Legend

Outside-L surface mounting terminal

Inside-L surface mounting terminal

G6K@-@@-@

VDC

PCB terminal

2 3

4 5

4. Approved standards

1. Relay function

None: UL, CSA

None: Single-side stable model

Does not conform to Telcordia specifications

Single-winding latching model

UL, CSA

2. Contact form

Conforms to Telcordia specifications: 2,500 V for 2 x

µs

DPDT

5. Rated Coil Voltage

3, 4.5, 5, 12, 24 VDC
