BUS-65101II datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BUS-65101II

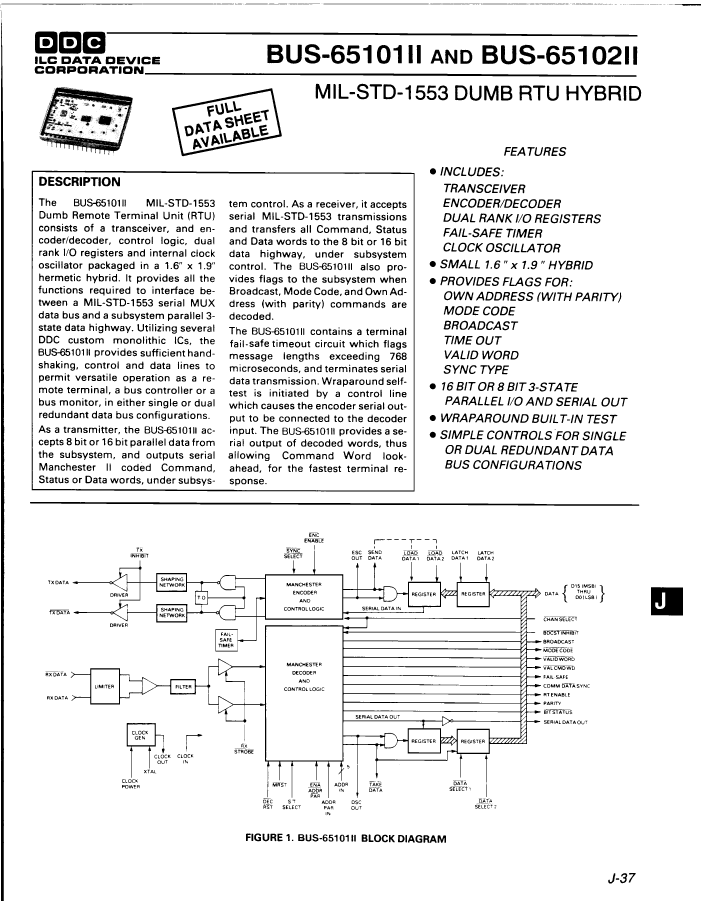

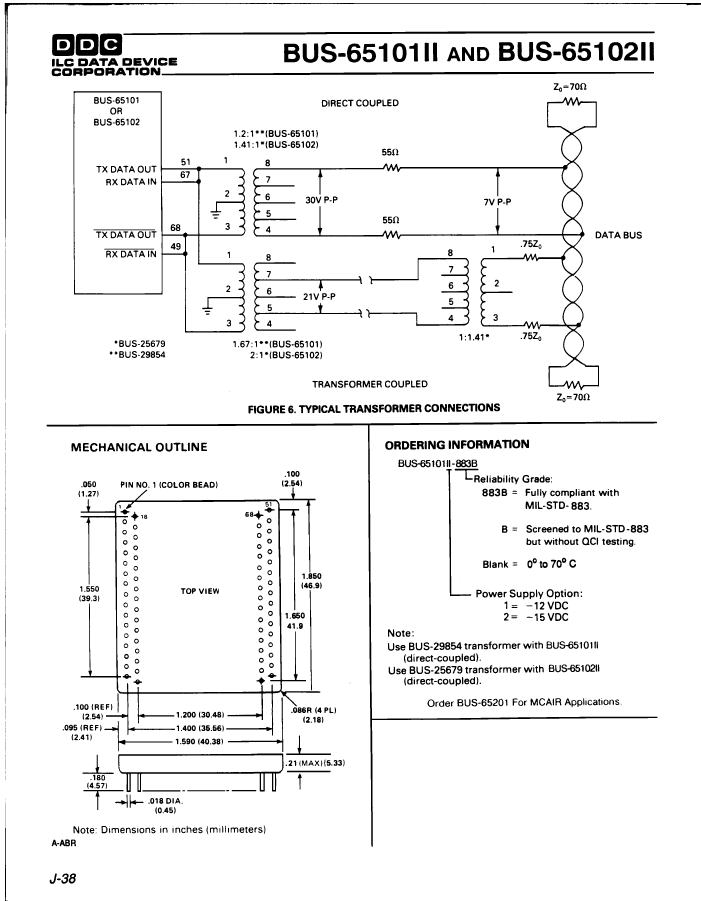

Preview

BUS-65101II: DescriptionMil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size99KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BUS-65101II Overview

Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68

BUS-65101II Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	QFP
package instruction	QIP,
Contacts	68
Reach Compliance Code	unknown
Address bus width	5
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
External data bus width	16
JESD-30 code	R-CQIP-P68
length	46.9 mm
Number of serial I/Os	2
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.33 mm
Nominal supply voltage	-12 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
width	35.56 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

Preview

Download Datasheet

View All

BUS-65101II Related Products

	BUS-65101II	BUS-65102II-B	BUS-65101II-B	BUS-65101II-883B	BUS-65102II
Description	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP68, 1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
Parts packaging code	QFP	QFP	QFP	QFP	QFP
package instruction	QIP,	1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68	1.600 X 1.900 INCH, HERMETIC SEALED, HYBRID PACKAGE-68
Contacts	68	68	68	68	68
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Address bus width	5	5	5	5	5
letter of agreement	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
External data bus width	16	16	16	16	16
JESD-30 code	R-CQIP-P68	R-CQIP-P68	R-CQIP-P68	R-CQIP-P68	R-CQIP-P68
length	46.9 mm	46.9 mm	46.9 mm	46.9 mm	46.9 mm
Number of serial I/Os	2	2	2	2	2
Number of terminals	68	68	68	68	68
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP	QIP	QIP	QIP	QIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.33 mm	5.33 mm	5.33 mm	5.33 mm	5.33 mm
Nominal supply voltage	-12 V	-15 V	-12 V	-12 V	-15 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	35.56 mm	35.56 mm	35.56 mm	35.56 mm	35.56 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
