ARJ-107D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ARJ-107D

ARJ-107D: DescriptionTelecom and Datacom Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size824KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ARJ-107D Overview

Telecom and Datacom Connector, ROHS COMPLIANT

ARJ-107D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR

Preview

Download Datasheet

View All

TAP DOWN RJ45 INTEGRATED CONNECTOR

ARJ-101-108

FEATURES:

• Cost saving: reduce PCB space and save inventory/assembly cost

• Excellent EMI suppression performance

• Mett IEEE 802.3 standards and FCC mechanical requirements

RoHS

Compliant

13.6 x 16.0 x 21.6 mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• LAN-on-Motherboard (LOM),

• SOHO (ADSL modems), Hubs.

• Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

STANDARD SPECIFICATIONS:

Insertion Loss: -1.0 dB Max @ 1MHz to 100MHz

For ARJ-102, ARJ-103, ARJ-104 and ARJ-108, Return Loss and CMR is only tested in RX side(1:1CT).

Inductance: 350µH min @ 100KHz, 0.1V

RMS

8mA DC

Hipot: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec

Operating temperature: -40°C to +85° C

D: means with LED version

Note:

ABRACON P/N:

ARJ-101~108

Operating Temperature:

- 40 TO + 85°C

Storage Temperature:

- 20 TO +125°C

ARJ-106

ARJ-107

ARJ-107D

ARJ-108

ARJ-101

Turns Ratio(±2%)

Return Loss

(dB Typ.)

1~30MHz

30~60MHz

60~80MHz

Cross Talk

(dB Typ.)

1~60MHz

60~80MHz

CMR (dB Typ.)

1~60MHz

60~80MHz

Figure

-45/-40

-40/-35

-40

-38

-16

-13

-10

1CT:1CT

ARJ-101D

ARJ-102

ARJ-103

ARJ-104

ARJ-105

1CT:1CT

1.414CT:1CT

1CT:1CT

2CT:1CT

1CT:1CT

1CT:1.414CT

1CT:1CT

1CT:2CT

1CT:1CT

1CT:2.5CT

1CT: 1CT

-16

-13

-10

-16

-13

-10

-16

-13

-10

-16

-13

-10

-16

-13

-10

-18

-16

-14

-18

-16

-14

-20/-20

-15/-17

-11/-15

-16

-13

-10

-40

-38

-45/-40

-40/-35

-40

-35

-40

-35

-40

-35

-40

-35

-30

-45/-40

-40/-35

-35

-40

-35

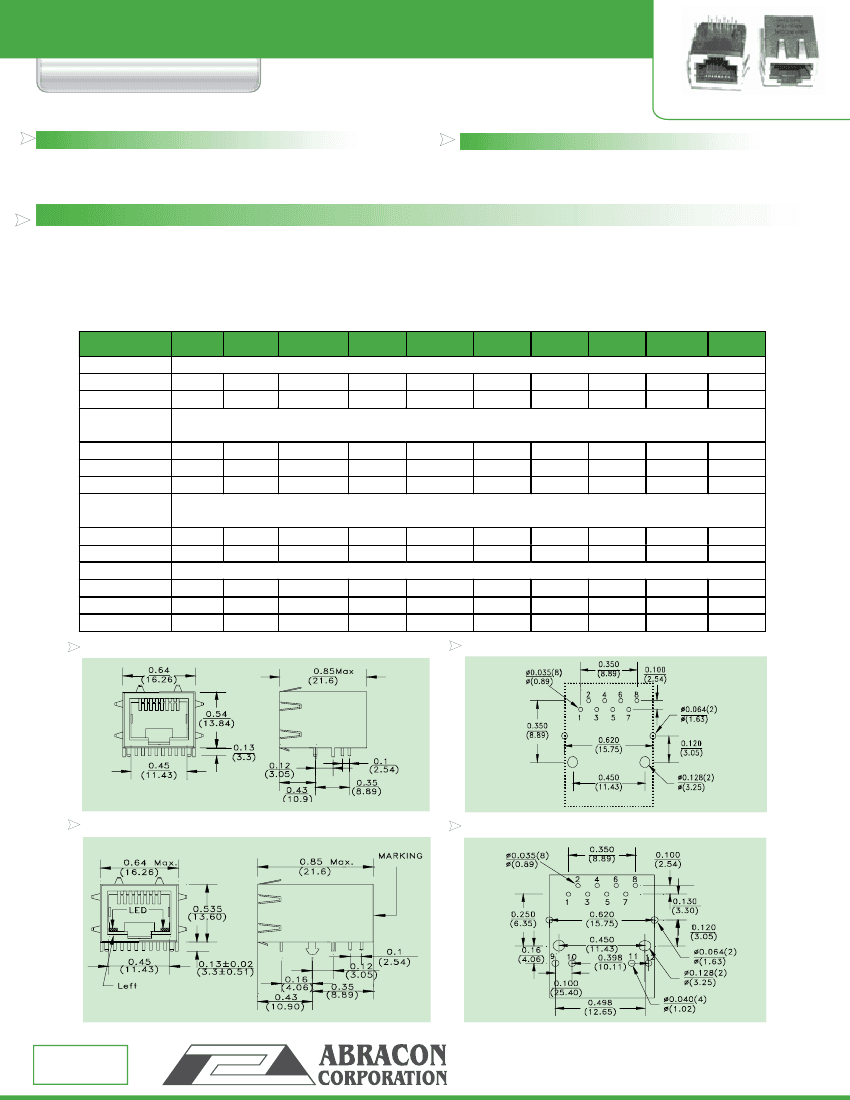

DIMENSIONS WITHOUT LED:

LAND PATTERN WITHOUT LED:

DIMENSIONS WITH LED:

LAND PATTERN WITH LED:

Dimensions: Inches(mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 05.20.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ARJ-107D Related Products

	ARJ-107D	ARJ-101D
Description	Telecom and Datacom Connector, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Abracon	Abracon
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	not_compliant	unknown
ECCN code	EAR99	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
