KSC5060R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> KSC5060R

KSC5060R: DescriptionPower Bipolar Transistor, 3A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size48KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

KSC5060R Overview

Power Bipolar Transistor, 3A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

KSC5060R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	TO-220AB
package instruction	TO-220, 3 PIN
Contacts	3
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	500 V
Configuration	SINGLE
Minimum DC current gain (hFE)	8
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	40 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	18 MHz

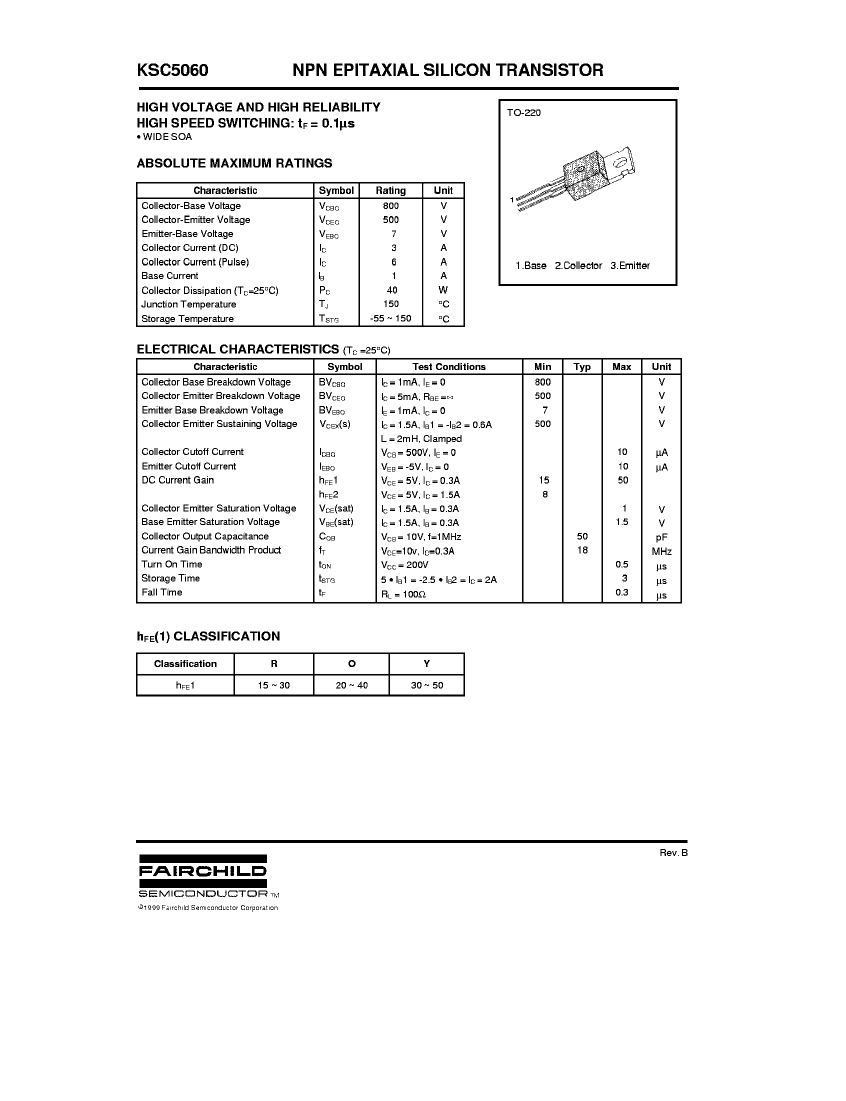

Preview

Download Datasheet

View All

KSC5060R Related Products

	KSC5060R	KSC5060Y	KSC5060O
Description	Power Bipolar Transistor, 3A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 3A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 3A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild
Parts packaging code	TO-220AB	SFM	SFM
package instruction	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN
Contacts	3	3	3
Reach Compliance Code	compliant	compliant	compliant
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Maximum collector current (IC)	3 A	3 A	3 A
Collector-emitter maximum voltage	500 V	500 V	500 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	8	30	20
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0	e0
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	40 W	40 W	40 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	18 MHz	18 MHz	18 MHz
