HA3-5101-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HA3-5101-5

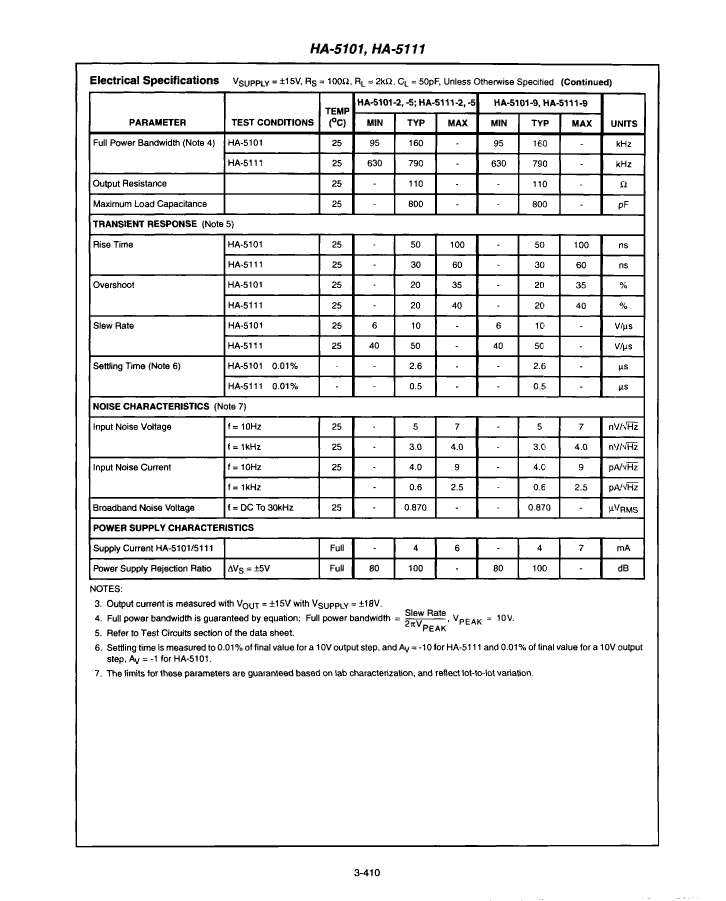

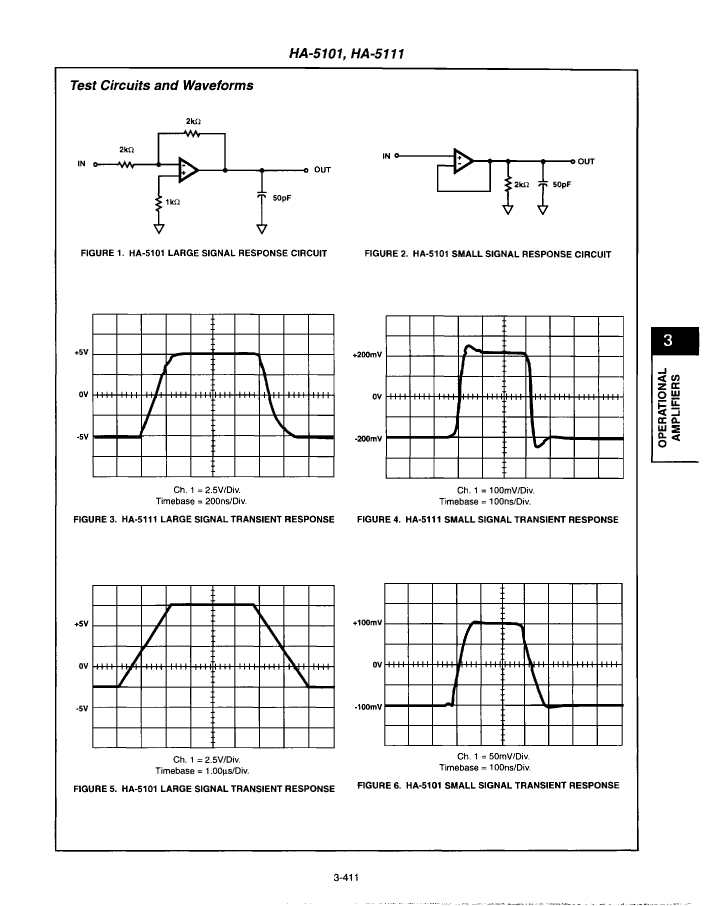

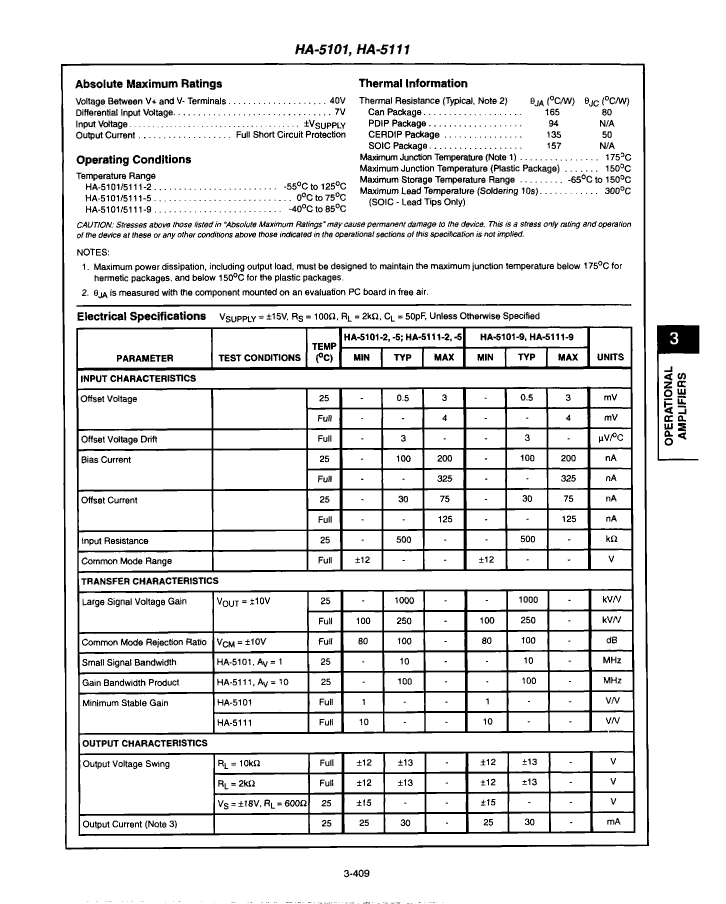

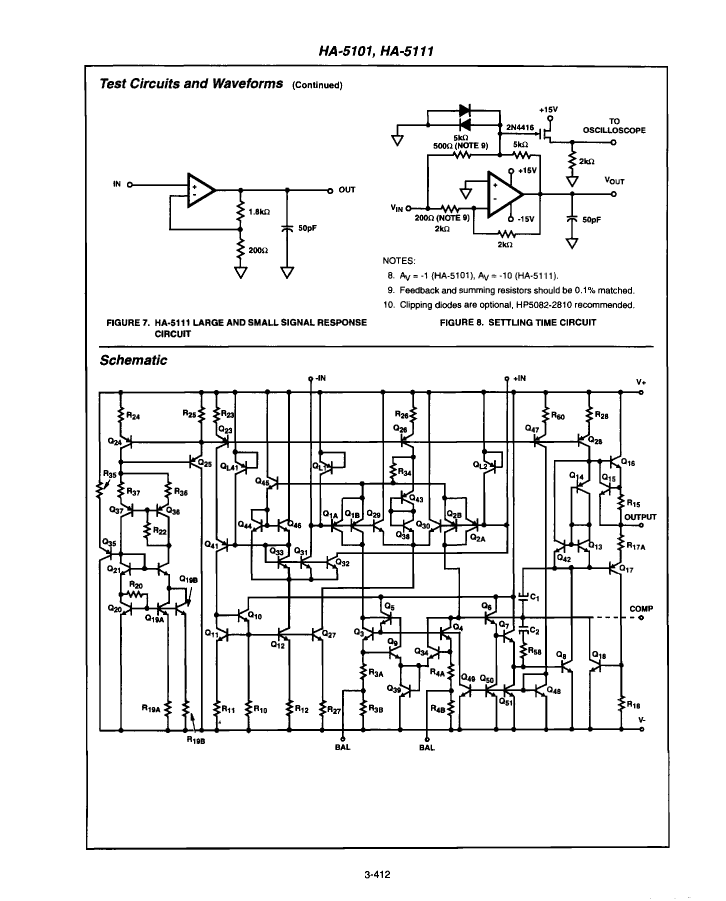

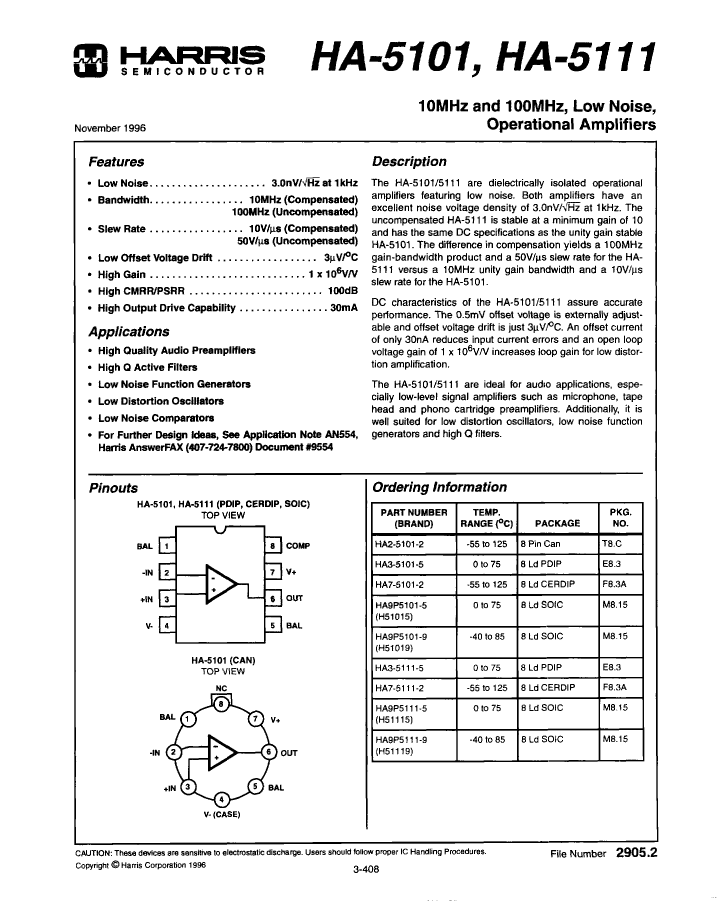

HA3-5101-5: DescriptionOP-AMP, 4000uV OFFSET-MAX, 100MHz BAND WIDTH, PDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size351KB，11 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HA3-5101-5 Overview

OP-AMP, 4000uV OFFSET-MAX, 100MHz BAND WIDTH, PDIP8

HA3-5101-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.325 µA
Maximum bias current (IIB) at 25C	0.2 µA
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES
Maximum input offset voltage	4000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.585 mm
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
minimum slew rate	6 V/us
Nominal slew rate	10 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	100000 kHz
Minimum voltage gain	100000
width	7.62 mm

Preview

Download Datasheet

View All

HA3-5101-5 Related Products

	HA3-5101-5	HA7-5101-2
Description	OP-AMP, 4000uV OFFSET-MAX, 100MHz BAND WIDTH, PDIP8	OP-AMP, 4000uV OFFSET-MAX, 100MHz BAND WIDTH, CDIP8, CERDIP-8
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.325 µA	0.325 µA
Maximum bias current (IIB) at 25C	0.2 µA	0.2 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB
frequency compensation	YES	YES
Maximum input offset voltage	4000 µV	4000 µV
JESD-30 code	R-PDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0
low-dissonance	NO	NO
Negative supply voltage upper limit	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	75 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.33 mm	5.08 mm
minimum slew rate	6 V/us	6 V/us
Nominal slew rate	10 V/us	10 V/us
Maximum slew rate	6 mA	6 mA
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	100000 kHz	100000 kHz
Minimum voltage gain	100000	100000
width	7.62 mm	7.62 mm
