MTL206P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MTL206P

Preview

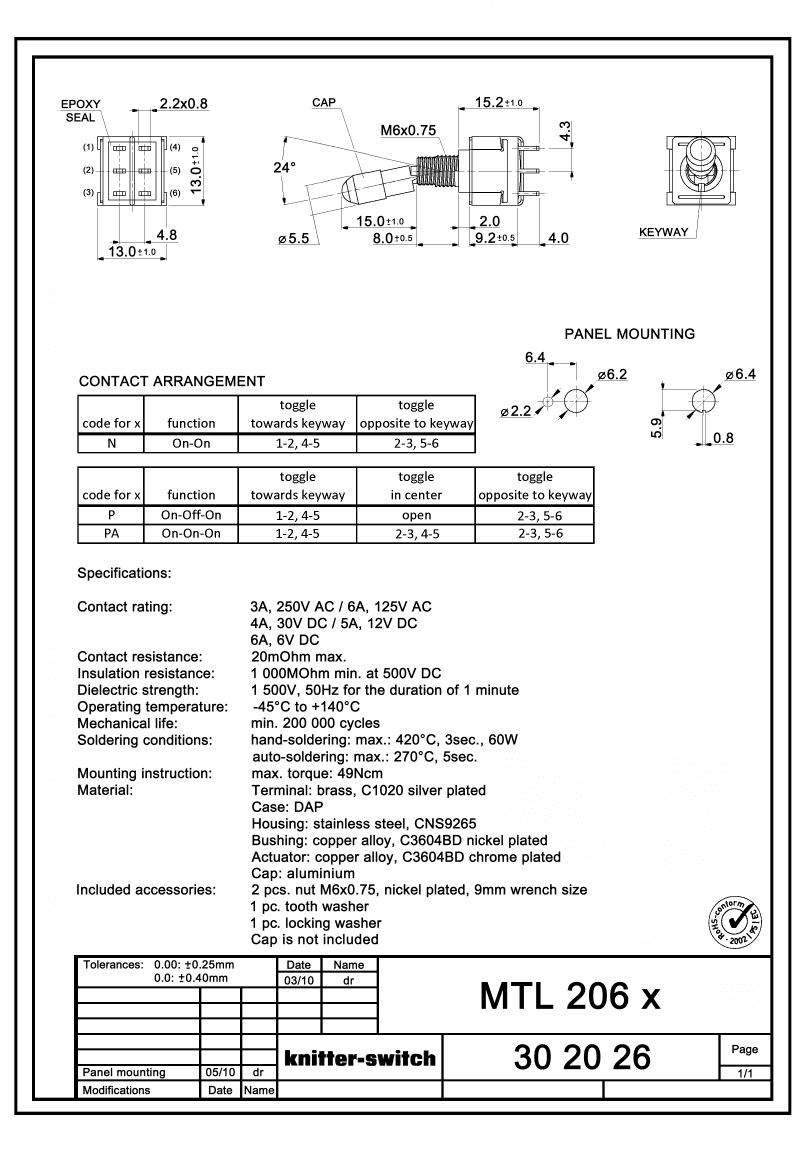

MTL206P: DescriptionToggle Switch, DPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size200KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MTL206P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTL206P	-	-	View	Buy Now

MTL206P Overview

Toggle Switch, DPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight

MTL206P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knitter-switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.591 inch
Actuator material	COPPER ALLOY
Actuator type	TOGGLE
body width	13.0048 mm
body height	11.2014 mm
Body length or diameter	13.0048 mm
Nozzle length	0.315 inch
Casing type	M6X0.75
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@30VDC
Contact function	ON-OFF-ON
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VAC V
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	MTL
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C
Minimum operating temperature	-45 °C
seal	EPOXY
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal length	0.157 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

MTL206P Related Products

	MTL206P	MTL206PA	MTL206N
Description	Toggle Switch, DPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, On-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight
Maker	Knitter-switch	Knitter-switch	Knitter-switch
Reach Compliance Code	compliant	compliant	compliant
Actuator angle	24 deg	24 deg	24 deg
Executor completed	CHROME	CHROME	CHROME
Actuator length	0.591 inch	0.591 inch	0.591 inch
Actuator material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Actuator type	TOGGLE	TOGGLE	TOGGLE
body width	13.0048 mm	13.0048 mm	13.0048 mm
body height	11.2014 mm	11.2014 mm	11.2014 mm
Body length or diameter	13.0048 mm	13.0048 mm	13.0048 mm
Nozzle length	0.315 inch	0.315 inch	0.315 inch
Casing type	M6X0.75	M6X0.75	M6X0.75
Contact (AC) maximum rated R load	3A@250VAC	3A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	3 A	3 A
Maximum contact current (DC)	4 A	4 A	4 A
Contact (DC) maximum rated R load	4A@30VDC	4A@30VDC	4A@30VDC
Contact function	ON-OFF-ON	ON-ON-ON	ON-ON
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ
Maximum contact voltage (AC)	250 V	250 V	250 V
Maximum contact voltage (DC)	30 V	30 V	30 V
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	MTL	MTL	MTL
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C	140 °C	140 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C
seal	EPOXY	EPOXY	EPOXY
Solderability	HAND	HAND	HAND
surface mount	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	DPDT	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Terminal length	0.157 inch	0.157 inch	0.157 inch
Terminal material	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER
Is it Rohs certified?	conform to	-	conform to
ECCN code	EAR99	-	EAR99
