4-Channel Headset EMI Filter Array
with ESD Protection
CM1410
Features
•
•
•
•
•
•
•
•
•
Functionally and pin compatible with the
CSPEMI200A device
Pi-style EMI filters in a capacitor-resistor-
capacitor (C-R-C) network
Four channels of EMI filtering with ESD
protection
Includes one channel of ESD-only protection
Greater than 30dB attenuation at 1GHz
+
8kV ESD protection on each channel
(IEC 61000-4-2 Level 4, contact discharge)
+
15kV ESD protection on each channel (HBM)
Supports bipolar signals—ideal for
audio applications
Chip Scale Package features extremely low
lead inductance for optimum filter and ESD
performance
11-bump, 2.046mm X 1.436mm footprint
Chip Scale Package (CSP)
Optiguard
™
coated for improved reliability at
assembly
RoHS-compatible, lead-free packaging
Product Description
The CM1410 is a quad low-pass filter array
integrating four pi-style filters (C-R-C) that reduce
EMI/RFI emissions while at the same time providing
ESD protection. This device is custom-designed to
interface with the headset port on a cellular
telephone, and contains three different filter values.
Each high quality filter provides more than 20dB
attenuation in the 800-2700 MHz range. These pi-
style filters support bidirectional filtering, controlling
EMI both to and from the microphone and speaker
elements. They also support bipolar signals, enabling
audio signals to pass through without distortion.
In addition, the CM1410 provides a very high level of
protection for sensitive electronic components that
may be subject to electrostatic discharge (ESD). The
CM1410 can safely dissipate ESD strikes of
+
8kV,
the maximum requirement of the IEC 61000-4-2
international standard. Using the MIL-STD-883
(Method 3015) specification for Human Body Model
(HBM) ESD, the device provides protection for
contact discharges to greater than
+
15kV. The
CM1410 also includes a single channel of ESD-only
protection.
The CM1410 is particularly well suited for portable
electronics (e.g., cellular telephones, PDAs, notebook
computers) because of its small package format and
low weight.
The CM1410 incorporates
Optiguard
™
coating which
results in improved reliability at assembly.The
CM1410 is available in a space-saving, low-profile
RoHS-compliant, Chip Scale Package.
•
•
•
Applications
•
•
•
•
•
•
•
EMI filtering and ESD protection for audio ports
Wireless handsets
Handheld PCs / PDAs
MP3 players
Digital camcorders
Notebooks
Desktop PCs
©2010 SCILLC. All rights reserved.
April 2010 Rev. 2
Publication Order Number:
CM1410/D
CM1410

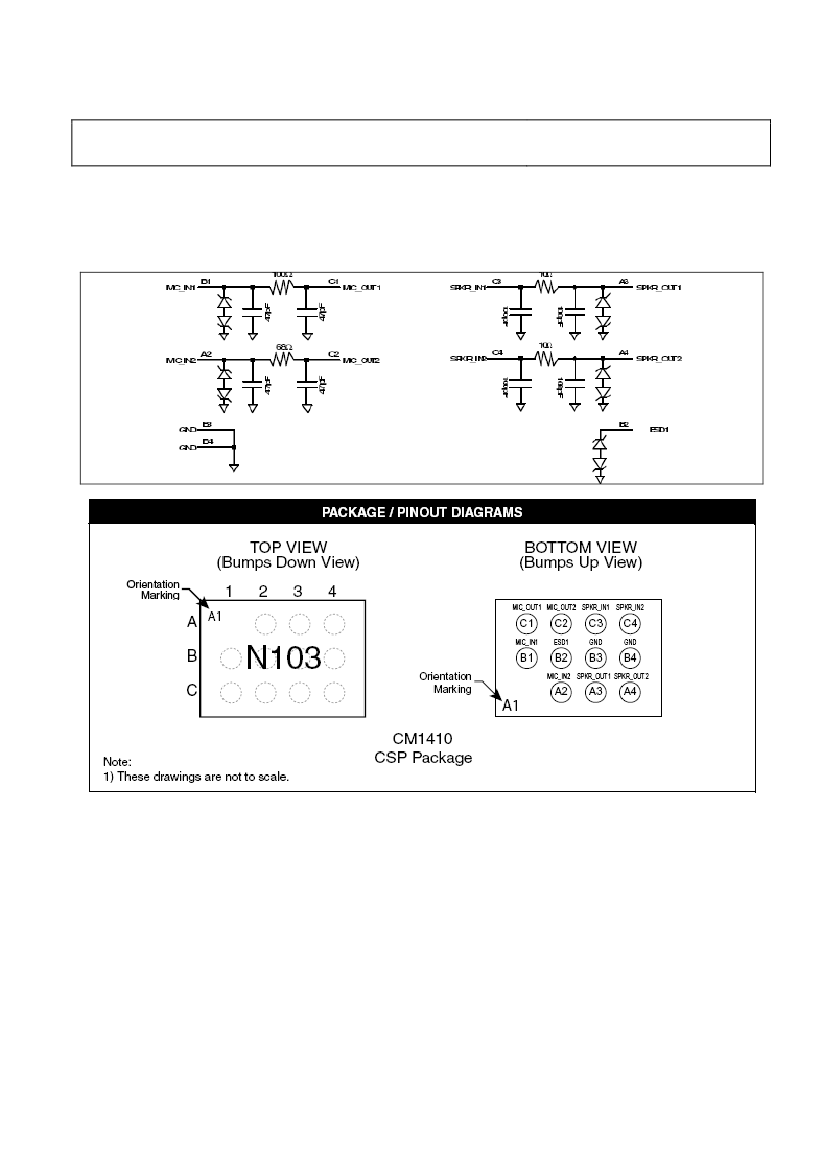

PIN DESCRIPTIONS
PIN
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
NAME
N.B.
MIC_IN2
SPKR_OUT1
SPKR_OUT2
MIC_IN1
ESD1
GND
GND
MIC_OUT1
MIC_OUT2
SPKR_IN1
SPKR_IN2
DESCRIPTION
No Bump – used for orientation / alignment
Microphone Input 2 (from microphone)
Speaker Output 1 (to speaker)
Speaker Output 2 (to speaker)
Microphone Input 1 (from microphone)
ESD Protection Input. Provides a channel specifically for ESD protection purposes.
Device Ground
Device Ground
Microphone Output 1 (to audio circuitry)
Microphone Output 2 (to audio circuitry)
Speaker Input 1 (from audio circuitry)
Speaker Input 2 (from audio circuitry)
Ordering Information
PART NUMBERING INFORMATION
Bumps
11
Package
CSP
Ordering Part Number
CM1410-03CP
1
Part Marking
N103
Note 1: Parts are shipped in Tape and Reel form unless otherwise specified.
Specifications
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Storage Temperature Range
DC Power per Resistor
DC Package Power Rating
RATING
-65 to +150
100
400
UNITS
°
C
mW
mW
Rev. 2 | Page 3 of 10 | www.onsemi.com
CM1410
STANDARD OPERATING CONDITIONS
PARAMETER
Operating Temperature Range
RATING
-40 to +85
UNITS
°
C
ELECTRICAL OPERATING CHARACTERISTICS
(NOTE 1)
SYMBOL
R
1
R
2
R
3
C
1
C
2
I
LEAK
V
SIG
PARAMETER
Resistance 1
Resistance 2
Resistance 3
Capacitance 1
Capacitance 2
Diode Leakage Current
Signal Voltage
Positive Clamp
Negative Clamp
In-system ESD Withstand Voltage
a) Human Body Model, MIL-STD-883,
Method 3015
b) Contact Discharge per IEC 61000-4-2
Level 4
Clamping Voltage during ESD Discharge
MIL-STD-883 (Method 3015), 8kV
Positive Transients
Negative Transients

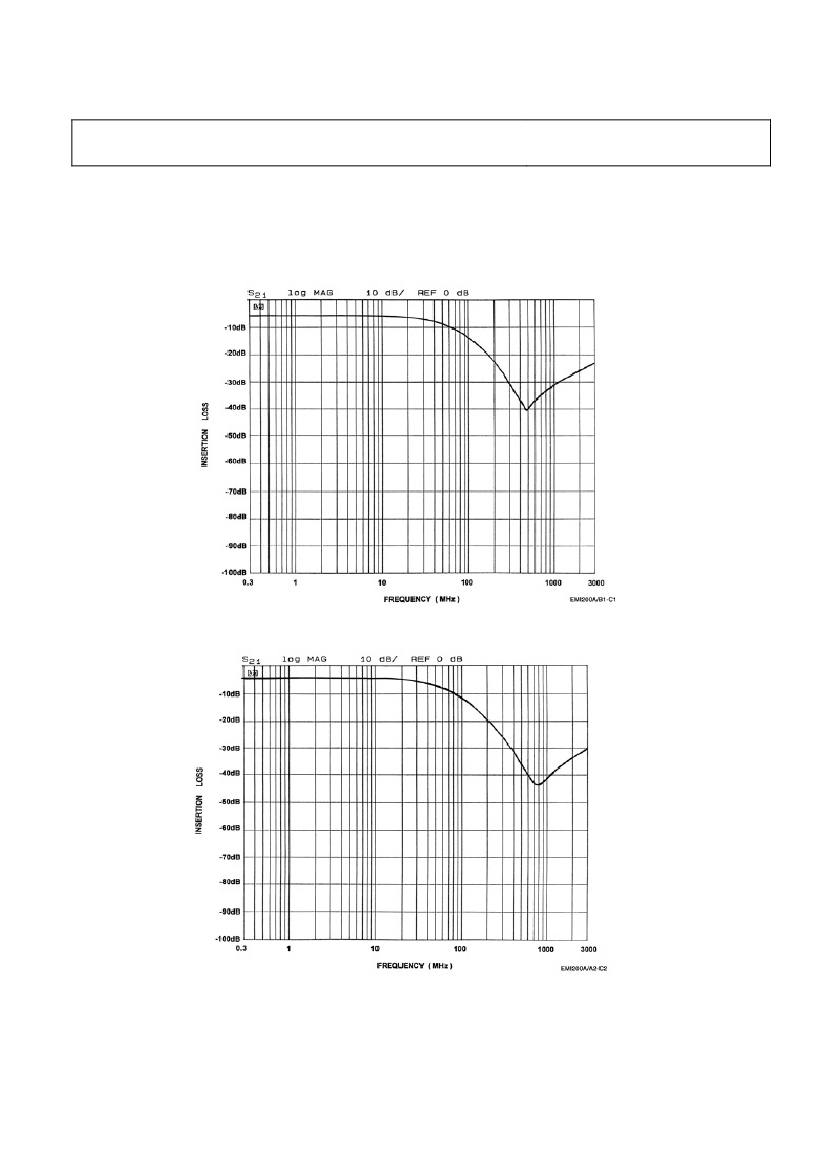

Cut-off frequency 1; Note 5
Cut-off frequency 2; Note 5
Cut-off frequency 3; Note 5
V
IN
=5.0V
I
LOAD
= 10mA
5
-15
Notes 2 and 4
±15
±
8
Notes 2,3 and 4
+15
-19
R = 100Ω, C = 47pF
R = 68Ω, C = 47pF
R = 10Ω, C = 100pF
53
61
33
V
V
MHz
MHz
MHz
kV
kV
7
-10
15
-5
V
V
CONDITIONS
MIN
90
61
9
38
80
TYP
100
68
10
47
100
MAX
110
75
11
57
120
1.0
UNITS
Ω
Ω
Ω
pF
pF
µA
V
ESD
V
CL
f
C1
f
C2
f
C3
Note 1: T
A
=25
°
unless otherwise specified.
C
Note 2: ESD applied to input pins with respect to GND, one at a time, pins A2, A3, A4, B1 and B2 only.
Note 3: Clamping voltage is measured at the opposite side of the EMI filter to the ESD pin. For example, if ESD is applied to Pin
B1, then clamping voltage is measured at Pin C1.
Note 4: Unused pins are left open
Note 5: Z
SOURCE
=50Ω, Z
LOAD
=50Ω
Rev. 2 | Page 4 of 10 | www.onsemi.com
