DJ1GANAO: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Panel Mount,; CategoryMechanical and electronic products switch; File Size88KB，2 Pages; ManufacturerThe Cherry Corporation

Download Datasheet Parametric Compare View All

DJ1GANAO Overview

Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Panel Mount,

DJ1GANAO Parametric

Parameter Name	Attribute value
Maker	The Cherry Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
body width	6.4 mm
body height	8.15 mm
Body length or diameter	15.2 mm
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@12VDC
Maximum contact voltage (DC)	12 V
JESD-609 code	e4
Manufacturer's serial number	DJ
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	SILVER
Termination type	SOLDER

Preview

Download Datasheet

View All

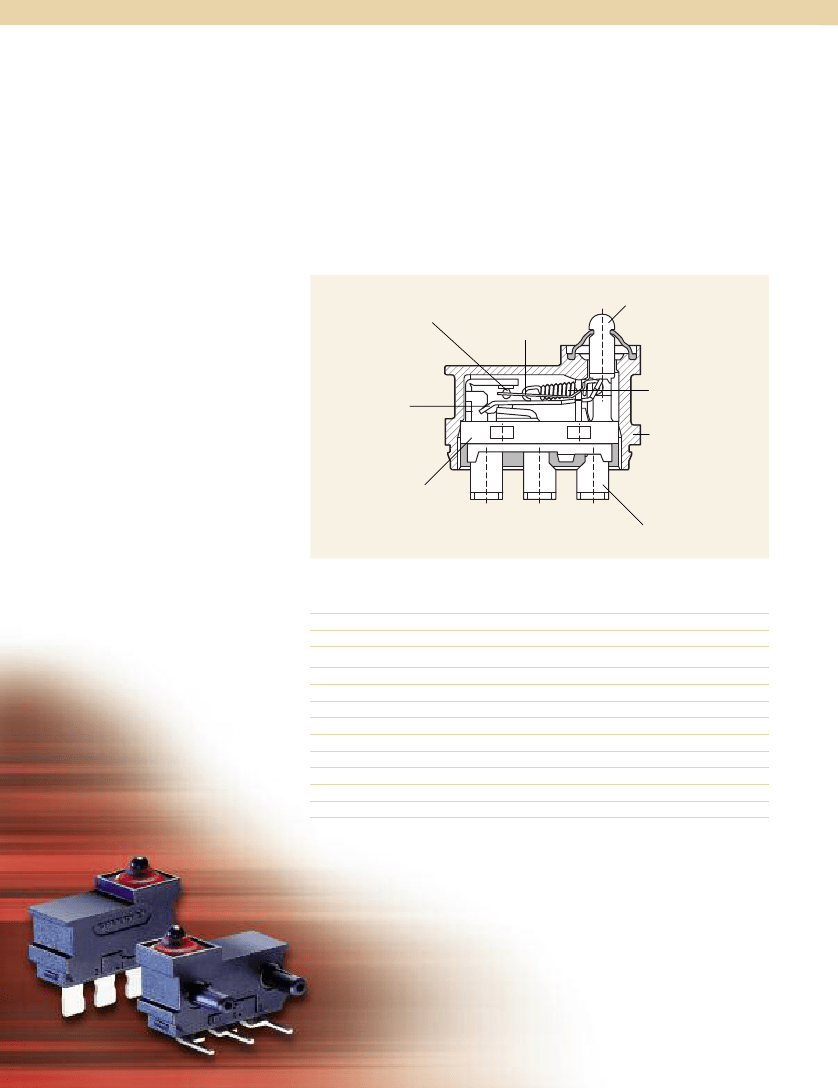

SUBMINIATURE — SEALED

DJSeries

Features

Enclosed switch complying with IP 6K7

Suitable for actuation at angles of up

to 40°, depending on material used in

sliding actuator, etc.

Multiple location pins and locating slots

make installation easy

Very small dimensions

Models available for operating

temperatures up to 85°C

Rated for 5mA@12VDC or 2A@12VDC

High contact stability due to

gold crosspoint contacts

Mechanical life: min. 500,000 operations

Wide variety of connection options

PBT base

Gold crosspoint

contacts

Gold-plated

beryllium copper

moving blade

POM actuating button

Stainless steel

internal actuator

Stainless steel spring

PBT + ASA cover

Silver-plated terminals

Specifications

Electrical

Temperature Rating:

Flammability Rating:

Materials

-40° to +85°C

N/A

PBT

PBT + ASA

POM

Stainless Steel

Silicon

Gold-Plated Beryllium Copper

Silver-Plated Copper-Zinc

Gold Crosspoint

Base:

Cover:

Actuator:

Internal Actuator:

Spring:

Gasket:

Moving Blade:

Terminals:

Contacts:

ASA = Acrylonitrile-styrene-acrylicester • PBT = Polybutyleneterephthalate • POM = Polyacetal

DJ1GANAO Related Products

	DJ1GANAO	DJ1GARAO	DJ1GBLAO	DJ1GBRAO	DJ1GALAO	DJ1GBNAO
Description	Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Panel Mount,	Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Through Hole-right Angle,	Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Through Hole-right Angle,	Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Through Hole-right Angle,	Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Through Hole-right Angle,	Snap Acting/Limit Switch, SPDT, Momentary, 2A, 12VDC, Solder Terminal, Through Hole-straight,
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	6.4 mm	8.15 mm	8.15 mm	8.15 mm	8.15 mm	6.4 mm
body height	8.15 mm	6.4 mm	6.4 mm	6.4 mm	6.4 mm	8.15 mm
Body length or diameter	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm
Maximum contact current (DC)	2 A	2 A	2 A	2 A	2 A	2 A
Contact (DC) maximum rated R load	2A@12VDC	2A@12VDC	2A@12VDC	2A@12VDC	2A@12VDC	2A@12VDC
Maximum contact voltage (DC)	12 V	12 V	12 V	12 V	12 V	12 V
JESD-609 code	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	DJ	DJ	DJ	DJ	DJ	DJ
Installation features	PANEL MOUNT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
seal	IP67	IP67	IP67	IP67	IP67	IP67
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal surface	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	The Cherry Corporation	The Cherry Corporation	-	-	The Cherry Corporation	The Cherry Corporation
