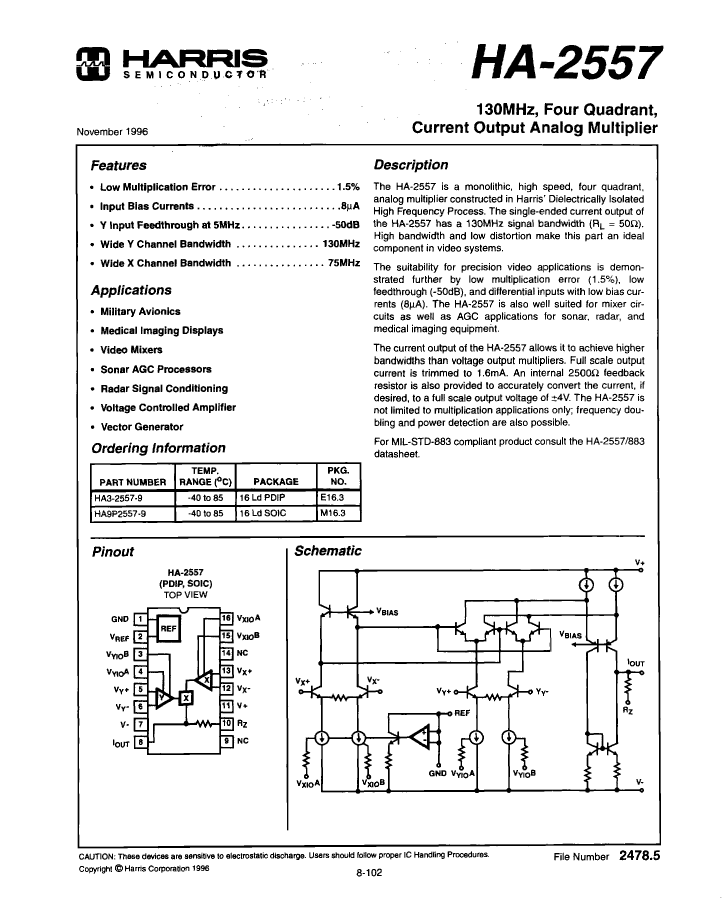

Preview

HA9P2557-9: DescriptionAnalog Multiplier Or Divider, 1 Func, 130MHz Band Width, BIPolar, PDSO16; CategoryAnalog mixed-signal IC The signal circuit; File Size39KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HA9P2557-9 Overview

Analog Multiplier Or Divider, 1 Func, 130MHz Band Width, BIPolar, PDSO16

HA9P2557-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP16,.4
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	ANALOG MULTIPLIER OR DIVIDER
Nominal bandwidth	130 MHz
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-17 V
Negative supply voltage minimum (Vsup)	-12 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Maximum negative input voltage	-4 V
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum positive input voltage	4 V
power supply	15 V
Certification status	Not Qualified
Maximum supply current (Isup)	17 mA
Maximum supply voltage (Vsup)	17 V
Minimum supply voltage (Vsup)	12 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

HA9P2557-9 Related Products

	HA9P2557-9	HA3-2557-9
Description	Analog Multiplier Or Divider, 1 Func, 130MHz Band Width, BIPolar, PDSO16	Analog Multiplier Or Divider, 1 Func, 130MHz Band Width, BIPolar, PDIP16
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	SOP, SOP16,.4	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER
Nominal bandwidth	130 MHz	130 MHz
JESD-30 code	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0
Maximum negative supply voltage (Vsup)	-17 V	-17 V
Negative supply voltage minimum (Vsup)	-12 V	-12 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Maximum negative input voltage	-4 V	-4 V
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP16,.4	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum positive input voltage	4 V	4 V
power supply	15 V	15 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	17 mA	17 mA
Maximum supply voltage (Vsup)	17 V	17 V
Minimum supply voltage (Vsup)	12 V	12 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
