HM6168HLP-55 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HM6168HLP-55

HM6168HLP-55: Description4KX4 STANDARD SRAM, 55ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20; Categorystorage storage; File Size173KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HM6168HLP-55 Overview

4KX4 STANDARD SRAM, 55ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20

HM6168HLP-55 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	55 ns
JESD-30 code	R-PDIP-T20
length	25.4 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of terminals	20
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX4
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

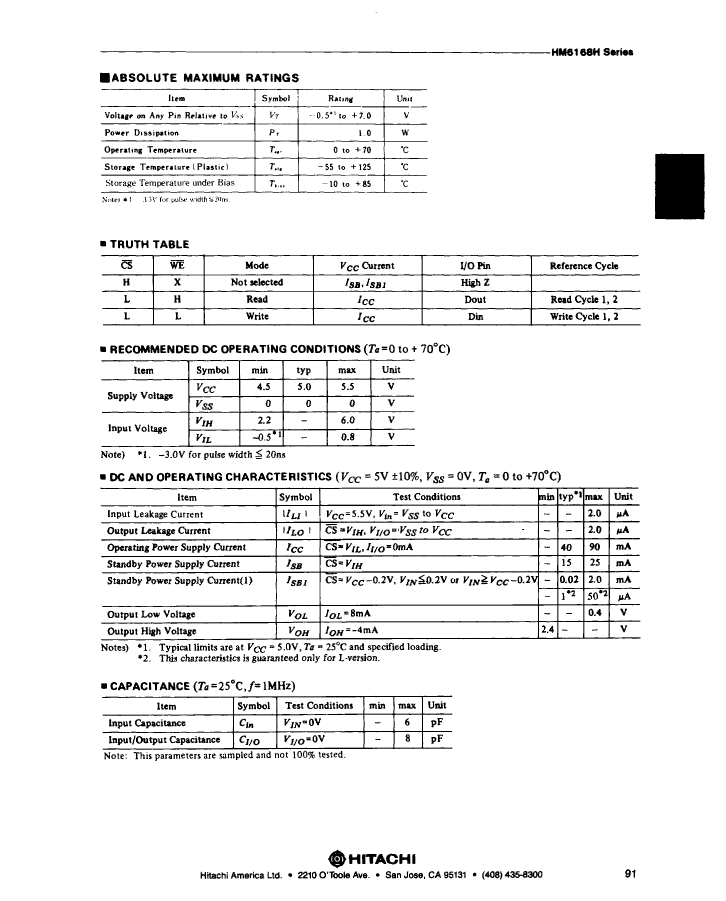

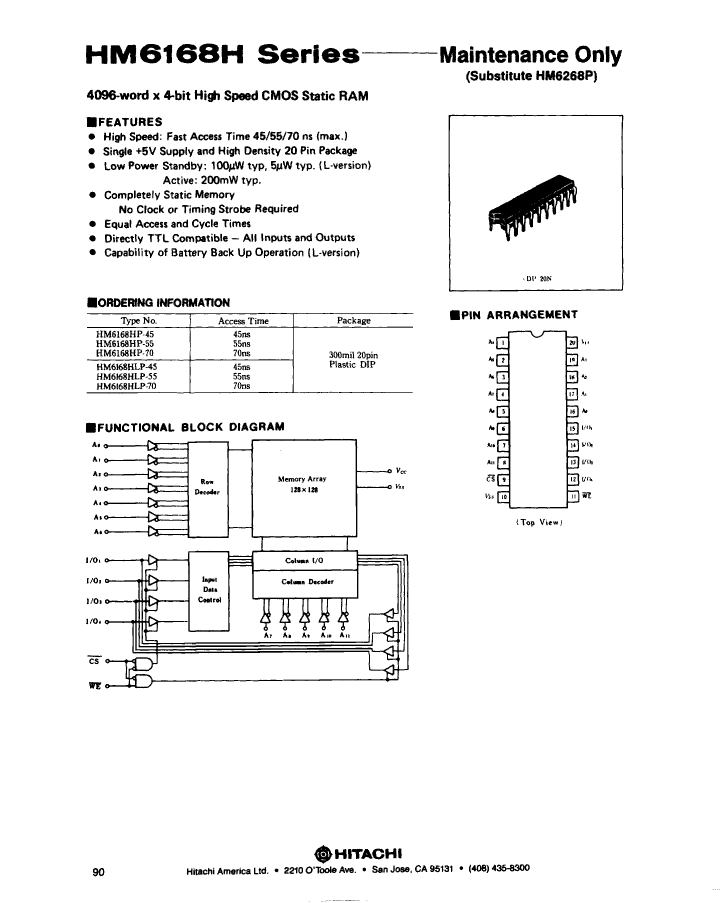

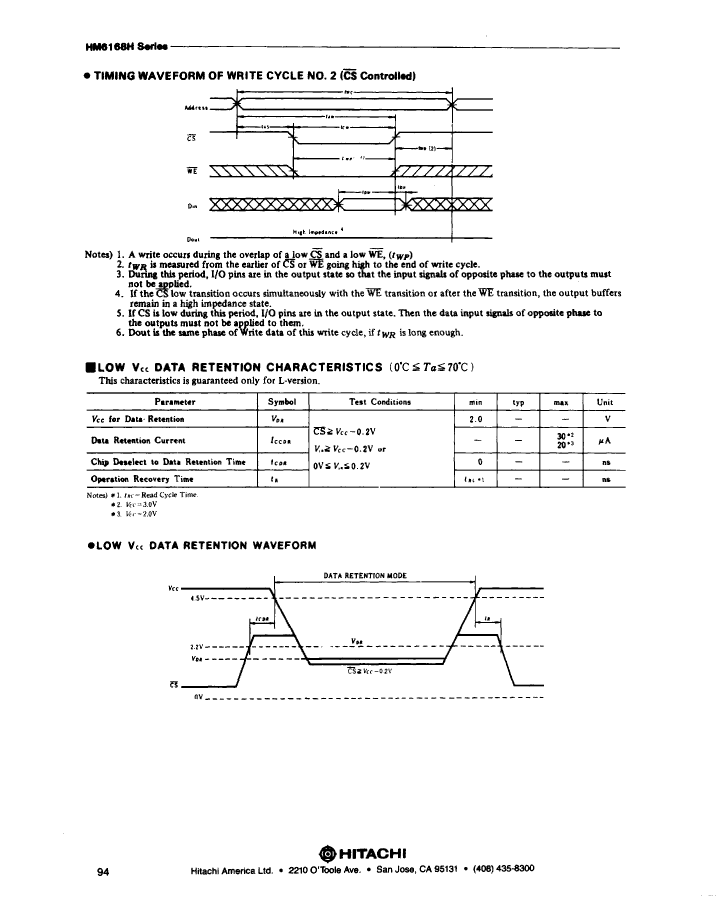

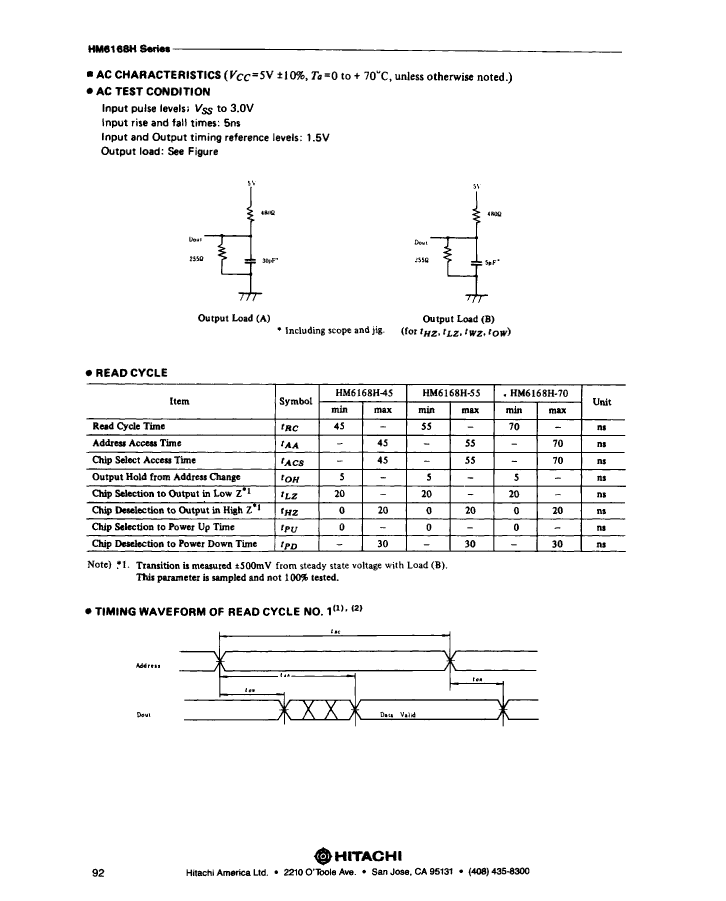

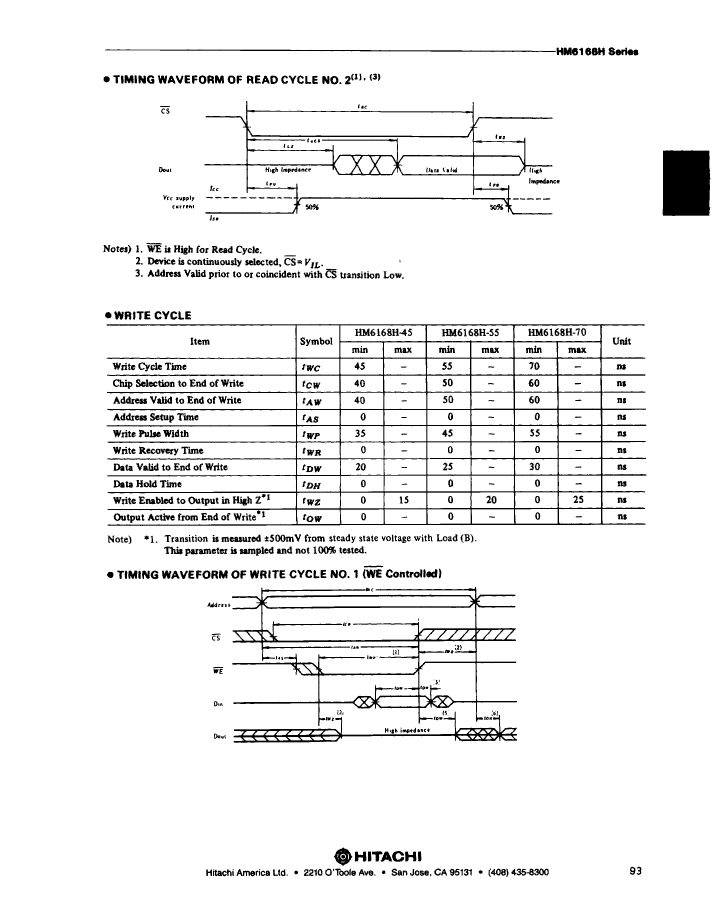

Preview

Download Datasheet

View All

HM6168HLP-55 Related Products

	HM6168HLP-55	HM6168HP-55	HM6168HP-70	HM6168HLP-45	HM6168HLP-70	HM6168HP-45
Description	4KX4 STANDARD SRAM, 55ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	4KX4 STANDARD SRAM, 55ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	4KX4 STANDARD SRAM, 70ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	4KX4 STANDARD SRAM, 45ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	4KX4 STANDARD SRAM, 70ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	4KX4 STANDARD SRAM, 45ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Contacts	20	20	20	20	20	20
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	55 ns	55 ns	70 ns	45 ns	70 ns	45 ns
JESD-30 code	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20
length	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
