L7C174IMB35 datasheet, PDF - EEWORLD Datasheet

L7C174IMB35: DescriptionCache Tag SRAM, 8KX8, 30ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28; Categorystorage storage; File Size375KB，8 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

L7C174IMB35 Overview

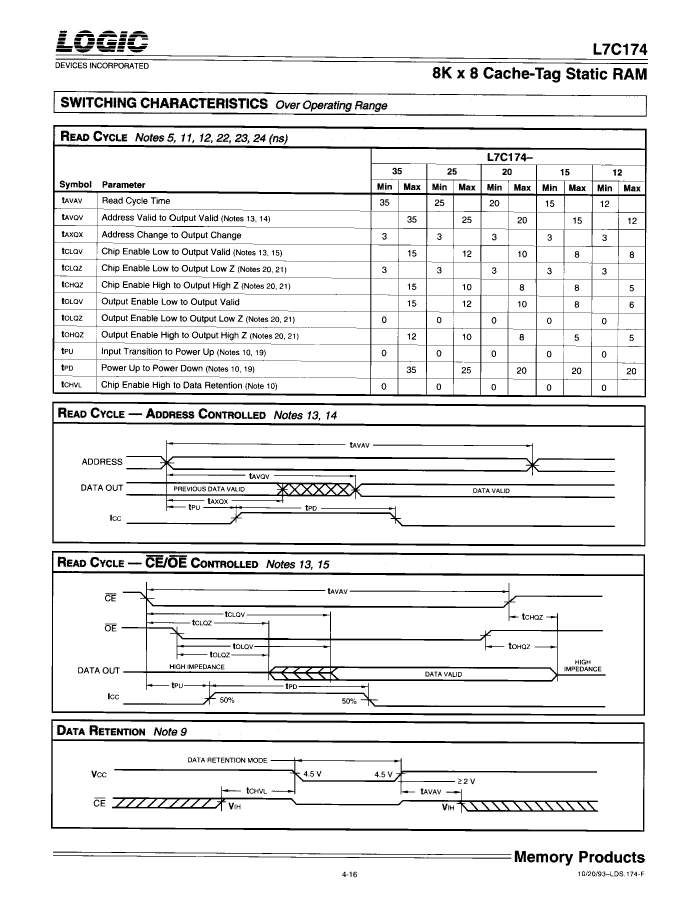

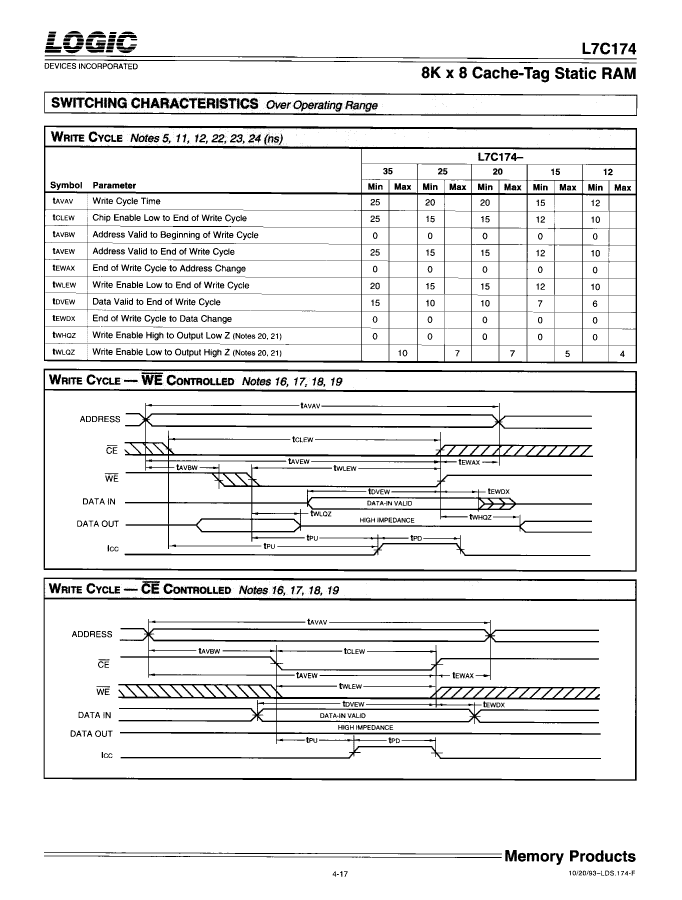

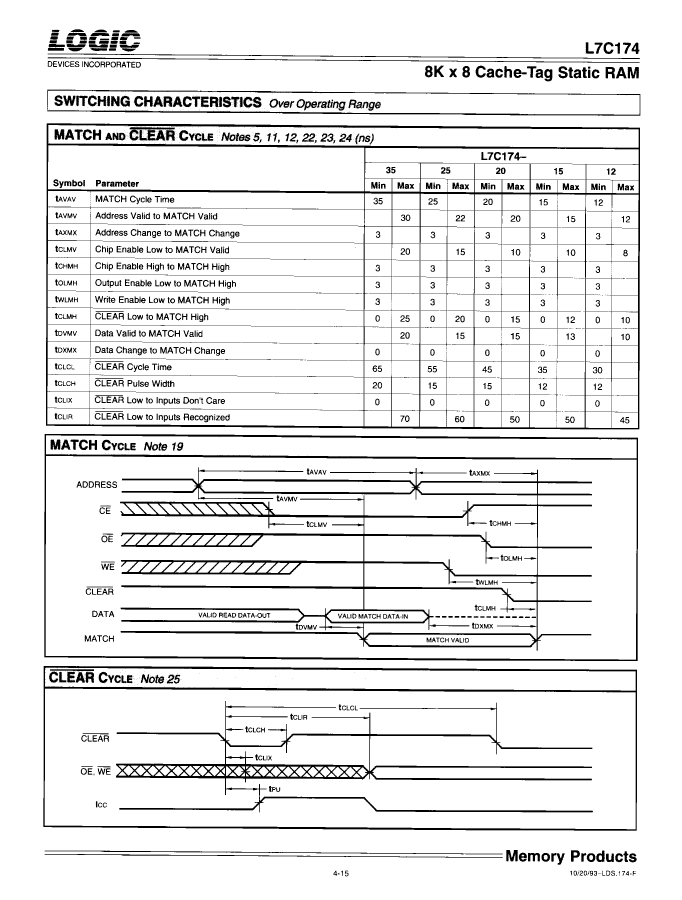

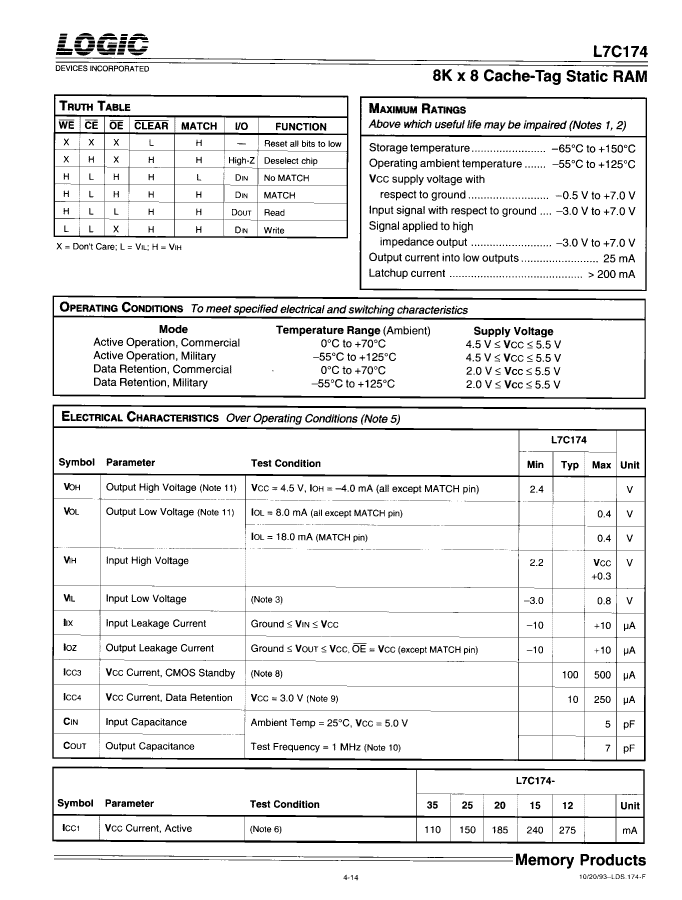

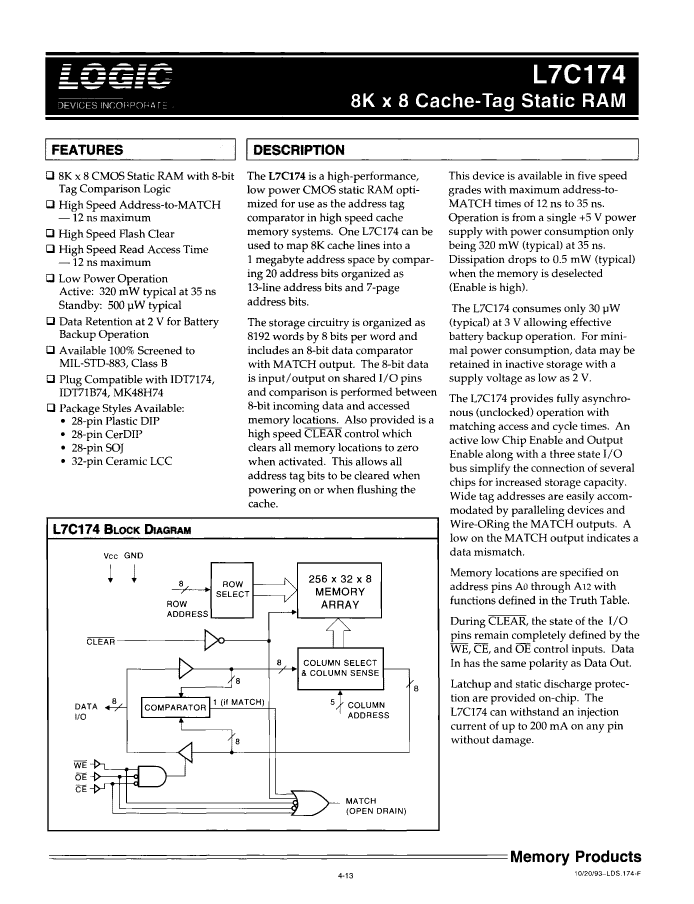

Cache Tag SRAM, 8KX8, 30ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	30 ns
Other features	MATCH OUTPUT
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
length	36.83 mm
memory density	65536 bit
Memory IC Type	CACHE TAG SRAM
memory width	8
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum standby current	0.00025 A
Minimum standby current	2 V
Maximum slew rate	0.11 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
