Features
Unregulated
Converters
●
●
●
●
●
●
●
●
High Isolation 2W Converter
Approved for Medical Applications
Custom Solutions Available
3kVDC and 4kVDC Isolation Options
UL94V-0 Package Material
Optional Continuous Short Circuit Protected
Efficiency to 84 %
Suitable for IGBT Applications
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
The RKZ Series of 2W DC/DC Converters are certified to EN 60950-1 and to the medical
standard EN-60601-1. This makes them suitable for high end industrial applications such as
IGBT driver circuitry as well as standard medical applications.
The RKZ converters are pin-compatible with the RK and RH converter series, offering a simple
way to upgrade a 1W high isolation supply to 2W.
Selection Guide
Part
Number
SIP7
RKZ-xx05S*
RKZ-xx12S*
RKZ-xx15S*
RKZ-xx05D*
RKZ-xx12D*
RKZ-xx15D*
RKZ-xx1509D*
Input
Voltage
(VDC)
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
Output
Voltage
(VDC)
5
12
15
±5
±12
±15
+15/-9
Output
Current
(mA)
400
168
132
±200
±84
±66
+67/-111
Efficiency
(%)
82-84
82-87
82-84
70-83
82-84
82-88
70-81
Max
Capacitive
Load
(1)
1500µF
330µF
330µF
±680µF
±220µF
±220µF
±330µF
4kV
(H)
(H)
(H)
(H)
(H)
(H)
(H)
2 Watt
SIP7
Single
&
Dual
Output
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g. RKZ-0515D/P,
* add Suffix „H“ for 4kV Isolation, e.g. RKZ-0515D/HP has 4kV Isolation and is Short Circuit Protected.
2011/65/EU
6/6
RoHS
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% load)
Output Ripple and Noise
Operating Frequency
Efficiency at Full Load
Minimum Load = 0%
Isolation Voltage
±10%
±5%
low line to high line @ 100% load 1.2%/1% of Vin typ.
5V type
15% max.
Other types, RKZ-xx1509D
10% max.
20MHz limited
150mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
RKZ-xx1509D
20kHz min. / 51kHz typ.
70% min. / 80% typ.
Specifications valid for 10% minimum load only.
(tested for 1 second)
3000VDC
Output Power (%)
EN-60950-1 Certified
IEC/EN-60601-1 Certified*
*
+15/-9 Version excluded
RKZ
Derating-Graph
(Ambient Temperature)
100
80
60
40
20
0
-40
0
50
85 100
150
1500VAC / 60Hz
Isolation Voltage
H-Suffix
4000VDC
H-Suffix
2000VAC / 60Hz
Isolation Capacitance
120pF max.
Isolation Resistance
10 GW min.
Short Circuit Protection
only with „/P“-Suffix
continuous
Operating Temperature Range (free air convection, without derating)
-40°C to +85°C (see Graph)
Storage Temperature Range
-55°C to +125°C
Relative Humidity
5% - 95% RH
Package Weight
2.8g
Material
Case
UL94V-0, black plastic
Potting
UL94V-0, Epoxy
Packing Quantity
25 pcs per Tube
MTBF (+25°C)
using MIL-HDBK 217F
18300 x 10
3
hours
Detailed Information see
Application Notes chapter "MTBF"
(+85°C)
using MIL-HDBK 217F
8070 x 10
3
hours
continued on next page
(rated for 1 minute**)
(tested for 1 second)
(rated for 1 minute**)
Safe Operating Area
Operating Temperature °C
**Any data referred to in this datasheet are of indivative nature and
based on our practical experience only. For further details, please refer
to our Application Notes.
}
www.recom-power.com/eval-ref-boards
www.recom-power.com
REV: 2/2017
E-93
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Certifications
EN General Safety
EN Medical safety
Notes
Note 1
Report: SPCLVD1109103
Report: SPCMDD1205098-4
RKZ
Series
EN60950-1:2006 + A12:2011
IEC/EN 60601-1:2006, 3rd Edition
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.

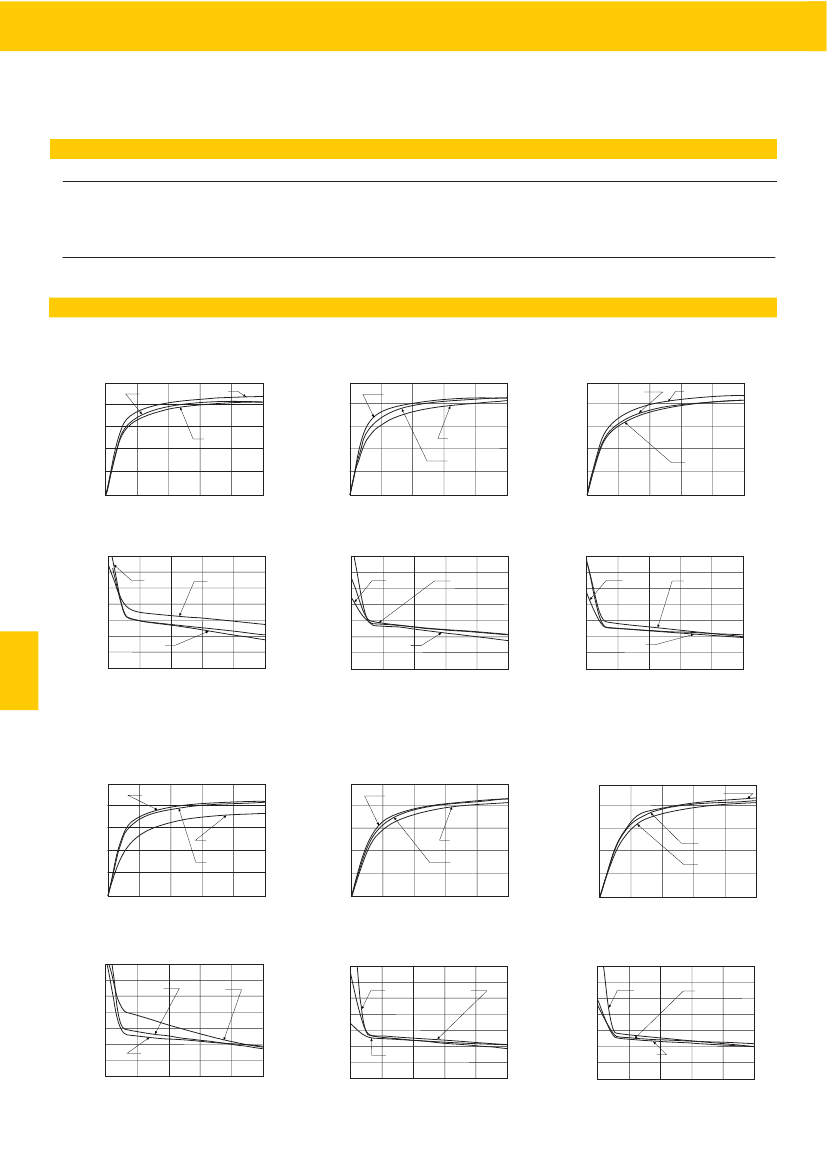

Typical Characteristics
RKZ-xx05S
Efficiency / Load
100
80
60
40
RKZ-xx12S
Efficiency / Load
100
80
60
100
RKZ-xx15S
Efficiency / Load
1215
0515
80
60
0505
2405
2412
1205
Efficiency %
40
20
0
1212
Efficiency %
0512
40
20
0
Efficiency %
20
0
2415
0% 20%
40%
60%
Total Output current (%)
80%
100%
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
20.000
Deviation / Load
25.000
20.000
Deviation / Load
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
Deviation from Nominal (%)
1205
2405
15.000
10.000
5.000
0.000
-5.000
-10.000
2412
1212
15.000
10.000
5.000
0.000
-5.000
-10.000
2415
0515
0505
0512
0% 20%
40%
60%
Total Output current (%)
80%
100%
1215
RKZ
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
RKZ-xx05D
Efficiency / Load
100
80
60
40
RKZ-xx12D
Efficiency / Load
100
80
60
RKZ-xx15D
Efficiency / Load
100
0505
2412
0515
80
60
2405
Efficiency %
1205
40
20
0
1212
Efficiency %
0512
40
20
0
1215
2415
Efficiency %
20
0
0% 20%
40%
60%
Total Output current (%)
80%
100%
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
Deviation / Load
25.000
20.000
20.000
Deviation / Load
Deviation from Nominal (%)
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
0505
2405
0512
1212
15.000
10.000
5.000
0.000
-5.000
-10.000
0515
2415
1205
2412
0% 20%
40%
60%
Total Output current (%)
80%
100%
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
E-94
REV: 2/2017
www.recom-power.com
ECONOLINE
DC/DC-Converter
Application
RKZ
Series
IGBT Application Circuit
Control Signal
IGBT
Driver
Rg
IGBT
+Vout
1
7
C2 +
-Vin
C1 +
Isolated
DC/DC
Converter
2
6
C3 +
5
-Vout
EMC Filter Suggestion for EN55022 Class B
470pF/4kVDC
Fuse
Input
L1
Output
+
DC
C1
DC
Standard and /H versions
C1
L1
Vin
10µF 4.7µH
5V
4.7µF 22µH
12V
2.2µF 47µH
24V
+Vout
470pF/4kVDC
Fuse
Input
L1
+
DC
C1
DC
Com
-Vout
C1 = MLCC
L1 = SMD Inductor
RKZ
Package Style and Pinning (mm)
7 PIN SIP Package
RECOM
RKZ-xxxxD
****
7.05
0.51 typ.
Dual Output
RECOM
RKZ-xxxxD
****
Single Output
RECOM
RKZ-xxxxS
****
10.20
4.10
0.51 typ.
1 2
5 6 7
1 2
Pin Connections
5
7
Recommended Footprint Details
Pin #
Single
+Vin
–Vin
–Vout
No Pin
+Vout
Dual
+Vin
–Vin
–Vout
Com
+Vout
19.65
1.27
2.0
Bottom View
0.25
1.00 ø+0.15/0
2.54
+15/-9 Output
RECOM
RKZ-xx1509D
****
1
2
5
6
7
5 x 2.54
2.54
Top View
1 2
5 6 7
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
The product information and specifications may be subject to changes even without prior written notice. The product has been designed for various applications; its suitability lies in the responsibility of each customer.
The products are not authorized for use in safety-critical applications without RECOM’s explicit written consent. A safety-critical application is an application where a failure may reasonably be expected to endanger or
cause loss of life, inflict bodily harm or damage property. The applicant shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the
unauthorized use of RECOM products in such safety-critical applications.
www.recom-power.com
REV: 2/2017
E-95
