LM218N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM218N

LM218N: DescriptionOP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size206KB，8 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LM218N Overview

OP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8

LM218N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA
Maximum bias current (IIB) at 25C	0.25 µA
Nominal Common Mode Rejection Ratio	80 dB
frequency compensation	YES
Maximum input offset voltage	6000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-20 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5/+-20 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
minimum slew rate	50 V/us
Nominal slew rate	70 V/us
Maximum slew rate	15 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	20 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	15000 kHz
Minimum voltage gain	50000
width	7.62 mm

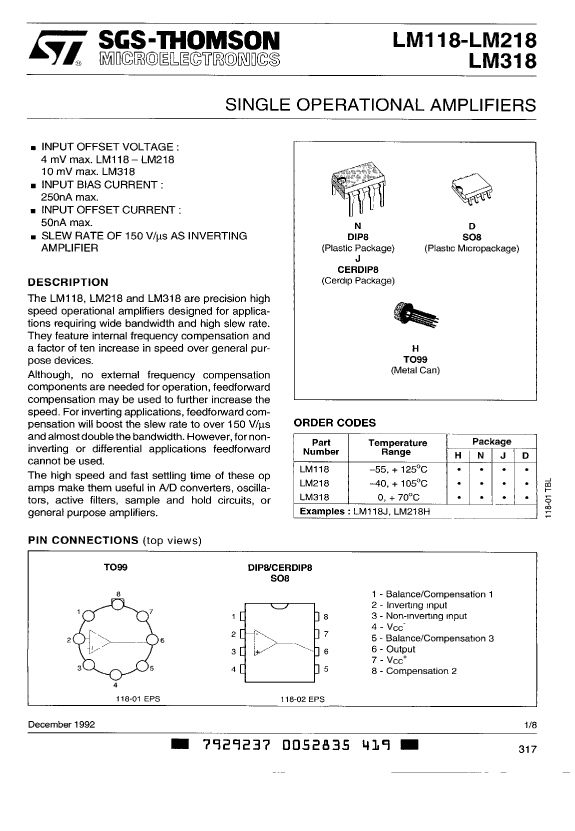

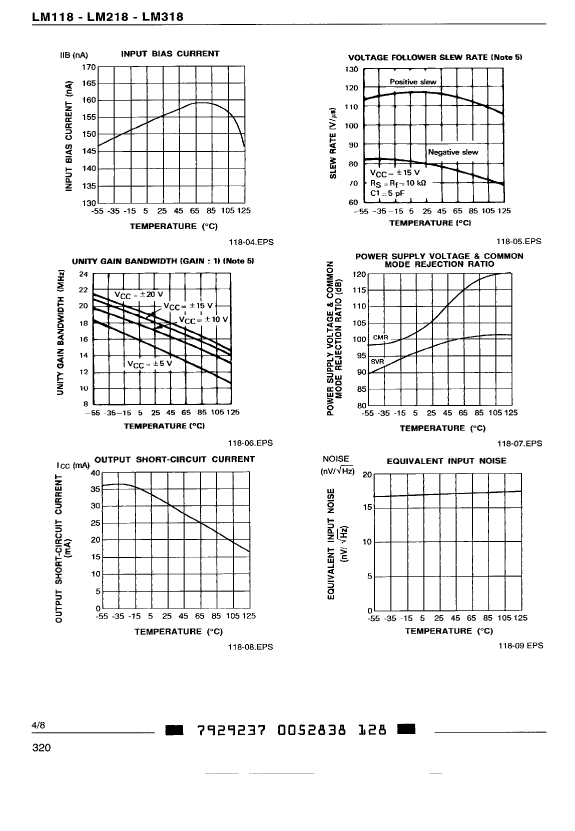

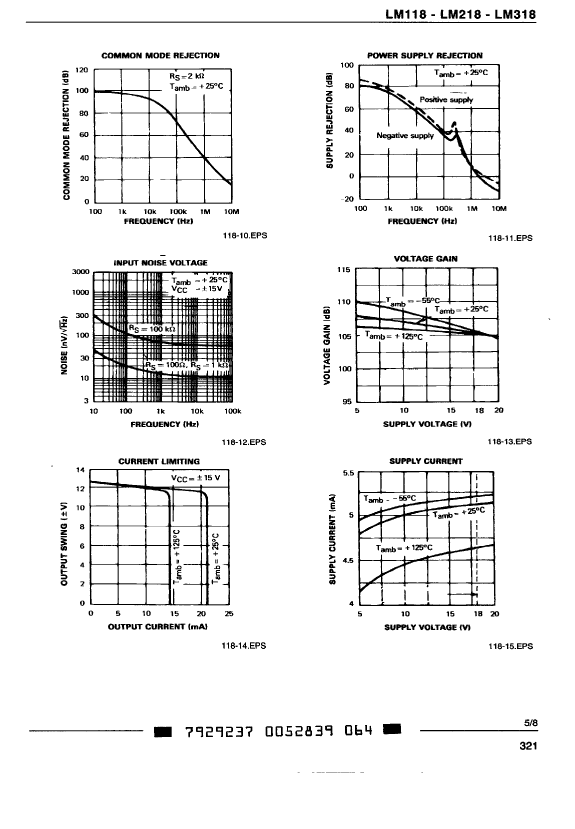

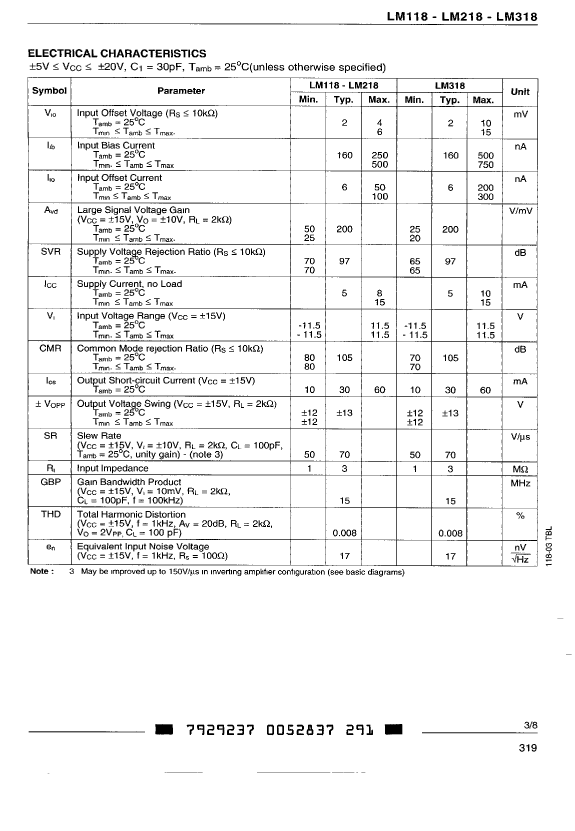

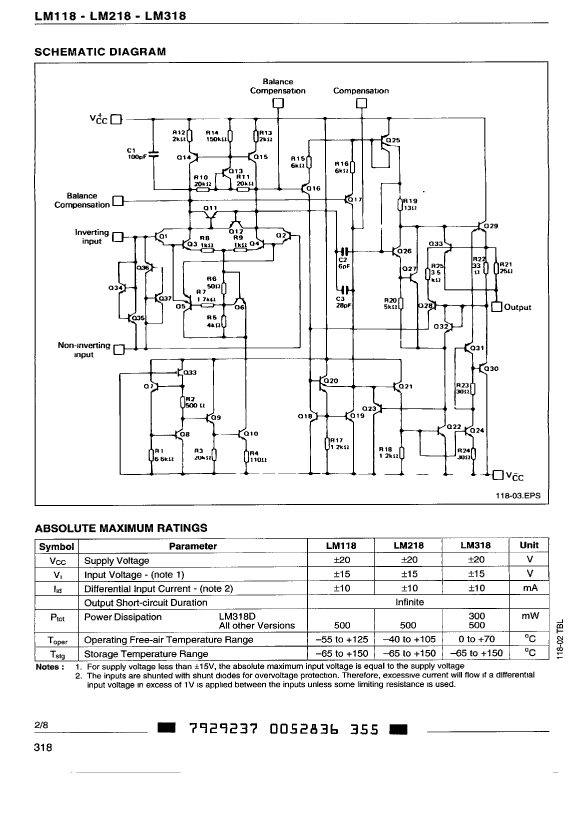

Preview

Download Datasheet

View All

LM218N Related Products

	LM218N	LM118D	LM118J	LM318H	LM318N	LM118H	LM218D	LM318D
Description	OP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8	OP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8	OP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, CDIP8, CERDIP-8	OP-AMP, 15000uV OFFSET-MAX, 15MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN	OP-AMP, 15000uV OFFSET-MAX, 15MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8	OP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN	OP-AMP, 6000uV OFFSET-MAX, 15MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8	OP-AMP, 15000uV OFFSET-MAX, 15MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	SOIC	DIP	TO-99	DIP	TO-99	SOIC	SOIC
package instruction	DIP, DIP8,.3	MICRO, PLASTIC, SO-8	CERDIP-8	TO-99, CAN8,.2	DIP, DIP8,.3	TO-99, CAN8,.2	MICRO, PLASTIC, SO-8	MICRO, PLASTIC, SO-8
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA	0.75 µA	0.75 µA	0.5 µA	0.5 µA	0.75 µA
Maximum bias current (IIB) at 25C	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA
Nominal Common Mode Rejection Ratio	80 dB	80 dB	80 dB	70 dB	70 dB	80 dB	80 dB	70 dB
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	6000 µV	6000 µV	6000 µV	15000 µV	15000 µV	6000 µV	6000 µV	15000 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-CDIP-T8	O-MBCY-W8	R-PDIP-T8	O-MBCY-W8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	105 °C	125 °C	125 °C	70 °C	70 °C	125 °C	105 °C	70 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-	-	-55 °C	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	METAL	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	TO-99	DIP	TO-99	SOP	SOP
Encapsulate equivalent code	DIP8,.3	SOP8,.25	DIP8,.3	CAN8,.2	DIP8,.3	CAN8,.2	SOP8,.3	SOP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	50 V/us	50 V/us	50 V/us	50 V/us	50 V/us	50 V/us	50 V/us	50 V/us
Nominal slew rate	70 V/us	70 V/us	70 V/us	70 V/us	70 V/us	70 V/us	70 V/us	70 V/us
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
surface mount	NO	YES	NO	NO	NO	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	BOTTOM	DUAL	BOTTOM	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	15000 kHz	15000 kHz	15000 kHz	15000 kHz	15000 kHz	15000 kHz	15000 kHz	15000 kHz
Minimum voltage gain	50000	25000	50000	50000	50000	50000	50000	50000
Maker	STMicroelectronics	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Negative supply voltage upper limit	-20 V	-	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Maximum seat height	5.08 mm	1.75 mm	-	-	5.08 mm	-	1.75 mm	1.75 mm
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	-	1.27 mm	1.27 mm
width	7.62 mm	3.9 mm	-	-	7.62 mm	-	3.9 mm	3.9 mm
