If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
ESD Tolerance (Note 2)
Human Body Model
LMV331/393/339
Machine Model
LMV331/339/393
Differential Input Voltage
Voltage on any pin
(referred to V
−
pin)
Soldering Information
Infrared or Convection (20 sec)
Storage Temp. Range
Junction Temperature (Note 3)
Operating Ratings
Supply Voltage
Temperature Range (Note 3)
LMV393. LMV339, LMV331
Thermal Resistance (θ
JA
)
5-Pin SC70
5-Pin SOT23
8-Pin SOIC
8-Pin MSOP
14-Pin SOIC
14-Pin TSSOP
(Note 1)
2.7V to 5.0V
−40°C to +85°C
478°C/W
265°C/W
190°C/W
235°C/W
145°C/W
155°C/W
800V
120V
±Supply Voltage
5.5V
235°C
−65°C to +150°C
150°C
2.7V DC Electrical Characteristics
Unless otherwise specified, all limits guaranteed for T
J
= 25°C, V
+
= 2.7V, V
−
= 0V.
Boldface
limits apply at the temperature
extremes.
Symbol
V
OS
TCV
OS
I
B
I
OS
V
CM
V
SAT
I
O
I
S
Parameter
Input Offset Voltage
Input Offset Voltage Average Drift
Input Bias Current
Input Offset Current
Input Voltage Range
Saturation Voltage
Output Sink Current
Supply Current
I
SINK
≤
1 mA
V
O
≤
1.5V
LMV331
LMV393
Both Comparators
LMV339
All four Comparators
Output Leakage Current
5
Conditions
Min
(Note 5)
Typ
(Note 4)
1.7
5
10
5
−0.1
2.0
120
23
40
70
140
.003
100
140
200
1
250
400
50
150
Max
(Note 5)
7
Units
mV
µV/°C
nA
nA
V
V
mV
mA
µA
µA
µA
µA
2.7V AC Electrical Characteristics
T
J
= 25°C, V
+
= 2.7V, R
L
= 5.1 kΩ, V
−
= 0V.
Symbol
t
PHL
t
PLH
Parameter
Propagation Delay (High to Low)
Propagation Delay (Low to High)
Conditions
Input Overdrive = 10 mV
Input Overdrive = 100 mV
Input Overdrive = 10 mV
Input Overdrive = 100 mV
Min
(Note 5)
Typ
(Note 4)
1000
350
500
400
Max
(Note 5)
Units
ns
ns
ns
ns
www.national.com
2
LMV331 Single / LMV393 Dual / LMV339 Quad
5V DC Electrical Characteristics
Unless otherwise specified, all limits guaranteed for T
J
= 25°C, V
+
= 5V, V
−
= 0V.
Boldface
limits apply at the temperature extremes.
Symbol
V
OS
TCV
OS
I
B
I
OS
V
CM
A
V
V
sat
I
O
I
S
Parameter
Input Offset Voltage
Input Offset Voltage Average Drift
Input Bias Current
Input Offset Current
Input Voltage Range
Voltage Gain
Saturation Voltage
Output Sink Current
Supply Current
I
SINK
≤
4 mA
V
O
≤
1.5V
LMV331
LMV393
Both Comparators
LMV339
All four Comparators
Output Leakage Current
20
Conditions
Min
(Note 5)
Typ
(Note 4)
1.7
5
25
2
−0.1
4.2
50
200
84
60
100
170
.003
400
700
10
120
150
200
250
300
350
1
250
400
50
150
max
(Note 5)
7
9
Units
mV
µV/°C
nA
nA
V
V
V/mV
mV
mA
µA
µA
µA
µA
5V AC Electrical Characteristics
T
J
= 25°C, V
+
= 5V, R
L
= 5.1 kΩ, V
−
= 0V.
Symbol
t
PHL
t
PLH
Parameter
Propagation Delay (High to Low)
Propagation Delay (Low to High)
Conditions
Input Overdrive = 10 mV
Input Overdrive = 100 mV
Input Overdrive = 10 mV
Input Overdrive = 100 mV
Min
(Note 5)
Typ
(Note 4)
600
200
450
300
Max
(Note 5)
Units
ns
ns
ns
ns
Note 1:
Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is
intended to be functional, but specific performance is not guaranteed. For guaranteed specifications and the test conditions, see the Electrical characteristics.
Note 2:
Human Body Model, applicable std. MIL-STD-883, Method 3015.7. Machine Model, applicable std. JESD22-A115-A (ESD MM std. of JEDEC)
. The maximum allowable power dissipation at any ambient temperature is
P
D
= (T
J(MAX)
- T
A
)/θ
JA
. All numbers apply for packages soldered directly onto a PC board.
Note 4:
Typical values represent the most likely parametric norm as determined at the time of characterization. Actual typical values may vary over time and will
also depend on the application and configuration. The typical values are not tested and are not guaranteed on shipped production material.
Note 5:
All limits are guaranteed by testing or statistical analysis.
3
www.national.com
LMV331 Single / LMV393 Dual / LMV339 Quad
Typical Performance Characteristics

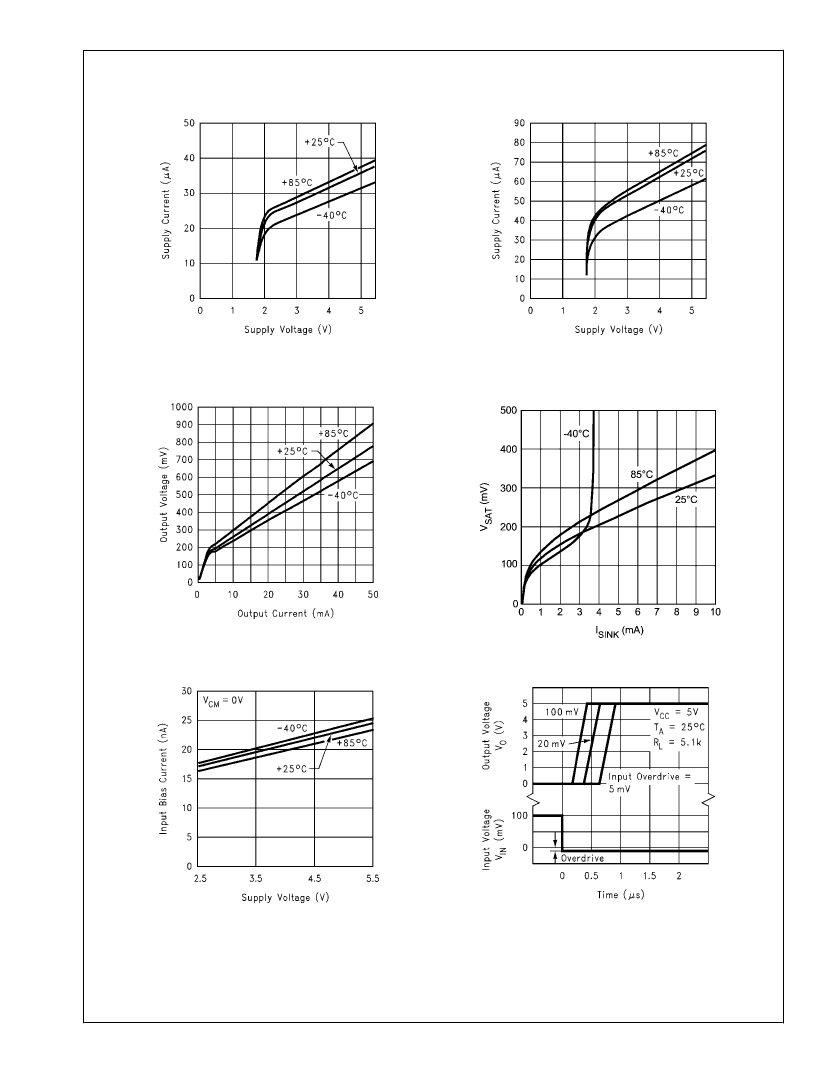

Supply Current vs. Supply Voltage Output High (LMV331)
Unless otherwise specified, V
S
= +5V, single supply, T
A
= 25°C
Supply Current vs. Supply Voltage Output Low (LMV331)
10008034
10008033
Output Voltage vs. Output Current at 5V Supply
Output Voltage vs. Output Current at 2.7 Supply
10008037
10008038
Input Bias Current vs. Supply Voltage
Response Time vs. Input Overdrives Negative Transition
