Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM124D

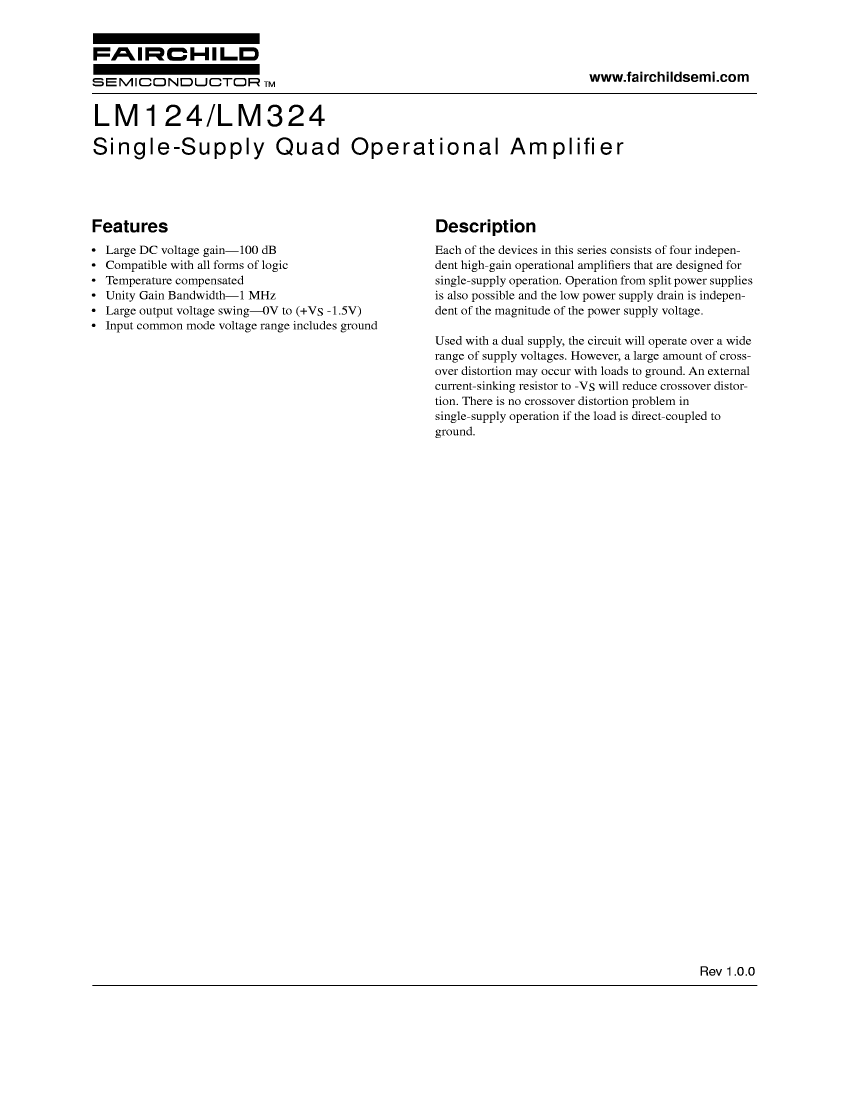

Preview

LM124D: DescriptionOperational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, CERAMIC, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size249KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

LM124D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM124D	-	-	View	Buy Now

LM124D Overview

Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, CERAMIC, DIP-14

LM124D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.3 µA
Maximum bias current (IIB) at 25C	0.15 µA
Nominal Common Mode Rejection Ratio	85 dB
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/30 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	3 mA
Supply voltage upper limit	32 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	25000
width	7.62 mm

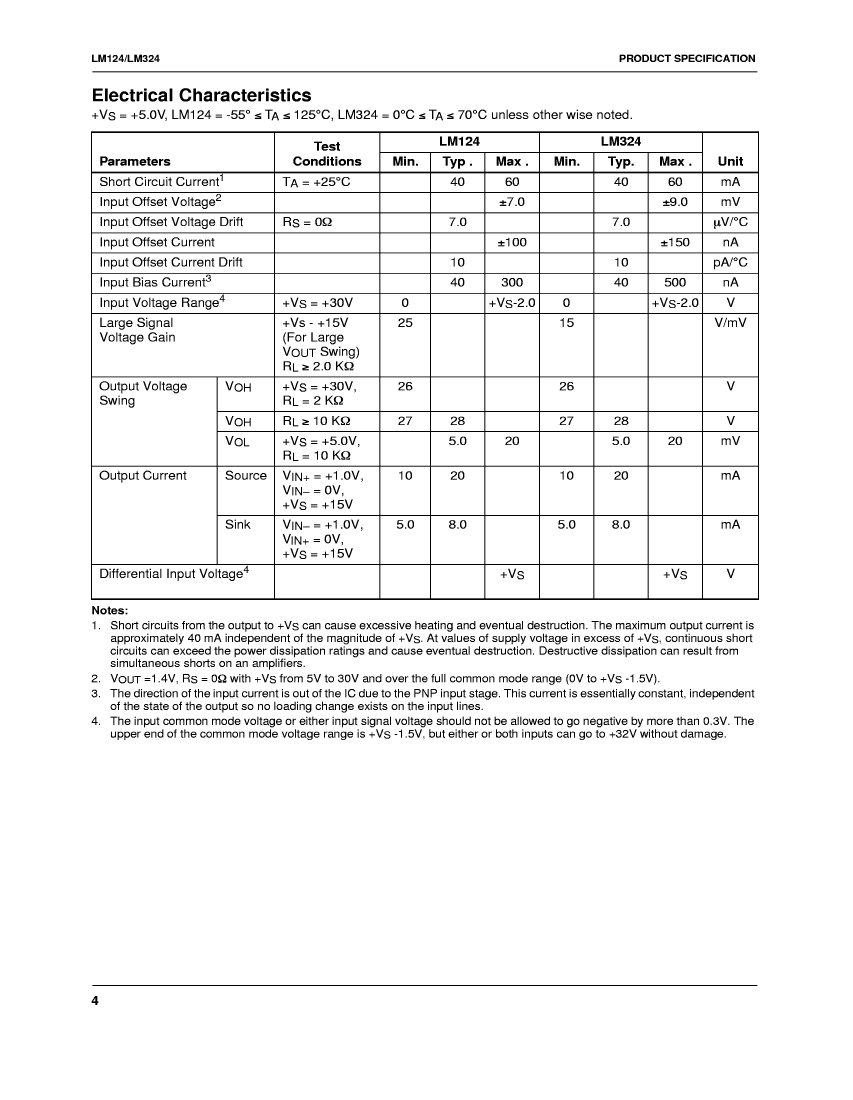

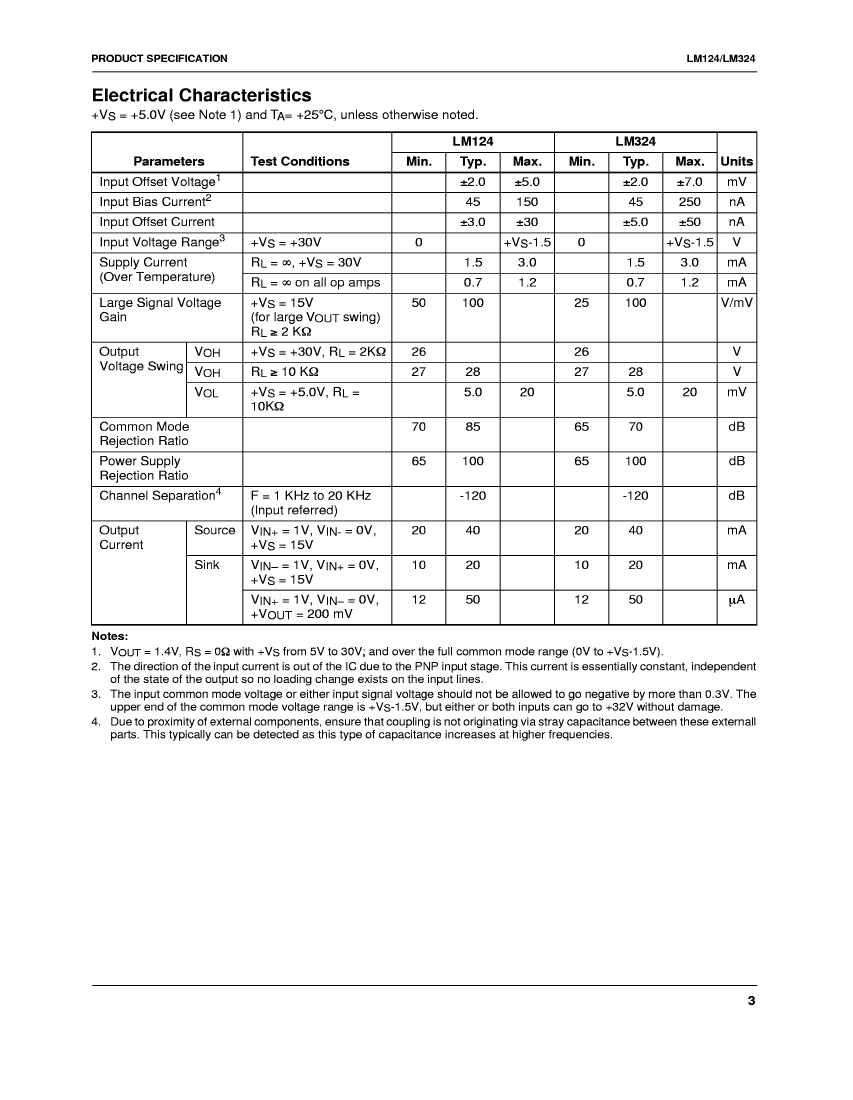

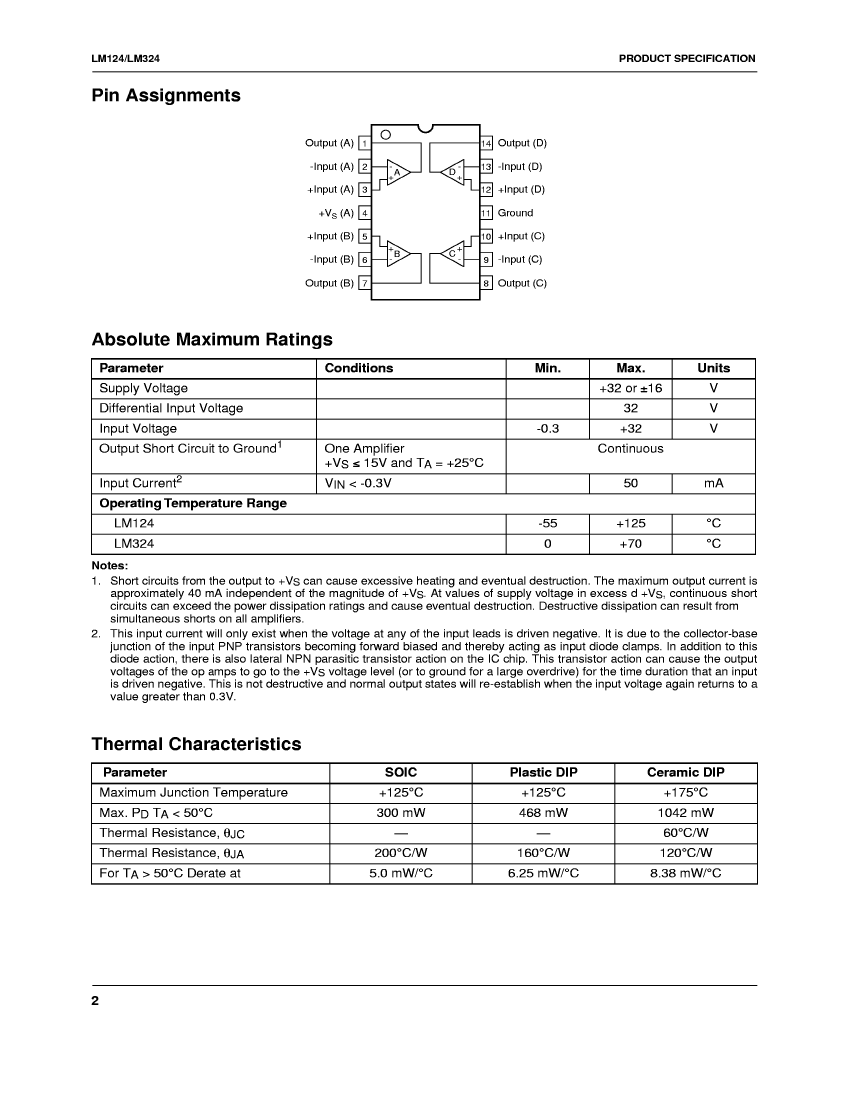

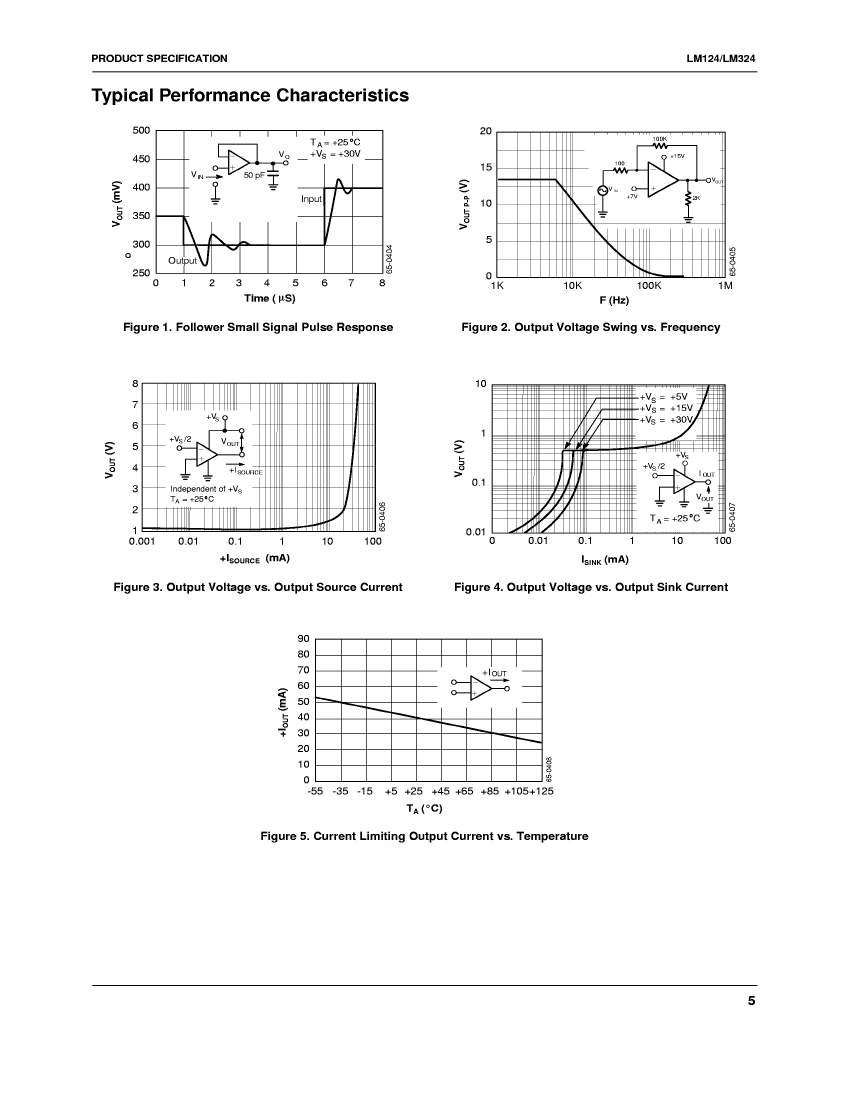

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer
