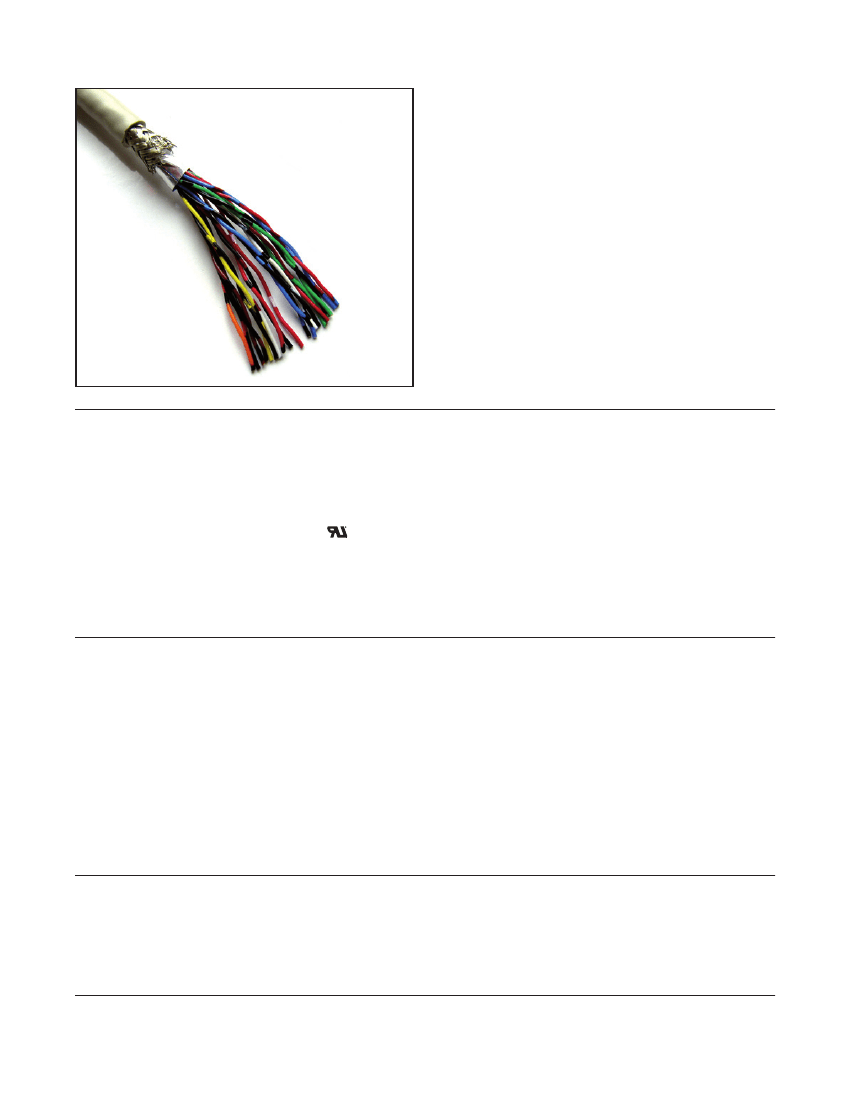

• Twisted pairs reduce crosstalk for balanced drive
applications
• Dual shielding with aluminum film foil and copper
braid provides excellent EMI/ESD protection
• Wires are color coded for easy identification
• 35 db average shielding effectiveness
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section
of www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: June 1, 2012
TS-0388-C
Sheet 1 of 2
Physical
Jacket Material:
Polyvinyl Chloride (PVC);
Color:
Beige
Primary Material: PVC
Marking
:
Standard:
(UL) CL2 75C 28 AWG
3M XX
C
AWM IIA/B 80C 150V FT1 EU <50V
(where XX may be NU, MR or NW)
Conductors:
28 AWG, 7
×
36 AWG [ 7
×
Ø 0.127 ] Tinned Stranded Copper
Shielding:
0.001 [ 0.03 ] Thick Aluminum/Polyester Film Foil and
90% Coverage Tinned Copper Braid
Electrical
Voltage Rating:
USA: N.E.C. 725, CL2 Canada: 150V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
Balanced
Characteristic Impedance:
Unbalanced
58
Ω
91
Ω
EU: <50V
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
29.2 pF/ft [ 95.8 pF/m ]
0.10 μH/ft [ 0.33 μH/m ]
1.69 ns/ft [ 5.54 ns/m ]
60%
18.5 pF/ft [ 60.7 pF/m ]
0.15 μH/ft [ 0.49 μH/m ]
1.69 ns/ft [ 5.54 ns/m ]
60%
Note: Unbalanced is measured between conductors within a pair with one conductor connected to the shield. Balanced is measured between conductors within a pair with the shield floating.
Environmental
Temperature Rating:
USA: CL2; 75°C Max
Flammability Rating:
USA: N.E.C. 725, CL2
UL File No.: E118773, Power Limited Circuit Cable; CL2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Canada: +80°C
Canada: FT1
3M
™

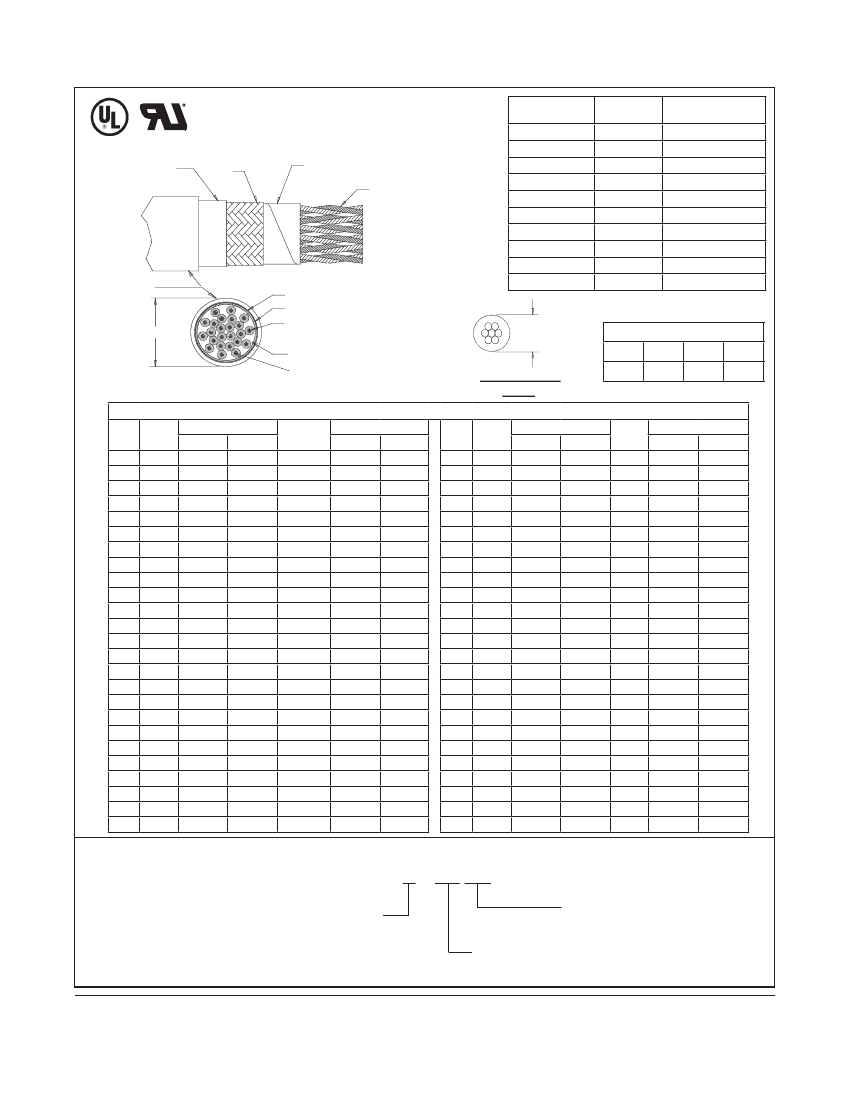

Round, Shielded/Jacketed, Disc. Wire Cable
28 AWG Stranded, Twisted Pair, PVC/PVC
C
Release Paper
(Mfgr. Option)
Film Foil
Cable: Twisted
Pairs
3600X Series
Number of
Conductors
14 (7 pair)
3M Part
Number
3600X/14
3600X/20
3600X/24
3600X/26
3600X/36
3600X/40
3600X/50
Dimension A
+/- 0.02 [ 0.5 ]
.22 [ 5.6 ]
.24 [ 6.1 ]
.25 [ 6.4 ]
.25 [ 6.4 ]
.29 [ 7.4 ]
.30 [ 7.6 ]
.32 [ 8.1 ]
Braid
20 (10 pair)
24 (12 pair)
26 (13 pair)
36 (18 pair)
40 (20 pair)
50 (25 pair)
.026 [ 0.66 ] Min
PVC Jacket
Release Paper
Braid
Cable:
Twisted Pairs
Film Foil
28 AWG, 7 X 36 AWG [7 X ø 0.127]
Tinned Stranded Copper Conductors
68 (34 pair)
80 (40 pair)
100 (50 pair)
3600X/68
3600X/80
3600X/100
.36 [ 9.1 ]
.39 [ 9.9 ]
.44 [ 11.2 ]
Inch
[mm]
øA
ø.026
±
.002
[ 0.66 ]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
Discrete Wire
Detail
1st Conductor
Solid
Band
Brown
Yellow
Brown Orange
Orange Yellow
Violet
Orange
Violet
Red
Violet
White
Violet
Green
Violet
Blue
Violet
Yellow
Violet
Brown
Violet
Black
Gray
White
Gray
Brown
Gray
Red
Gray
Orange
Gray
Yellow
Gray
Green
Gray
Blue
Tan
Orange
Tan
Green
Tan
Black
Tan
Blue
Tan
White
Tan
Yellow
Tan
Brown
[ ] Dimensions for Reference Only
Pair
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Cond
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
1st Conductor
Solid
Band
Black
Red
Black
White
Black
Green
Black
Blue
Black
Yellow
Black
Brown
Black
Orange
Red
White
Red
Green
Red
Blue
Red
Yellow
Red
Brown
Red
Orange
Green
White
Green
Blue
Green
Yellow
Green
Brown
Green Orange
White
Blue
White
Yellow
White
Brown
White
Orange
Blue
Yellow
Blue
Brown
Blue
Orange
Cond
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
Pair Identification
2nd Conductor
Pair Cond
Solid
Band
Red
Black
26
51
White
Black
27
53
Green
Black
28
55
Blue
Black
29
57
Yellow
Black
30
59
Brown
Black
31
61
Orange
Black
32
63
White
Red
33
65
Green
Red
34
67
Blue
Red
35
69
Yellow
Red
36
71
Brown
Red
37
73
Orange
Red
38
75
White
Green
39
77
Blue
Green
40
79
Yellow
Green
41
81
Brown
Green
42
83
Orange Green
43
85
Blue
White
44
87
Yellow
White
45
89
Brown
White
46
91
Orange White
47
93
Yellow
Blue
48
95
Brown
Blue
49
97
Orange
Blue
50
99
Cond
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
2nd Conductor
Solid
Band
Yellow
Brown
Orange Brown
Yellow Orange
Orange
Violet
Red
Violet
White
Violet
Green
Violet
Blue
Violet
Yellow
Violet
Brown
Violet
Black
Violet
White
Gray
Brown
Gray
Red
Gray
Orange
Gray
Yellow
Gray
Green
Gray
Blue
Gray
Orange
Tan
Green
Tan
Black
Tan
Blue
Tan
White
Tan
Yellow
Tan
Brown
Tan
Ordering Information
3600X / XX XX
Note: Available in standard 100 ft, 200 ft and
300 ft rolls, please specify when ordering.
Contact 3M for availability of additional
conductor counts and/or custom roll lengths.
Jacket Color Options:
A = Black Jacket (Special)
B = Beige Jacket (Standard)
G = Gray Jacket (Special)
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
TS-0388-C
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
