ED770121OZ datasheet, PDF - EEWORLD Datasheet

ED770121OZ: DescriptionSilicon Controlled Rectifier, 210000mA I(T), 100V V(RRM); CategoryAnalog mixed-signal IC Trigger device; File Size388KB，6 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

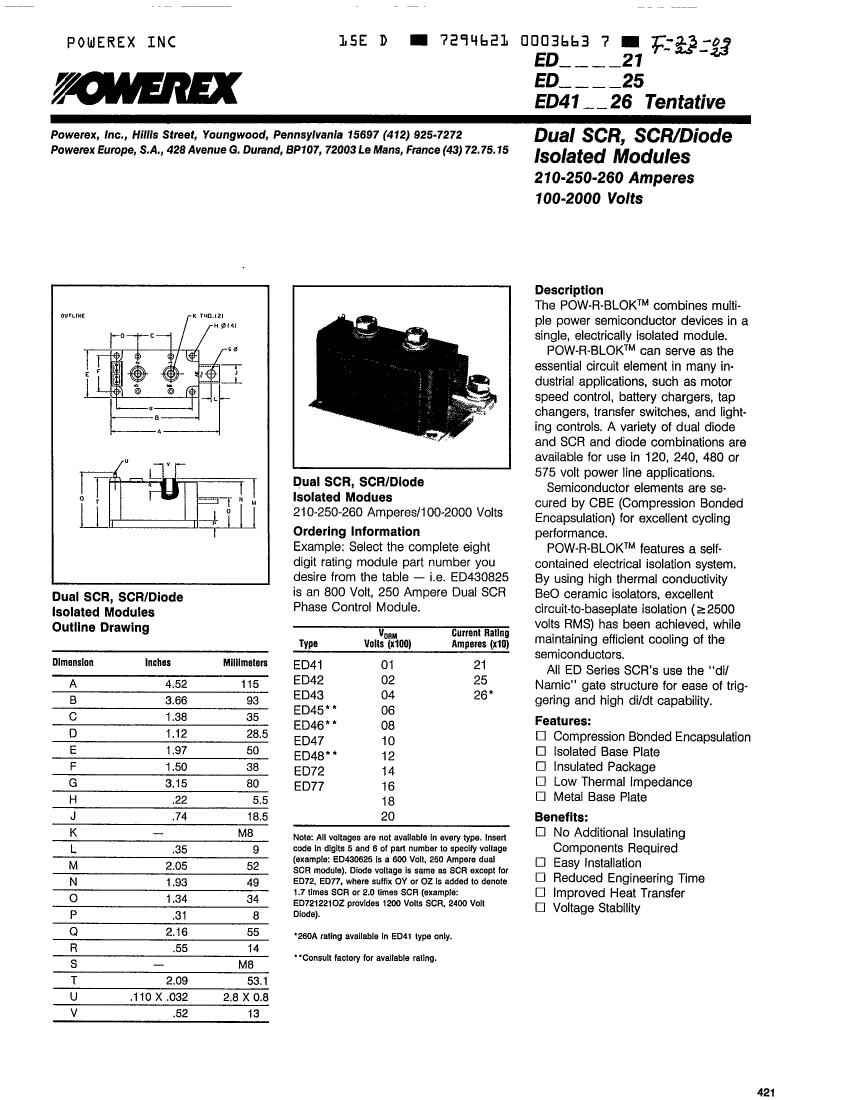

ED770121OZ Overview

Silicon Controlled Rectifier, 210000mA I(T), 100V V(RRM)

Parameter Name	Attribute value
Maker	POWEREX
package instruction	,
Reach Compliance Code	unknown

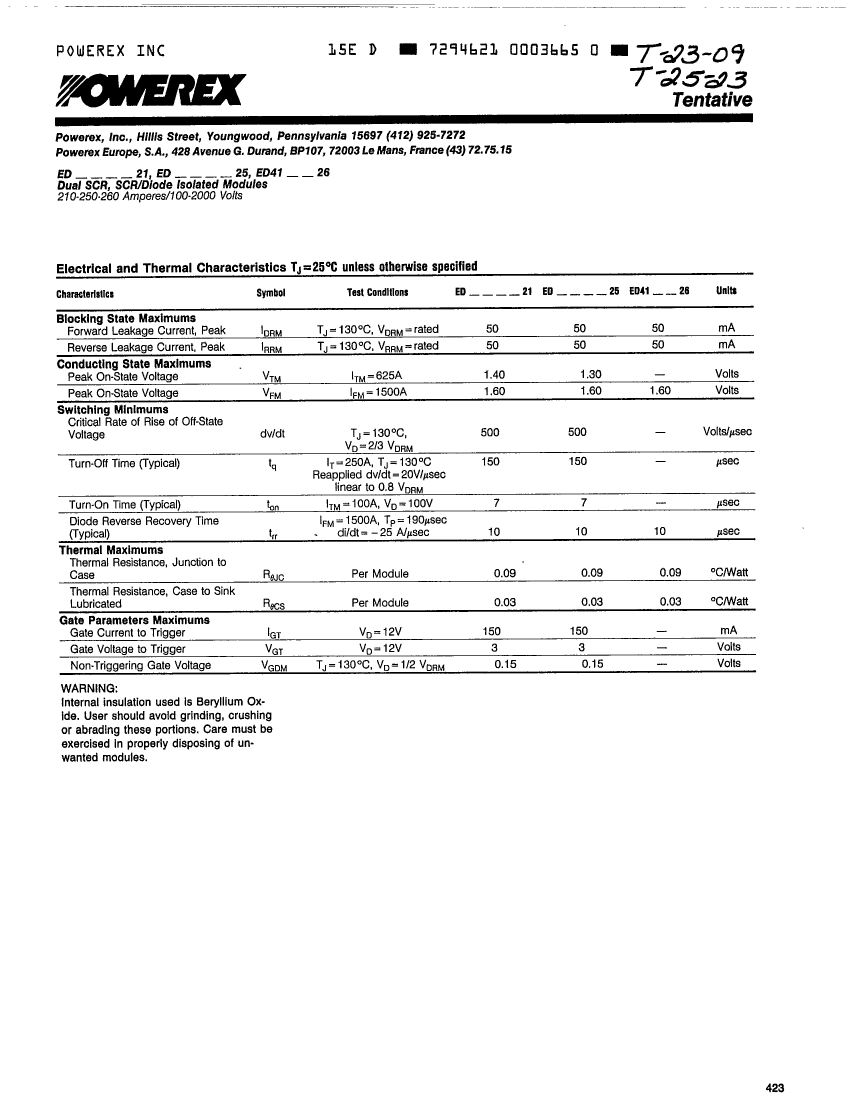

Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V

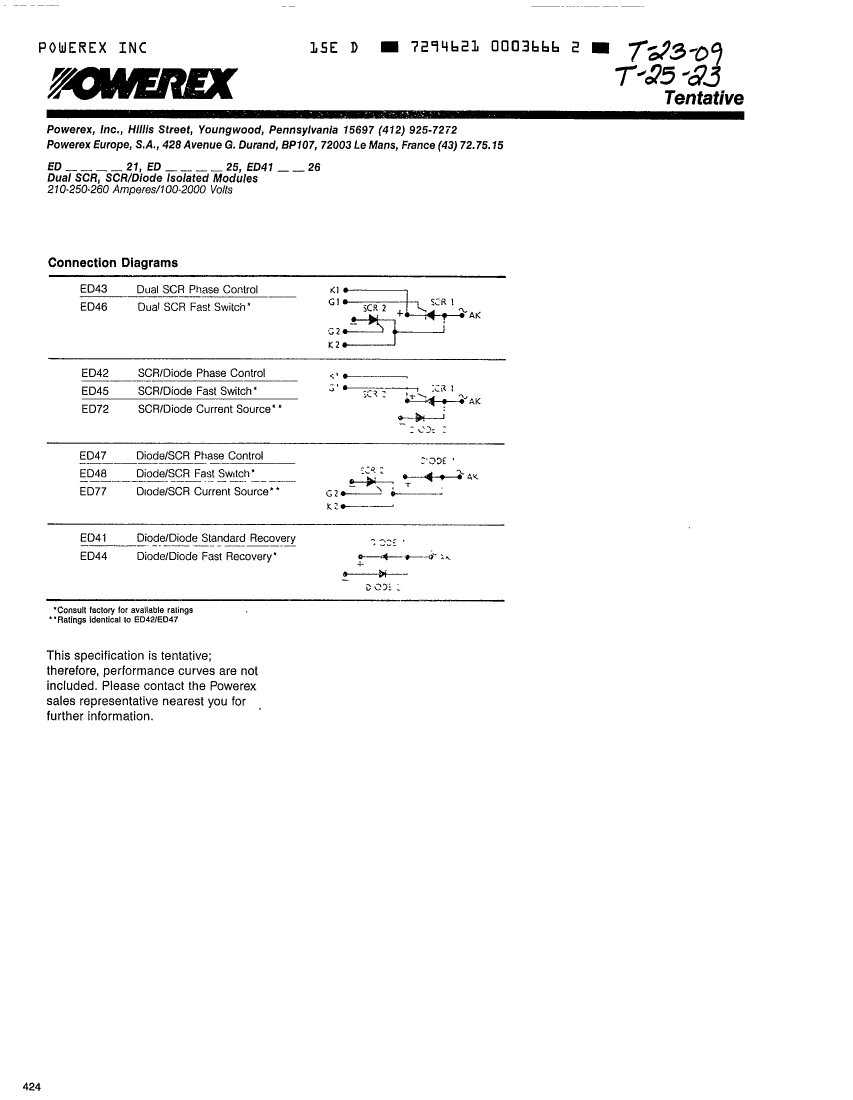

Quick connection description	G-GR
Description of screw terminals	A-K-AK
Maximum leakage current	50 mA

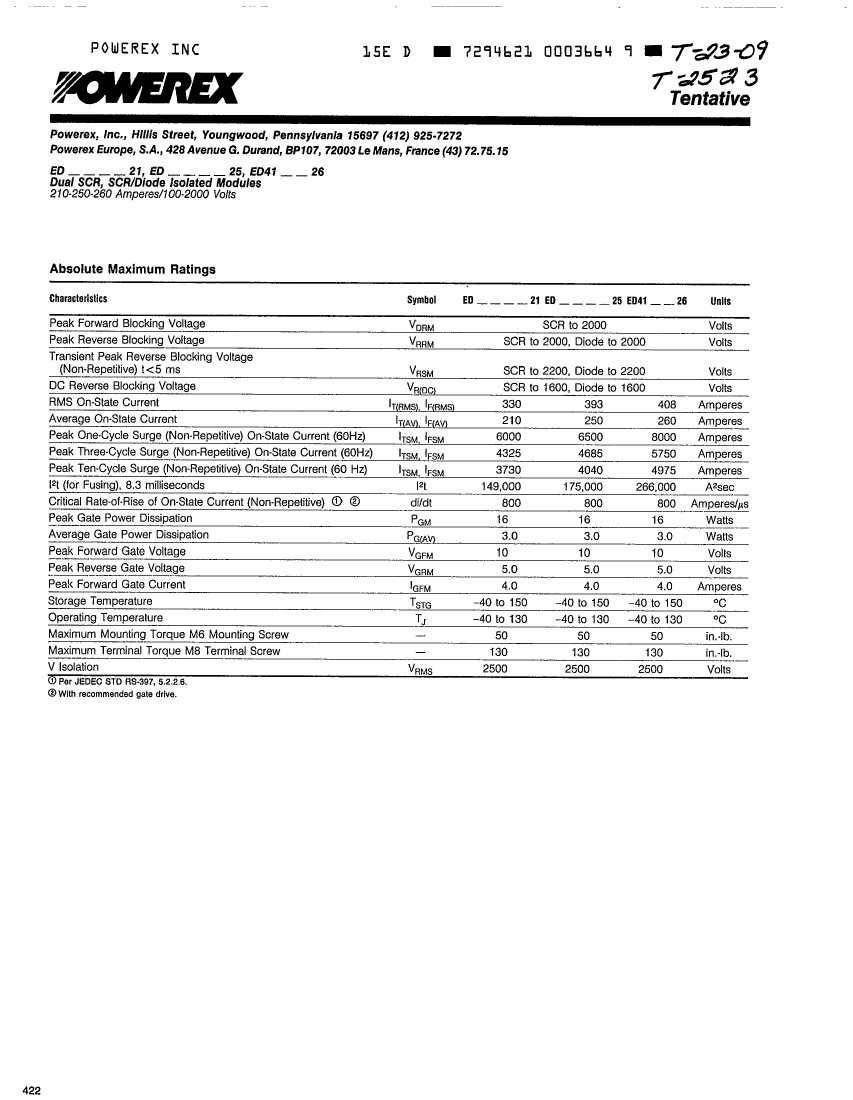

On-state non-repetitive peak current	6000 A
Maximum on-state voltage	1.4 V
Maximum on-state current	210000 A
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Repeated peak reverse voltage	100 V
