M55302/169B753 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M55302/169B753

M55302/169B753: DescriptionBoard Connector, 225 Contact(s), 3 Row(s), Male, Crimp Terminal; CategoryThe connector The connector; File Size178KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M55302/169B753 Overview

Board Connector, 225 Contact(s), 3 Row(s), Male, Crimp Terminal

M55302/169B753 Parametric

Parameter Name	Attribute value
Objectid	1900109649
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-55302, COMPATIBLE CONTACTS: M55302/171-1; M55302/171-2, POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	3
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	225
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Low Mating .orce

input/output connector

MATES WITH MB AND PC SERIES CONNECTORS

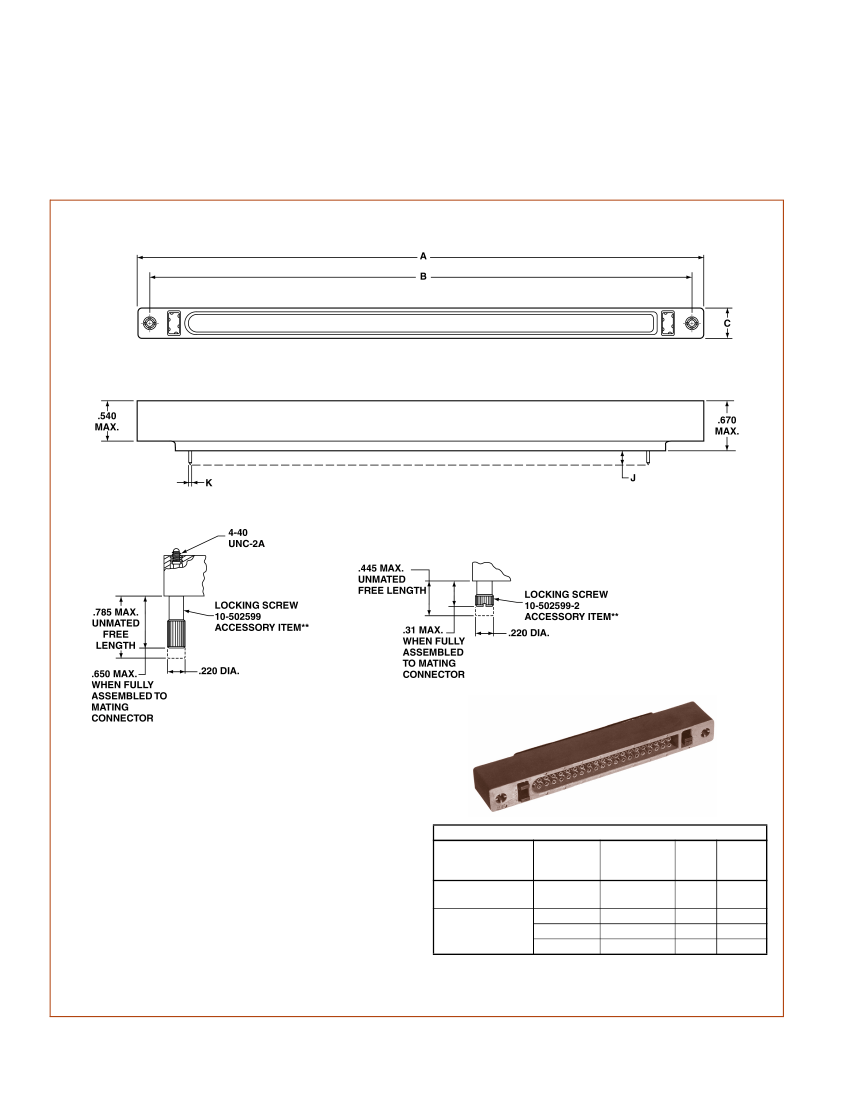

Notes:

When mating with MB or PC connector, a total of .022 inch minimum

radial pilot is available for connector body alignment.

All dimensions for reference only.

Crimp contact 10-502588-1 (tin plate), wire well size 22D, supplied

with I/O Connector Series assemblies. Optional noble metal termina-

tion plating available. See How to Order, page 8.

Polarization keys are not supplied as part of I/O Connector Series

assemblies. See How to Order, page 7 and further description, page

28.

** Locking Screws are not supplied as part of I/O Connector Series

assemblies. See How to Order, page 7 and further description,

page 29.

Rear Removable

Crimp Contact

Round PCB

Stud Solder

Termination

Description

Contact Data

Termination

Contact

Style

Part

Letter

Number

P-(713)

P-(709)

10-502588-1

10-502416-21

10-502416-31

10-502416-41

±.020

N/A

.145

.060

.335

±.002

N/A

.021

NOTE: Other variations available - see pages 7 and 8, or consult Sidney, NY.
