SK20200C
Green Products
SK20200C SCHOTTKY RECTIFIER
Applications:
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Features:
150℃ TJ operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced
mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

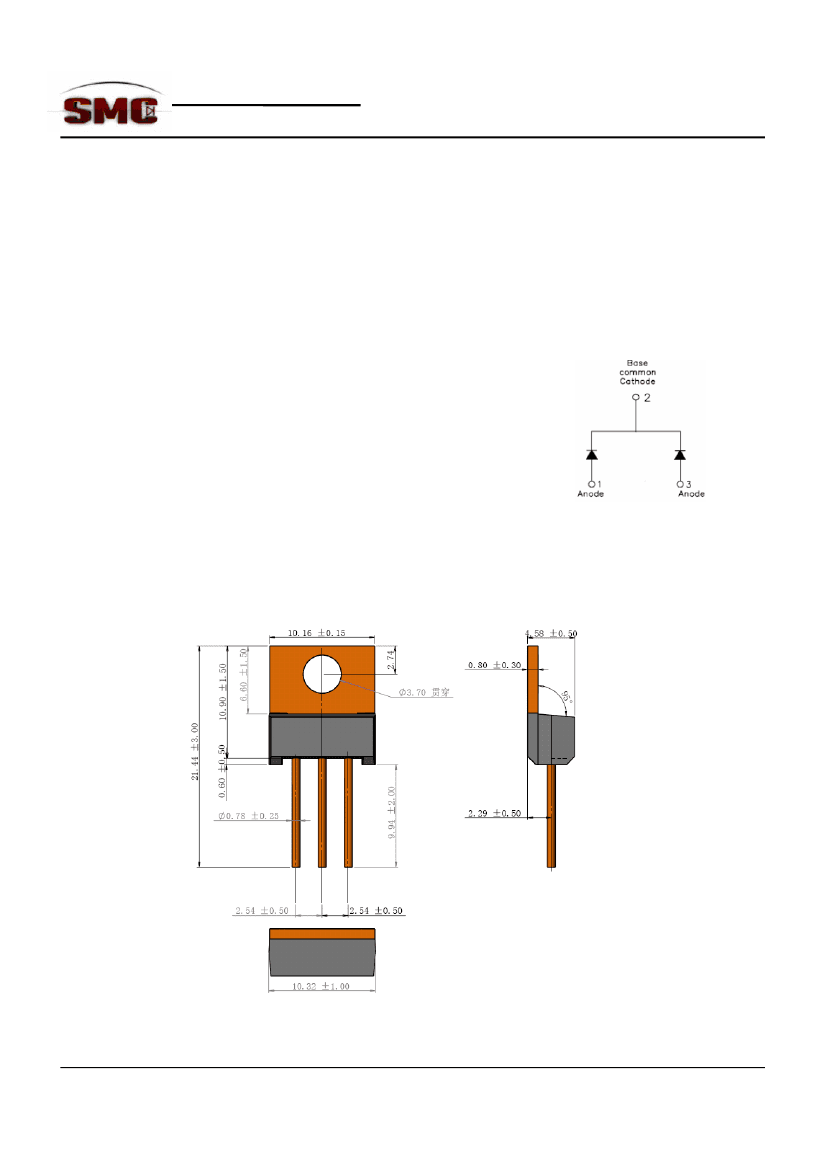

Mechanical Dimensions (In mm):
TO-220AB
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0972, Rev. -
SK20200C
Green Products
Marking Diagram:
Where XXXXX is YYWWL
SK
20
200
C
SSG
YY
WW
L
= Device Type
= Forward Current (20A)
= Reverse Voltage (200V)
= Configuration
= SSG
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
SK20200C
Package
TO-220AB (Pb-Free)
Shipping
50 pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle
Non-Repetitive Surge Current
(per leg)
I
FSM
8.3 ms, half Sine pulse
150
A
Symbol
V
RWM
I
F(AV)
Condition
-
50% duty cycle @T
C
=105°C,
rectangular wave form
Max.
200
20
Units
V
A
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0972, Rev. -
SK20200C
Green Products
Electrical Characteristics:
*
Characteristics
Max. Forward Voltage Drop
(per leg) *
Max. Reverse Current (per
leg) *
Symbol
V
F1
V
F2
I
R1
I
R2
Max. Junction Capacitance
(per leg)
Typical Series Inductance
(per leg)
Max. Voltage Rate of Change
Pulse Width < 300µs, Duty Cycle <2%
Condition
@ 10A, Pulse, T
J
= 25
°C
@ 10A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.90
0.85
1.0
50
300
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/μs
C
T
L
S
dv/dt
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
(per leg)
Approximate Weight
Case Style
wt
-
TO-220AB
2
g
R
θJC
DC operation
4.5
°C/W
Symbol
T
J
T
stg
Condition
-
-
Specification
-55 to +150
-55 to +150
Units
°C
°C
•
