EDI4161MEV70MI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> EDI4161MEV70MI

EDI4161MEV70MI: DescriptionEDO DRAM, 1MX16, 70ns, CMOS, PDSO42,; Categorystorage storage; File Size527KB，12 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

EDI4161MEV70MI Overview

EDO DRAM, 1MX16, 70ns, CMOS, PDSO42,

EDI4161MEV70MI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	EDI [Electronic devices inc.]
Reach Compliance Code	unknown
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J42
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	42
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ42,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.16 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

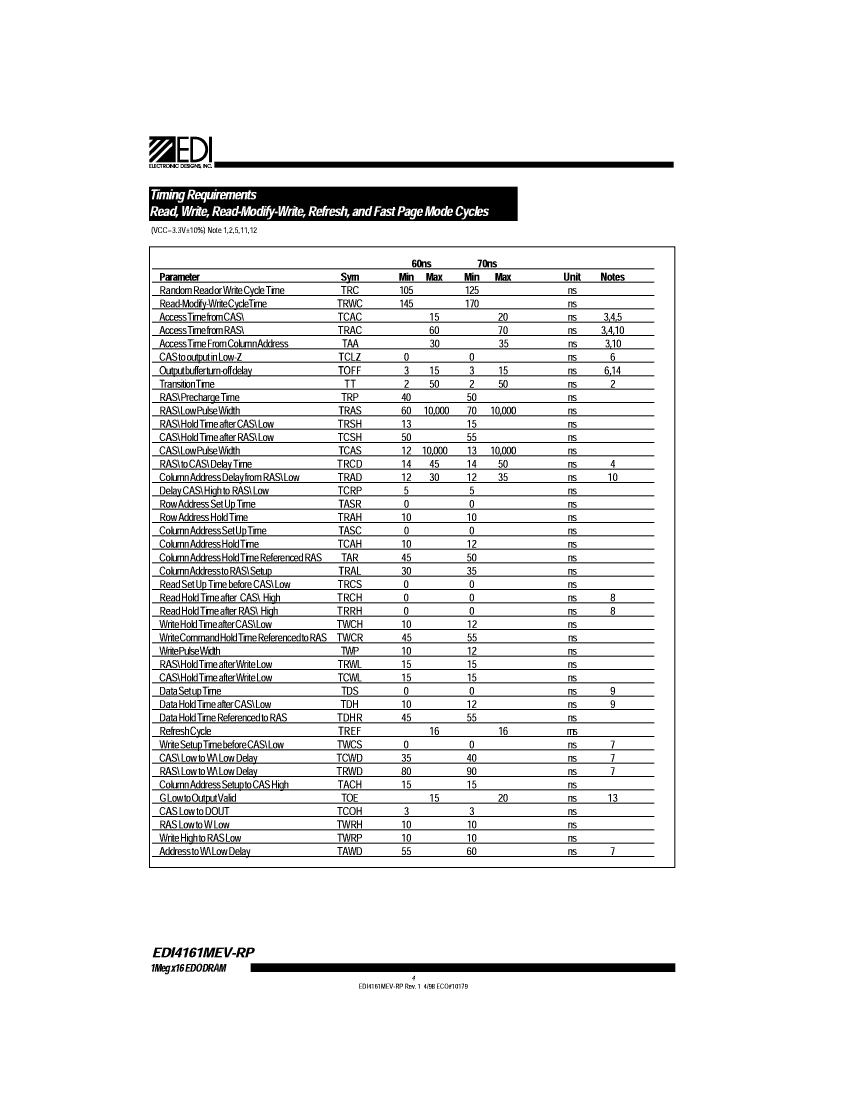

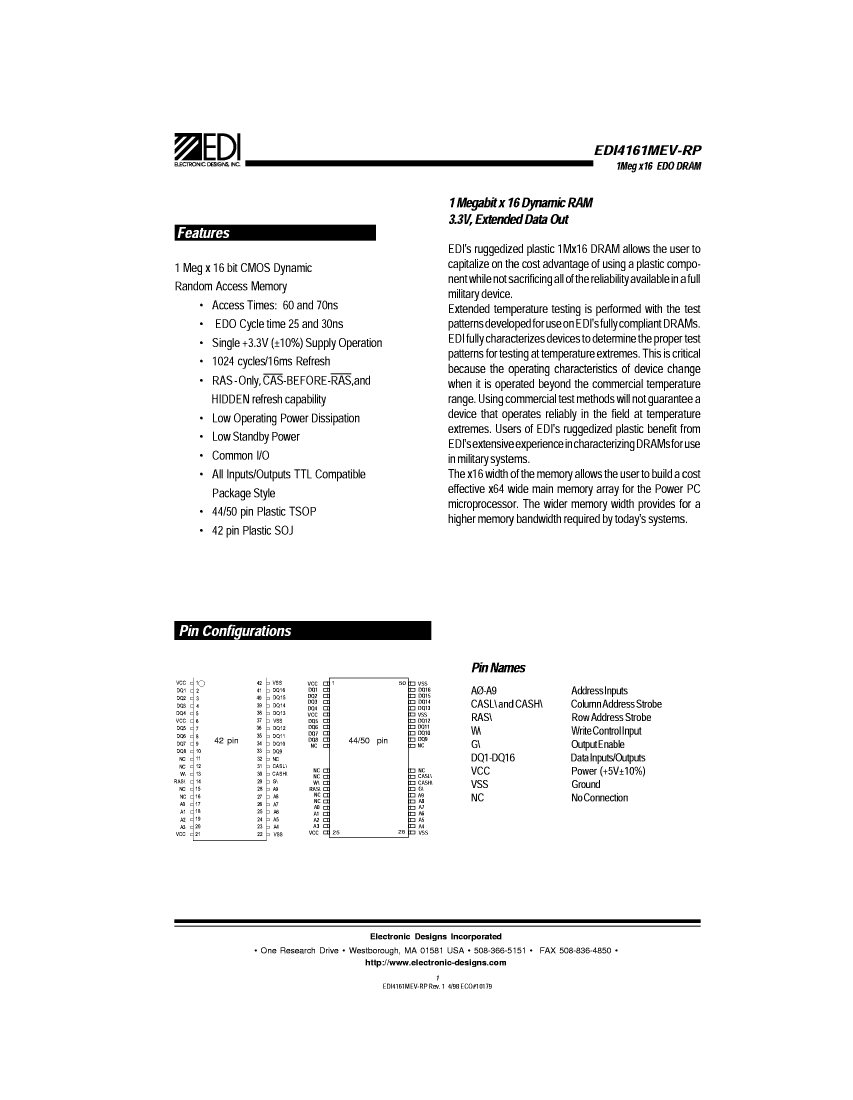

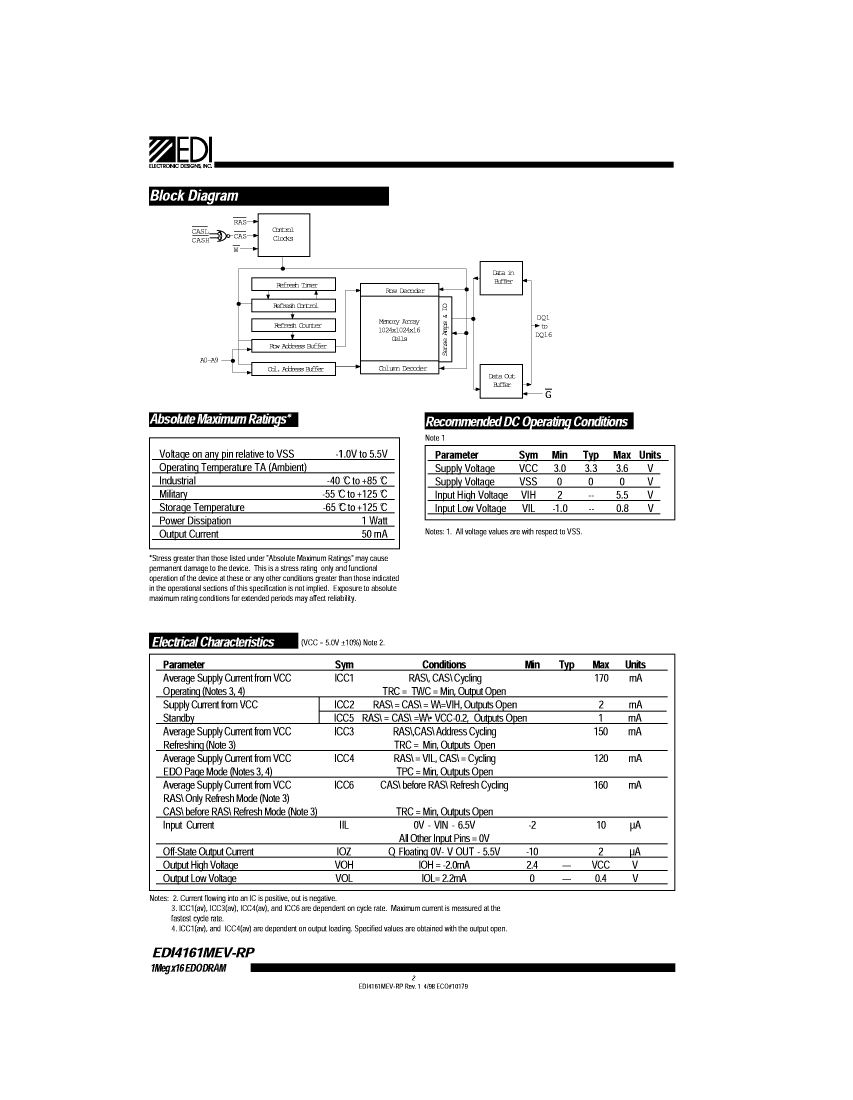

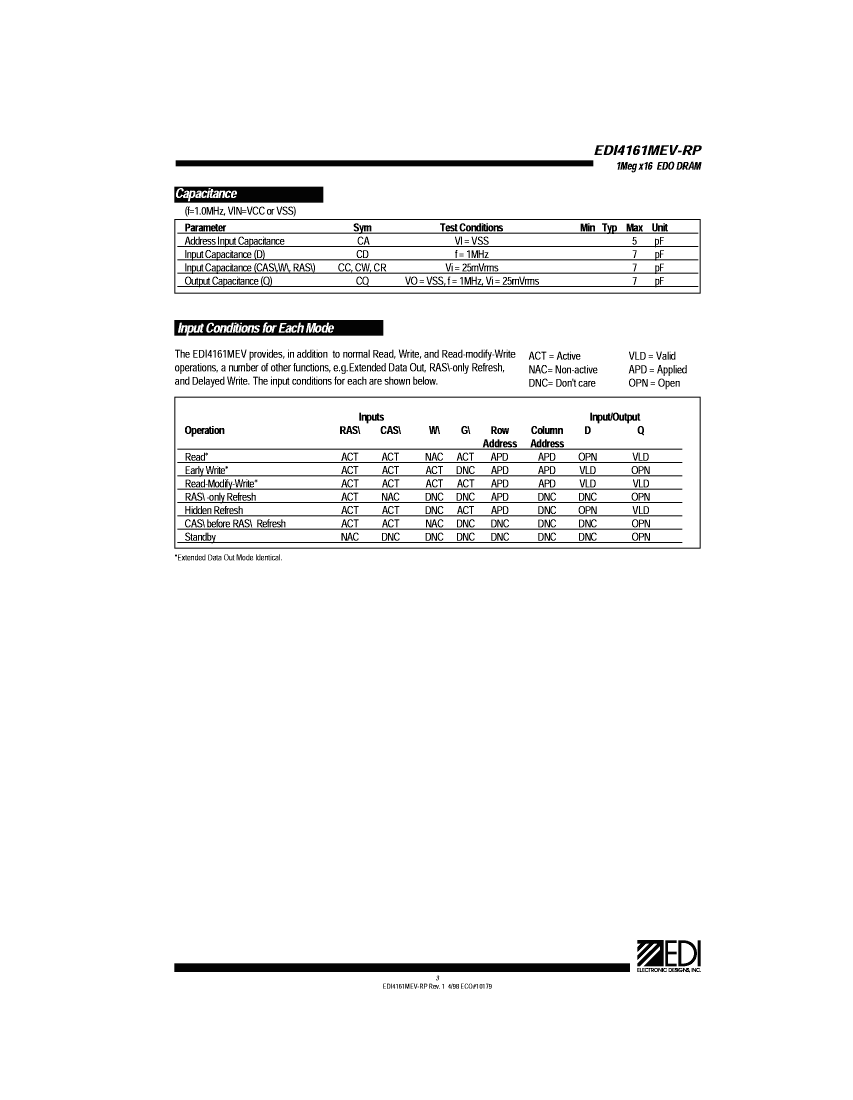

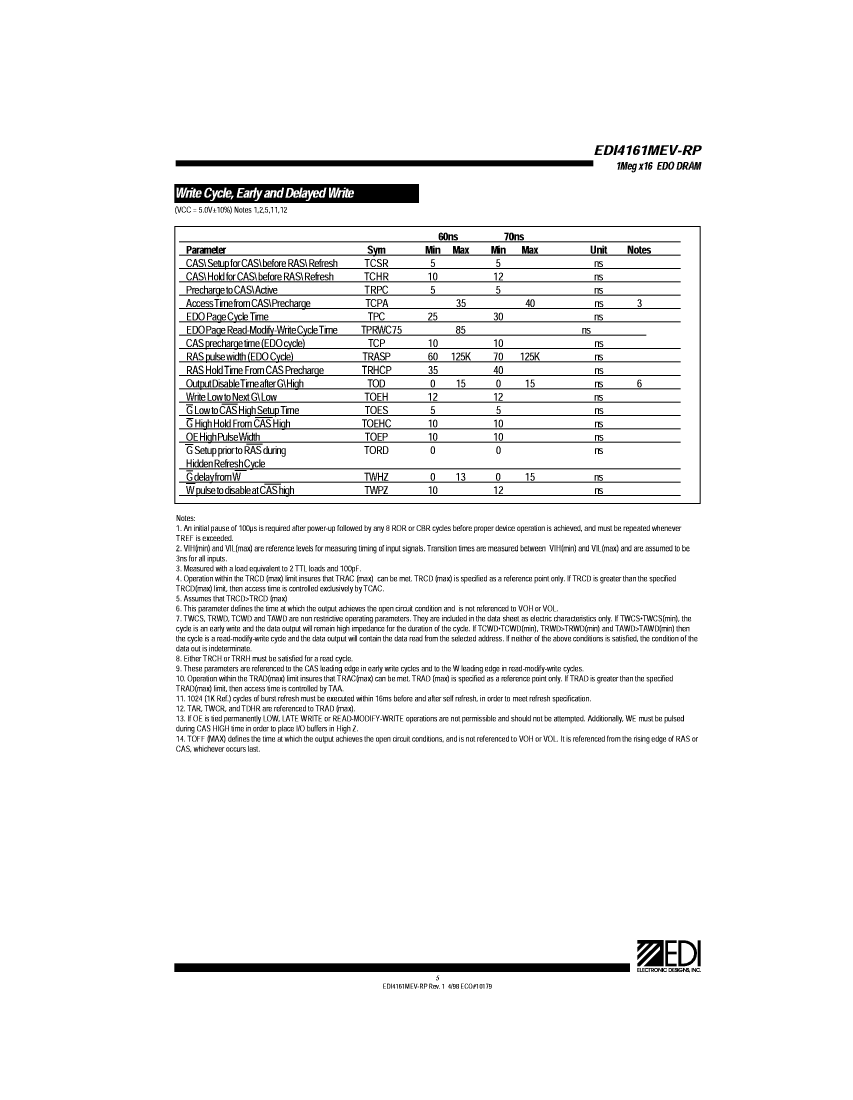

Preview

Download Datasheet

View All

EDI4161MEV70MI Related Products

	EDI4161MEV70MI	EDI4161MEV60MI	EDI4161MEV60MM	EDI4161MEV60SI	EDI4161MEV60SM	EDI4161MEV70MM	EDI4161MEV70SI	EDI4161MEV70SM
Description	EDO DRAM, 1MX16, 70ns, CMOS, PDSO42,	EDO DRAM, 1MX16, 60ns, CMOS, PDSO42,	EDO DRAM, 1MX16, 60ns, CMOS, PDSO42,	EDO DRAM, 1MX16, 60ns, CMOS, PDSO44,	EDO DRAM, 1MX16, 60ns, CMOS, PDSO44,	EDO DRAM, 1MX16, 70ns, CMOS, PDSO42,	EDO DRAM, 1MX16, 70ns, CMOS, PDSO44,	EDO DRAM, 1MX16, 70ns, CMOS, PDSO44,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	60 ns	60 ns	60 ns	60 ns	70 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J42	R-PDSO-J42	R-PDSO-J42	R-PDSO-G44	R-PDSO-G44	R-PDSO-J42	R-PDSO-G44	R-PDSO-G44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	42	42	42	44	44	42	44	44
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-40 °C	-55 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	TSOP	TSOP	SOJ	TSOP	TSOP
Encapsulate equivalent code	SOJ42,.44	SOJ42,.44	SOJ42,.44	TSOP44/50,.46,32	TSOP44/50,.46,32	SOJ42,.44	TSOP44/50,.46,32	TSOP44/50,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024
self refresh	NO	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	GULL WING	GULL WING	J BEND	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
