NJM2406
SINGLE COMPARATOR
■
GENERAL DESCRIPTION
■
PACKAGE OUTLINE
The NJM2406 is a single comparator of ultra miniature surface
mount package.
The NJM2406 is suitable for small electronic equipments and
hybrid circuits.
■
FEATURES
●
Operating Voltage
( 2.5V to 7V )
●
Single Supply Operation
●
Mounted in Ultra Miniature Package 2.0x1.25mm ( 1/8 of DMP8 package )
●
Ground Shield Plate between +Input and Output
●
Ground Shield Plate between +Input and -Input
●
Suitable Pin Arrangement for Application
●
Package Outline
SOT-23-5,SC88A
●
Bipolar Technology
■
PIN CONFIGURATION
PIN FUNCTION
1. -INPUT
2. GND
3. +INPUT
4. OUTPUT
+
5. V
NJM2406F
NNJM2406F3
NJM2406F
NJM2406F3
■
EQUIVALENT CIRCUIT
Ver.2012-10-31
-1-
NJM2406
■
ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Differential Input Voltage
Input Voltage
Power Dissipation
Output to Negative Supply Voltage
Operating Temperature Range
Storage Temperature Range
( note1 ) On glass epoxy board. ( 50x50x1.6mm )
SYMBOL
V
+
V
ID
V
IN
P
D
V
SUS
T
opr
T
stg
RATINGS
7
7
-0.3~7
(SOT-23-5 ) 200
( SC88A ) 250 ( note1 )
20
-40~+85
-40~+125
UNIT
V
V
V
mW
V
˚C
˚C
■
ELECTRICAL CHARACTERISTICS
( V
+
=5V
,
Ta=25˚C )
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Common Mode Voltage Range
Large Signal Voltage Gain
Response Time
Output Sink Current
Output Saturation Voltage
Output Leakage Current
Operating Current
SYMBOL
V
IO
I
IO
I
B
V
ICM
A
V
t
R
I
SINK
V
SAT
I
LEAK
I
CC
TEST CONDITION
R
S
=0Ω,V
O
=1.4V
MIN.
-
-
-
0~3.5
-
-
6
-
-
200
TYP.
1
1
20
-
106
1.5
-
300
-
400
MAX.
7
50
250
-
-
-
-
500
1
800
UNIT
mV
nA
nA
V
dB
µs
mA
mV
µA
µA
R
L
=15kΩ
R
L
=5.1kΩ
V
IN-
=1V,V
IN+
=0V,V
O
=1.5V
V
IN-
=1V,V
IN+
=0V,I
SINK
=5mA
V
IN-
=0V,V
IN+
=1V,V
O
=20V
-2-
Ver.2012-10-31
NJM2406
■

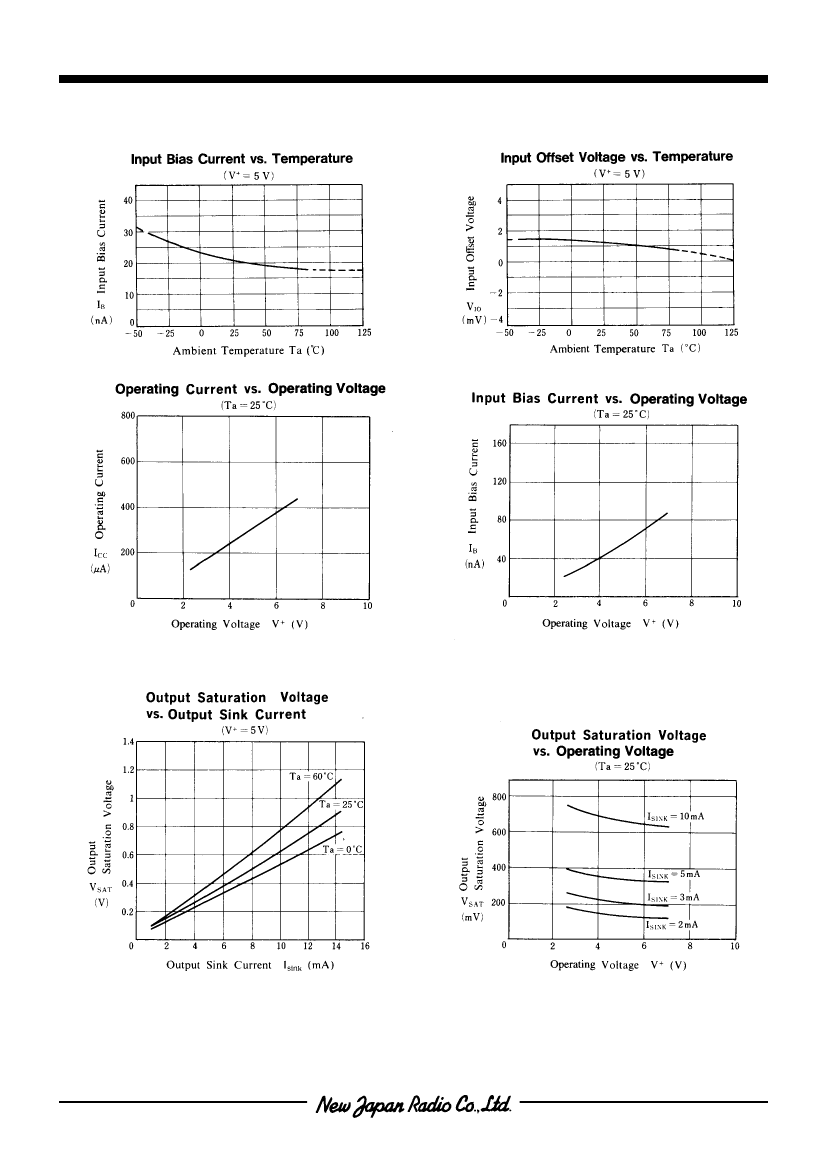

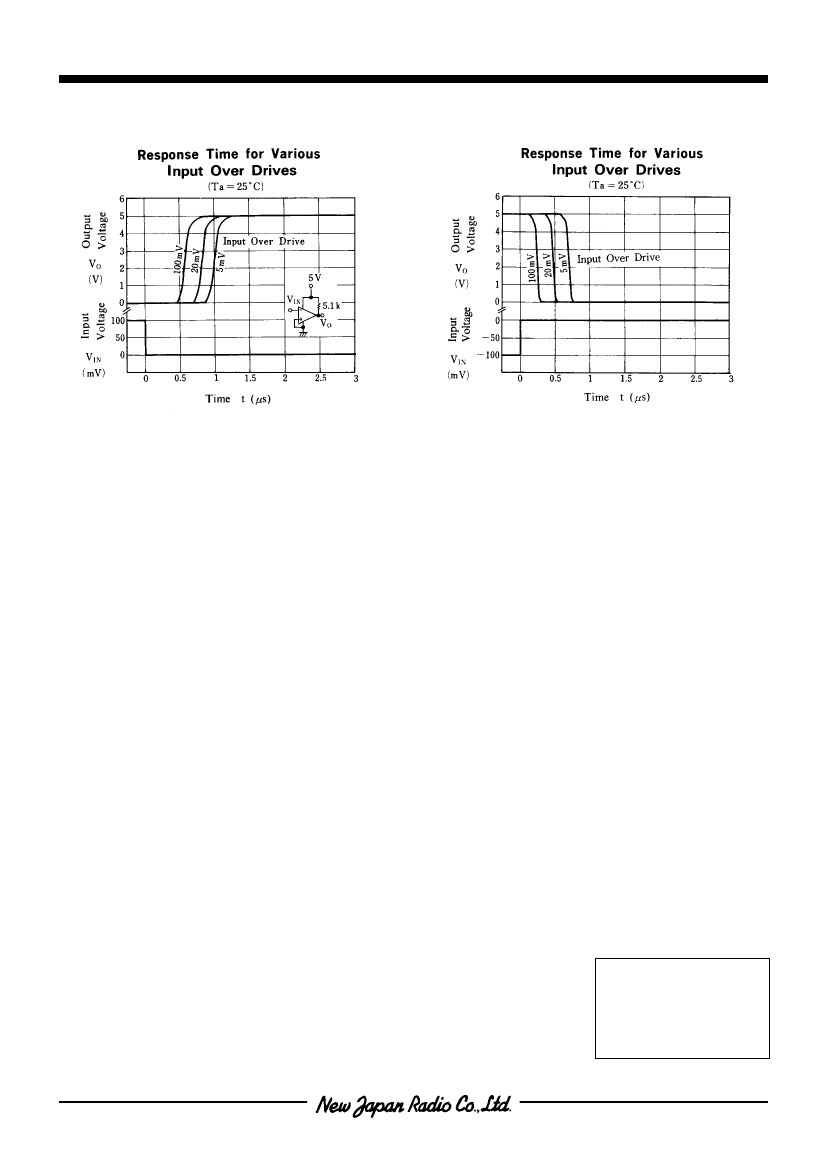

TYPICAL CHARACTERISTICS
Ver.2012-10-31
-3-
NJM2406
■
TYPICAL CHARACTERISTICS
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
-4-
Ver.2012-10-31
