GMS30112T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> GMS30112T

GMS30112T: DescriptionMicrocontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO20,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size286KB，16 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GMS30112T Overview

Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO20,

GMS30112T Parametric

Parameter Name	Attribute value
Maker	LG Semicon Co., Ltd.
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	1 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G20
Number of I/O lines	14
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
ROM programmability	MROM
speed	1 MHz
Maximum supply voltage	4 V
Minimum supply voltage	2.2 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

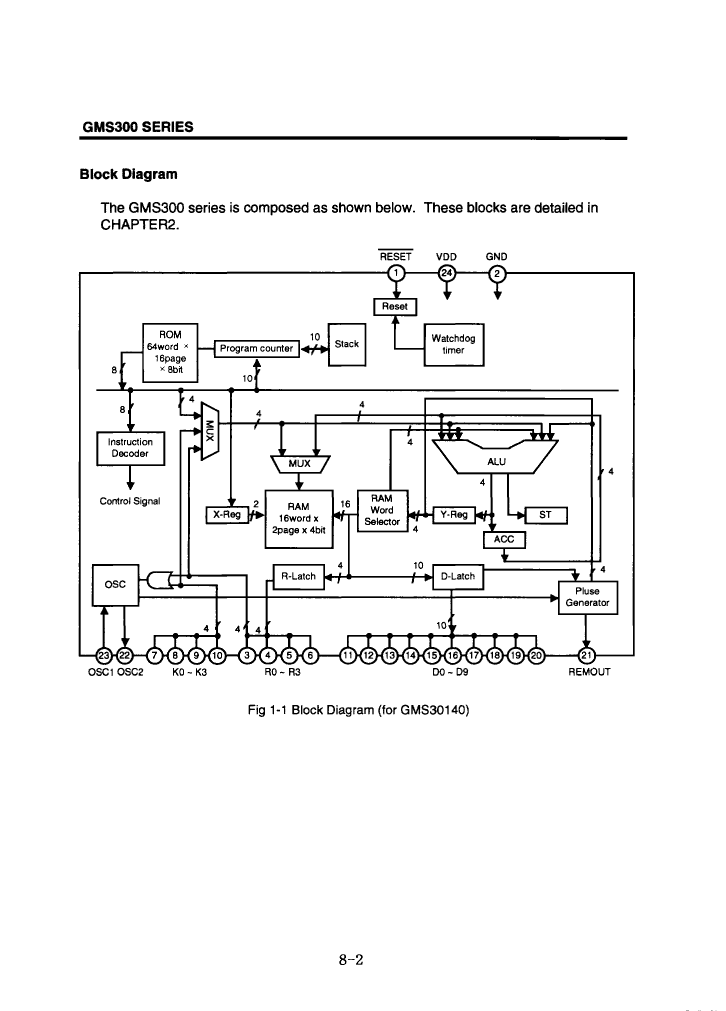

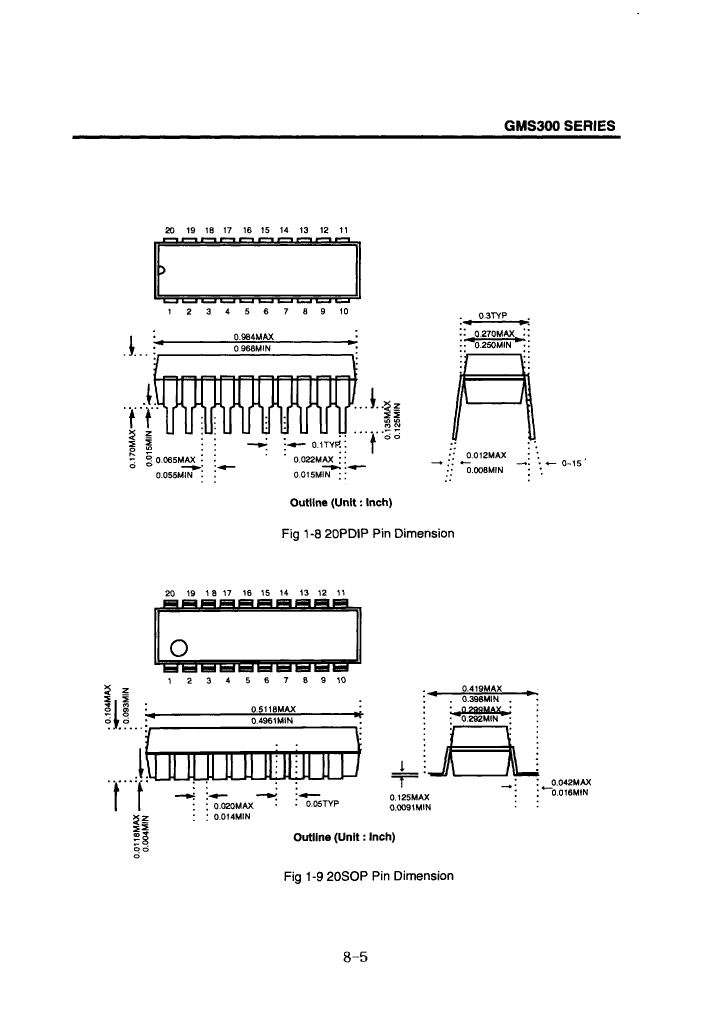

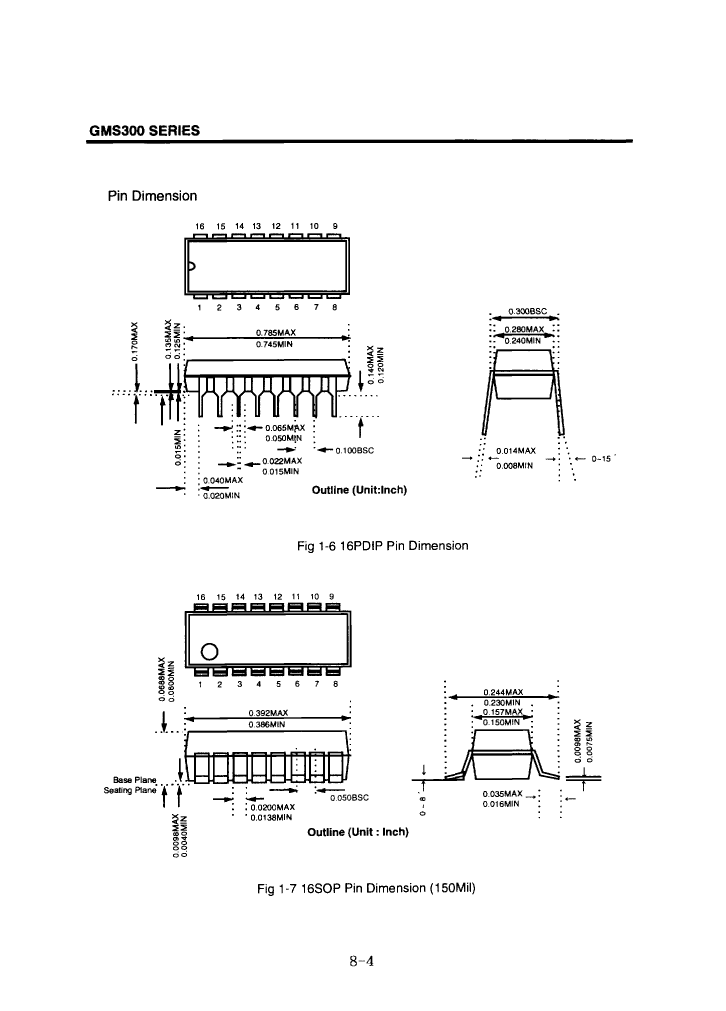

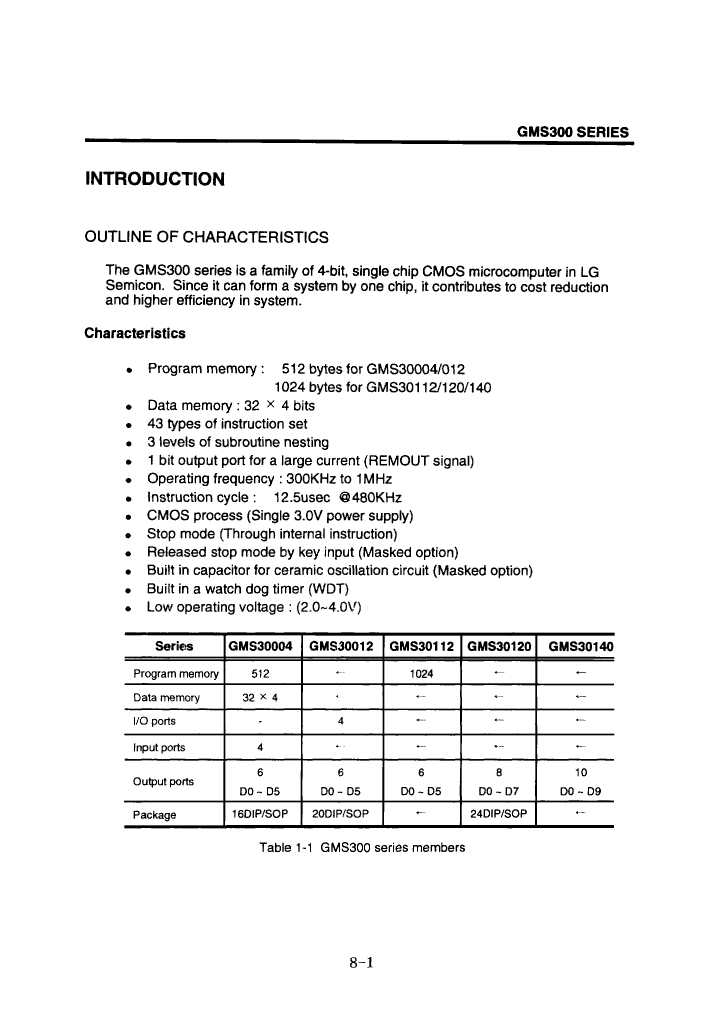

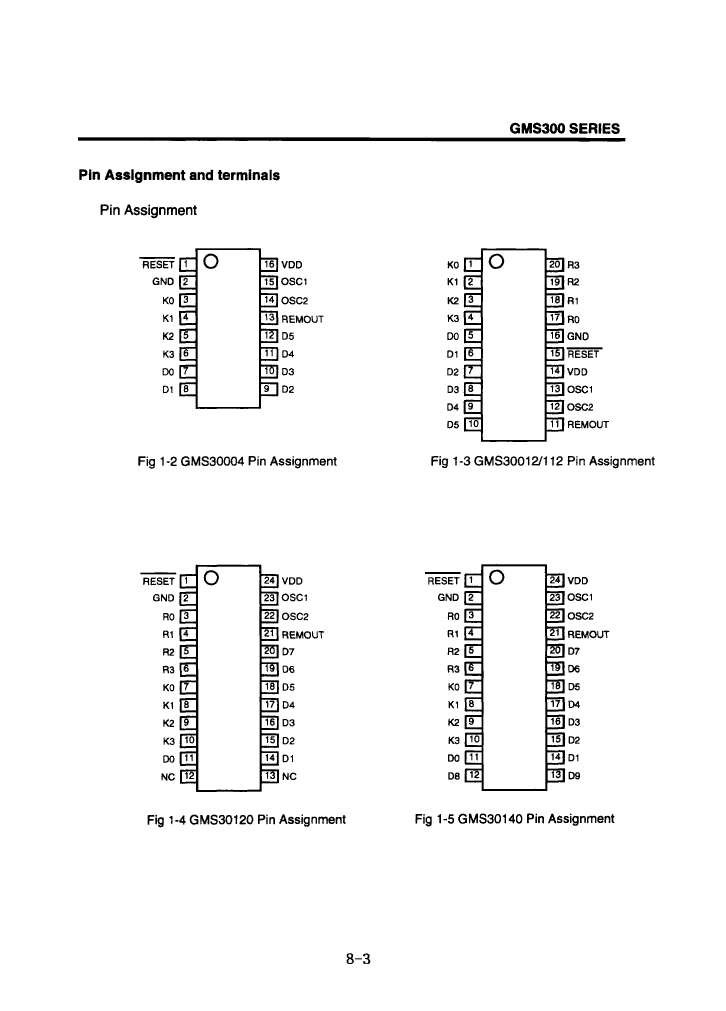

Preview

Download Datasheet

View All

GMS30112T Related Products

	GMS30112T	GMS30004	GMS30004T	GMS30012	GMS30012T	GMS30112	GMS30120T	GMS30120	GMS30140T	GMS30140
Description	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO20,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP16,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO16,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP20,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO20,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP20,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO24,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP24,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO24,	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP24,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
bit size	4	4	4	4	4	4	4	4	4	4
maximum clock frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDSO-G20	R-PDIP-T16	R-PDSO-G16	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24
Number of I/O lines	14	10	10	14	14	14	16	16	18	18
Number of terminals	20	16	16	20	20	20	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM
speed	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum supply voltage	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V
Minimum supply voltage	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	NO	YES	NO	YES	NO	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	LG Semicon Co., Ltd.	-	-	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
