LMV931

Description
OP-AMP, 6000 uV OFFSET-MAX, 1.4 MHz BAND WIDTH, PDSO5
Categorysemiconductor    Analog mixed-signal IC
File Size362KB,18 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

LMV931 Overview

OP-AMP, 6000 uV OFFSET-MAX, 1.4 MHz BAND WIDTH, PDSO5

LMV931 Parametric

Parameter NameAttribute value
Number of functions1
Number of terminals5
Maximum supply/operating voltage5.5 V
Maximum operating temperature125 Cel
Minimum operating temperature-40 Cel
Rated supply voltage2.7 V
Rated bandwidth1.4 kHz
Rated rotation rate0.4000 V/us
Maximum input offset voltage6000 mV
Processing package descriptionLEAD FREE, TSOP-5
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
CraftsmanshipCMOS
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
surface mountYes
Terminal formGULL WING
Terminal spacing0.9500 mm
terminal coatingMATTE TIN
Terminal locationDUAL
Packaging MaterialsPLASTIC/EPOXY
Temperature levelAUTOMOTIVE
Amplifier typeOP-AMP
Rated common mode rejection ratio70 dB
LMV931, LMV932
Single and Dual Low
Voltage, Rail-to-Rail Input
and Output, Operational
Amplifiers
The LMV931 Single and LMV932 Dual are CMOS low−voltage
operational amplifiers which can operate on single−sided power
supplies (1.8 V to 5.0 V) with rail−to−rail input and output swing.
Both devices come in small state−of−the−art packages and require
very low quiescent current making them ideal for battery−operated,
portable applications such as notebook computers and hand−held
instruments. Rail−to−Rail operation provides improved signal−to−noise
performance plus the small packages allow for closer placement to
signal sources thereby reducing noise pickup.
The single LMV931 is offered in space saving SC70−5 package.
The dual LMV932 is in either a Micro8 or SOIC package. These small
packages are very beneficial for crowded PCB’s.
Features
http://onsemi.com
MARKING
DIAGRAMS
LMV931 (Single)
SC−70
CASE 419A
AAF MG
G
5
5
1
TSOP−5
CASE 483
1
ADF MG
G
Performance Specified on Single−Sided Power Supply: 1.8 V, 2.7 V, and
5V
Small Packages:
LMV931 in a SC−70
LMV932 in a Micro8 or SOIC−8
No Output Crossover Distortion
Extended Industrial Temperature Range:
−40
°
C to +125
°
C
Low Quiescent Current 210
mA,
Max Per Channel
No Output Phase−Reversal from Overdriven Input
These are Pb−Free Devices
M = Date Code
G
= Pb−Free Package
(*Note: Microdot may be in either location)
LMV932 (Dual)
8
V932
AYWG
G
1
Typical Applications
Notebook Computers, Portable Battery−Operated Instruments, PDA’s
Active Filters, Low−Side Current Monitoring
0.1
0.09
0.08
DV
FROM RAIL (V)
0.07
0.06
0.05
0.04
0.03
0.02
0.01
0 1.8
2.2
2.6
V
OH
R
L
= 600
W
T
A
= 25°C
Micro8]
CASE 846A
8
8
1
SOIC−8
CASE 751
1
LMV932
ALYW
G
A
= Assembly Location
Y
= Year
L
= Wafer Lot
W
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
V
OL
3
3.4
3.8
4.2
4.6
5
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 14 of this data sheet.

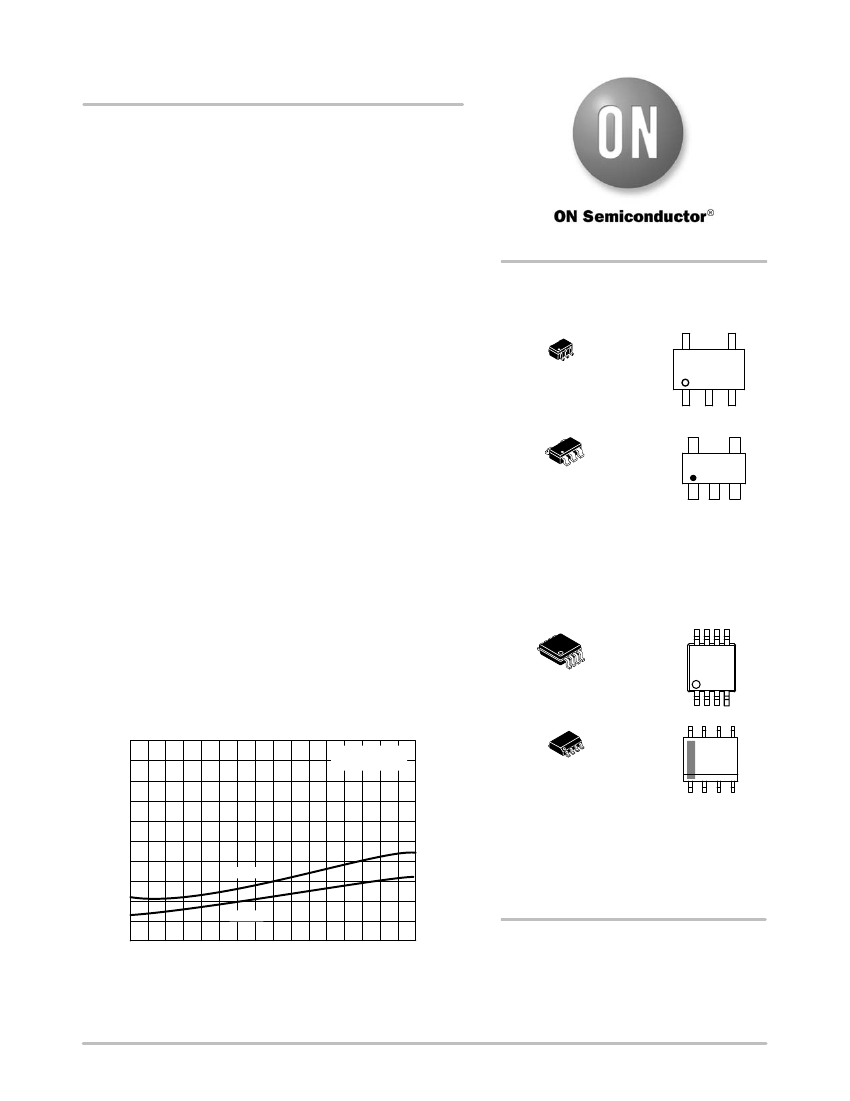

Figure 1. Output Voltage Swing vs. Supply Voltage
SUPPLY VOLTAGE (mV)
©
Semiconductor Components Industries, LLC, 2012
August, 2012
Rev. 9
1
Publication Order Number:
LMV931/D

LMV931 Related Products

LMV931 LMV932
Description OP-AMP, 6000 uV OFFSET-MAX, 1.4 MHz BAND WIDTH, PDSO5 OP-AMP, 6000 uV OFFSET-MAX, 1.4 MHz BAND WIDTH, PDSO5
Number of functions 1 1
Number of terminals 5 5
Maximum supply/operating voltage 5.5 V 5.5 V
Maximum operating temperature 125 Cel 125 Cel
Minimum operating temperature -40 Cel -40 Cel
Rated supply voltage 2.7 V 2.7 V
Rated bandwidth 1.4 kHz 1.4 kHz
Rated rotation rate 0.4000 V/us 0.4000 V/us
Maximum input offset voltage 6000 mV 6000 mV
Processing package description LEAD FREE, TSOP-5 LEAD FREE, TSOP-5
Lead-free Yes Yes
EU RoHS regulations Yes Yes
China RoHS regulations Yes Yes
state ACTIVE ACTIVE
Craftsmanship CMOS CMOS
packaging shape RECTANGULAR RECTANGULAR
Package Size SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
surface mount Yes Yes
Terminal form GULL WING GULL WING
Terminal spacing 0.9500 mm 0.9500 mm
terminal coating MATTE TIN MATTE TIN
Terminal location DUAL DUAL
Packaging Materials PLASTIC/EPOXY PLASTIC/EPOXY
Temperature level AUTOMOTIVE AUTOMOTIVE
Amplifier type OP-AMP OP-AMP
Rated common mode rejection ratio 70 dB 70 dB
