B82505-W-A4: Description1 ELEMENT, 1200uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size116KB，1 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82505-W-A4 Overview

1 ELEMENT, 1200uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR

B82505-W-A4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
core material	IRON-SILICON
DC Resistance	0.075 Ω
Nominal inductance(L)	1200 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum rated current	10 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal location	RADIAL
Terminal shape	BINDING POST
Tolerance	20%

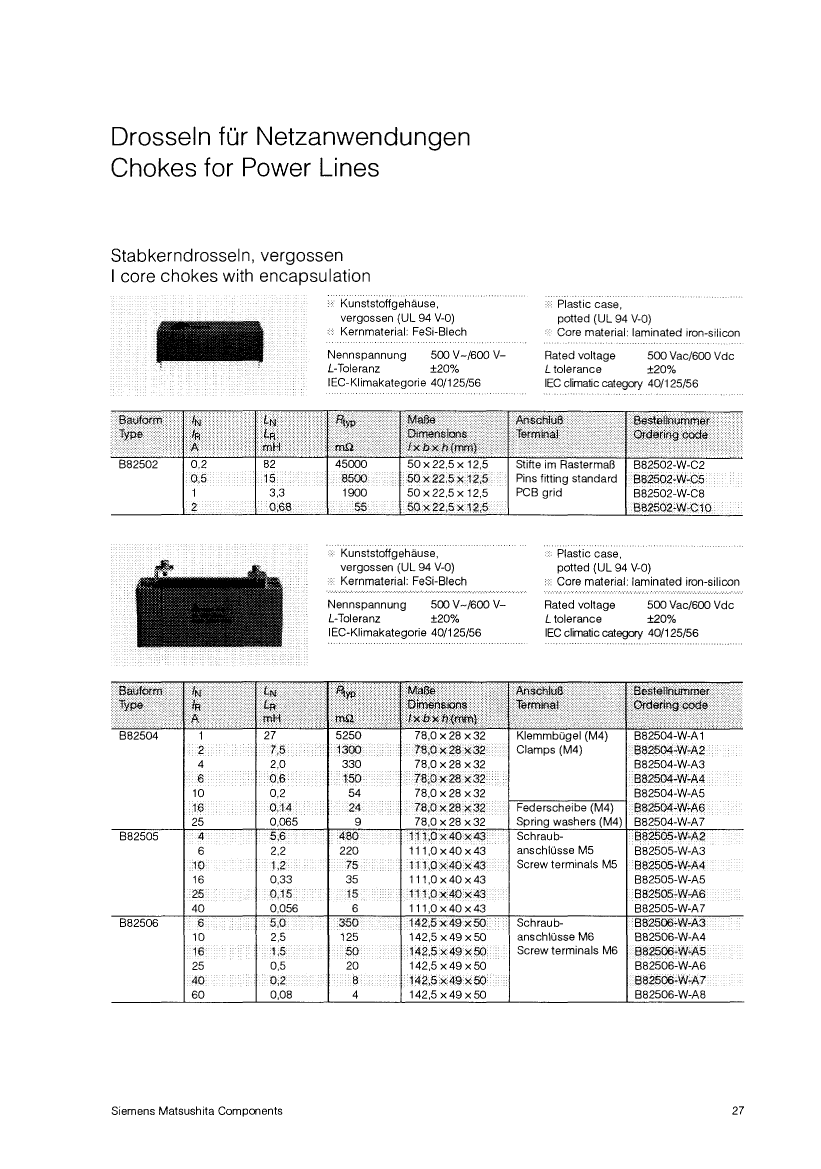

Preview

Download Datasheet

View All

B82505-W-A4 Related Products

	B82505-W-A4	B82505-W-A5	B82504W0000A006	B82504-W-A6	B82505W0000A004	B82505W0000A005
Description	1 ELEMENT, 1200uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 330uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 140uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 140uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 1200uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 330uH, IRON-SILICON-CORE, GENERAL PURPOSE INDUCTOR
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	IRON-SILICON	IRON-SILICON	IRON-SILICON	IRON-SILICON	IRON-SILICON	IRON-SILICON
DC Resistance	0.075 Ω	0.035 Ω	0.024 Ω	0.024 Ω	0.075 Ω	0.035 Ω
Nominal inductance(L)	1200 µH	330 µH	140 µH	140 µH	1200 µH	330 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum rated current	10 A	16 A	16 A	16 A	10 A	16 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST
Tolerance	20%	20%	20%	20%	20%	20%
Maker	EPCOS (TDK)	-	-	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
