GM72V66841ET-7K datasheet, PDF

Datasheet> All Categories > storage> storage> GM72V66841ET-7K

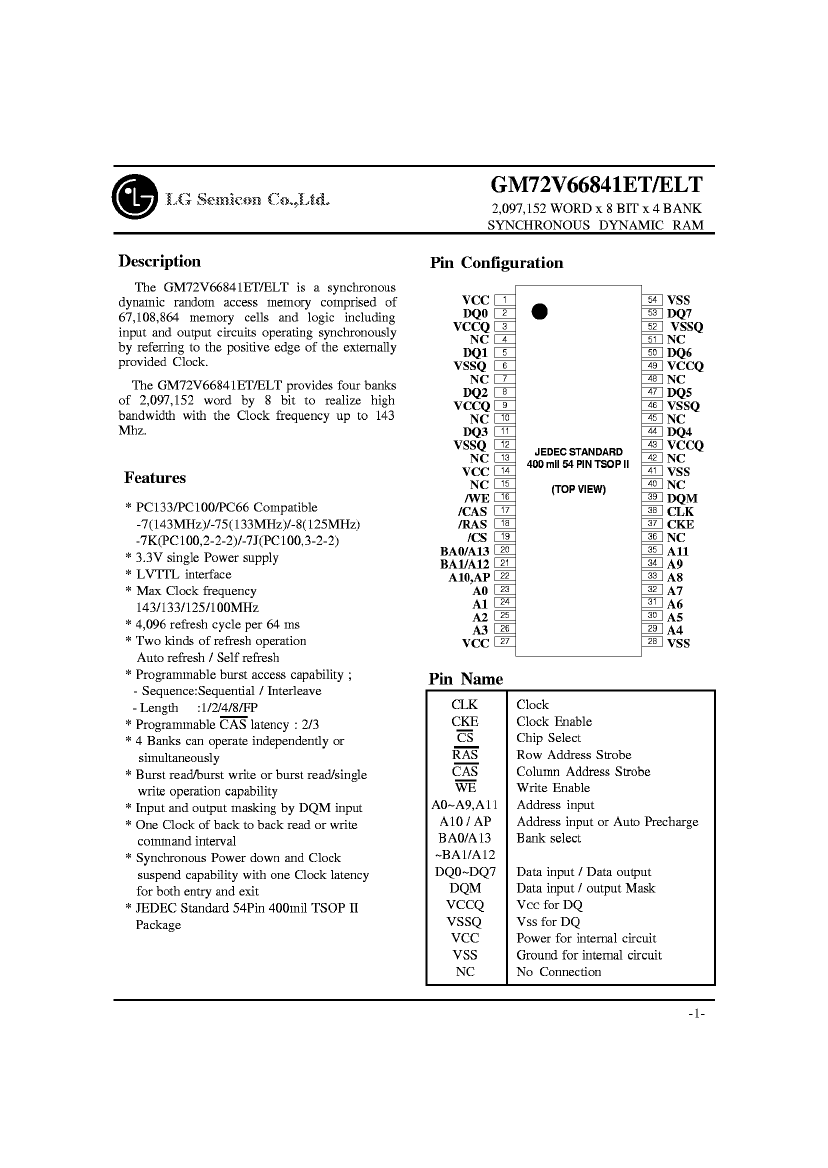

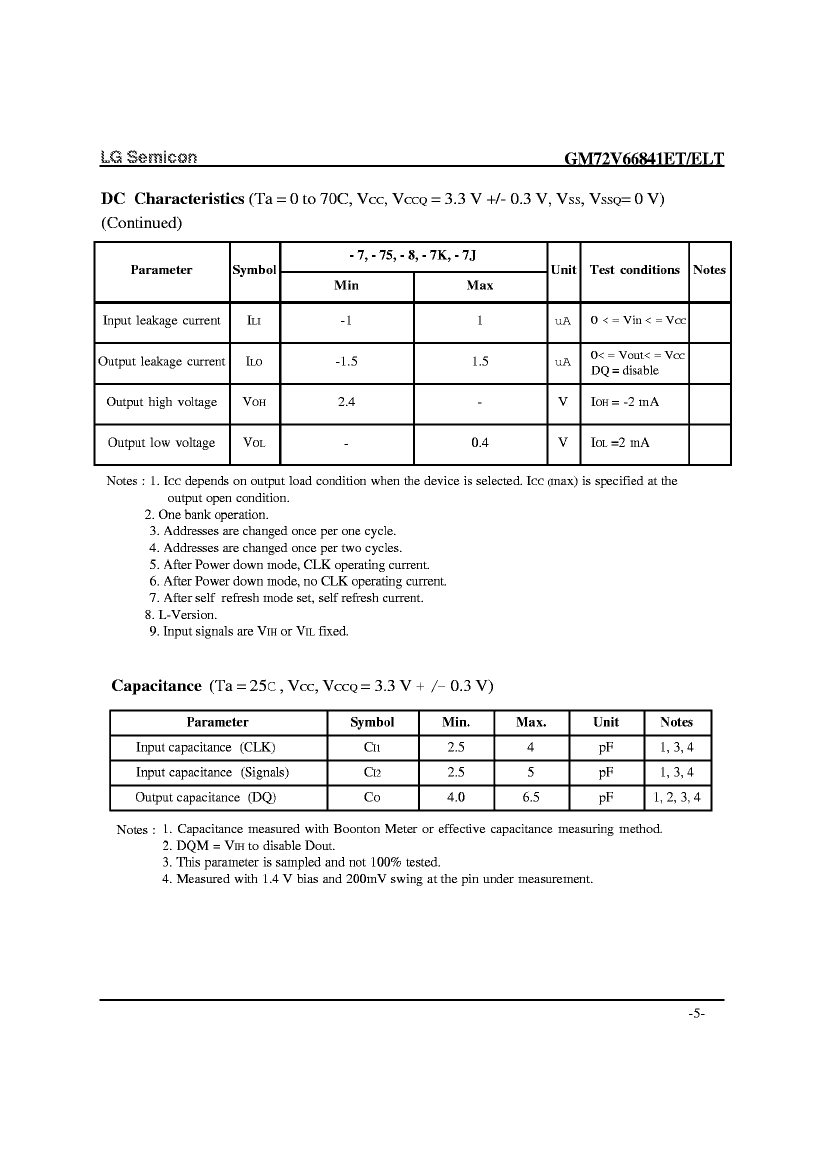

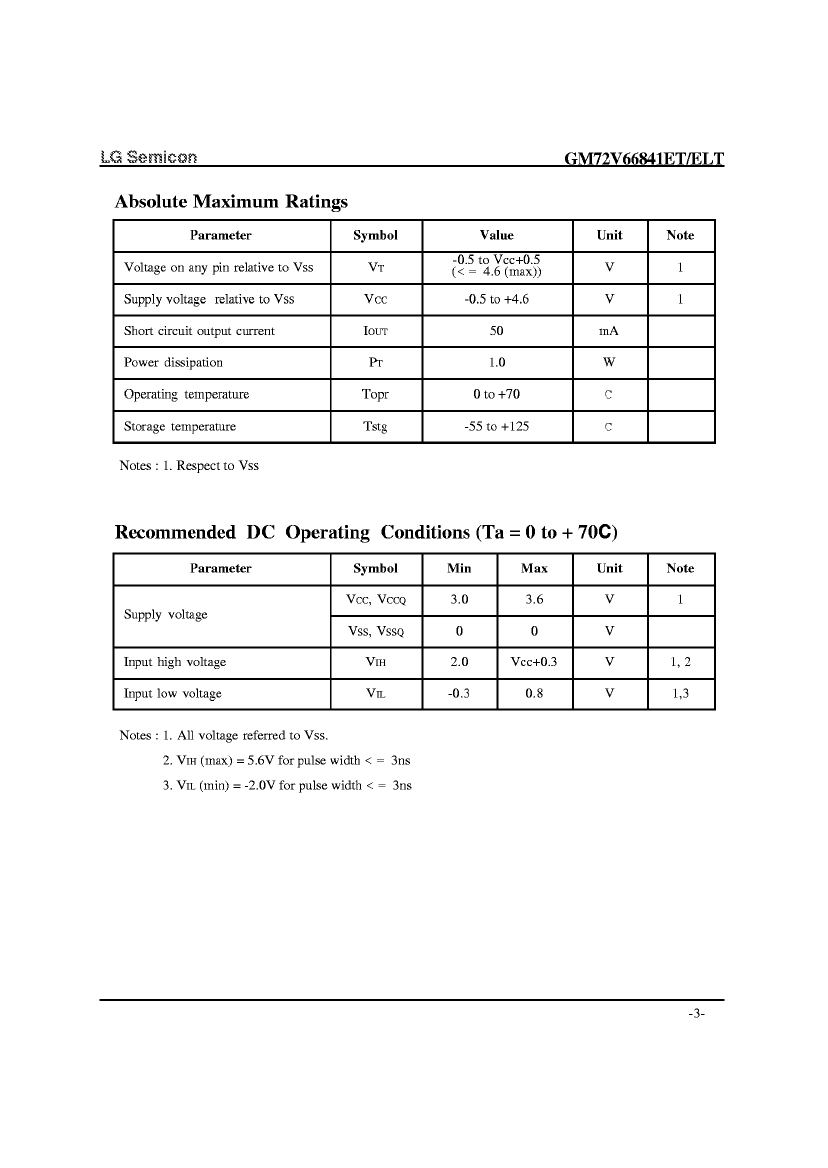

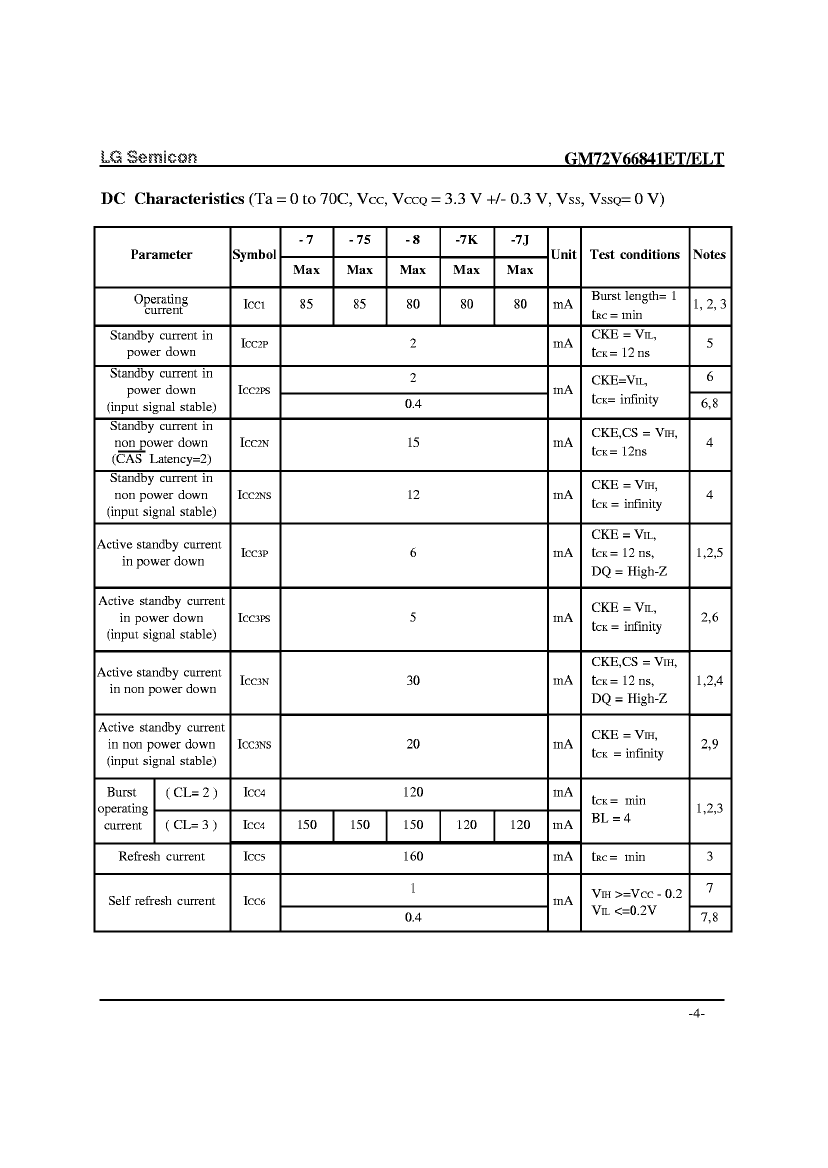

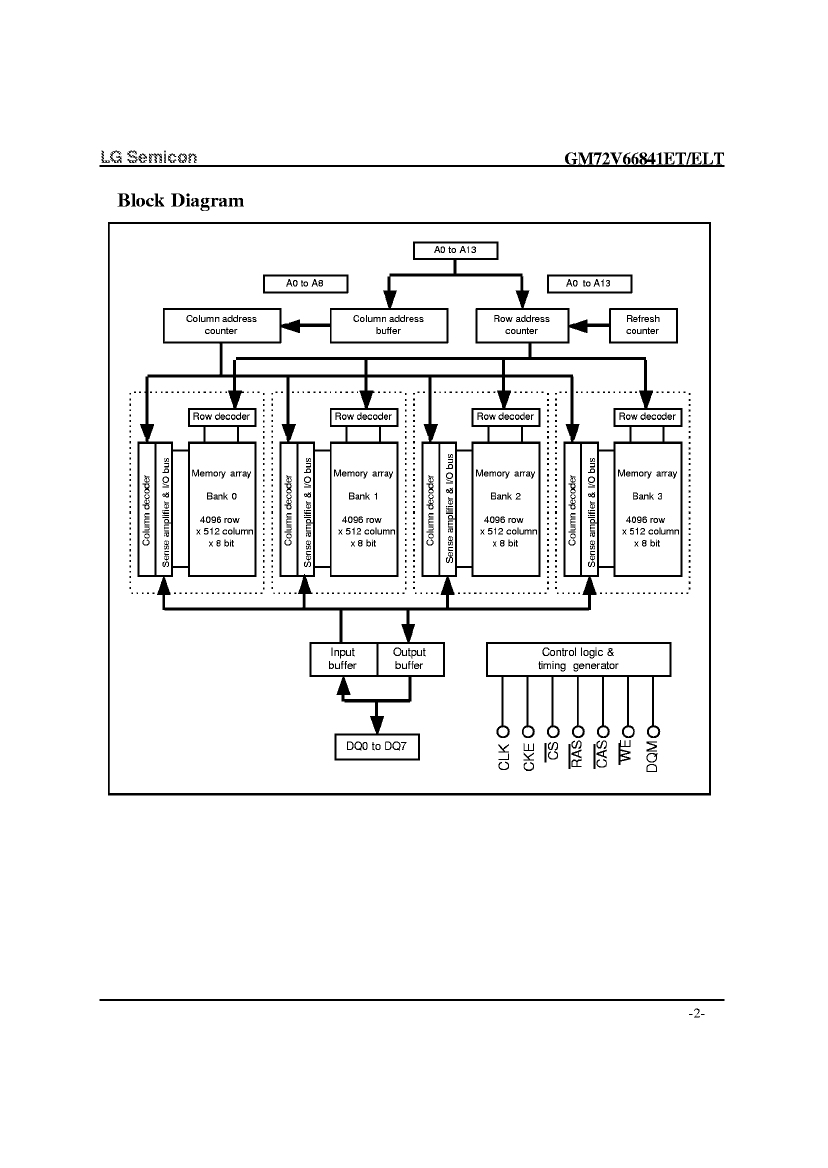

GM72V66841ET-7K: DescriptionSynchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,; Categorystorage storage; File Size171KB，10 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GM72V66841ET-7K Overview

Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,

GM72V66841ET-7K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
package instruction	TSOP, TSOP54,.46,32
Reach Compliance Code	unknown
access mode	FOUR BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
interleaved burst length	1,2,4,8
JESD-30 code	R-PDSO-G54
JESD-609 code	e0
memory density	67108864 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	54
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP54,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Continuous burst length	1,2,4,8,FP
Maximum standby current	0.002 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

GM72V66841ET-7K Related Products

	GM72V66841ET-7K	GM72V66841ELT-75	GM72V66841ELT-7J	GM72V66841ELT-7	GM72V66841ELT-7K	GM72V66841ELT-8	GM72V66841ET-75	GM72V66841ET-7J	GM72V66841ET-8	GM72V66841ET-7
Description	Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 5.4ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 5.4ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 5.4ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 6ns, CMOS, PDSO54,	Synchronous DRAM, 8MX8, 5.4ns, CMOS, PDSO54,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	6 ns	5.4 ns	6 ns	5.4 ns	6 ns	6 ns	5.4 ns	6 ns	6 ns	5.4 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz	133 MHz	100 MHz	143 MHz	100 MHz	125 MHz	133 MHz	100 MHz	125 MHz	143 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
interleaved burst length	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8
JESD-30 code	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1	1
Number of terminals	54	54	54	54	54	54	54	54	54	54
word count	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8MX8	8MX8	8MX8	8MX8	8MX8	8MX8	8MX8	8MX8	8MX8	8MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
Encapsulate equivalent code	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096	4096	4096	4096	4096
self refresh	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Continuous burst length	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP
Maximum standby current	0.002 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.002 A	0.002 A	0.002 A	0.002 A
Maximum slew rate	0.12 mA	0.15 mA	0.12 mA	0.15 mA	0.12 mA	0.155 mA	0.15 mA	0.12 mA	0.155 mA	0.15 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
