SDC-14575-112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> SDC-14575-112

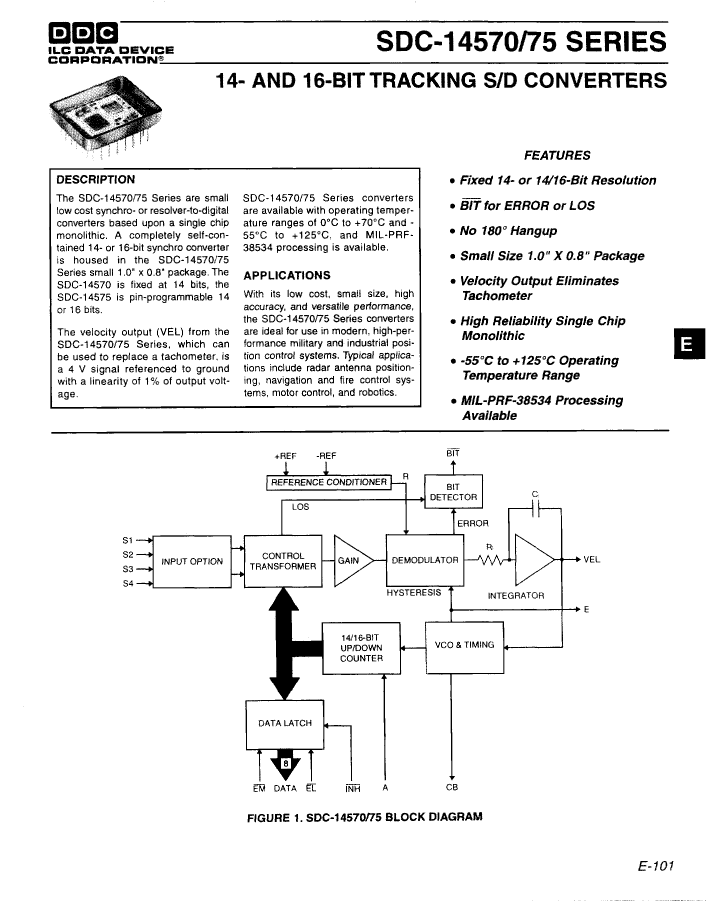

SDC-14575-112: DescriptionSynchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26; CategoryAnalog mixed-signal IC converter; File Size250KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

SDC-14575-112 Overview

Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26

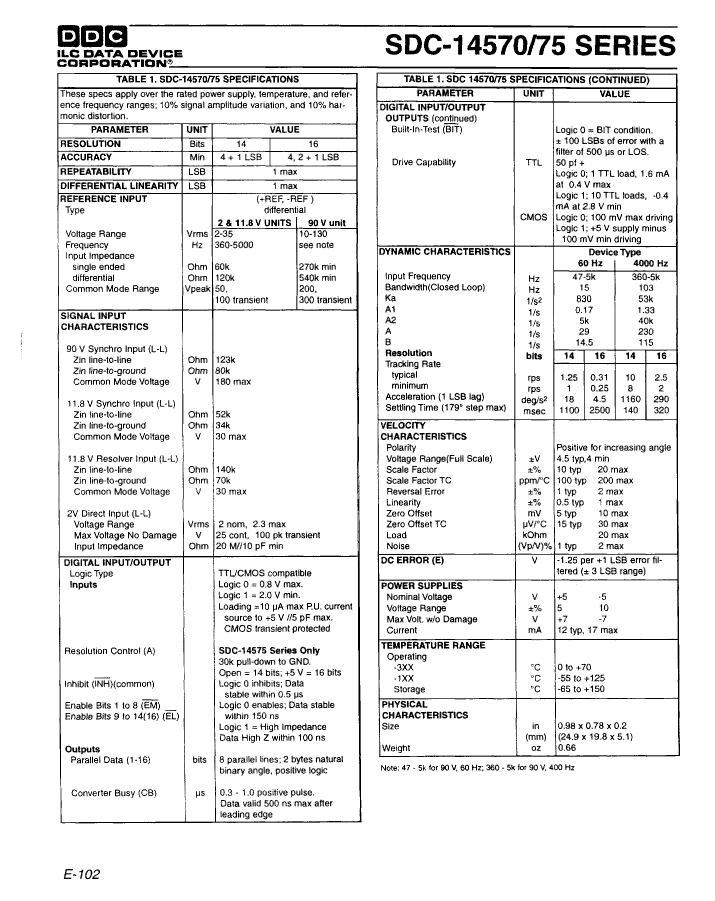

SDC-14575-112 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	QFP
package instruction	0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26
Contacts	26
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PROGRAMMABLE RESOLUTION; BUILT-IN-TEST
Maximum analog input voltage	11.8 V
Maximum angular accuracy	4 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XQIP-P26
JESD-609 code	e0
Maximum negative supply voltage	-5.5 V
Minimum negative supply voltage	-4.5 V
Nominal negative supply voltage	-5 V
Number of digits	16
Number of functions	1
Number of terminals	26
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	QIP
Encapsulate equivalent code	QUAD26,.6X.7
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5 V
Certification status	Not Qualified
Filter level	MIL-PRF-38534
Maximum seat height	5.08 mm
Maximum stabilization time	320 µs
Signal/output frequency	5000 Hz
Maximum slew rate	17 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum tracking rate	2 rps
width	15.24 mm

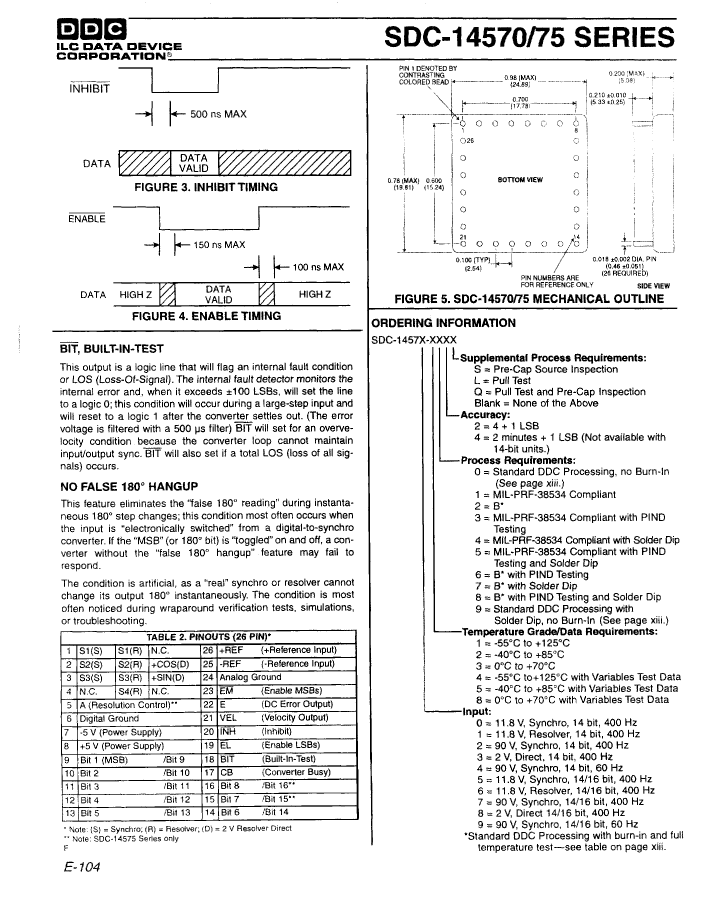

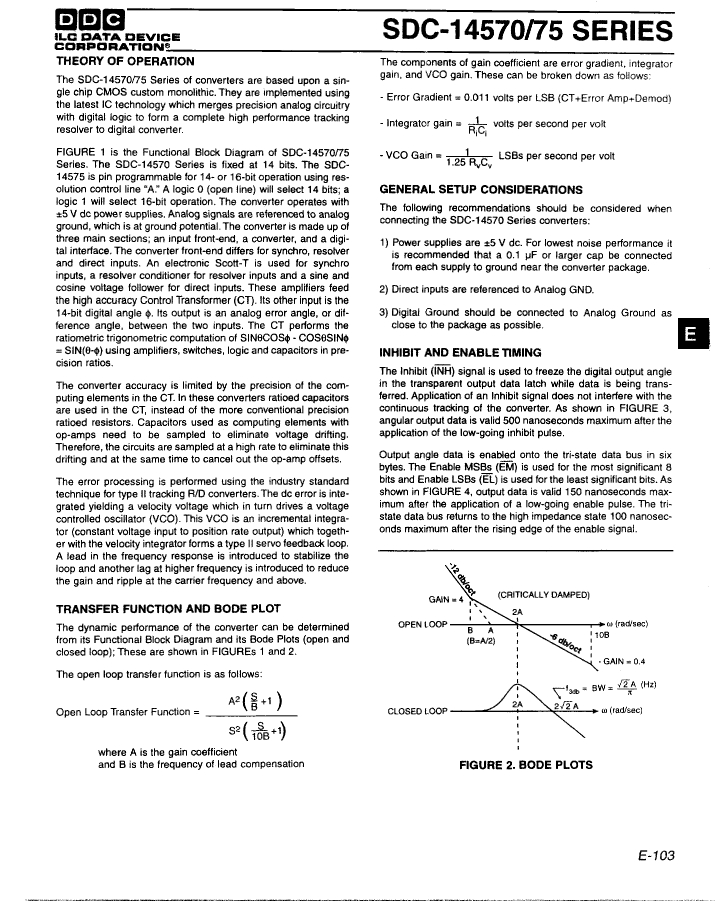

Preview

Download Datasheet

View All

SDC-14575-112 Related Products

	SDC-14575-112	SDC-14575-124	SDC-14575-122	SDC-14570-122	SDC-14570-112	SDC-14575-114
Description	Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26	QIP, QUAD26,.6X.7	QIP, QUAD26,.6X.7	QIP, QUAD26,.6X.7	0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26
Contacts	26	26	26	26	26	26
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PROGRAMMABLE RESOLUTION; BUILT-IN-TEST	PROGRAMMABLE RESOLUTION; BUILT-IN-TEST	PROGRAMMABLE RESOLUTION; BUILT-IN-TEST	BUILT-IN-TEST	BUILT-IN-TEST	PROGRAMMABLE RESOLUTION; BUILT-IN-TEST
Maximum analog input voltage	11.8 V	11.8 V	11.8 V	11.8 V	11.8 V	11.8 V
Maximum angular accuracy	4 arc min	2 arc mi	4 arc mi	4 arc min	4 arc min	2 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XQIP-P26	R-XQIP-P26	R-XQIP-P26	R-XQIP-P26	R-XQIP-P26	R-XQIP-P26
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum negative supply voltage	-5.5 V	-5.5 V	-5.5 V	-5.5 V	-5.5 V	-5.5 V
Minimum negative supply voltage	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	16	16	16	14	14	16
Number of functions	1	1	1	1	1	1
Number of terminals	26	26	26	26	26	26
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	QIP	QIP	QIP	QIP	QIP
Encapsulate equivalent code	QUAD26,.6X.7	QUAD26,.6X.7	QUAD26,.6X.7	QUAD26,.6X.7	QUAD26,.6X.7	QUAD26,.6X.7
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38534	MIL-PRF-38534	MIL-PRF-38534	MIL-PRF-38534	MIL-PRF-38534	MIL-PRF-38534
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum stabilization time	320 µs	320 µs	320 µs	140 µs	140 µs	320 µs
Signal/output frequency	5000 Hz	5000 Hz	5000 Hz	5000 Hz	5000 Hz	5000 Hz
Maximum slew rate	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum tracking rate	2 rps	2 rps	2 rps	8 rps	8 rps	2 rps
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Maker	Data Device Corporation	-	-	Data Device Corporation	Data Device Corporation	Data Device Corporation
Base Number Matches	-	1	1	1	1	-
