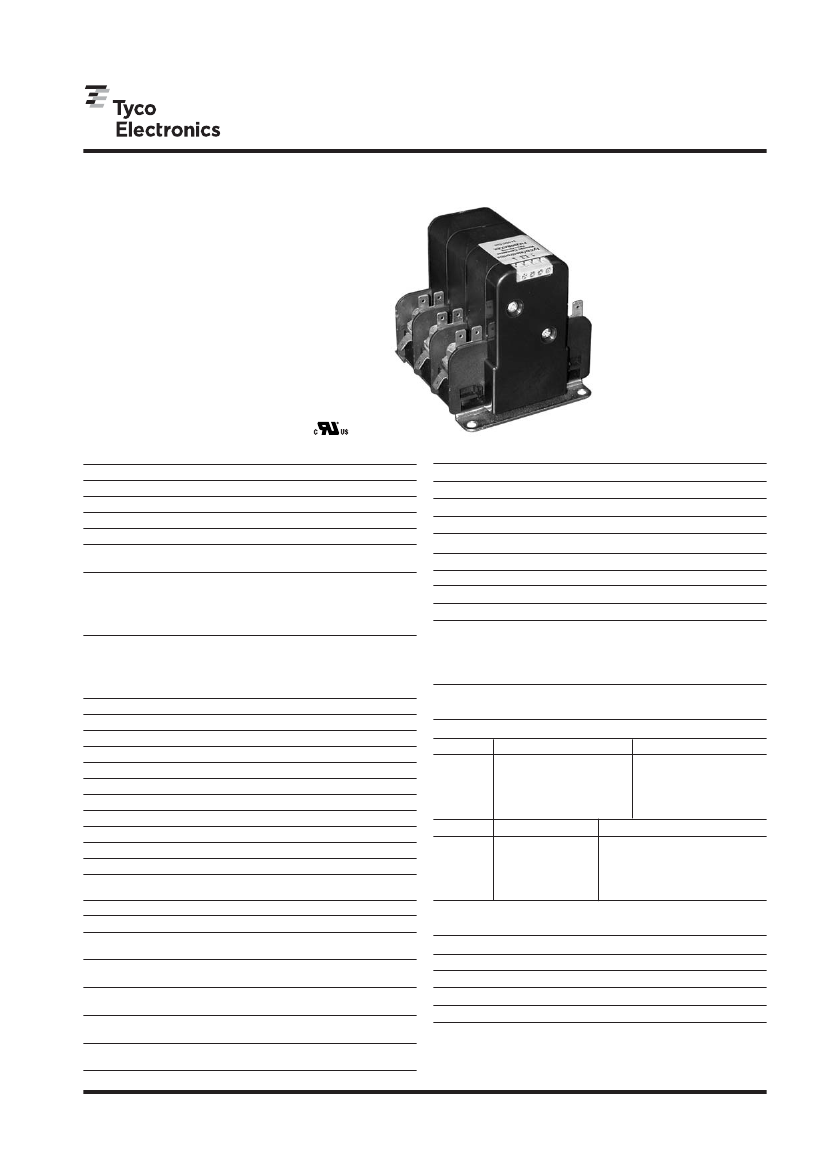

KILOVAC FM200 (“FLATMAN”) Series 1-, 2- or 3-pole Contactor
With Contacts Rated 200 Amps, 480Vac (50/60 Hz. ) or 48Vdc
Product Facts
I
Multi-pole configurations
I
Normally open, normally
I
I
I
I
closed and mixed contact
arrangements
Optional quick connect tabs
for sensing
Small, lightweight & cost-
effective – designed to be the
smallest, lowest cost
contactor in the industry with
its current rating
Standard models available
with 12VDC, 24VDC and 115
VAC coils. Consult factory for
240VAC coil models.
1 Form A auxiliary contacts
File E208033
For factory-direct application assistance, dial
800-253-4560, ext. 2055, or 805-220-2055.
Product Specifications
Parameter
Contact Arrangement
Contact Form (per pole)
Rated Operating Voltage
Max. Contact Voltage (transient)
Continuous (Carry) Current
Power Switching Form X (0.7-1.0 PF)
V
V
Units
Value for FM200 Series
1, 2 or 3 poles
Form X or Y (NO-DM or NC-DB)
480Vrms (L-L) or 48VDC
750Vrms or 60VDC
Coil Operating Voltage (valid over temperature range)
Coil Designator
Nominal Voltage
Voltage Range
Hold Voltage
Dropout Voltage
Units
V
V
V
V
A
12 (DC)
9.6-13.2
≥0.5V
nom
≤0.1V
nom
B
24 (DC)
19.2-26.4
≥0.5V
nom
≤0.1V
nom
C
115 (AC)
92-126.5
≥0.5V
nom
≤0.1V
nom
D
24 (DC)
19.2-26.4
≥0.5V
nom
≤0.2V
nom
Arms or ADC 200/pole (Form X)
150/pole (Form Y)
Cycles
2,000 @ 300Arms
10,000@ 200Arms
20,000 @ 100Arms
5,000 @ 200A/48VDC
2 million @ 50A/28VDC
2,000 @ 225Arms
10,000@ 150Arms
20,000 @ 75Arms
5,000 @ 150A/48VDC
2 million @ 35A/28VDC
>2 million
75 for Form X or Form Y
1 Form A (SPST-NO)
Arms or ADC 1 @ 30VDC, 3 @ 125VAC
Vrms
Megohms
G
G
°C
°C
%RH
2,200 @ sea level
100
10
5
-20 to +60
-40 to +85
0 to 95
Coil Resistance Data for Pole Configurations (@25°C)
Coil Designator
Resistance ±10%
Units
Ohms
A
X = 36
XX = 18
XXX = 12
XY = 13.2
XYX = 9.6
B*
X = 36
XX = 18
XXX = 12
XY = 13.2
XYX = 9.6
C*
X = 36
XX = 18
XXX = 12
XY = 13.2
XYX = 9.6
D*
Y = 20.8
YY = 10.4
YYY = 6.9
YXY = 8.1
Power Switching Form Y (0.7-1.0 PF)
Cycles
*Coil resistance not measurable at terminals due to converter/economizer circuit.
Coil Current/Power Data for Pole Configurations (@25°C, V
coil
=1.1V
nom
)
Coil Designator
Current/Power
A
X = 0.37 ADC / 4.84W
XX = 0.73ADC / 9.68W
XXX = 1.1ADC / 14.5W
XY = 1.0ADC / 13.2W
XYX = 1.38ADC / 18.2W
C
D***
B**
X = 0.33ADC / 3.9W
XX = 0.65ADC / 7.6W
XXX = 0.97ADC / 11.3W
XY = 0.98ADC / 12.7W
XYX = 1.31ADC / 16.5W
Pick-Up I / Duration
1.28ADC / 75ms
2.4ADC / 75ms
3.0ADC / 75ms
3.0ADC / 75ms
Mechanical Life
Contact Voltage Drop
Auxiliary Contact Arrangement
Auxiliary Contact Rating
Dielectric Withstanding Voltage
Insulation Resistance @ 500VDC
Shock, 11ms 1/2 sine, peak
Vibration, sine, 10-2000Hz.
Operating Temperature
Storage Temperature
Ambient Humidity
Cycles
mV
Coil Designator
Current/Power
Weight
oz. / kg
17.6 - 49.4 / 0.5 -1.4
See Outline Dimensions for model-specific weight information.
Available Pole Configurations and Applicable Coil Codes
No. of NC Poles (across)
No. of NO Poles (down)
0
1
2
3
X
Coil A/B/C/E
XX
Coil A/B/C/E
XXX
Coil A/B/C/E
0
1
Y
Coil D
XY
Coil A/B/C/E
XYX
Coil A/B/C/E
2
YY
Coil D
YXY
Coil D
3
YYY
Coil D
X = 0.067 Arms / 6.8VA
Y = 0.13ADC / 3.4W
XX = 0.115Arms / 11.6VA YY = 0.23ADC / 6.1W
XXX = 0.146Arms / 14.8VA YYY = 0.34ADC / 9.0W
XY = 0.074Arms / 7.5VA YXY = 0.28ADC / 7.4W
XYX = 0.161Arms / 16.3VA
***Economized.
**Average coil current.
Operate/Release Time (25°C, 0.8V
nom
≤
V < V
nom
) Typ.
Coil Designator
Operate Time
Release Time
Bounce Time
Units
ms
ms
ms
A
25-50
10-20
2-5
B****
30-50
70-80
2-5
C****
50-150
75-100
2-5
D****
20-30
75-100
2-5
****Includes internal coil suppression.
© 2003 and 2007 by Tyco Electronics Corporation. All Rights Reserved.
FLATMAN, KILOVAC and TE Logo and Tyco Electronics are trademarks.
X = Form X (NO-DM) Y = Form Y (NC-DB)
Catalog 1654769
Issued 11-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
1
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
200 Amp, 480Vac or 48Vdc Contactor
with 1, 2 or Poles
KILOVAC FM200 Series (FLATMAN)
Part Numbering System
Typical Part Number
Series:
FM200 = Multipole, 200 Amp, 480VAC/48VDC Contactor
Control Voltage:
A = 12VDC Coil, No Suppression
B = 24VDC Converter, with Suppression
C = 115VAC Converter, with Suppression
D = 24VDC Electronic Chopper, with Suppression
E = 240VAC Converter, with Suppression - Consult Factory for Availability and Specifications
Optional Termination:
A = Optional Quick Connect Tabs
B = No Optional Terminals
(Continued)
FM200
A
B
XYX
Pole Configuration (All models have a 1 Form A (SPST-NO) auxiliary switch):
X = 1 Form X (SPST-NO-DM), Available with control voltage codes A, B, C and E
XX = 2 Form X (2PST-NO-DM), Available with control voltage codes A, B, C and E
XXX = 3 Form X (3PST-NO-DM), Available with control voltage codes A, B, C and E
Y = 1 Form Y (SPST-NC-DB), Available only with control voltage code D
YY = 2 Form Y (DPST-NC-DB), Available only with control voltage code D
YYY = 3 Form Y (3PST-NC-DB), Available only with control voltage code D
XY = 1 Form X (SPST-NO-DM) + 1 Form Y (SPST-NC-DB), Available with control voltage codes A, B, C and E
XYX = 1 Form X (SPST-NO-DM) + 1 Form Y (SPST-NC-DB) + 1 Form X (SPST-NO-DM), Available with control voltage codes A, B, C and E
YXY = 1 Form Y (SPST-NC-DB) + 1 Form X (SPST-NO-DM) + 1 Form Y (SPST-NC-DB), Available only with control voltage code D
Outline Dimensions
2.29
(58.2)
1.86
(47.2)
.40
(10.2)
C
OPTIONAL TAB
TERMINALS
.250 x .032
(6.35 x .813)
3.77
(95.8)
2.29
(58.2)
1.93
(49.0)
MAIN TERMINAL
WIRE CONNECT
VIA M8 BOLT W/LOCK/FLAT
13MM (0.5 IN) HEX HEAD
1.22
(31.0)
4.2
(106.7)
A
DIM.
A
B
C
WEIGHT
NUMBER OF POLES
1
1.68
(42.7)
2.14
(54.3)
1.56
(39.6)
17.6 oz.
(0.5 kg)
2
2.67
(67.7)
3.12
(79.3)
2.55
(64.6)
35.3 oz.
(1.0 kg)
3
3.65
(92.7)
4.11
(104.4)
3.53
(89.7)
49.4 oz.
(1.4 kg)
B
RIGHT ANGLE SCREW
TERMINAL STRIP
ACCEPTS
#24 - #14 WIRE
3.42
(86.9)
3.77
(95.8)
2.74
(69.6)
2.98
(75.7)
.256 DIA.
(6.5)
1654769 – 0M – KRG – PDF – 11-07
Printed in U.S.A.
For factory-direct application assistance, dial
800-253-4560, ext. 2055, or 805-220-2055.
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
2
www.tycoelectronics.com
