DDAE50P-K87-F0: DescriptionD Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDAE50P-K87-F0 Overview

D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, #4-40, Plug,

DDAE50P-K87-F0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, COMPATIBLE CONTACTS: 980-2000-925; 980-2000-946; 980-2000-924; 980-2000-945; ZD110238-1009, PANEL MOUNTABLE
body width	0.605 inch
subject depth	0.43 inch
body length	2.634 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	STRIP OR LOOSE
Contact to complete cooperation	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	CABLE
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	CRIMP
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG

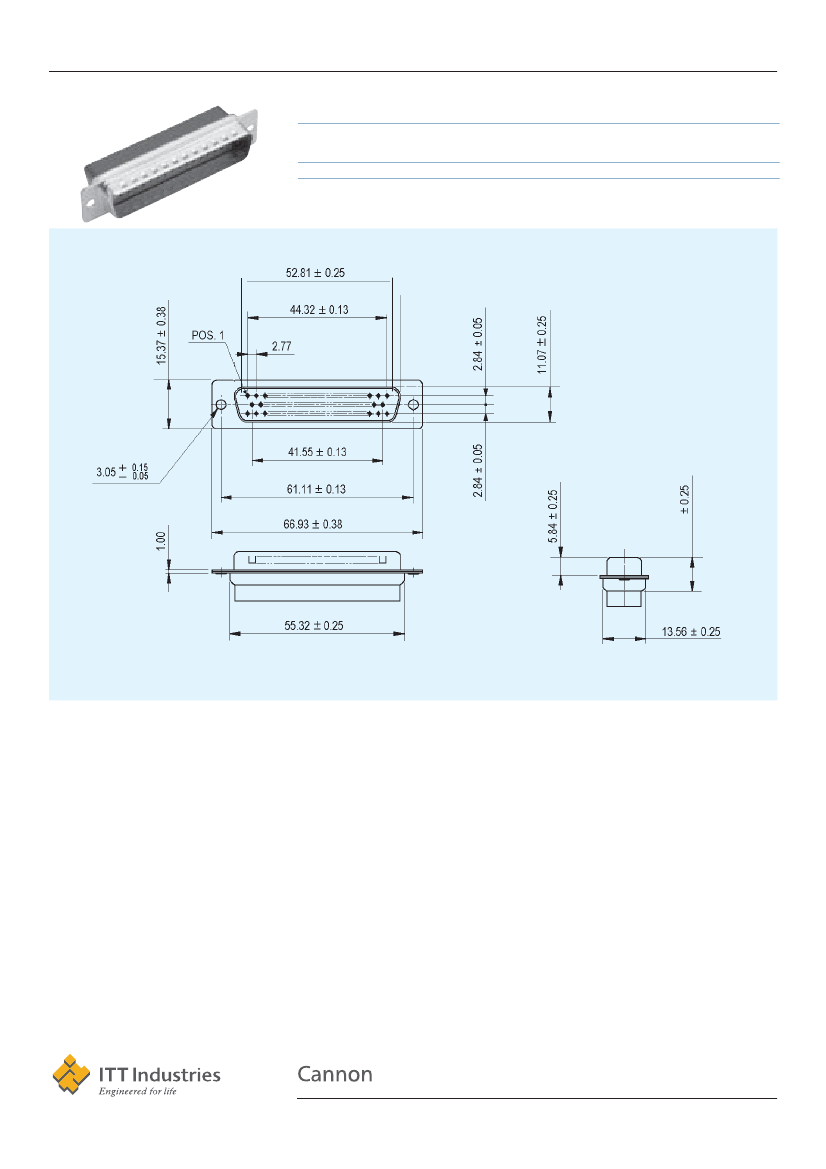

Preview

Download Datasheet

View All

ZD Connectors

Plug 50 contacts

Designation

Shell size /

Arrangement

D / 50

Through hole

DDA50P-K87-FO

Rivnut

thread 4-40

DDAE50P-K87-FO

D*A Crimp cable

Screwlock

thread 4-40

DDAE50P-K87-AB-FO

Connectors supplied without contacts

•

Reeled contacts

Mounting options

Panel cutouts

Accessories

see page 39

see page 44

see page 45

see page 35, 36, 37, 38

Dimensions are shown in mm

Dimensions subject to change

14

www.ittcannon.com

10.82

DDAE50P-K87-F0 Related Products

	DDAE50P-K87-F0	DDA50P-K87-F0	DDAE50P-K87-AB-F0
Description	D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, #4-40, Plug,	D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug,	D Subminiature Connector, 50 Contact(s), Male, Crimp Terminal, Plug,
Maker	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant
Other features	EMI/RFI SHIELDED, COMPATIBLE CONTACTS: 980-2000-925; 980-2000-946; 980-2000-924; 980-2000-945; ZD110238-1009, PANEL MOUNTABLE	EMI/RFI SHIELDED, COMPATIBLE CONTACTS: 980-2000-925; 980-2000-946; 980-2000-924; 980-2000-945; ZD110238-1009, PANEL MOUNTABLE	EMI/RFI SHIELDED, COMPATIBLE CONTACTS: 980-2000-925; 980-2000-946; 980-2000-924; 980-2000-945; ZD110238-1009, PANEL MOUNTABLE
Body/casing type	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
empty shell	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	50	50	50
UL Flammability Code	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	conform to	-
body width	0.605 inch	0.605 inch	-
subject depth	0.43 inch	0.43 inch	-
body length	2.634 inch	2.634 inch	-
Contactor design	STRIP OR LOOSE	STRIP OR LOOSE	-
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	-
Contact material	COPPER ALLOY	COPPER ALLOY	-
contact mode	STAGGERED	STAGGERED	-
Contact resistance	15 mΩ	15 mΩ	-
Contact style	RND PIN-SKT	RND PIN-SKT	-
Dielectric withstand voltage	1000VAC V	1000VAC V	-
Insulator color	BLACK	BLACK	-
Plug contact pitch	0.109 inch	0.109 inch	-
Match contact row spacing	0.112 inch	0.112 inch	-
Installation option 1	#4-40	HOLE .112-.124	-
Installation option 2	CLINCH NUT	NON-THREADED	-
Number of rows loaded	3	3	-
Maximum operating temperature	105 °C	105 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Rated current (signal)	5 A	5 A	-
Guideline	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-
Maximum wire diameter	20 AWG	20 AWG	-
Minimum wire diameter	28 AWG	28 AWG	-
