31-5245 datasheet, PDF - EEWORLD Datasheet

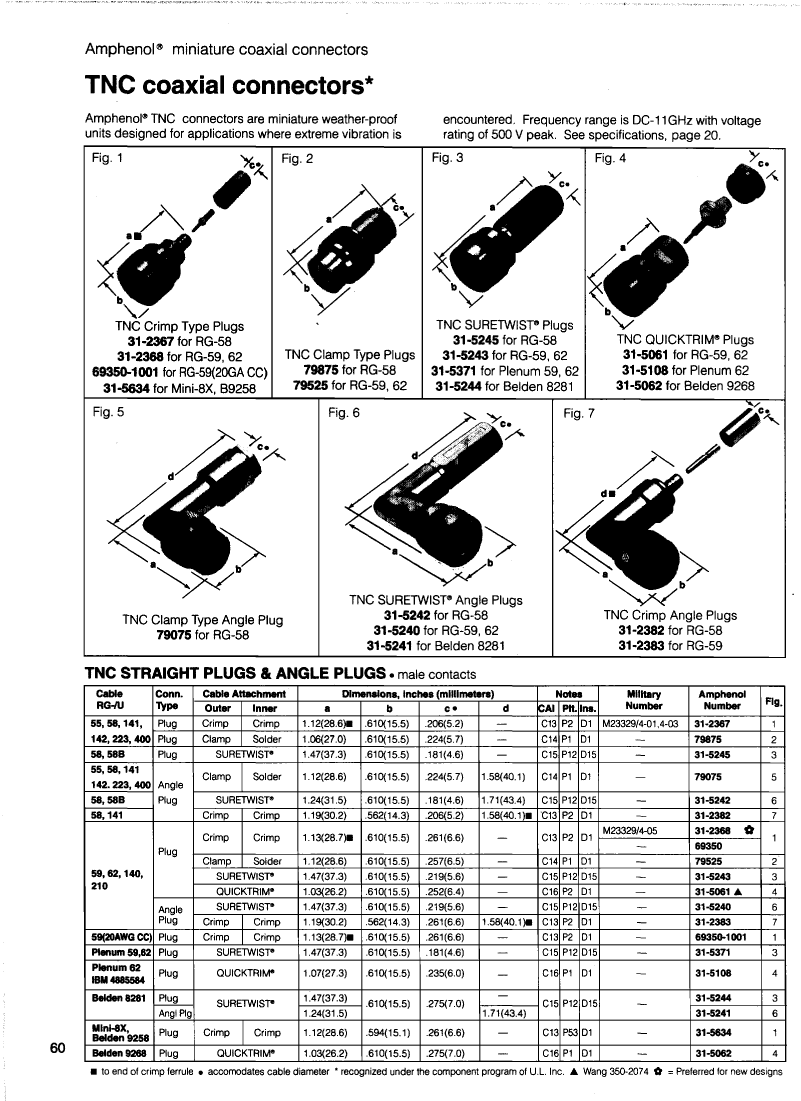

31-5245: DescriptionRF TNC Connector, Male, Cable Mount, Twist On Terminal, Plug; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-5245 Overview

RF TNC Connector, Male, Cable Mount, Twist On Terminal, Plug

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 58
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	31-5245
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Panel mounting	NO
Termination type	TWIST ON
voltage standing wave ratio	1.3

	31-5245	31-5371	79525	69350-1001
Description	RF TNC Connector, Male, Cable Mount, Twist On Terminal, Plug	RF TNC Connector, Male, Cable Mount, Twist On Terminal, Plug	RF TNC Connector, Male, Cable Mount, Clamp Solder Terminal, Plug	RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	GLASS FILLED POLYCARBONATE	GLASS FILLED POLYCARBONATE	TFE	TFE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	31-5245	31-5371	79525	69350
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz	11 GHz	11 GHz
Panel mounting	NO	NO	NO	NO
Termination type	TWIST ON	TWIST ON	CLAMP SOLDER	CRIMP
voltage standing wave ratio	1.3	1.3	1.3	1.3
Other features	APPLICABLE CABLE: RG 58	-	APPLICABLE CABLES: RG 59; RG 62	APPLICABLE CABLE: RG 59
Base Number Matches	-	1	1	1
