LM748CH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM748CH

LM748CH: DescriptionIC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL; CategoryAnalog mixed-signal IC Amplifier circuit; File Size328KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LM748CH Overview

IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL

LM748CH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA
frequency compensation	NO
Maximum input offset voltage	7500 µV
JESD-30 code	O-MBCY-W8
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.5 V/us
Maximum slew rate	2.8 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	15800

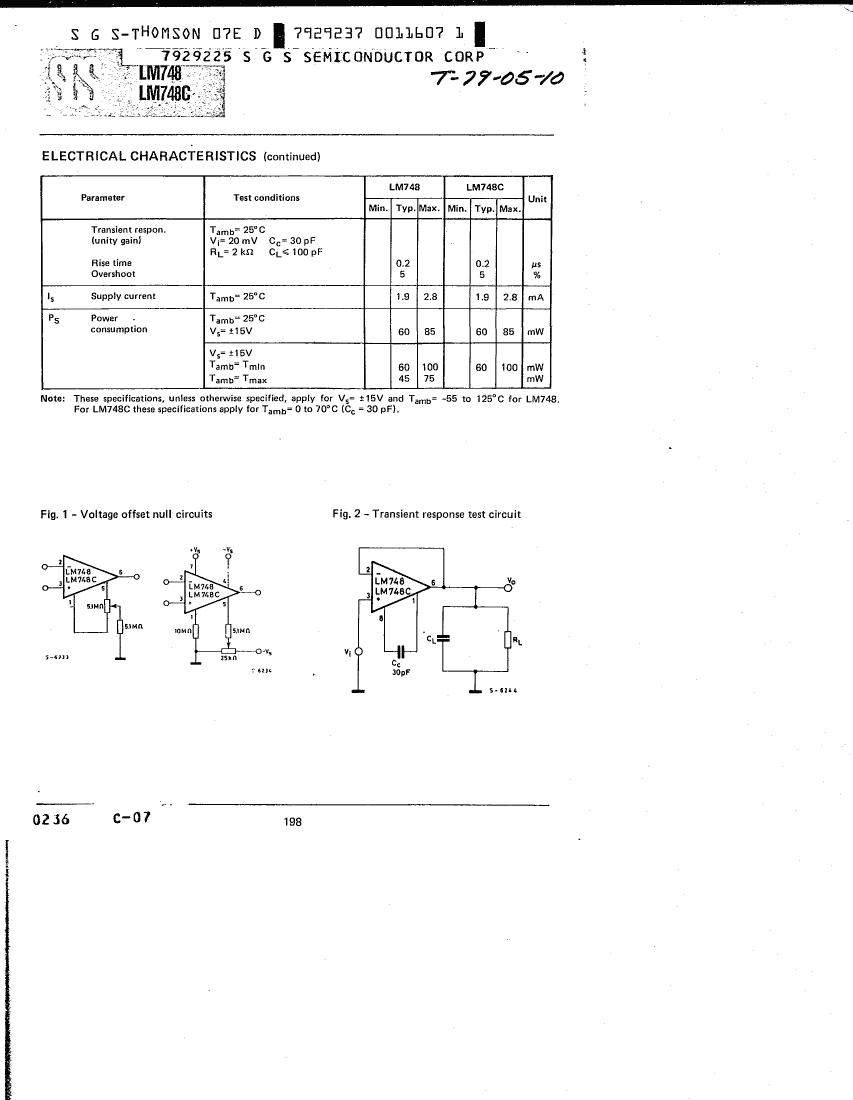

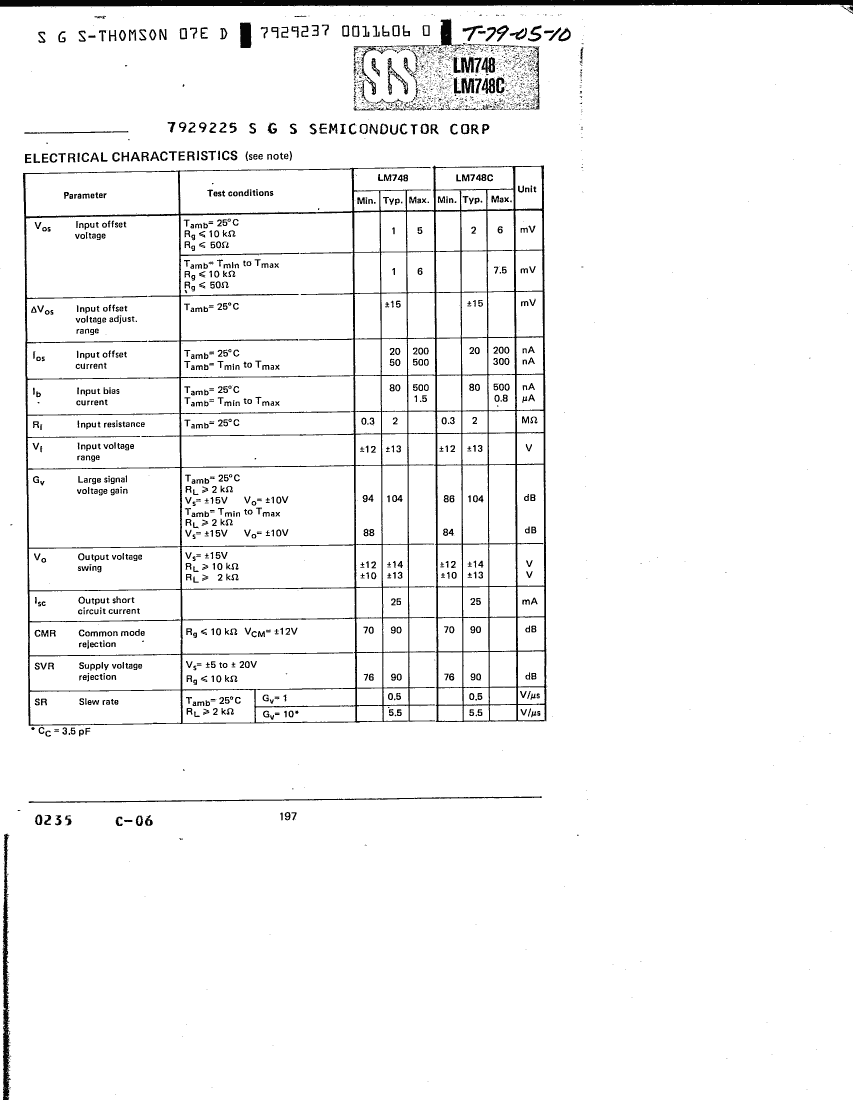

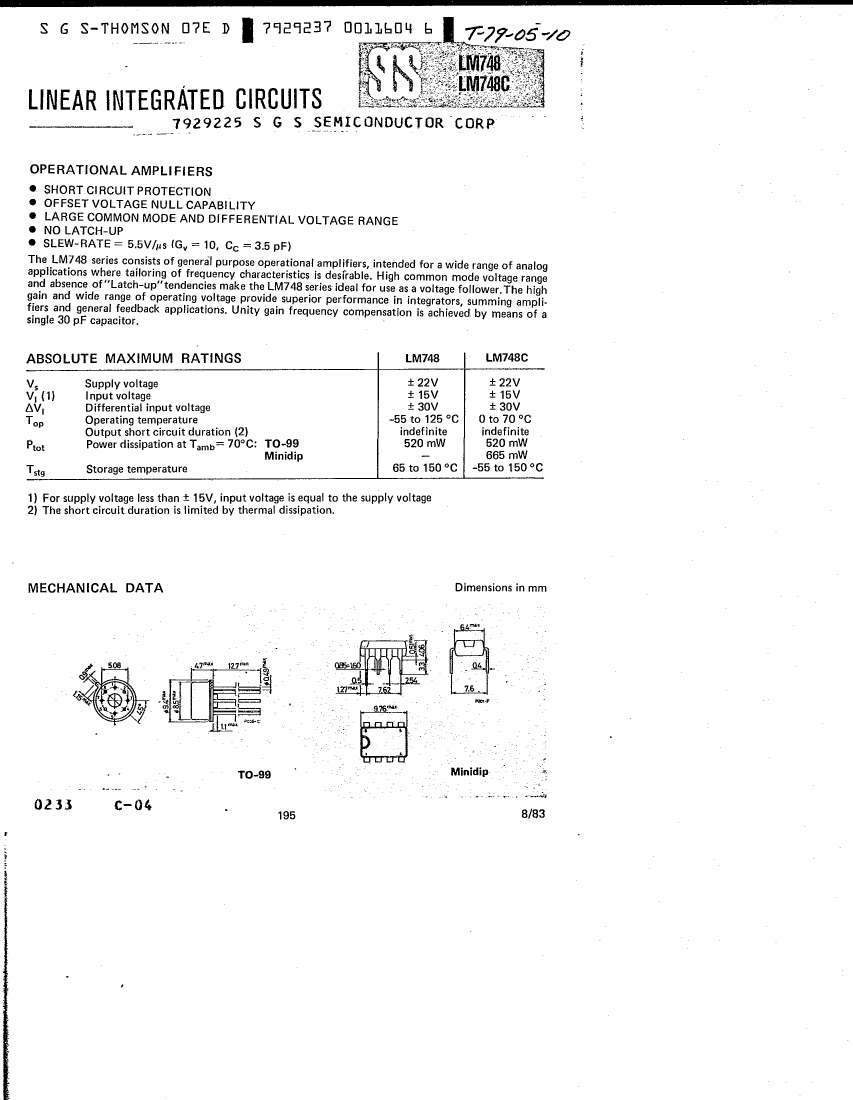

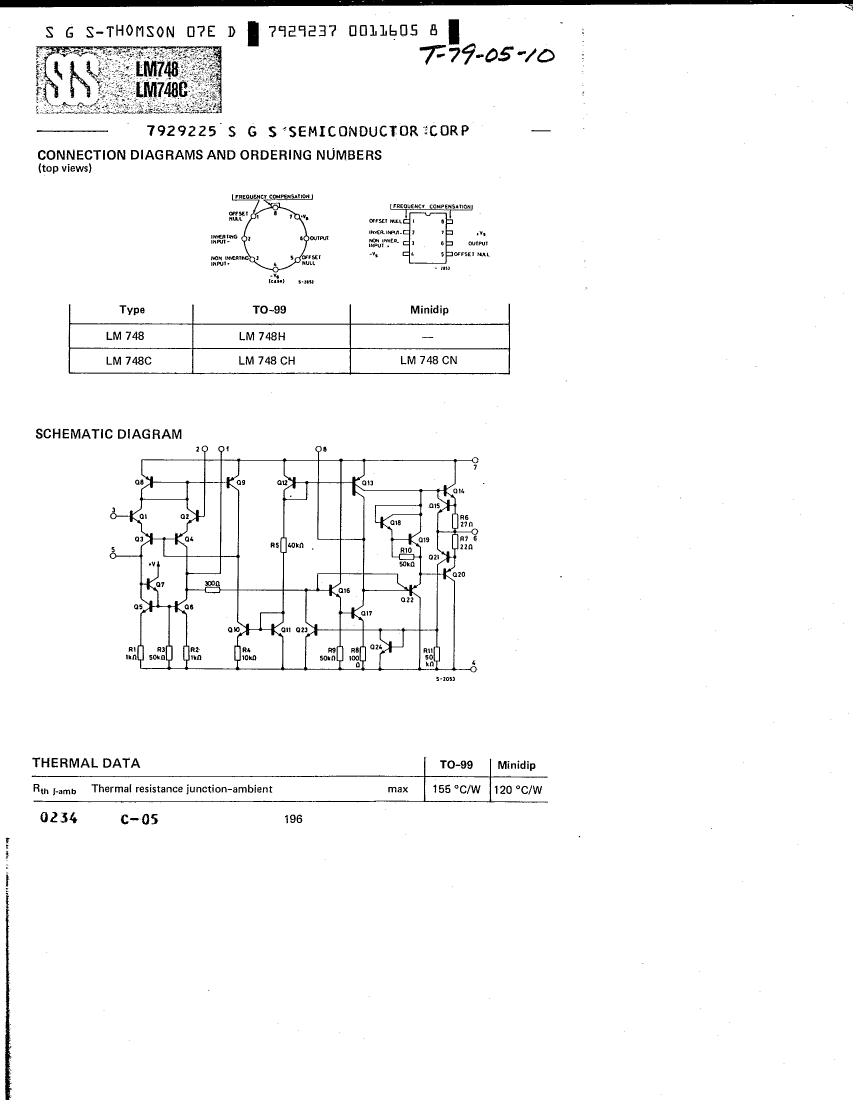

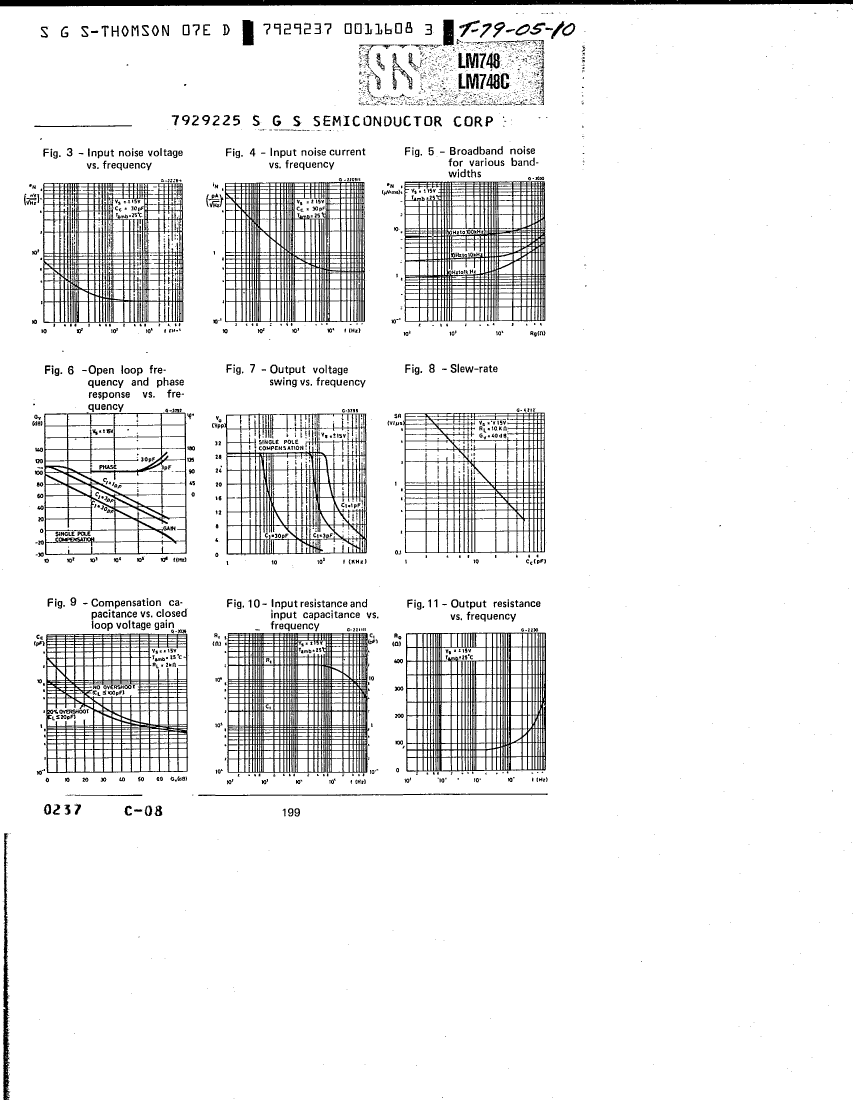

Preview

Download Datasheet

View All

LM748CH Related Products

	LM748CH	LM748CJ	LM748CN	LM748H
Description	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	, CAN8,.2	DIP, DIP8,.3	DIP, DIP8,.3	, CAN8,.2
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA	0.5 µA	0.5 µA	0.5 µA
frequency compensation	NO	NO	NO	NO
Maximum input offset voltage	7500 µV	7500 µV	7500 µV	6000 µV
JESD-30 code	O-MBCY-W8	R-XDIP-T8	R-PDIP-T8	O-MBCY-W8
low-dissonance	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C
Package body material	METAL	CERAMIC	PLASTIC/EPOXY	METAL
Encapsulate equivalent code	CAN8,.2	DIP8,.3	DIP8,.3	CAN8,.2
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND
Package form	CYLINDRICAL	IN-LINE	IN-LINE	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.5 V/us	0.5 V/us	0.5 V/us	0.5 V/us
Maximum slew rate	2.8 mA	2.8 mA	2.8 mA	2.8 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE
Terminal location	BOTTOM	DUAL	DUAL	BOTTOM
Minimum voltage gain	15800	15800	15800	25110
