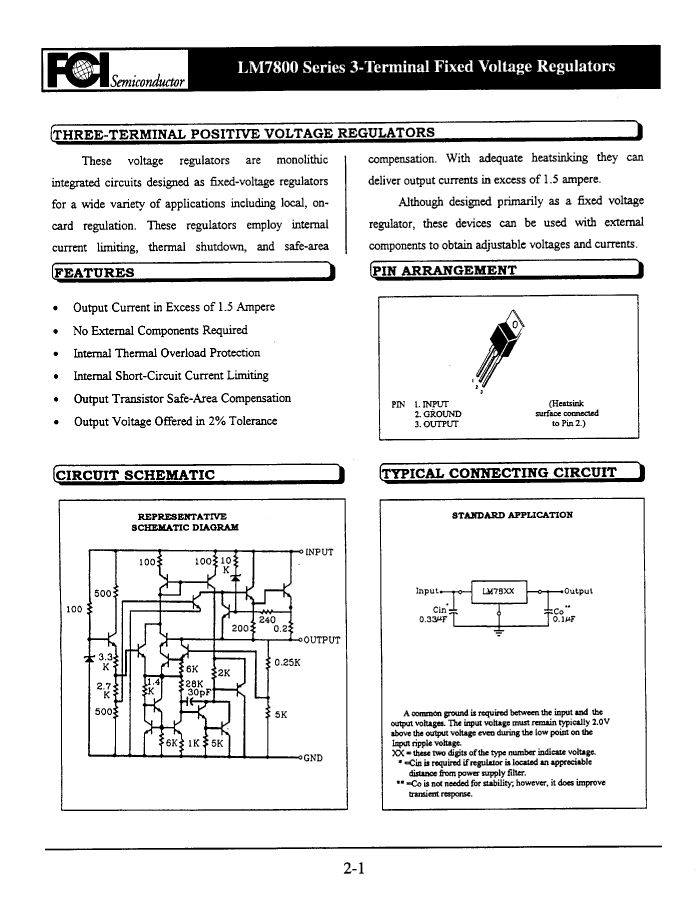

LM7805 Overview

Fixed Positive LDO Regulator, 5V, BIPolar,

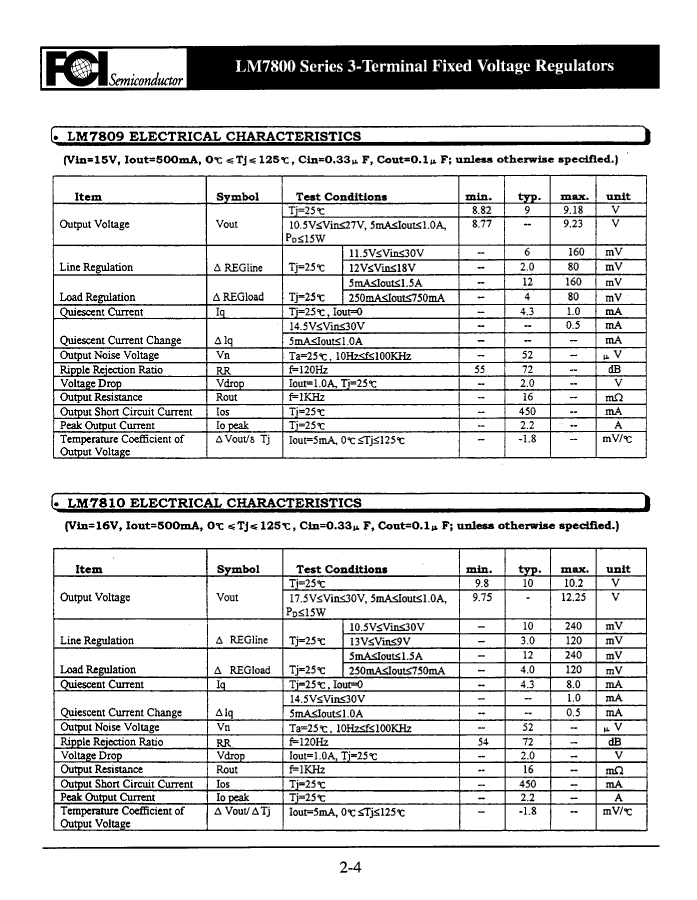

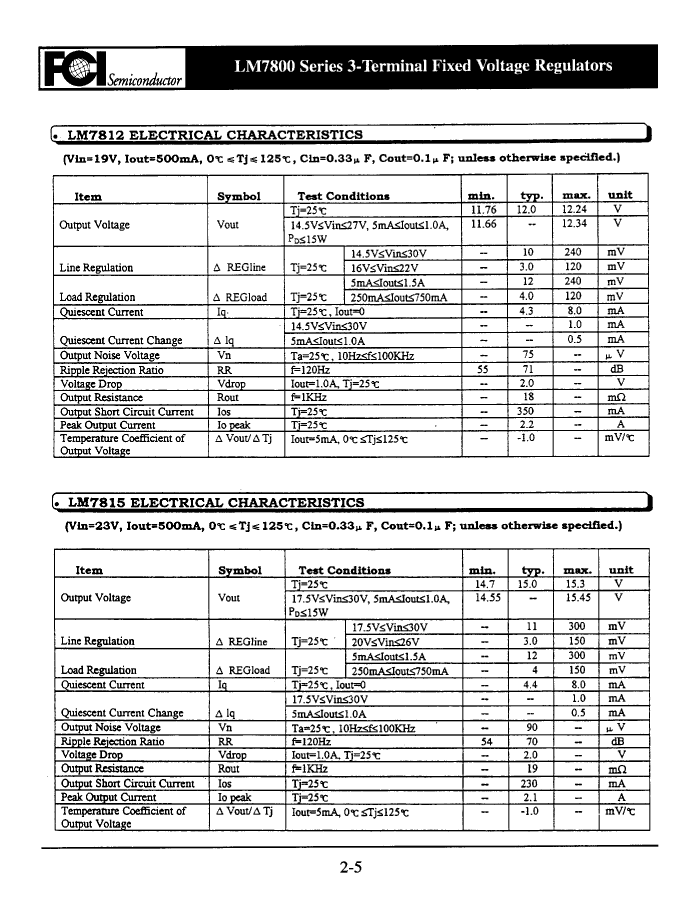

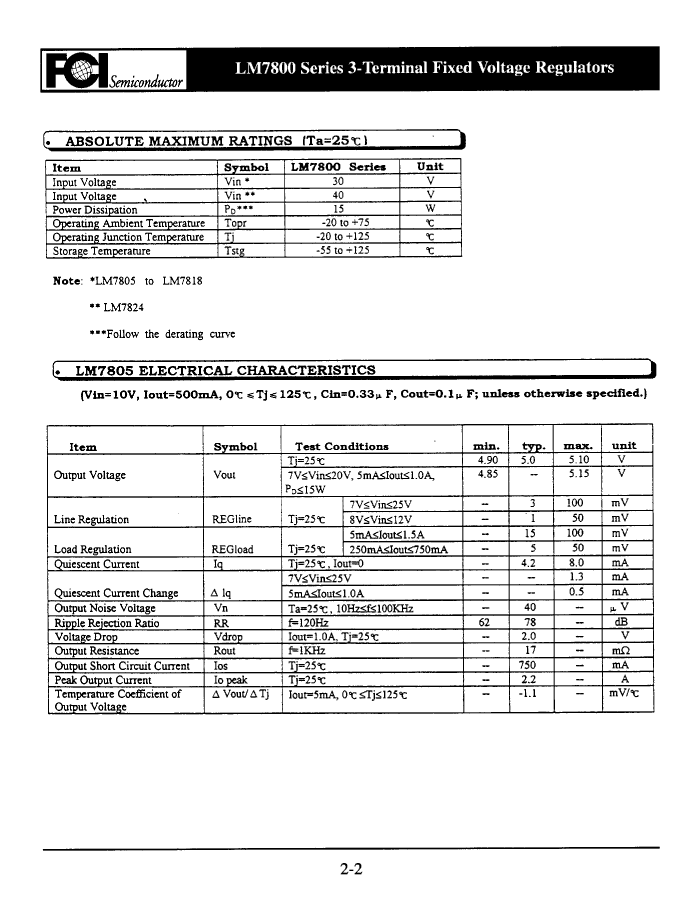

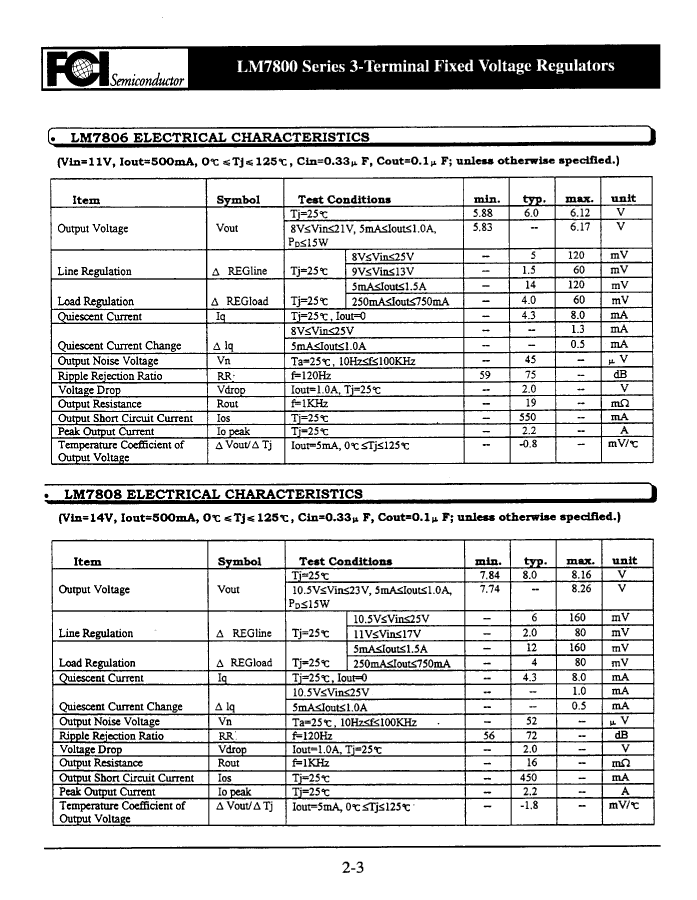

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FCI / Amphenol
package instruction	, SIP3,.1TB
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	30 V
JESD-609 code	e0
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.1%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.5 A
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	3%
