LM305H

Description
IC,VOLT REGULATOR,ADJUSTABLE,+4.5 TO +30V,BIPOLAR,CAN,8PIN,METAL
CategoryPower/power management    The power supply circuit
File Size379KB,7 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Download Datasheet Parametric Compare View All

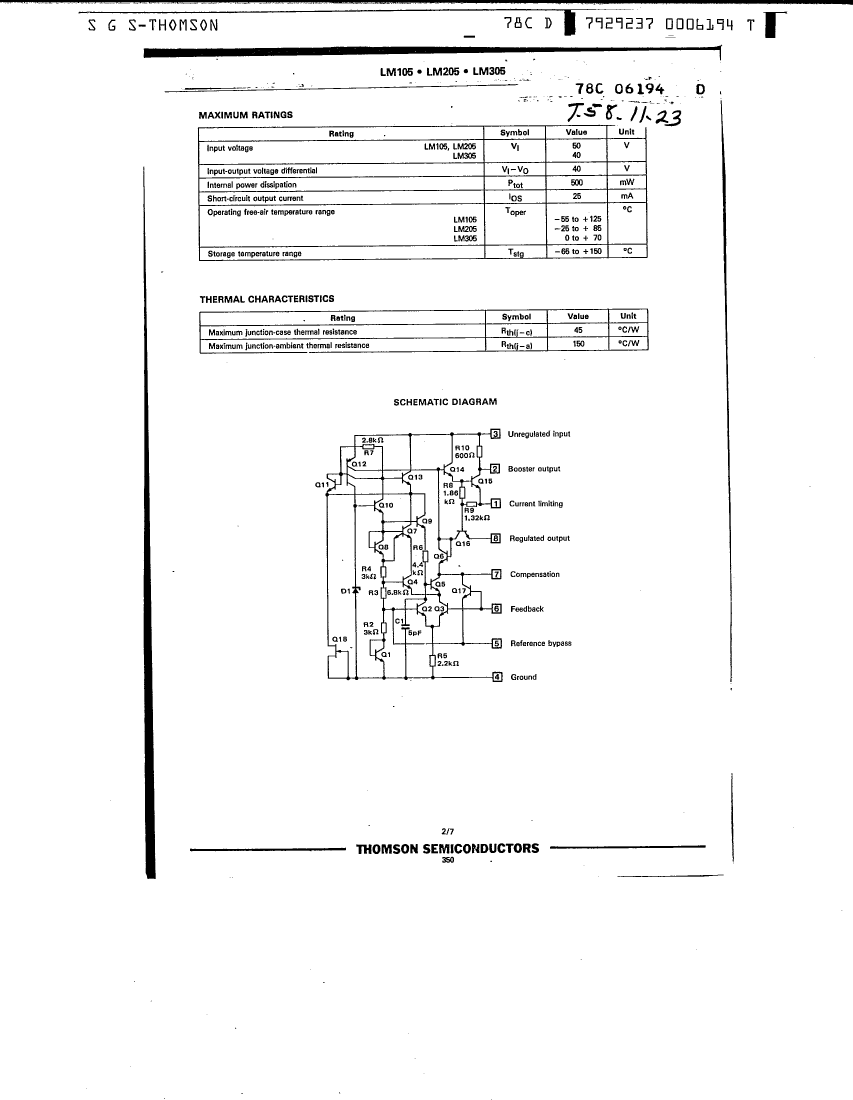

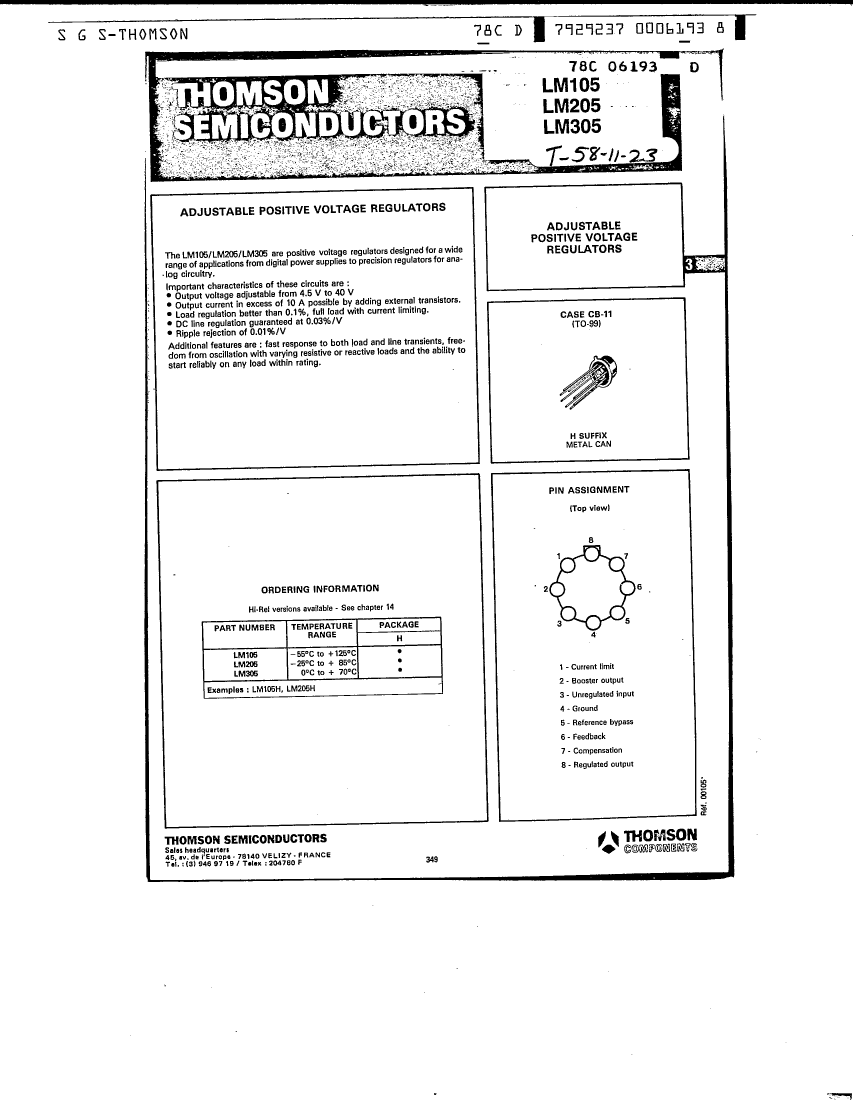

LM305H Overview

IC,VOLT REGULATOR,ADJUSTABLE,+4.5 TO +30V,BIPOLAR,CAN,8PIN,METAL

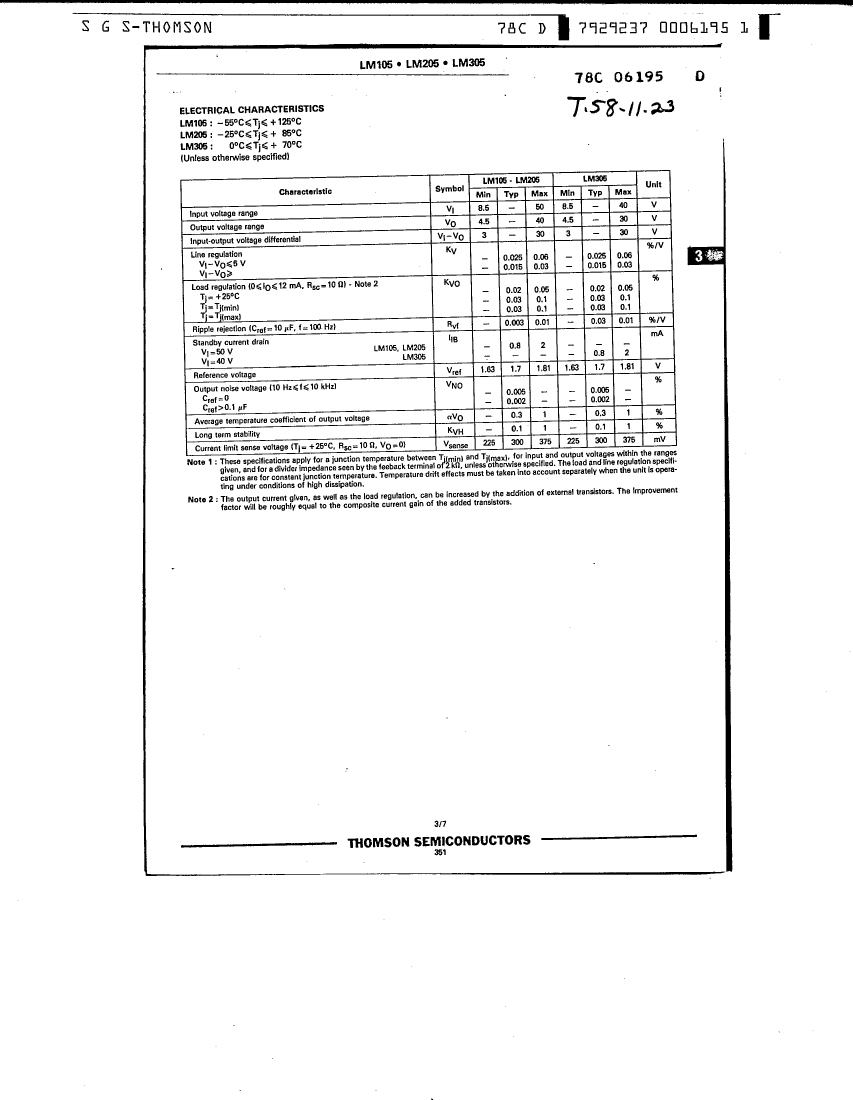

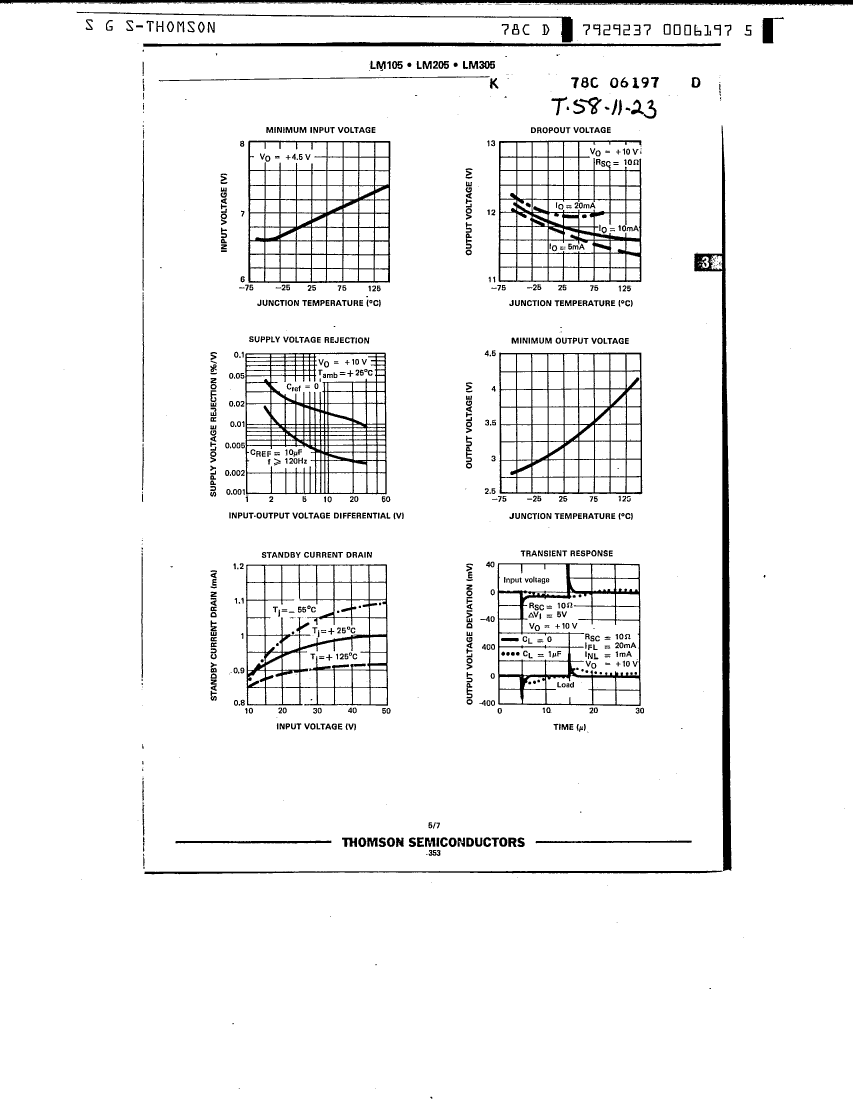

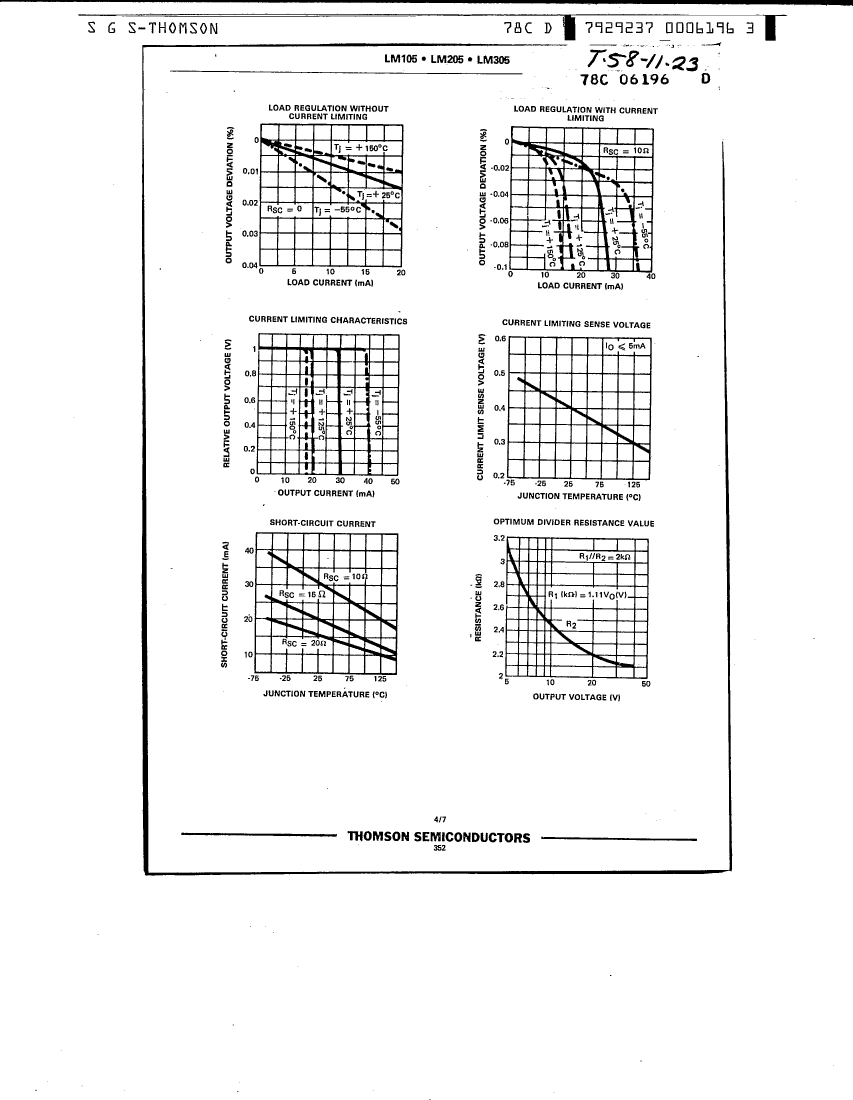

LM305H Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSTMicroelectronics
Reach Compliance Codenot_compliant
AdjustabilityADJUSTABLE
Nominal dropback voltage 13 V
JESD-30 codeO-MBCY-W8
Maximum grid regulation rate (%/V)0.06
Maximum load regulation (%)0.1%
Output times1
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Maximum output current 10.012 A
Maximum output voltage 130 V
Minimum output voltage 14.5 V
Package body materialMETAL
Encapsulate equivalent codeCAN8,.2
Package shapeROUND
Package formCYLINDRICAL
Certification statusNot Qualified
technologyBIPOLAR
Terminal formWIRE
Terminal locationBOTTOM

LM305H Related Products

LM305H LM105H LM205H
Description IC,VOLT REGULATOR,ADJUSTABLE,+4.5 TO +30V,BIPOLAR,CAN,8PIN,METAL IC,VOLT REGULATOR,ADJUSTABLE,+4.5 TO +40V,BIPOLAR,CAN,8PIN,METAL IC,VOLT REGULATOR,ADJUSTABLE,+4.5 TO +40V,BIPOLAR,CAN,8PIN,METAL
Is it Rohs certified? incompatible incompatible incompatible
Maker STMicroelectronics STMicroelectronics STMicroelectronics
Reach Compliance Code not_compliant not_compliant not_compliant
Adjustability ADJUSTABLE ADJUSTABLE ADJUSTABLE
Nominal dropback voltage 1 3 V 3 V 3 V
JESD-30 code O-MBCY-W8 O-MBCY-W8 O-MBCY-W8
Maximum grid regulation rate (%/V) 0.06 0.06 0.06
Maximum load regulation (%) 0.1% 0.1% 0.1%
Output times 1 1 1
Number of terminals 8 8 8
Maximum operating temperature 70 °C 125 °C 85 °C
Minimum operating temperature - -55 °C -25 °C
Maximum output current 1 0.012 A 0.012 A 0.012 A
Maximum output voltage 1 30 V 40 V 40 V
Minimum output voltage 1 4.5 V 4.5 V 4.5 V
Package body material METAL METAL METAL
Encapsulate equivalent code CAN8,.2 CAN8,.2 CAN8,.2
Package shape ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL
Certification status Not Qualified Not Qualified Not Qualified
technology BIPOLAR BIPOLAR BIPOLAR
Terminal form WIRE WIRE WIRE
Terminal location BOTTOM BOTTOM BOTTOM
