MWDM2L-100PBRR2-.172513 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MWDM2L-100PBRR2-.172513

MWDM2L-100PBRR2-.172513: DescriptionD Microminiature Connector, 100 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size277KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

MWDM2L-100PBRR2-.172513 Overview

D Microminiature Connector, 100 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

MWDM2L-100PBRR2-.172513 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	H
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

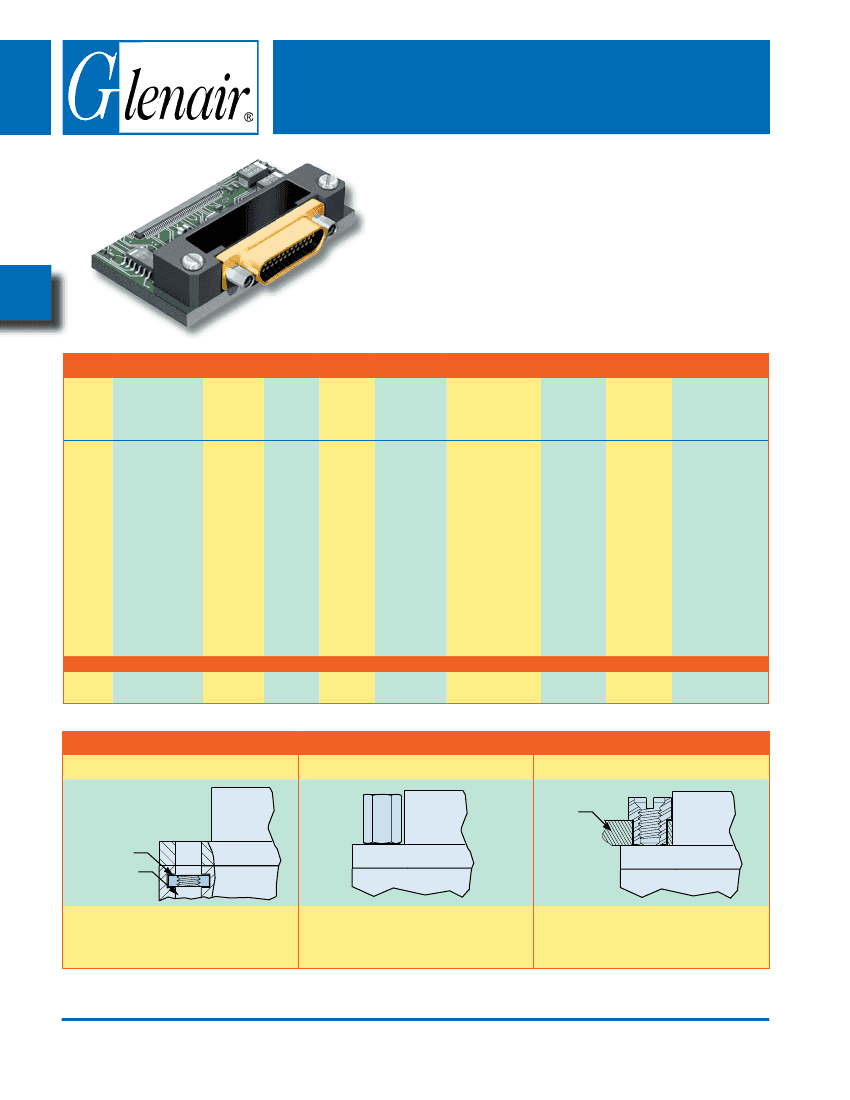

Micro-D Metal Shell

Printed Circuit Board Connectors

BR Style Right Angle Thru-Hole

Micro-D

PCB

High Performance–These

connectors feature gold-plated

TwistPin contacts for best performance. PC tails are .020

inch diameter. Specify nickel-plated shells or cadmium plated

shells for best availability.

Solder-Dipped–Terminals

are coated with SN63/Pb37 tin-lead

solder for best solderability. Optional gold-plated terminals are

available for RoHS compliance.

Front Panel or Rear Mountable–Can

be installed through panels

up to .125 inch thick. Specify rear panel mount jackposts.

HOW TO ORDER BR STYLE PCB MICRO-D CONNECTORS

Shell Material

and Finish

Aluminum Shell

Series

MWDM

Insulator Contact Contact Termination

Material Layout

Type

– LCP

30% Glass-

Filled Liquid

Crystal

Polymer

Jackpost

Option

(Omit for None)

Threaded Terminal

Length In

Insert

Inches

Option

Threaded

Insert In

Board Mount

Hole

(Omit for

Thru-Hole)

Gold-Plated

Terminal Mod

Code

These

connectors are

solder-dipped in

63/37 tin-lead

solder.

To delete the

solder dip

and change

to gold-plated

terminals, add

code 513

–

Cadmium

–

Nickel

–

Black

–

Gold

–

Chem Film

Anodize

100

Board Right

Angle

–

Jackpost

Socket

Jackposts for

Rear Panel

Mounting

Stainless Steel

Shell

–

Passivated

–

.032” Panel

–

.047” Panel

–

.062” Panel

–

.093” Panel

–

.125” Panel

.080

.110

.125

.140

.150

.172

.190

.250

Length in

Inches

.015

(0.38)

Sample Part Number

MWDM

– 15

– .110

MICRO-D JACKPOST OPTIONS

No Designator

Panel

HEX NUT

EPOXY FILL

R1 Thru R5

For use with Glenair jackposts only. Order hardware

separately. Install with threadlocking compound.

Thru-Hole

Factory installed, not intended for removal.

Standard Jackpost

Shipped loosely installed. Install with permanent

threadlocking compund.

Jackpost for Rear Panel Mounting

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

C-6
