LM316AD datasheet, PDF - EEWORLD Datasheet

LM316AD: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size140KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

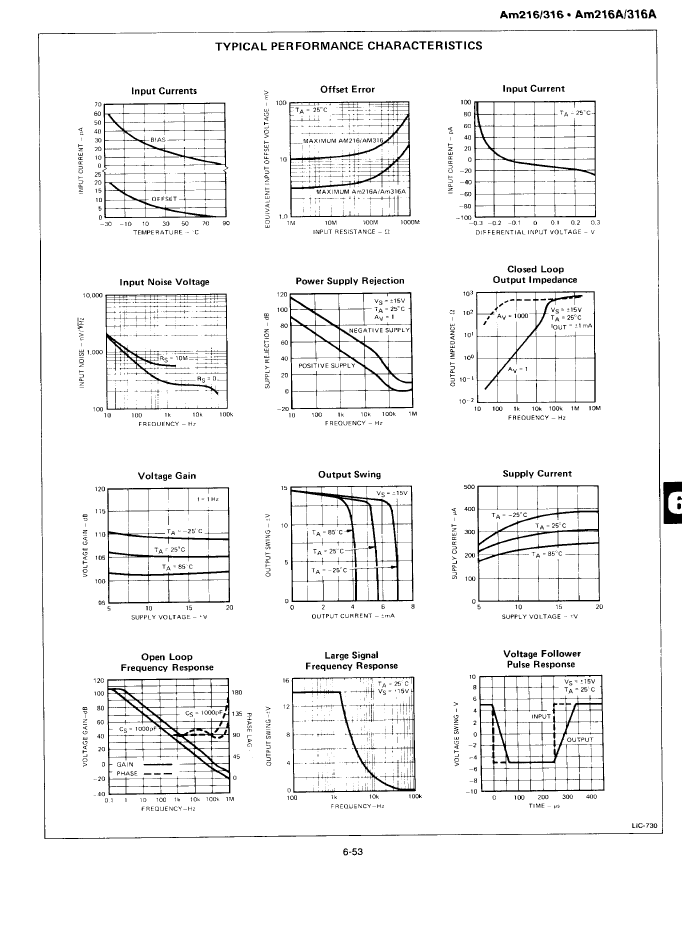

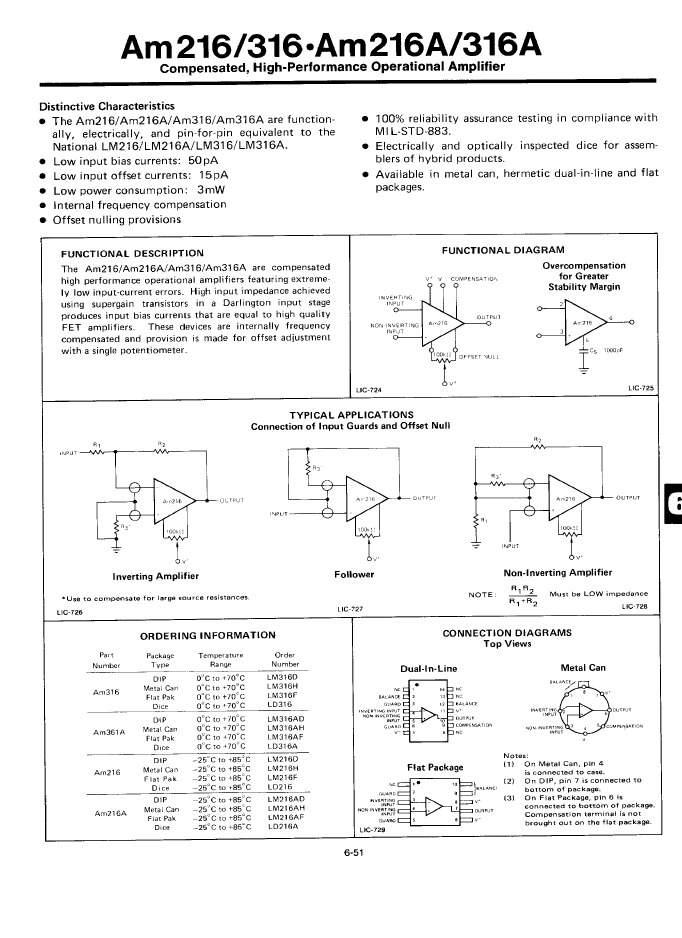

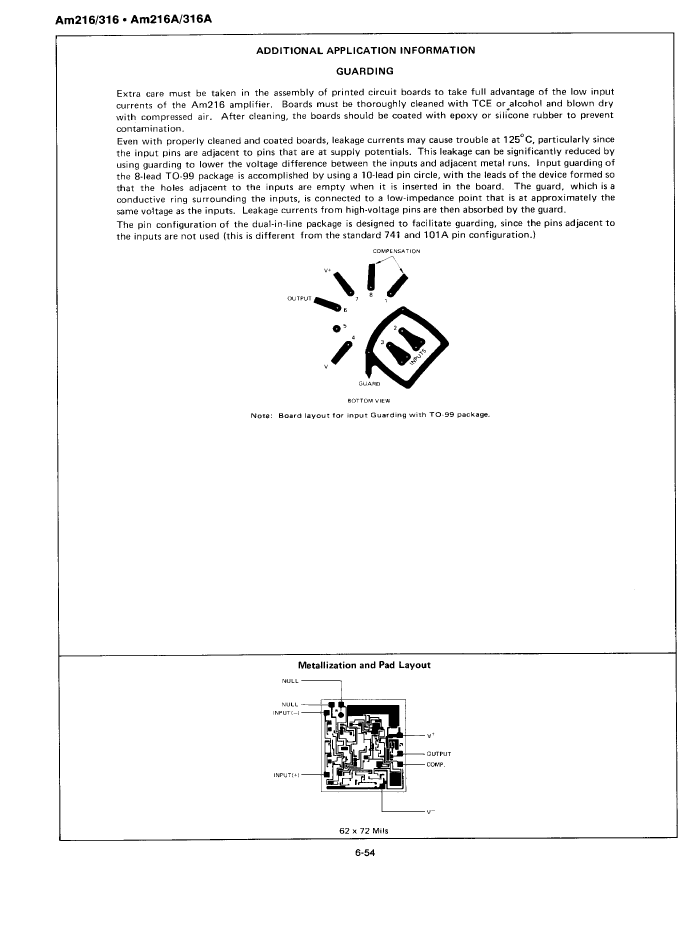

LM316AD Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

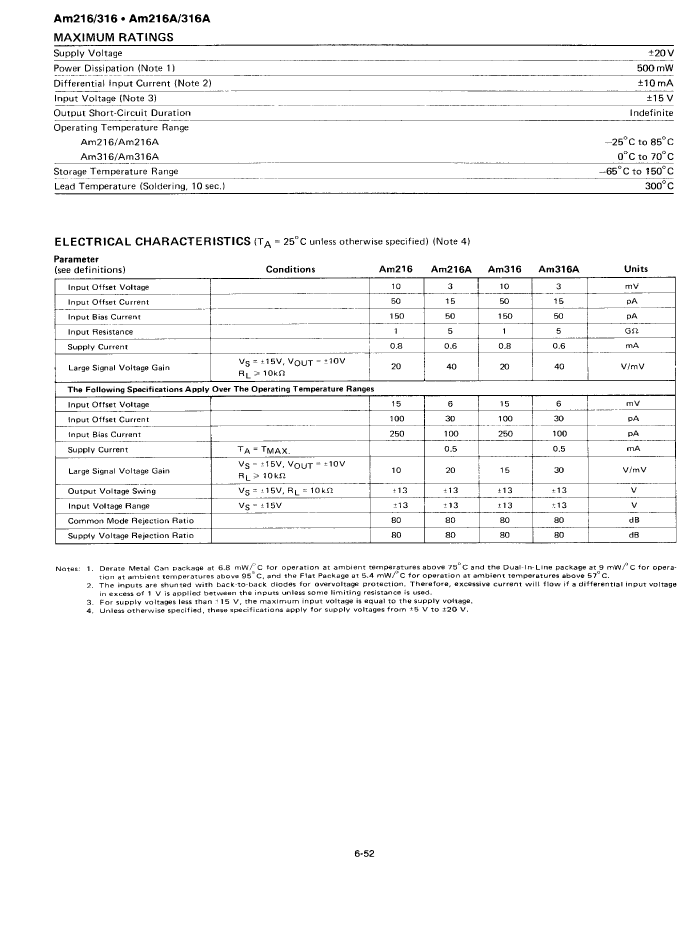

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00005 µA
Maximum bias current (IIB) at 25C	0.00005 µA
Nominal Common Mode Rejection Ratio	80 dB
frequency compensation	YES
Maximum input offset voltage	3000 µV
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
length	19.431 mm
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5/+-20 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	0.5 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	30000
width	7.62 mm

This Material Copyrighted By Its Respective Manufacturer
