Heavy-Duty Connectors
Type 309

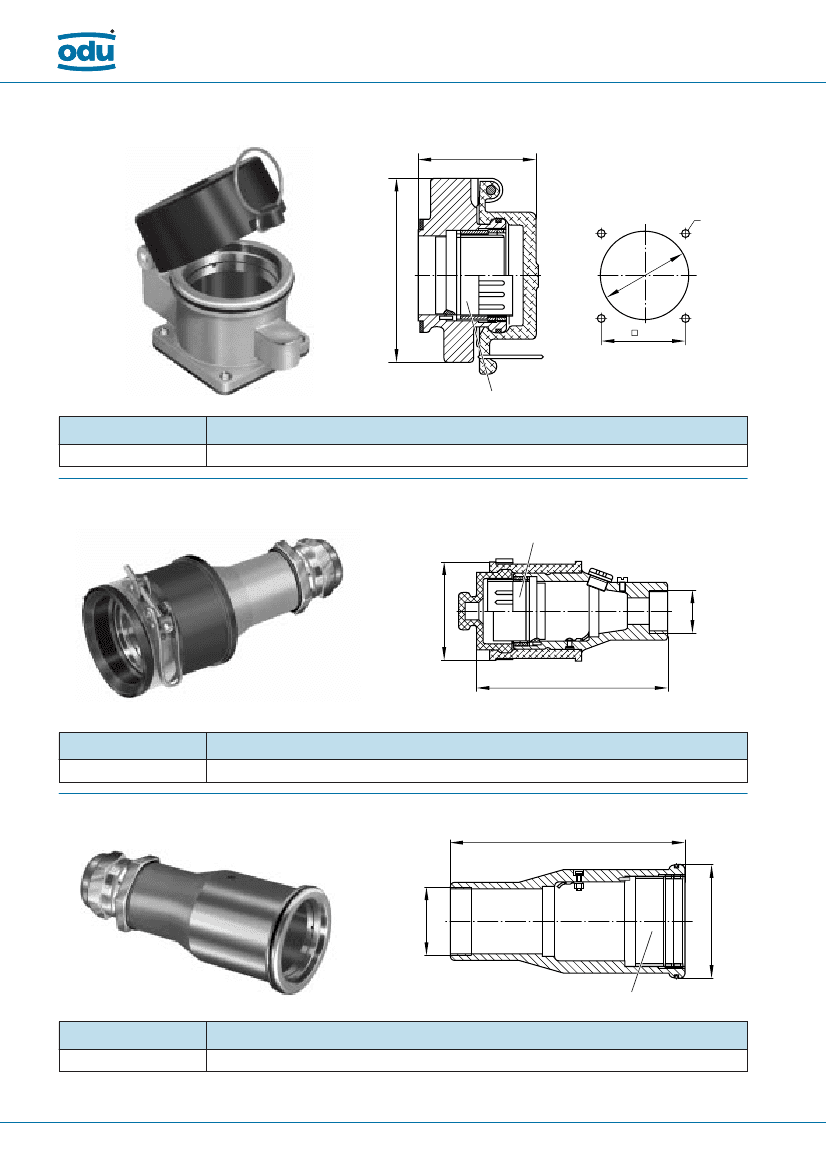

Straight Receptacle with Neoprene Snap-Lock (when mated and locked with plug below:
IP 67, 1 bar / 8 h)
ca. 96
Ø9
147
73
70
Shown in typical mounting
Contact inserts see page 37 - 39
Part Number
Bronze, Ni-plated
Comments
309.012.000.554.000
Straight Plug with Neoprene Snap-Lock (when mated and locked IP 67, 1 bar / 8 h)
Contact inserts see page 37 - 39
Ø 104
190
Part Number
1
)
Bronze, Ni-plated
Comments
309.021.000.554.000
with cable clamp 026 642... (see page 46)
Free Receptacle for Neoprene Snap-Lock (when mated and locked IP 67, 8 h)
187
Pg 42
Pg 42
Contact inserts see page 37 - 39
Part Number
1
)
Bronze, Ni-plated
Comments
309.031.000.554.000
1
with cable clamp 026 642... (see page 46)
)
Cable clamp is not included in part number (see page 45 and 46)
Assembly instructions see page 47
