HIN209CB-T datasheet, PDF - EEWORLD Datasheet

HIN209CB-T: DescriptionLINE TRANSCEIVER, PDSO24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size500KB，14 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

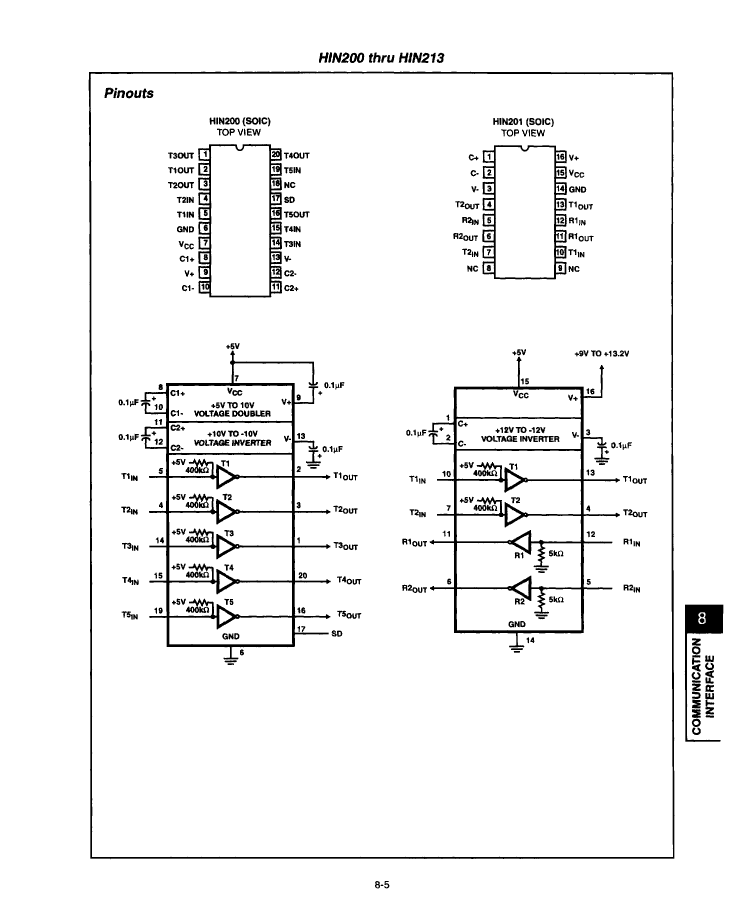

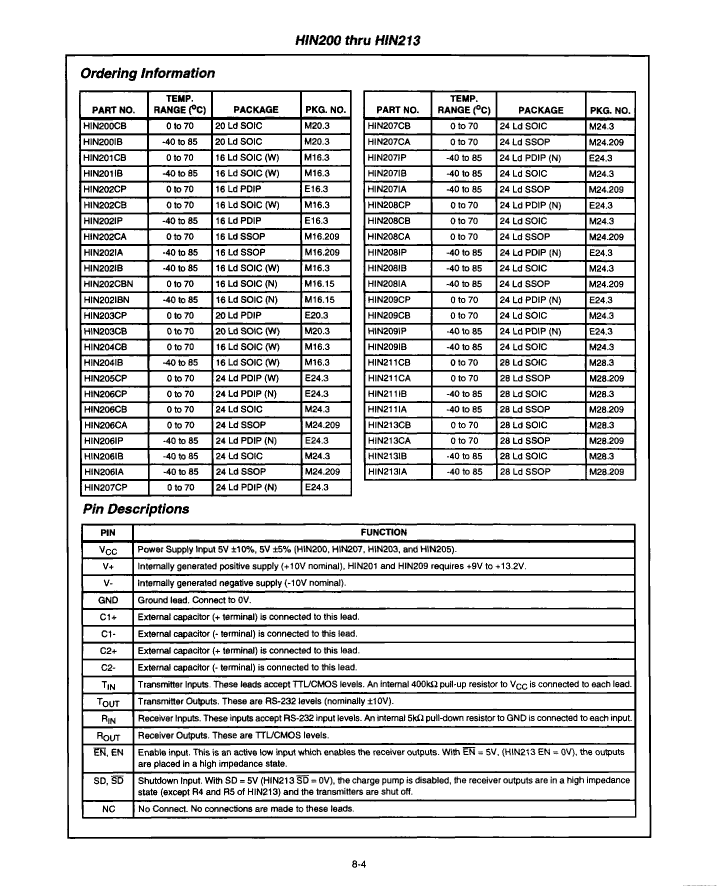

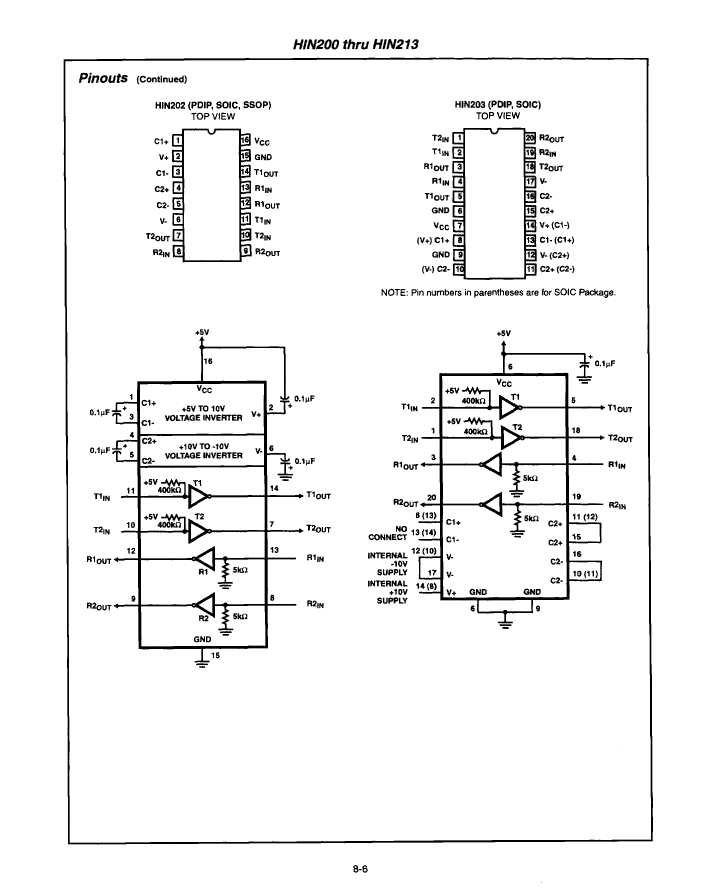

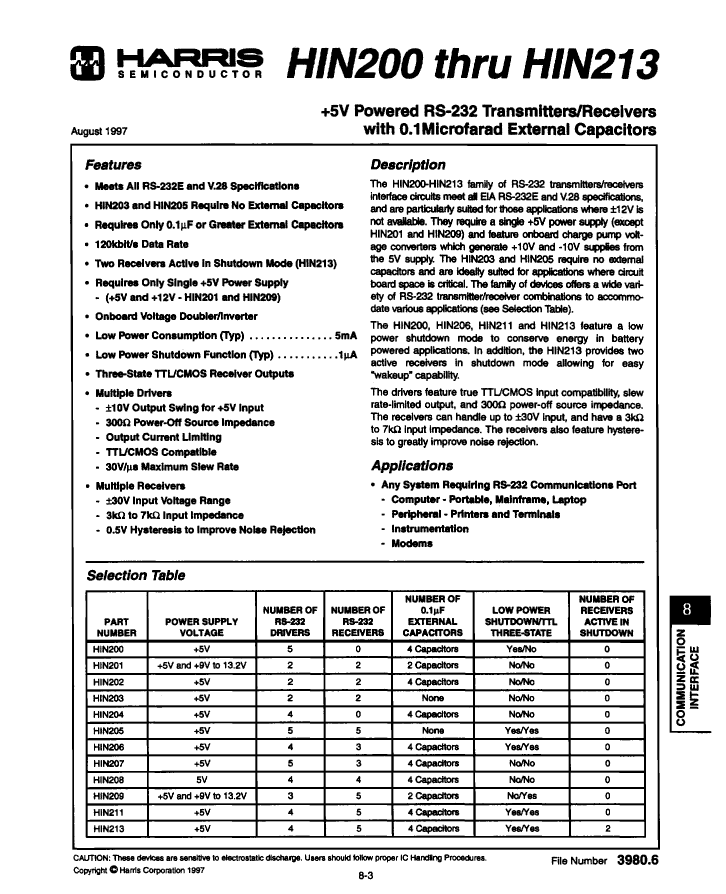

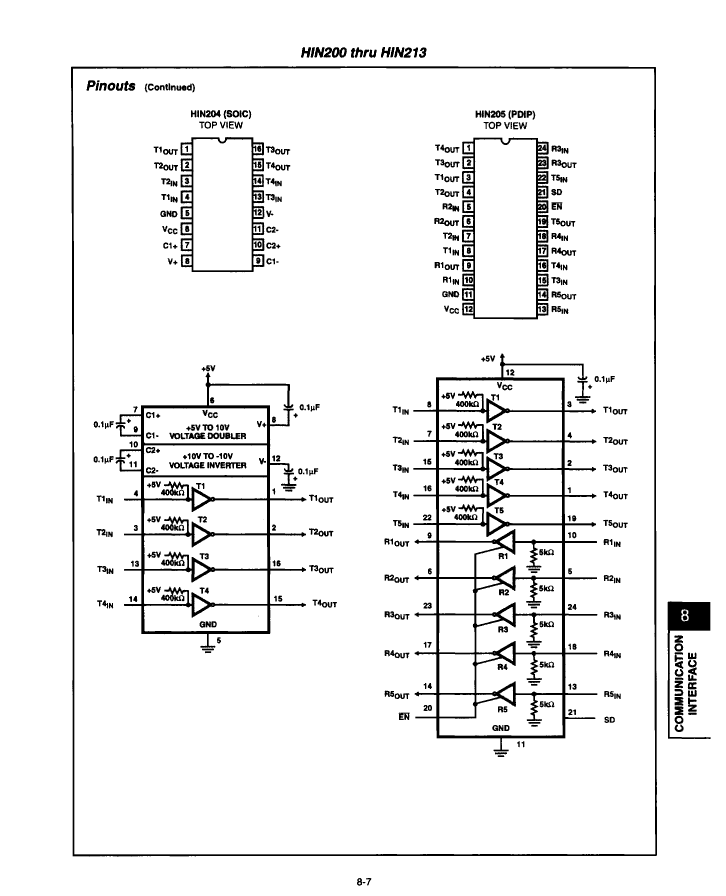

HIN209CB-T Overview

LINE TRANSCEIVER, PDSO24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	MS-013AD, PLASTIC, SOIC-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	EXTERNAL CHARGE PUMP; TRISTATABLE RECEIVERS
Differential output	NO
Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-E; V.28
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	5 V
Output characteristics	TOTEM-POLE
Maximum output low current	0.0016 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5,12 V
Certification status	Not Qualified
Maximum receive delay	10000 ns
Number of receiver bits	5
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	7.5 V
Supply voltage1-Nom	12 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
maximum transmission delay	10000 ns
