ATV750B-10NC datasheet, PDF - EEWORLD Datasheet

ATV750B-10NC: DescriptionOT PLD, 10ns, CMOS, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size628KB，18 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

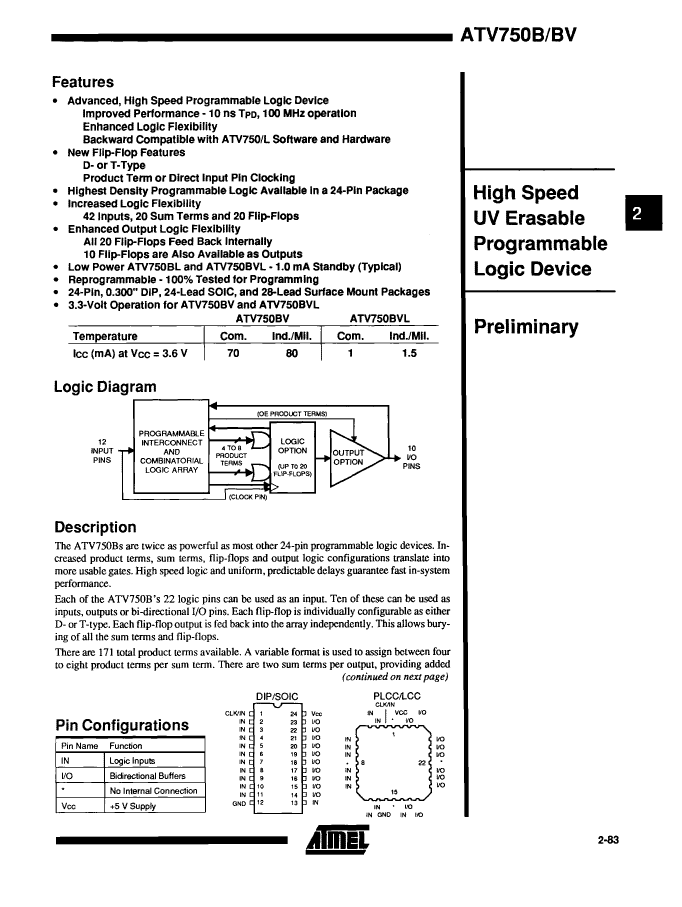

ATV750B-10NC Overview

OT PLD, 10ns, CMOS, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown

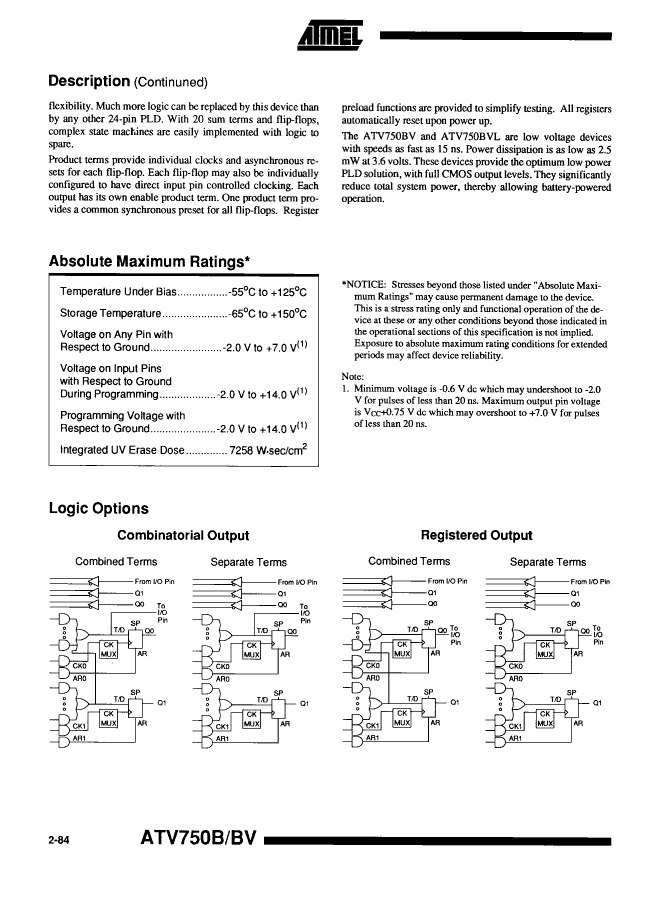

Other features	PAL WITH MACROCELLS; 10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS

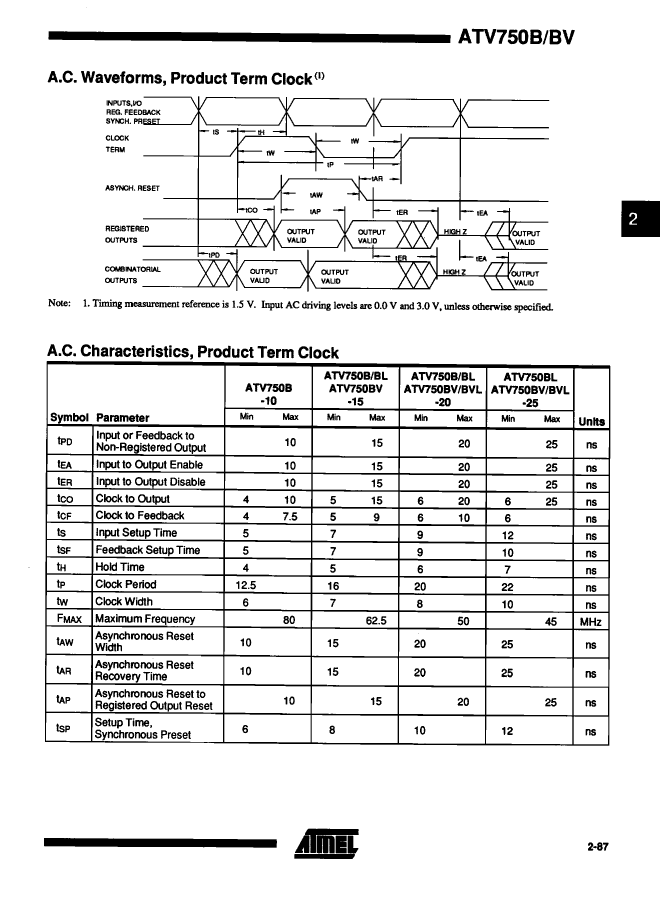

maximum clock frequency	66.7 MHz
JESD-30 code	S-CQCC-N28
length	11.43 mm
Dedicated input times	11
Number of I/O lines	10
Number of terminals	28

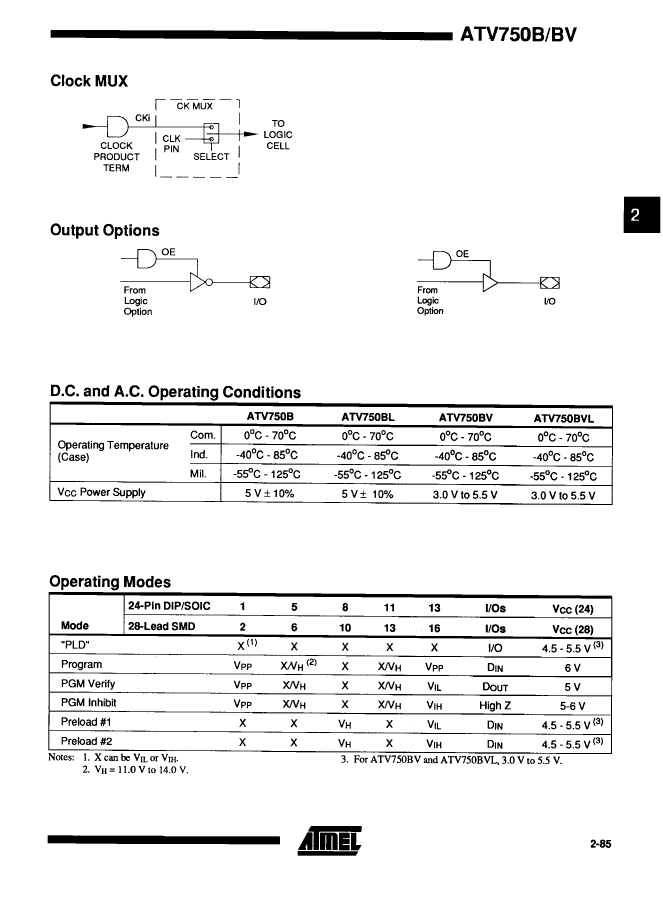

Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	10 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm

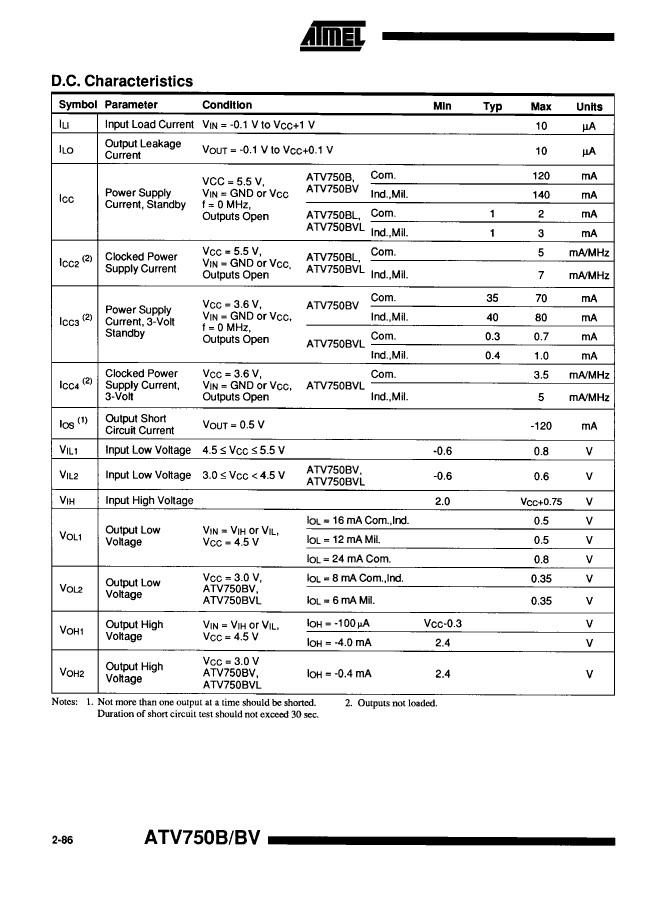

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
