HD14553BP datasheet, PDF - EEWORLD Datasheet

HD14553BP: Description4000/14000/40000 SERIES, SYN NEGATIVE EDGE TRIGGERED 12-BIT UP DECADE COUNTER, PDIP16, DP-16; Categorylogic logic; File Size91KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

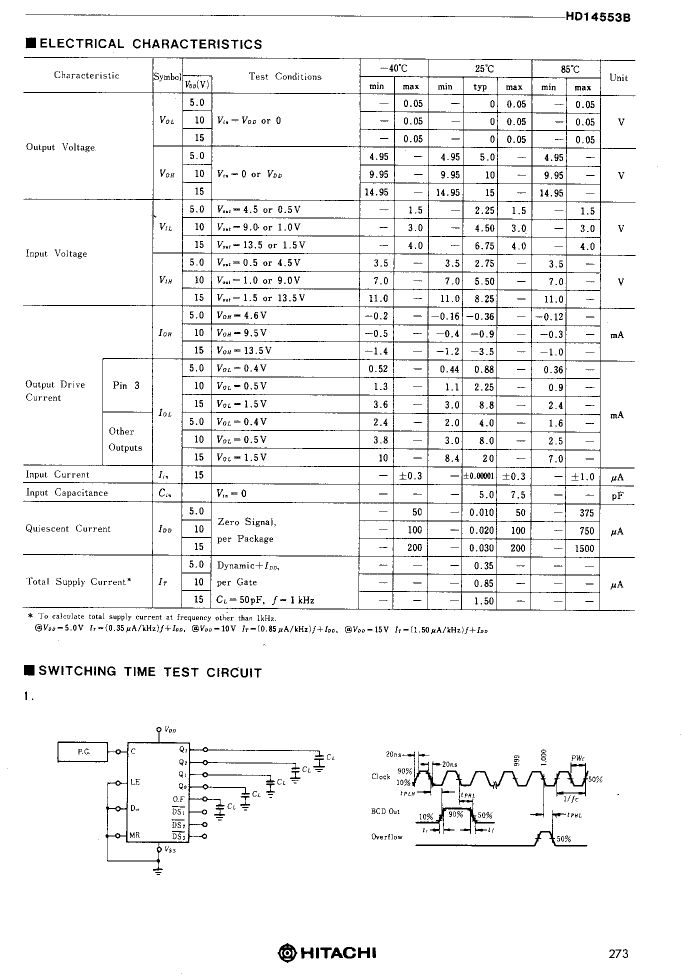

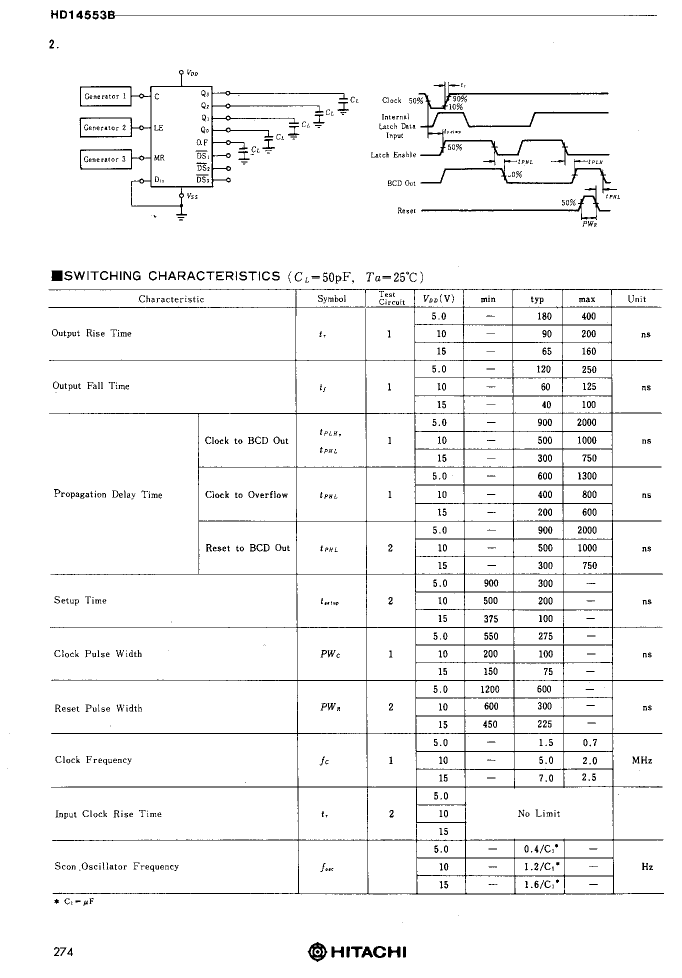

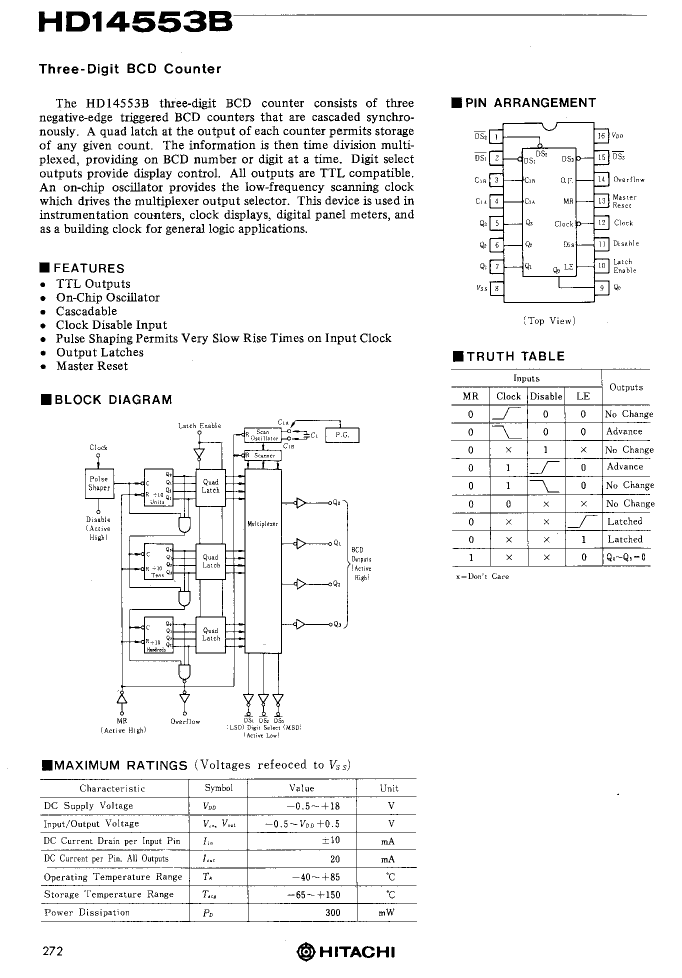

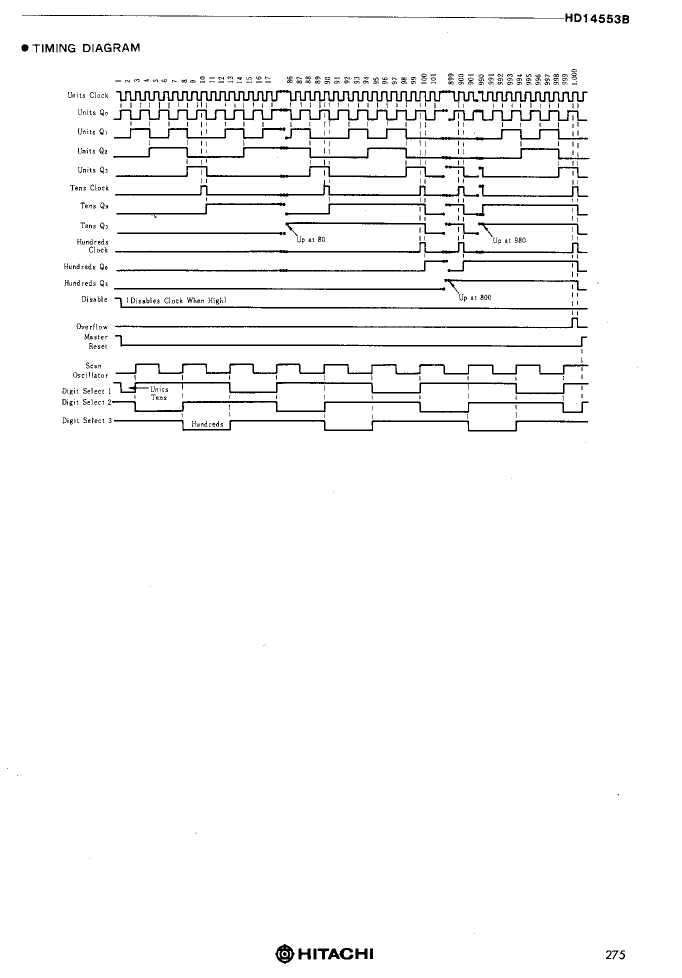

HD14553BP Overview

4000/14000/40000 SERIES, SYN NEGATIVE EDGE TRIGGERED 12-BIT UP DECADE COUNTER, PDIP16, DP-16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	3 DIGIT COUNTER WITH OUTPUT LATCH MULTIPLEXER; BUILT-IN OSCILLATOR; GATED CLOCK
Counting direction	UP
series	4000/14000/40000
JESD-30 code	R-PDIP-T16
length	19.2 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	12
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	2000 ns
Certification status	Not Qualified
Maximum seat height	5.06 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	2.5 MHz

	HD14553BP
Description	4000/14000/40000 SERIES, SYN NEGATIVE EDGE TRIGGERED 12-BIT UP DECADE COUNTER, PDIP16, DP-16
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	3 DIGIT COUNTER WITH OUTPUT LATCH MULTIPLEXER; BUILT-IN OSCILLATOR; GATED CLOCK
Counting direction	UP
series	4000/14000/40000
JESD-30 code	R-PDIP-T16
length	19.2 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	12
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	2000 ns
Certification status	Not Qualified
Maximum seat height	5.06 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	2.5 MHz
