31GF2: DescriptionULTRAFAST EFFICIENT GLASS PASSIVATED RECTIFIER VOLTAGE拢潞200V CURRENT拢潞 3.0A; CategoryDiscrete semiconductor diode; File Size150KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

31GF2 Overview

ULTRAFAST EFFICIENT GLASS PASSIVATED RECTIFIER VOLTAGE拢潞200V CURRENT拢潞 3.0A

31GF2 Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

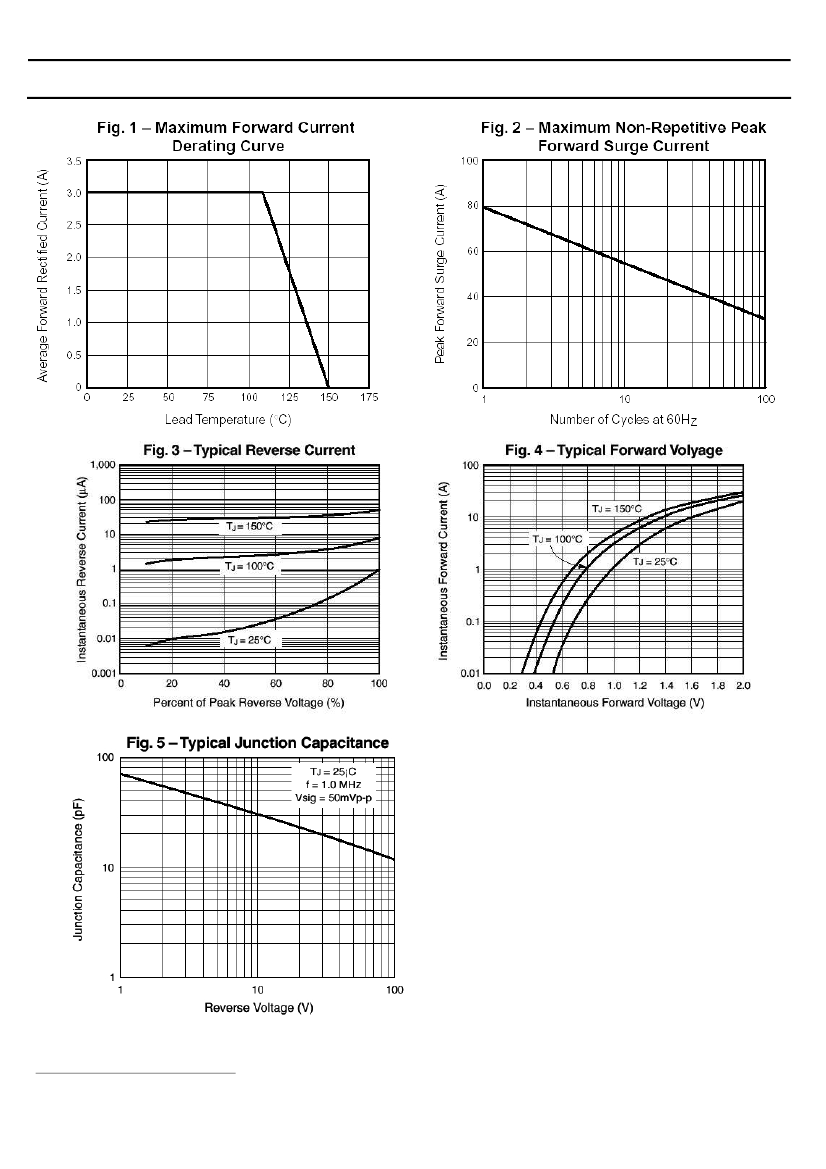

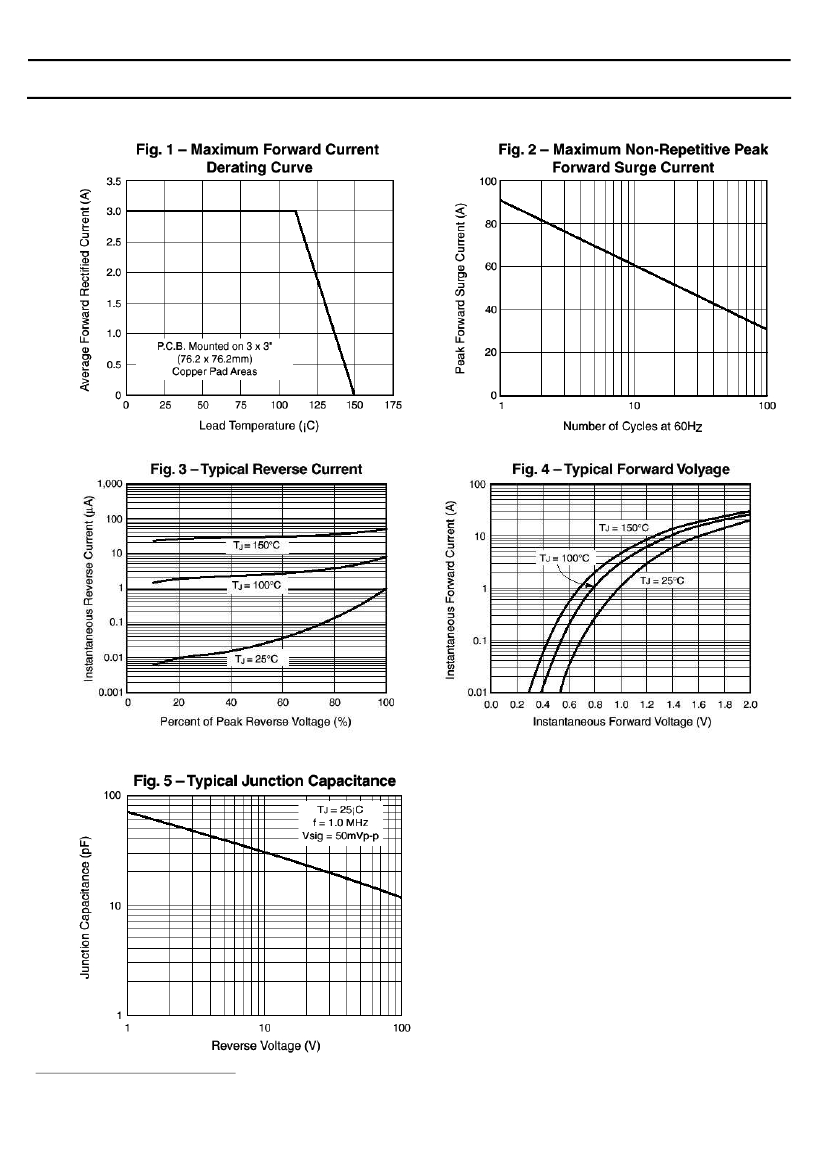

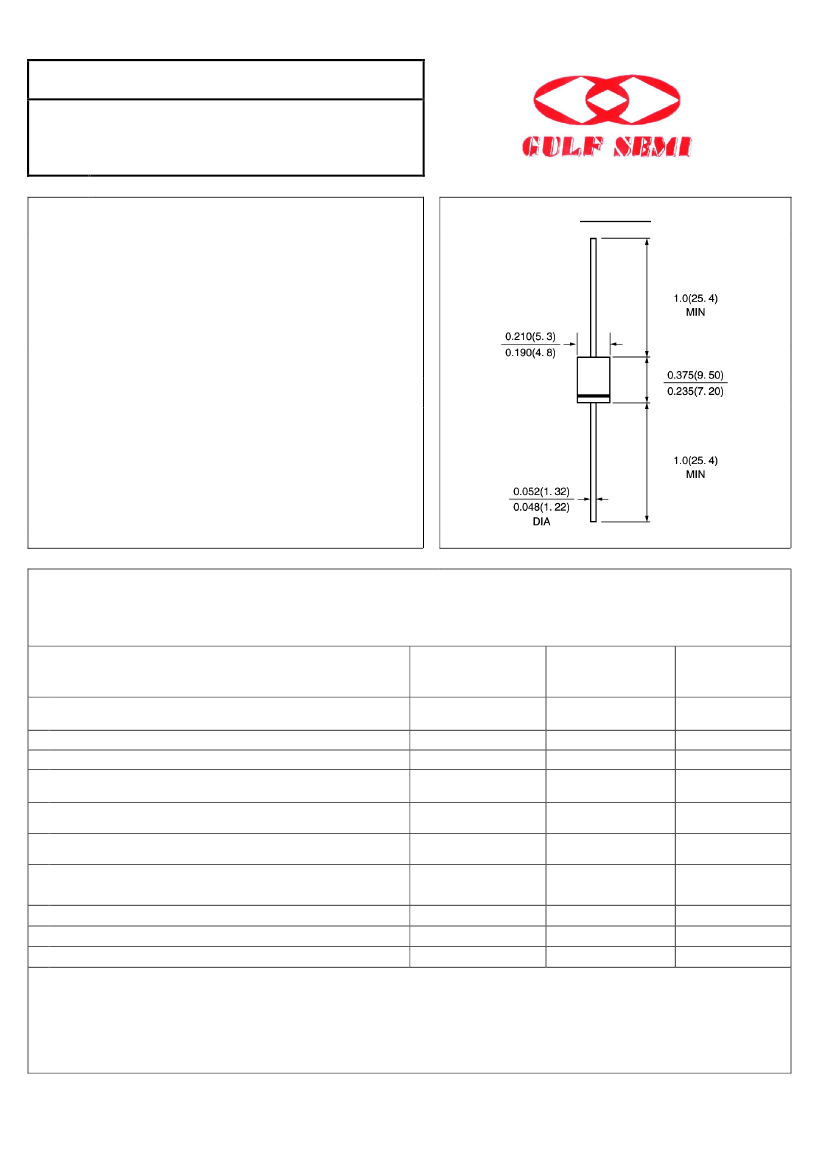

31GF2

ULTRAFAST EFFICIENT

GLASS PASSIVATED RECTIFIER

VOLTAGE：200V

：

CURRENT： 3.0A

：

FEATURE

Low power loss

High surge capability

Ultra-fast recovery time for high efficiency

High temperature soldering guaranteed

250℃/10sec/0.375″lead length at 5 lbs tension

DO-201AD

-

MECHANICAL DATA

Terminal：Plated axial leads solderable per

MIL-STD 750, method 2026

Case：Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity：color band denotes cathode

Mounting position：any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25℃, unless otherwise stated)

SYMBOL

31GF2

200

140

200

3.0

80

0.98

10.0

100.0

30

30.0

-40 to +150

units

V

A

V

μA

nS

℃/W

℃

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current, 0.375″lead length at TL =110℃

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at Forward current

At3.0A

(Note 1)

Maximum DC Reverse Current Ta =25℃

at rated DC blocking voltage

Ta =120℃

Maximum Reverse Recovery Time

Typical Thermal Resistance

(Note 2)

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Trr

R(ja)

Tstg,Tj

Storage and Operating Junction Temperature

Note：

1. Pulse test:300uS pulse width, 1% duty cycle

2. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

Rev.A1

www.gulfsemi.com
