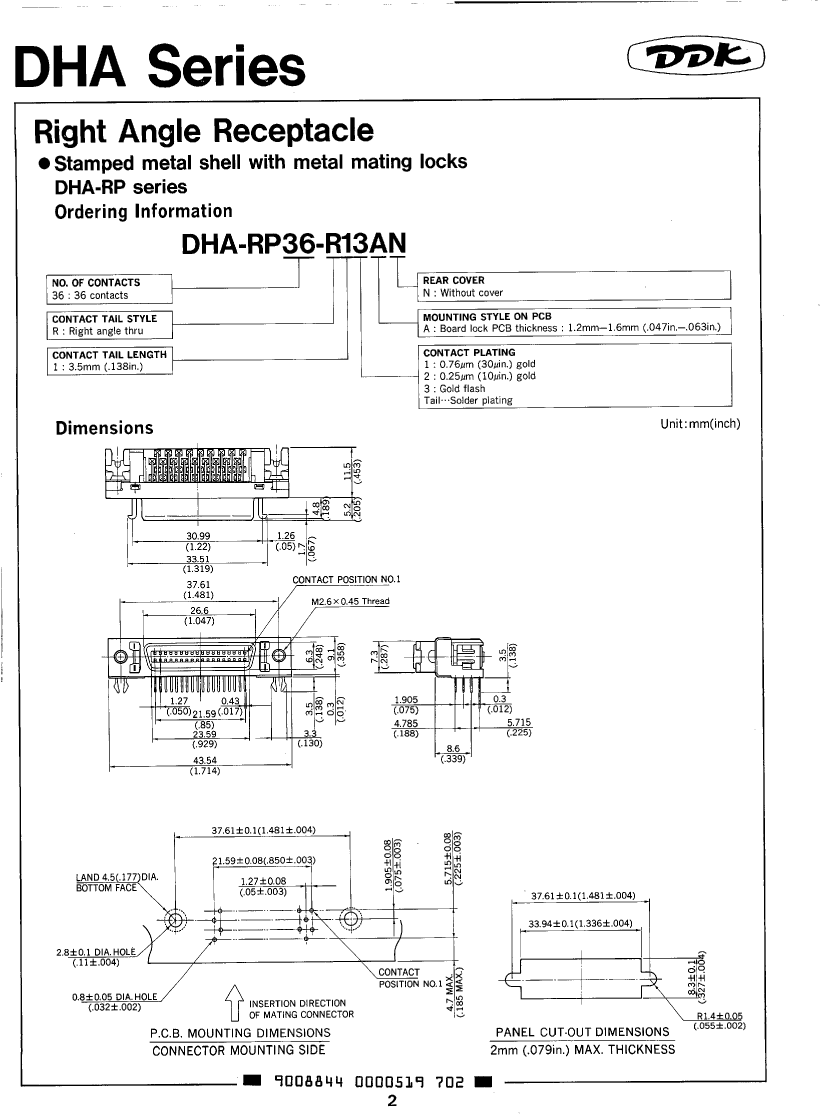

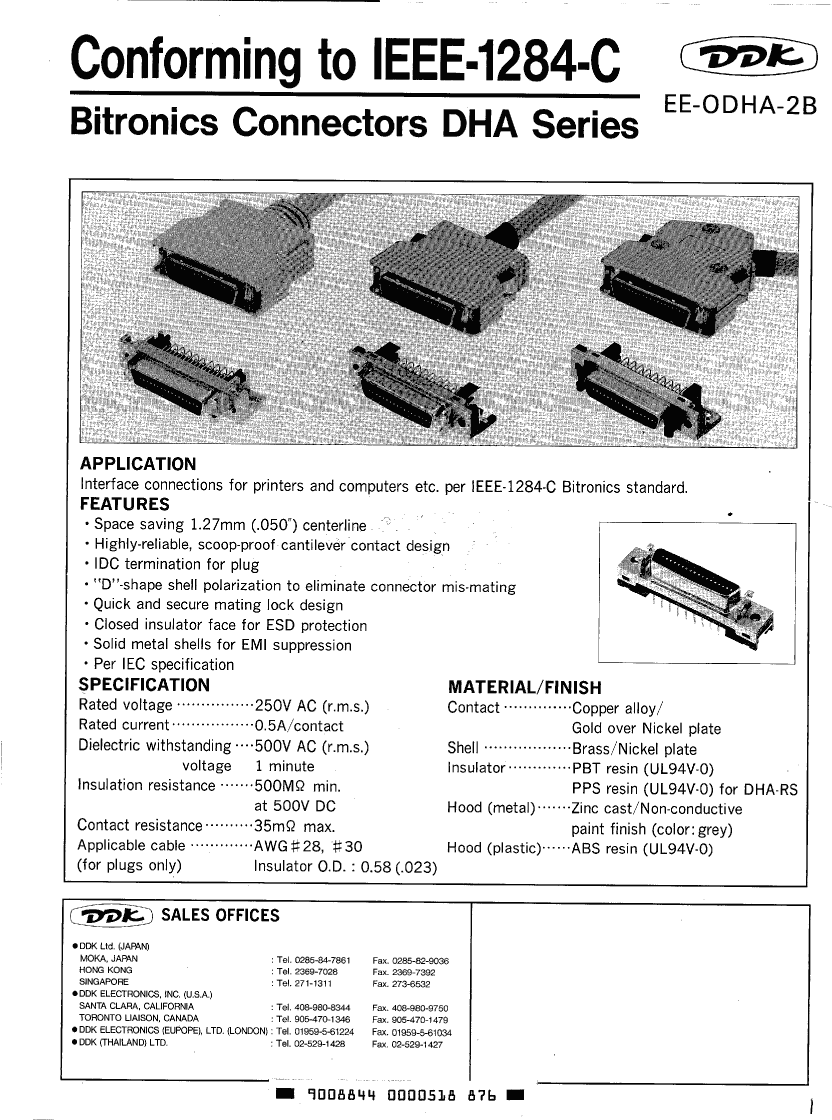

D Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking Mech, Receptacle
| Parameter Name | Attribute value |
| Maker | DDK |
| Reach Compliance Code | unknown |
| Other features | WITHOUT REAR COVER |
| body width | 0.37 inch |
| subject depth | 0.453 inch |
| body length | 1.714 inch |
| Body/casing type | RECEPTACLE |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 35 mΩ |
| Dielectric withstand voltage | 500VAC V |
| Insulation resistance | 500000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DHA-RP |
| Plug contact pitch | 0.05 inch |
| Installation option 1 | LOCKING MECH |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.905 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | BRASS |
| Terminal length | 0.138 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 36 |
| DHA-RP36-R11AN | DHA-RP36-R12AN | DHA-RP36-R13AN | |
|---|---|---|---|
| Description | D Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking Mech, Receptacle | D Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking Mech, Receptacle | D Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking Mech, Receptacle |
| Maker | DDK | DDK | DDK |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER |
| body width | 0.37 inch | 0.37 inch | 0.37 inch |
| subject depth | 0.453 inch | 0.453 inch | 0.453 inch |
| body length | 1.714 inch | 1.714 inch | 1.714 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 35 mΩ | 35 mΩ | 35 mΩ |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DHA-RP | DHA-RP | DHA-RP |
| Plug contact pitch | 0.05 inch | 0.05 inch | 0.05 inch |
| Installation option 1 | LOCKING MECH | LOCKING MECH | LOCKING MECH |
| Installation option 2 | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| PCB row number | 4 | 4 | 4 |
| Number of rows loaded | 2 | 2 | 2 |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 1.905 mm | 1.905 mm | 1.905 mm |
| Plating thickness | 30u inch | 10u inch | FLASH inch |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | NICKEL | NICKEL |
| Shell material | BRASS | BRASS | BRASS |
| Terminal length | 0.138 inch | 0.138 inch | 0.138 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 36 | 36 | 36 |
