KC5032P190.000L2GE00: DescriptionXO, Clock, CRYSTAL OSCILLATOR, CLOCK, 190 MHz, LVDS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size109KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

KC5032P190.000L2GE00 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 190 MHz, LVDS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

KC5032P190.000L2GE00 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	KC5032P-L2
Installation features	SURFACE MOUNT
Nominal operating frequency	190 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	5.0mm x 3.2mm x 1.1mm
longest rise time	0.6 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

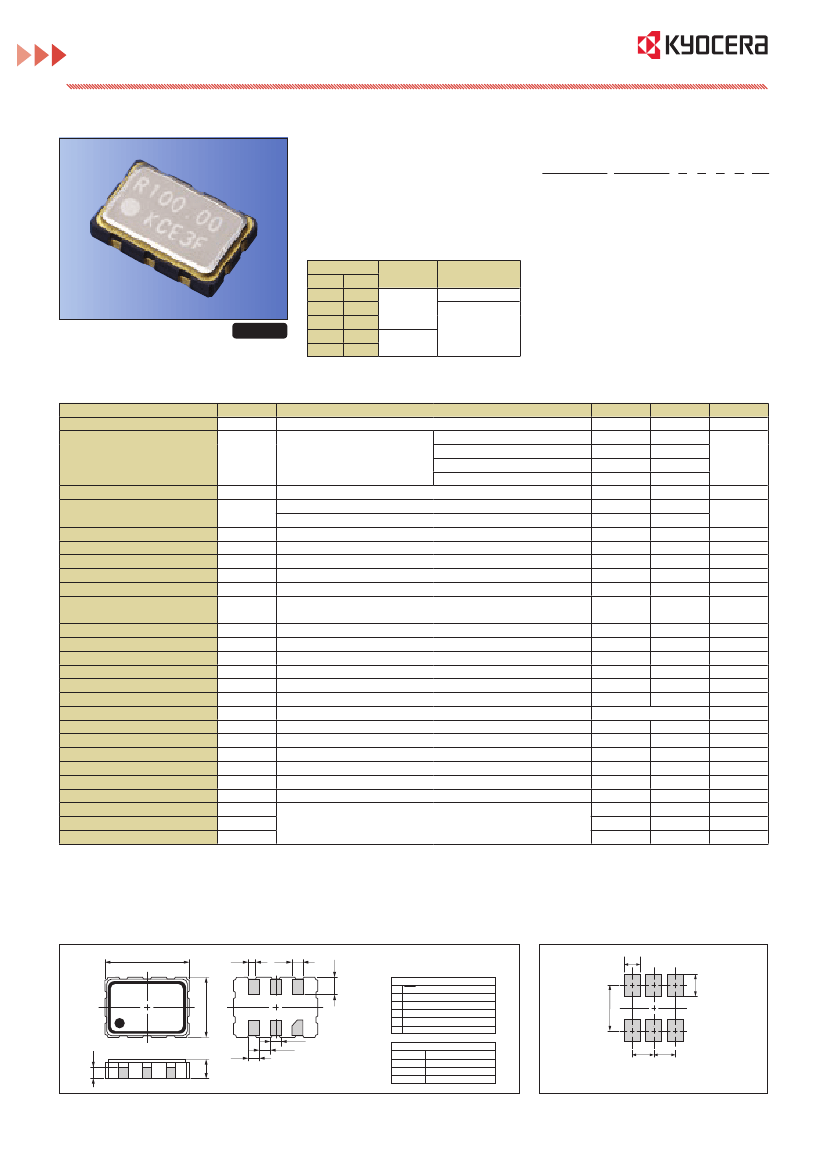

Clock Oscillators Surface Mount Type

KC5032P-L2 Series

LVDS/ 2.5V/ 5.0×3.2mm

Features

• Miniature ceramic package

• Highly reliable with seam welding

• LVDS output

• Supply voltage V

CC

=2.5V

•

±25×10

-

6

available

How to Order

KC5032P 125.000 L 2 0 E 00

①

②

③④⑤⑥ ⑦

①

Type (5.0×3.2mm SMD)

②

Output Frequency

③

Output Type (LVDS)

④

Supply Voltage (2.5V)

⑤

Frequency Tolerance (See Table 1)

⑥

Symmetry/ INH Function

(45/ 55%, Stand-by)

⑦

Customer Special Model Suffix

(STD Specification is “00”)

Packaging (Tape & Reel 1000 pcs./ reel)

Table 1

Operating

Freq. Tol.

Note

-

6

Temperature

Code

×

10

Range (

°

C)

±

50

0

Standard specifications

±

30 0 to

+70

S

±

25

U

With only certain

frequencies

±100

F

-40

to

+85

±

50

G

RoHS Compliant

Specifications

Item

Output Frequency Range

Note1

Frequency Tolerance

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by Current

Symmetry

Rise/ Fall Time

(20% to 80% Output Level)

Low Level Output Voltage

Note2

High Level Output Voltage

Note2

Diffrentical Output Voltage

Note2

Diffrentical Output Voltage Error

Note2

Offset Voltage

Offset Voltage Error

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Deterministic Jitter (DJ)

1 Sigma Jitter

Peak to Peak Jitter

Symbol

fo

f

_tol

T

_stg

T

_use

—

V

CC

I

CC

I

_std

SYM

tr/ tf

V

OL

V

OH

V

OD

dV

OD

V

OS

dV

OS

RL

V

IN

V

IL

V

IH

t

_dis

t

_ena

t

_str

DJ

J

Sigma

J

PK-PK

Standard Specifications

Extend (Option)

Conditions

Initial tolerance, Operating tem-

perature range, Rated power supply

voltage change, Load change, Aging

(1 year @25°C), Shock and vibration

Op. Temp.:

-40

to

+85°C

Op. Temp.: 0 to

+70°C/ -40

to

+85°C

Op. Temp.: 0 to

+70°C

Op. Temp.: 0 to

+70°C

Min.

50

-100

-50

-30

-25

-55

0

-40

-0.5

+2.375

—

45

—

0.9

—

247

—

1.125

—

Max.

190

+100

+50

+30

+25

+125

+70

+85

+5.0

+2.625

70

30

55

0.6

—

1.6

454

50

1.375

50

Units

MHz

×10

-

6

°C

V

mA

μA

%

ns

V

mV

V

mV

ohm

V

ns

ms

ps

100ohm @crossing point

100ohm

Typ. 1.1V

Typ. 1.43V

Typ. 330mV

dV

OD

=

|

V

OD1

-V

OD2|

Typ. 1.25V

dV

OS

=

|

V

OS1

-V

OS2|

LVDS Output

@Minimum operating voltage to be 0 sec.

Measured with Wavecrest SIA-3000

100

0

V

CC

—

30% V

CC

70% V

CC

—

200

—

10

—

10

—

2

—

4

—

30

Note : All electrical characteristics are defined at the maximum load and operating temperature range.

Note1: Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Note2: DC characteristic

Dimensions

1.0

5.0

0.5

0.7

(Unit: mm)

Recommended Land Pattern

0.9

(Unit: mm)

3.2

#3

#2

#1

0.6

0.7

1.1

0.64

0.63

Plating: Ni+Au

Tolerance:

±0.2

INH Function

Pad1

Pad4/ Pad5 (Output)

Open

Active

"H" Level

Active

"L" Level High Z (No-Oscillation)

2.6

#4

#5

#6

#1

#2

#3

#4

#5

#6

Pad Connections

INH

NC

Case GND

Output

Complementary Output

V

CC

1.3

Note: A capacitor of value 0.01µF and 10µF

Between V

CC

and GND is recommended.

1.6
