KT3225P27456ACV30T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KT3225P27456ACV30T

KT3225P27456ACV30T: DescriptionTCXO, Sine, TCXO, SINE OUTPUT, 27.456 MHz, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size152KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

KT3225P27456ACV30T Overview

TCXO, Sine, TCXO, SINE OUTPUT, 27.456 MHz, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 4 PIN

KT3225P27456ACV30T Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.5%
Installation features	SURFACE MOUNT
Nominal operating frequency	27.456 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	3.2mm x 2.5mm x 1.0mm
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

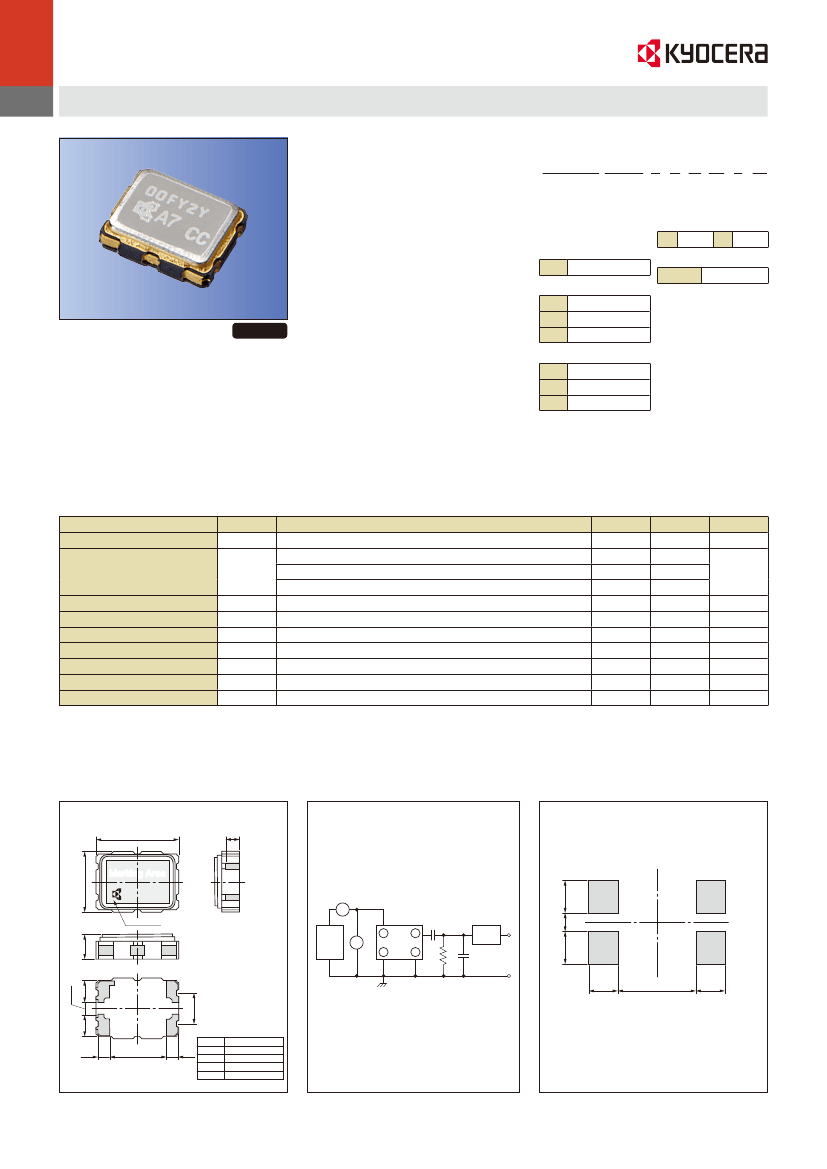

Temperature Compensated Crystal Oscillators (TCXO)

Surface Mount Type TCXO (LSI Type) KT3225 Series for GPS

3.2×2.5mm

Features

• Ultra-miniature SMD type

(3.2×2.5×1.0mm)

• Freq. temp. chrst.

±0.5×10

−

−30

+85°C

• 2.3 to 3.6V drive available

• Reflow compatible

How to Order

KT3225P 27456 A C W 28 T xx

①

Series

②

Output Frequency

③

Freq. Temp. Chrst.

±0.5×10

−

−30°C

−20°C

−10°C

+85°C

+80°C

+75°C

②

③ ④ ⑤ ⑥ ⑦ ⑧

⑥

Supply Voltage

2.8V

3.0V

Applications

• GPS Units

⑦

Voltage Control Range

TCXO

④

Lower Operating Temp.

⑧

Option Code

RoHS Compliant

⑤

Upper Operating Temp.

Packaging (Tape & Reel 3000 pcs./ reel)

Specifications

Item

Output Frequency Range

Frequency Tolerance

Frequency Aging

Storage Temperature Range

Operating Temperature Range

Supply Voltage

Output Level

Current Consumption

Harmonics

Symbol

_tol

_age

_stg

_use

Vpp

—

Conditions

Standard Frequency: 16.368, 16.369, 19.2, 23.104, 24.5535, 26, 27.456

vs Temperature

vs Load

vs Voltage

Per Year

Min.

—

−0.5

−0.1

−0.2

−1

−40

−30

2.3

0.8

—

Max.

—

+0.5

+0.1

+0.2

+85

3.6

—

−5

Units

MHz

×10

−

×10

−

°C

Vp-p

dBc

10k ohm / / 10pF

Dimensions

(Unit: mm)

Test Circuit

Recommended Land Pattern

(Unit: mm)

POWER

SUPPLY

Vcc

TCXO

0.87

FET

PROBE

(0.50)

Spectrum Analyzer

& Counter, Oscilloscope

0.87

Test circuit

(Frequency, Harmonics and Amplitude)

0.78

RL 10k 10% CL 10pF 10%

CL include Probe Capacitance

Co: DC Cut Capacitance

(2.24)

0.78

Note: A capacitor of value 0.01 F between V

and GND is recommended.
