K1527AC-51.840MHZ: DescriptionCMOS/TTL Output Clock Oscillator, 51.84MHz Nom; CategoryPassive components oscillator; File Size389KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

K1527AC-51.840MHZ Overview

CMOS/TTL Output Clock Oscillator, 51.84MHz Nom

K1527AC-51.840MHZ Parametric

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	5 V
Minimum control voltage	-5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	175 ppm
frequency stability	20%
linearity	15%
Manufacturer's serial number	K1527A
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	51.84 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/TTL
physical size	20.838mm x 13.208mm x 7.49mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

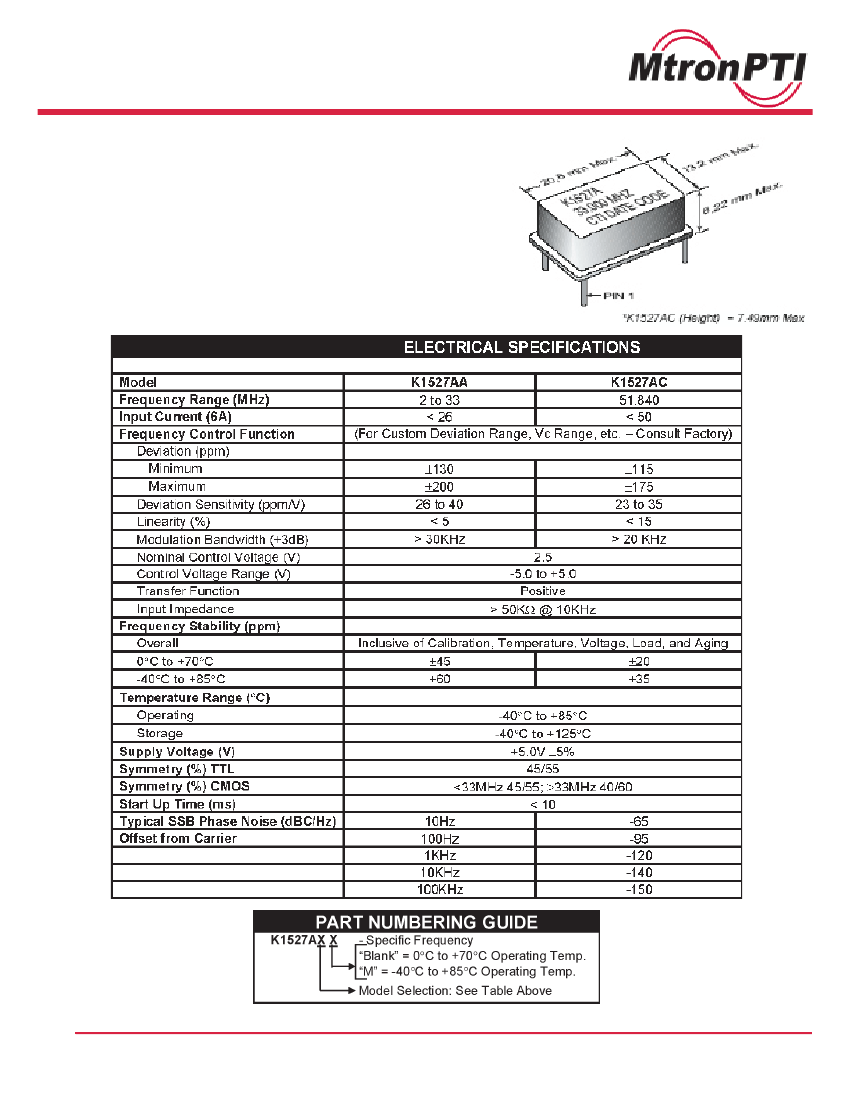

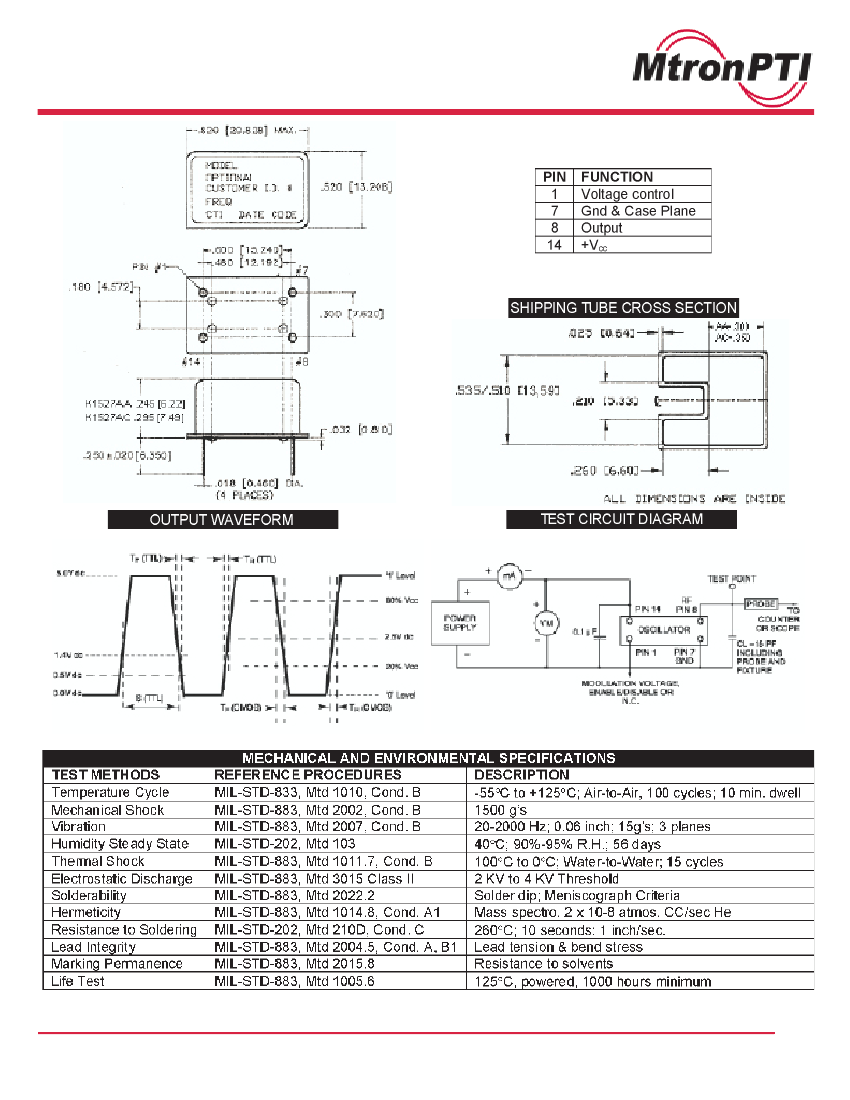

K1527A Series

5V Surface Mount Voltage Controlled Crystal Oscillator

•

Applications:

Phase-Locked Loops (PLL’s), Clock Recovery,

Reference Signal Tracking, Synthesizers, Frequency

Modulation/Demodulation

•

2.0 to 33.1 & 55.840 MHz Frequency Range

•

Dual Polarity Control Voltage

•

0.5V to 4.5 V Control Voltage

•

±20 ppm Stability (Typical)

•

Variety of Deviation Sensitivity Options

•

-40°C to +85°C Operating Temperature Available

OBSOLETE

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

K1527AC-51.840MHZ Related Products

	K1527AC-51.840MHZ	K1527AAM-2MHZ	K1527ACM-51.840MHZ	K1527AA-FREQ	K1527AA-2MHZ	K1527AA-33MHZ
Description	CMOS/TTL Output Clock Oscillator, 51.84MHz Nom	CMOS/TTL Output Clock Oscillator, 2MHz Nom	CMOS/TTL Output Clock Oscillator, 51.84MHz Nom	CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max	CMOS/TTL Output Clock Oscillator, 2MHz Nom	CMOS/TTL Output Clock Oscillator, 33MHz Nom
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum control voltage	5 V	5 V	5 V	5 V	5 V	5 V
Minimum control voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	175 ppm	200 ppm	175 ppm	200 ppm	200 ppm	200 ppm
frequency stability	20%	60%	35%	45%	45%	45%
linearity	15%	5%	15%	5%	5%	5%
Manufacturer's serial number	K1527A	K1527A	K1527A	K1527A	K1527A	K1527A
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	85 °C	85 °C	70 °C	70 °C	70 °C
Oscillator type	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL
physical size	20.838mm x 13.208mm x 7.49mm	20.838mm x 13.208mm x 6.22mm	20.838mm x 13.208mm x 7.49mm	20.838mm x 13.208mm x 6.22mm	20.838mm x 13.208mm x 6.22mm	20.838mm x 13.208mm x 6.22mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
maximum symmetry	40/60 %	45/55 %	40/60 %	45/55 %	45/55 %	45/55 %
Maker	MtronPTI	-	MtronPTI	MtronPTI	MtronPTI	MtronPTI
Nominal operating frequency	51.84 MHz	2 MHz	51.84 MHz	-	2 MHz	33 MHz
