LX5240CPWT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LX5240CPWT

LX5240CPWT: DescriptionSCSI Terminator, 9-Line, 105ohm, PDSO24, PLASTIC, TSSOP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size285KB，5 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

LX5240CPWT Overview

SCSI Terminator, 9-Line, 105ohm, PDSO24, PLASTIC, TSSOP-24

LX5240CPWT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	PLASTIC, TSSOP-24
Reach Compliance Code	unknown
Differential output	YES
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Number of functions	1
Number of signal lines	9
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP24,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	4.75 V
Nominal pull-up resistor	105 Ω
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	3 V
Nominal supply voltage	4.75 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

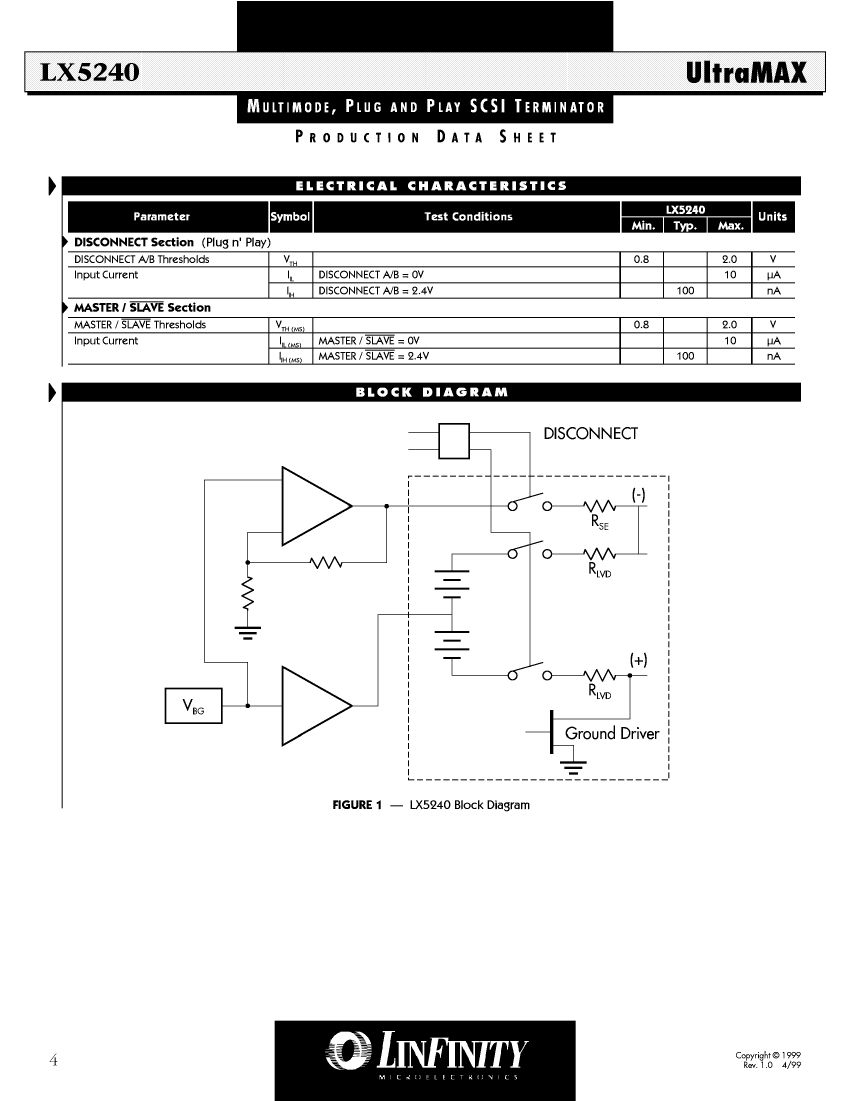

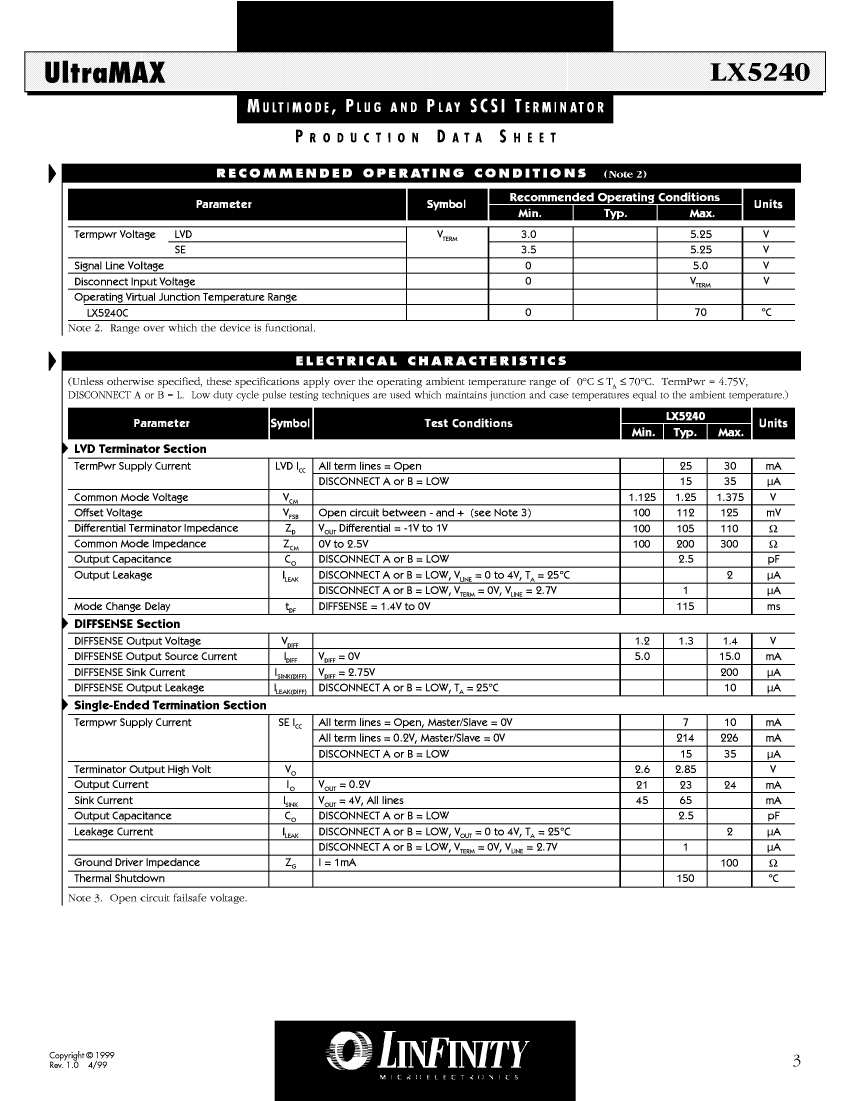

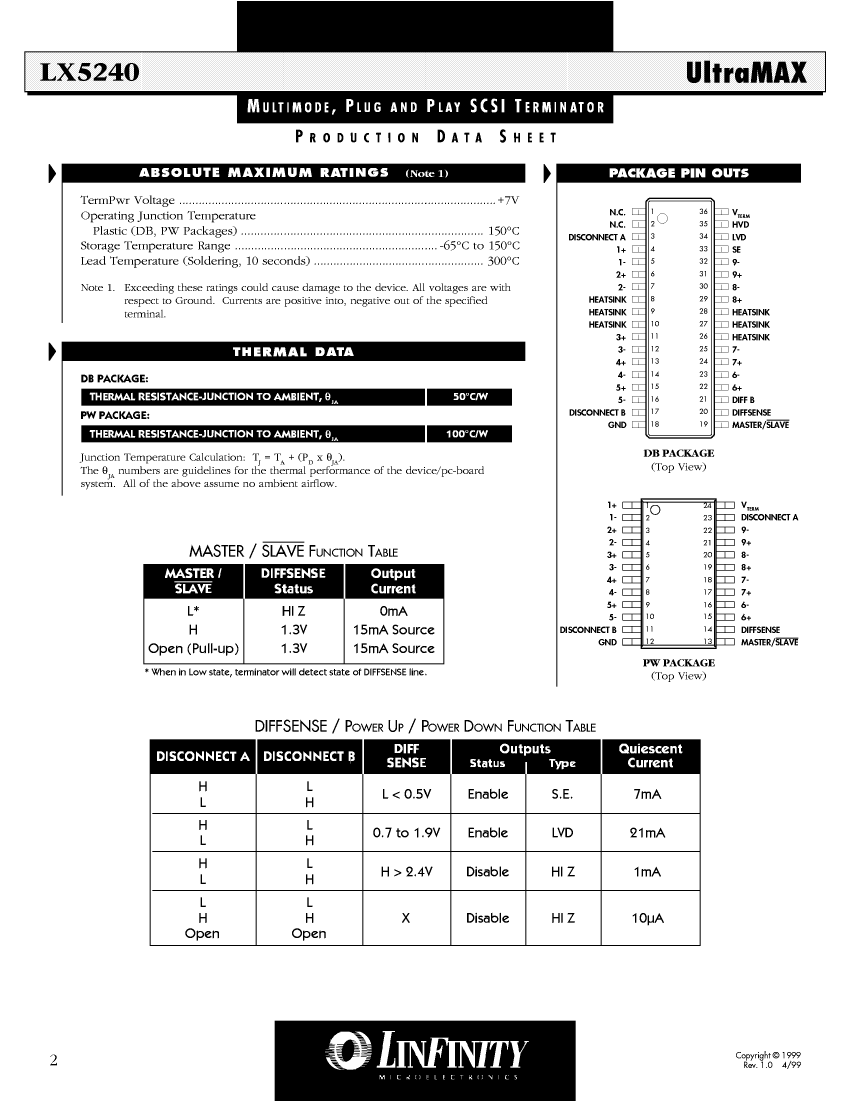

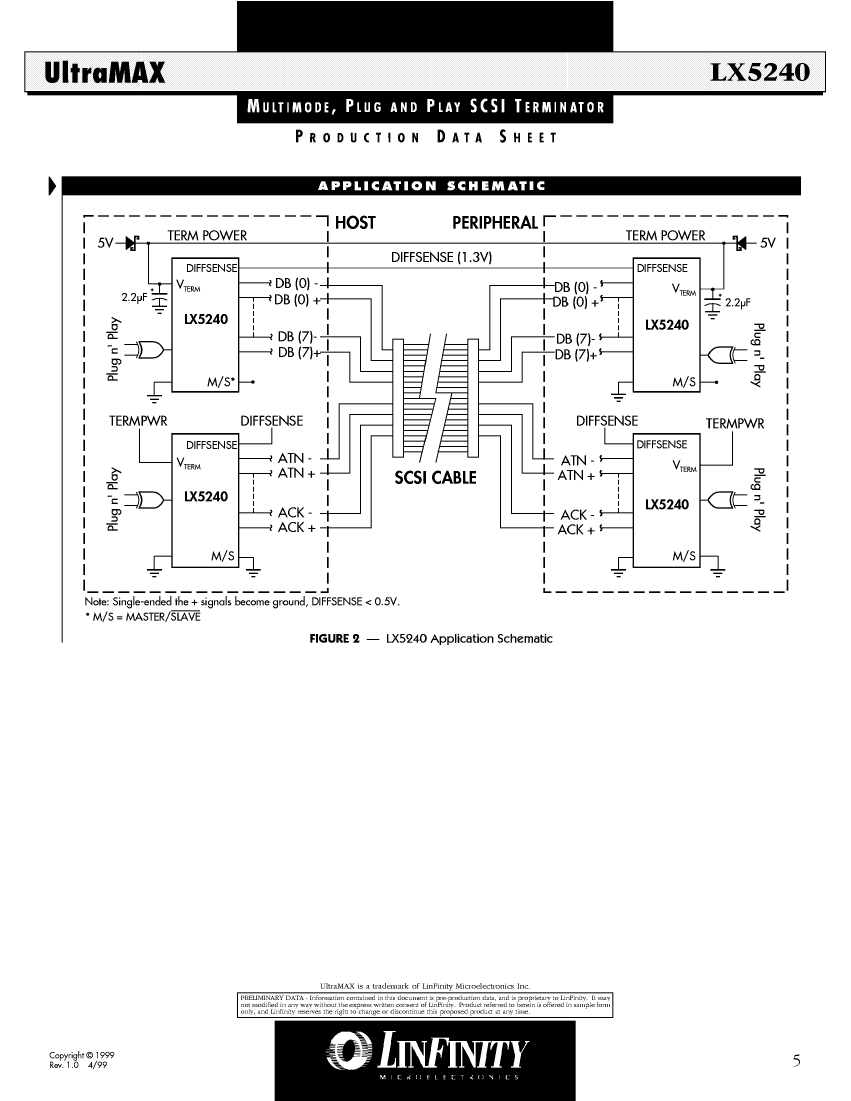

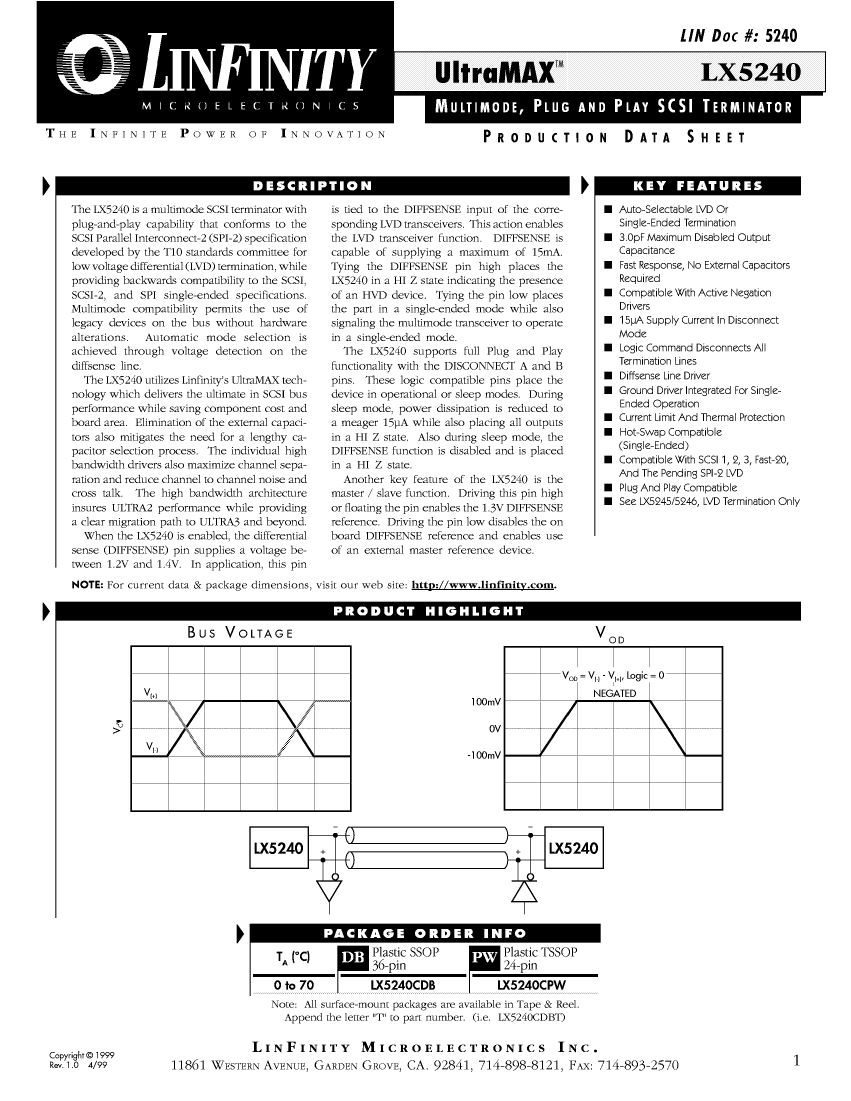

Preview

Download Datasheet

View All

LX5240CPWT Related Products

	LX5240CPWT	LX5240CDBT	LX5240CDB	LX5240CPW
Description	SCSI Terminator, 9-Line, 105ohm, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, 105ohm, PDSO36, PLASTIC, SSOP-36	SCSI Terminator, 9-Line, 105ohm, PDSO36, PLASTIC, SSOP-36	SCSI Terminator, 9-Line, 105ohm, PDSO24, PLASTIC, TSSOP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
package instruction	PLASTIC, TSSOP-24	PLASTIC, SSOP-36	PLASTIC, SSOP-36	PLASTIC, TSSOP-24
Reach Compliance Code	unknown	unknown	unknown	unknown
Differential output	YES	YES	YES	YES
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G24	R-PDSO-G36	R-PDSO-G36	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of signal lines	9	9	9	9
Number of terminals	24	36	36	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SSOP	TSSOP
Encapsulate equivalent code	TSSOP24,.25	SOP36,.4,32	SOP36,.4,32	TSSOP24,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	4.75 V	4.75 V	4.75 V	4.75 V
Nominal pull-up resistor	105 Ω	105 Ω	105 Ω	105 Ω
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
surface mount	YES	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.8 mm	0.8 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
