LX5242CDBT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LX5242CDBT

LX5242CDBT: DescriptionSCSI Terminator, 9-Line, BICMOS, PDSO36, PLASTIC, SSOP-36; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size292KB，5 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

LX5242CDBT Overview

SCSI Terminator, 9-Line, BICMOS, PDSO36, PLASTIC, SSOP-36

LX5242CDBT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	PLASTIC, SSOP-36
Reach Compliance Code	unknown
Differential output	YES
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G36
JESD-609 code	e0
Number of functions	1
Number of signal lines	9
Number of terminals	36
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP36,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	4.75 V
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	3 V
Nominal supply voltage	4.75 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL

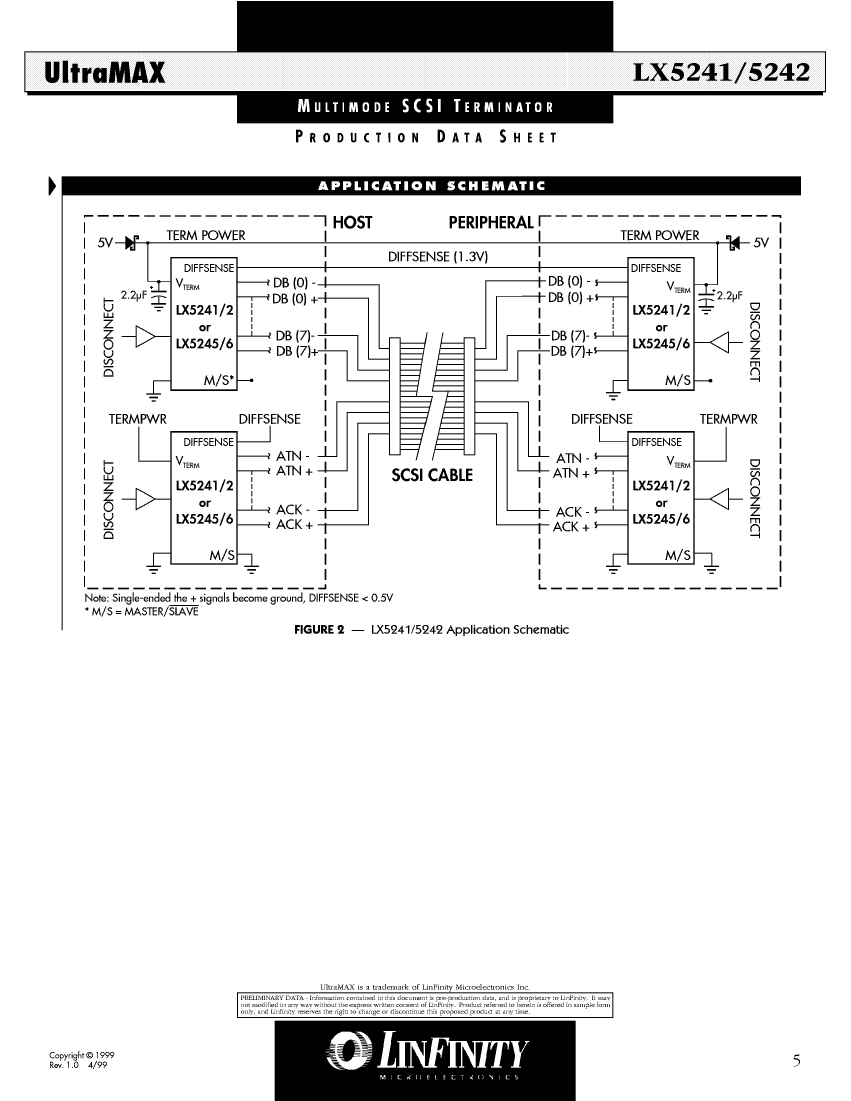

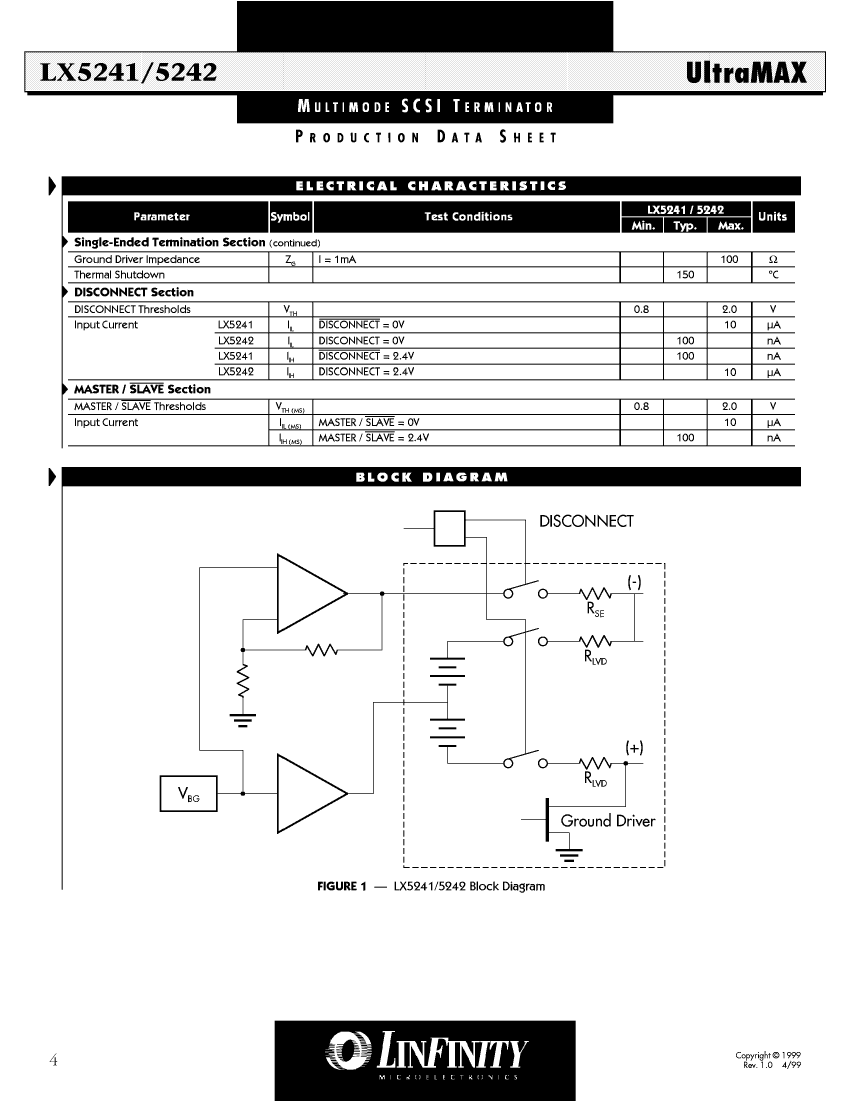

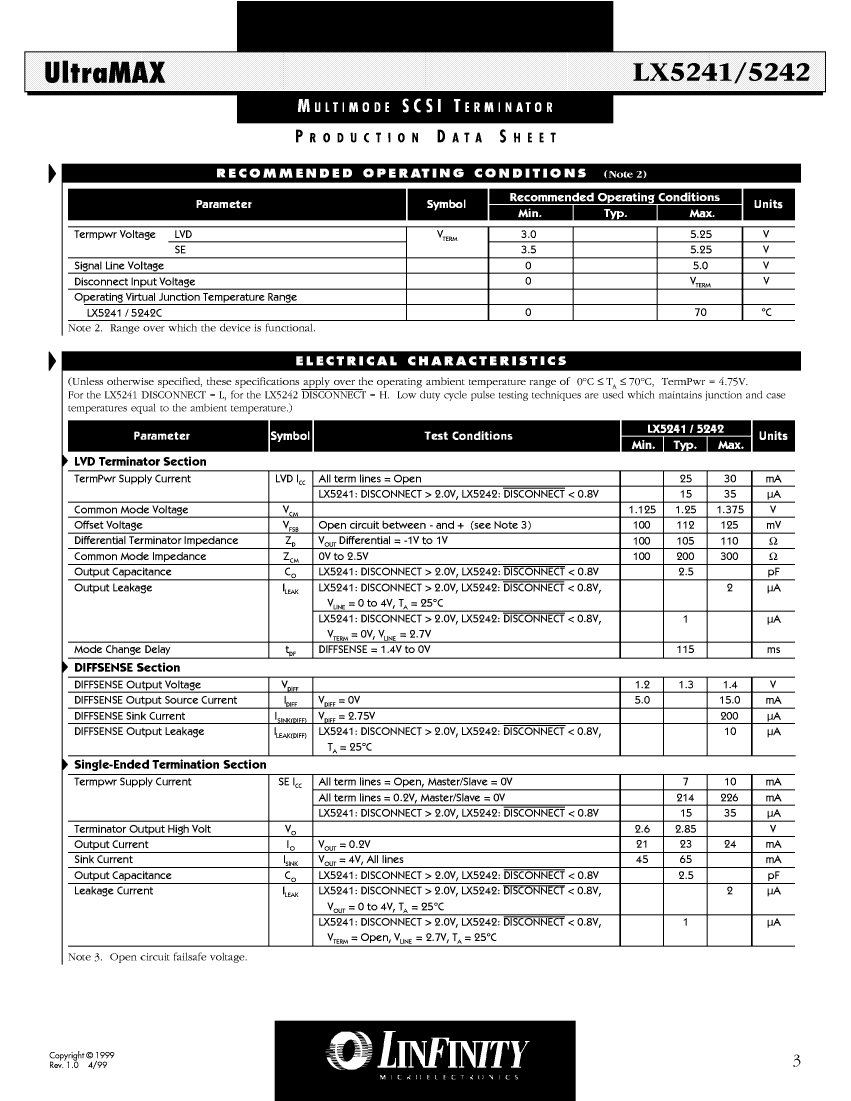

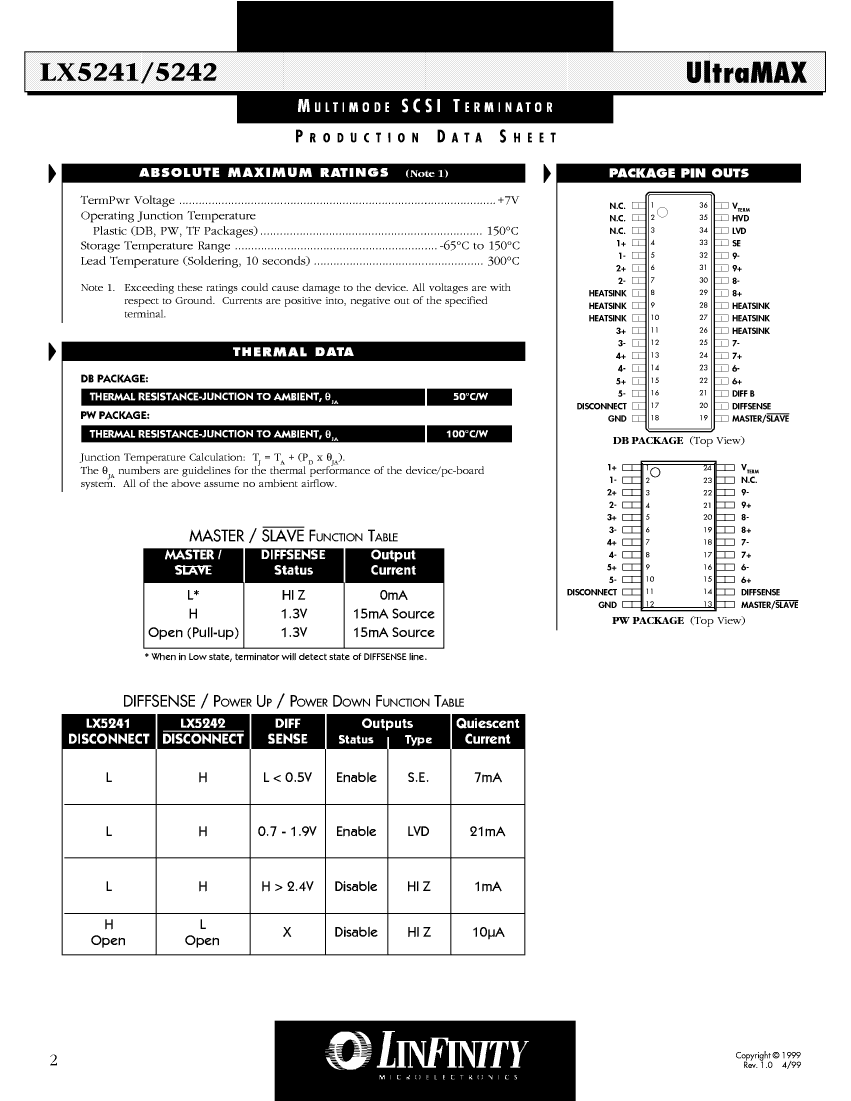

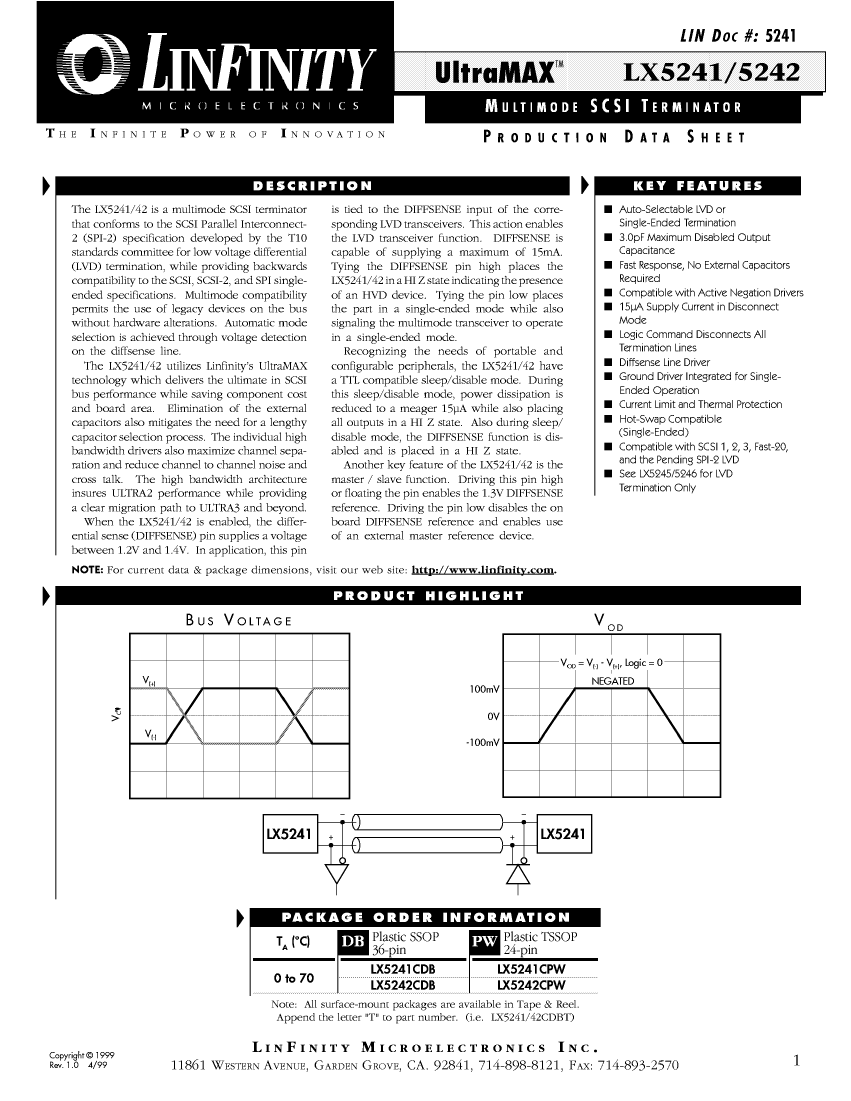

Preview

Download Datasheet

View All

LX5242CDBT Related Products

	LX5242CDBT	LX5241CPW	LX5241CPWT	LX5241CDB	LX5241CDBT	LX5242CPW	LX5242CPWT	LX5242CDB
Description	SCSI Terminator, 9-Line, BICMOS, PDSO36, PLASTIC, SSOP-36	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO36, PLASTIC, SSOP-36	SCSI Terminator, 9-Line, BICMOS, PDSO36, PLASTIC, SSOP-36	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO36, PLASTIC, SSOP-36
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
package instruction	PLASTIC, SSOP-36	PLASTIC, TSSOP-24	PLASTIC, TSSOP-24	PLASTIC, SSOP-36	PLASTIC, SSOP-36	PLASTIC, TSSOP-24	PLASTIC, TSSOP-24	PLASTIC, SSOP-36
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Differential output	YES	YES	YES	YES	YES	YES	YES	YES
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G36	R-PDSO-G24	R-PDSO-G24	R-PDSO-G36	R-PDSO-G36	R-PDSO-G24	R-PDSO-G24	R-PDSO-G36
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1	1
Number of signal lines	9	9	9	9	9	9	9	9
Number of terminals	36	24	24	36	36	24	24	36
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	SSOP	SSOP	TSSOP	TSSOP	SSOP
Encapsulate equivalent code	SOP36,.4,32	TSSOP24,.25	TSSOP24,.25	SOP36,.4,32	SOP36,.4,32	TSSOP24,.25	TSSOP24,.25	SOP36,.4,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.635 mm	0.635 mm	0.8 mm	0.8 mm	0.635 mm	0.635 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
