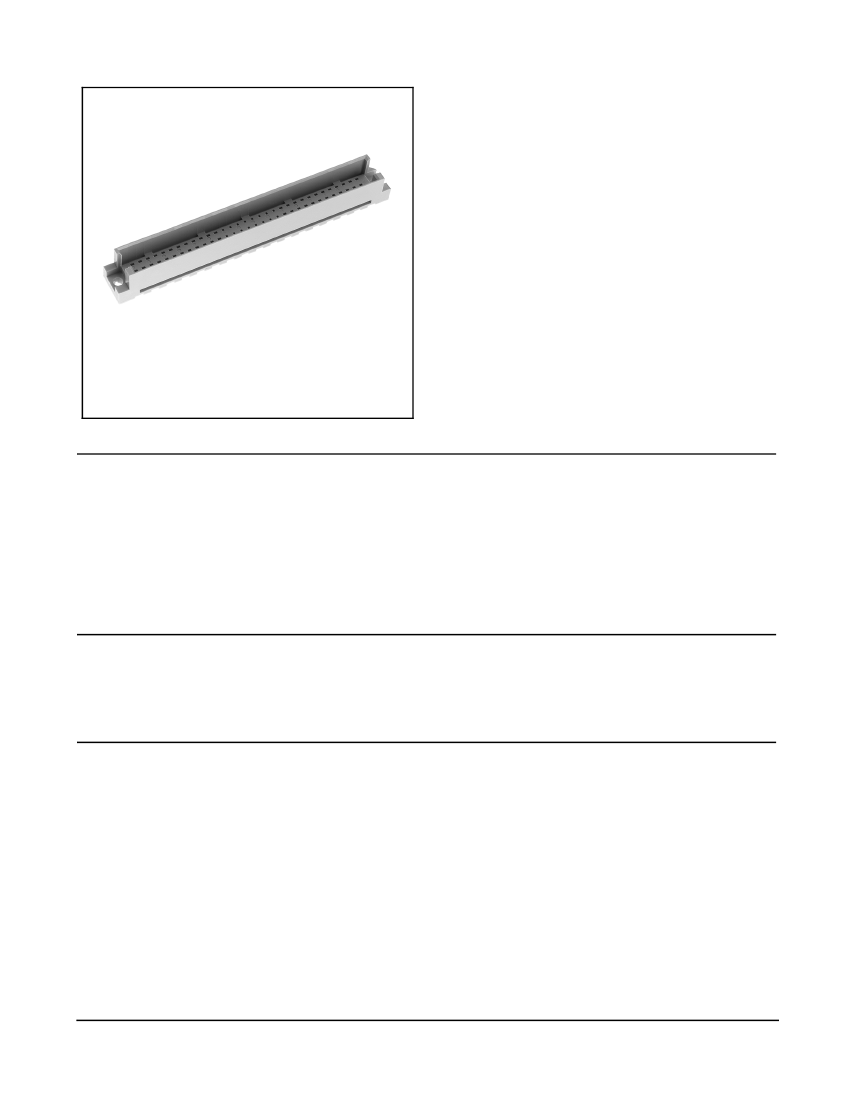

DIN C-Form and R-Form Shroud
.100″ Backplane, Rear Plug
DIN 41612 Series
• Pinless shroud for double-side
backplane interconnects
• Dimensionally compatible with
DIN 41612 specifications
• Variable stand-off height accommodates
different pin lengths on bottom of backplane
• Optional hand-press variation does not
require arbor-press
• See Regulatory Information Appendix (RIA)
for chemical compliance information
R CO
ec e
pl N
h
ac TI
S
N
he e U
d
et b ED
y
23
18
Date Modified: March 19, 2007
TS-1135-B
Sheet 1 of 2
Physical
Insulation
Material:
Glass Filled Polyester (PCT)
Color:
Gray or Black
Flammability:
UL 94V-0
Contact
Material:
N/A Pinless
Marking:
None
Electrical
Environmental
Process Temperature Rating:
260
°
C per J-STD-020C
D
3M
Insulation Resistance::
1 x 10³ MΩ min. at 500 V
DC
Withstanding Voltage:
1 x 10³ V
AC
for 1 minute
T
Moisture Sensitivity Level:
1 (per J-STD-020C)
IS
Current Rating:
N/A
Temperature Rating:
-55°C to +125°C
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
DIN C-Form and R-Form Shroud
.100″ Backplane, Rear Plug
A
D
B
E
.200
5.08
DIN 41612 Series
In ch
[m m ]
T olera n c e U n le s s N oted
.0
inc h
± .1
.00
.0 00
± .01 ± .00 5
O
.110
2.79
.343
8.71
DIA.
[ ] D im ension s for R e ference
O nly
.437
11.1
.100
2.54
R CO
ec e
pl N
h
ac TI
S
N
he e U
d
et b ED
y
23
18
.100
2.54
.098
2.49
.026
0.66
.043
1.1
q
.025
0.64
HAND SLIP-ON OPTION
(DIN-XXXSH-XXX-1)
PRESS-FIT TOOLING OPTION
(DIN-XXXSH-XXX)
APPLICATION TOOLING REQ'D
C
C
Ordering Information
IS
DIN - XXX SH - XXX - X- X
D
Contact Quantity
See table 1
Insulator Color:
B = Black
Blank = Gray
(RIA E1 & C1 apply)
Standoff Height (Dim C) in (mm):
457 = .205″ [ 5.21 ]
600 = .348″ [ 8.84 ]
Pin Fit Option:
1 = Hand Press-Fit
Blank = Arbor Press Installation
T
Part Number
DIN-048 SH-XXX-X-X
DIN-096 SH-XXX-X-X
DIN-120 SH-XXX-X-X
DIN-150 SH-XXX-X-X
2.140
3.740
4.540
5.540
A
[54.36]
[95.00]
[115.32]
[140.72]
Table 1
B
1.754
3.354
[44.55]
[85.19]
1.943
3.543
4.343
5.343
D
[49.35]
[89.99]
1.500
3.100
E
[38.10]
[78.74]
[99.06]
4.154 [105.51]
5.154 [130.91]
[110.31] 3.900
[135.71] 4.900 [124.46]
TS-1135-B
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision
2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party
suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
D
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon
information provided by third party suppliers to 3M.
T
R CO
ec e
pl N
h
ac TI
S
N
he e U
d
et b ED
y
23
18
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
IS
RIA-2217-A
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits
for Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,
means that the product or part
does not
contain any of the following substances in excess of the following maximum
concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,
polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise
stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by
third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits
for Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,
means that the product or part
does
contain a substance, as detailed in the chart below, in excess of the following
maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless
otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform
with 3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in
accordance with the product Warranty stated below.

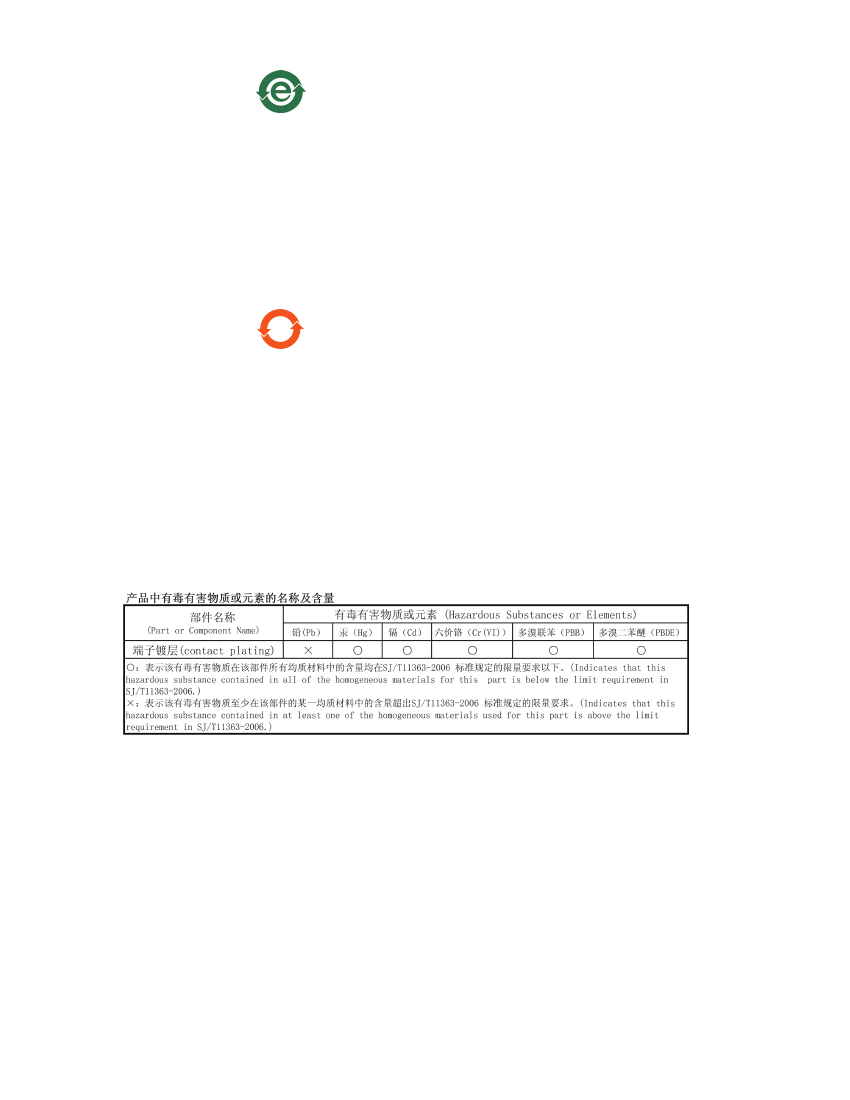

Name and Content of Hazardous Substances or Elements
