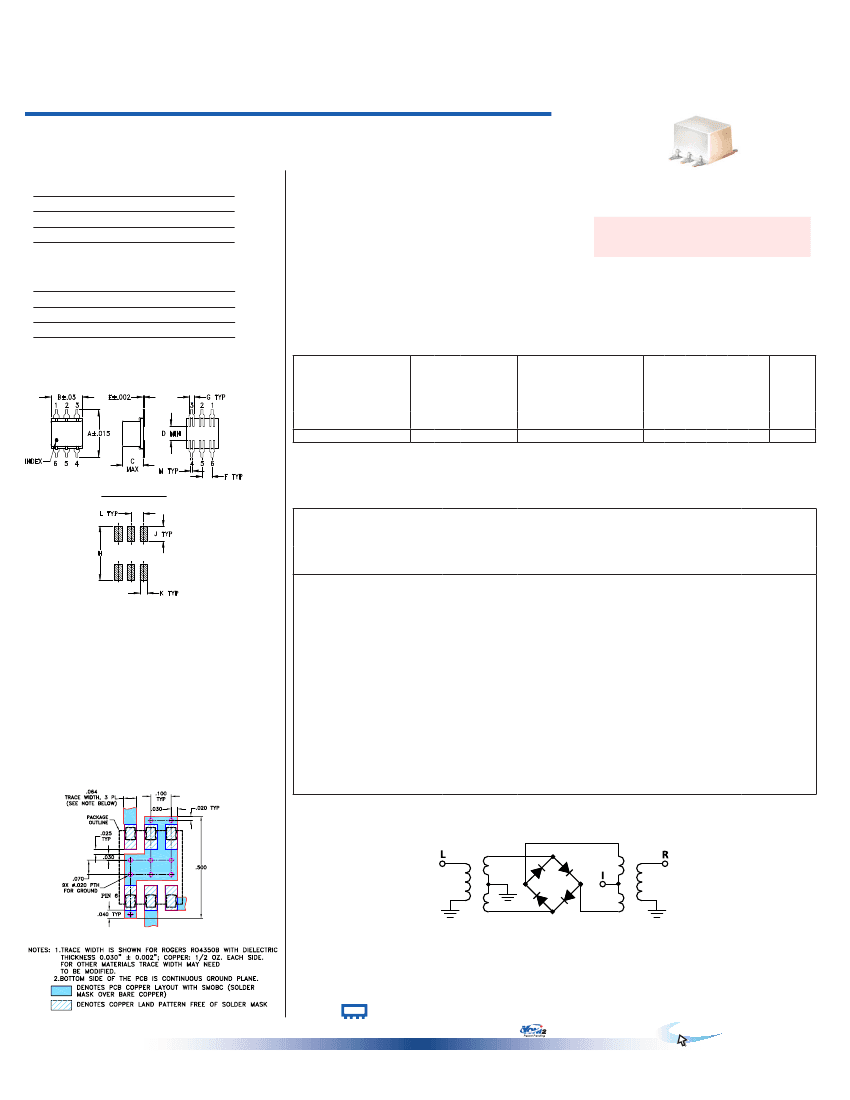

Surface Mount
Frequency Mixer
Level 7
(LO Power +7dBm)
-40°C to 85°C
-55°C to 100°C
50mW
40mA
LRMS-5+
LRMS-5
5 to 1500 MHz
Features
• low conversion loss, 5.92 dB typ.
• excellent L-R isolation, 40 dB typ.
CASE STYLE: QQQ130
PRICE: $13.95 ea. QTY (1-9)
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
Permanent damage may occur if any of these limits are exceeded.
Applications
• VHF/UHF
• satellite distribution
• cellular
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications.
Pin Connections
LO
RF
IF
GROUND
1
4
5
2,3,6
Electrical Specifications
Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
5-1500
DC-1000
1 dB COMP.: +1 dBm typ.
CONVERSION LOSS
(dB)
Mid-Band
m
—
X
5.92
σ
.34
LO-RF ISOLATION
(dB)
LO-IF ISOLATION
(dB)
IF
L
M
U
L
M
U
Total
Range
Max. Max. Typ. Min. Typ. Min. Typ. Min. Typ. Min. Typ. Min. Typ. Min.
7.5
9.5
60
40
40
20
30
18
55
30
30
18
15
8
IP3
at center
band
(dBm)
Typ.
12
L = low range [f
L
to 10 f
L
] M = mid range [10 f
L
to f
U
/2] U = upper range [f
U
/2 to f
U
]
m= mid band [2f
L
to f
U
/2]
PCB Land Pattern
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
35.00
40.00
50.00
80.00
70.00
119.68
170.00
216.13
312.58
409.03
470.00
553.71
650.16
720.00
843.07
970.00
1084.19
1180.65
1325.32
1470.00
LO
+7dBm
6.17
6.03
5.86
5.46
5.31
5.33
5.37
5.54
5.71
5.77
5.97
6.25
6.55
6.89
7.45
7.70
7.76
8.02
8.41
8.83
Isolation
L-R
(dB)
LO
+7dBm
78.28
73.09
67.43
60.16
53.66
50.07
47.54
45.92
43.07
40.76
39.74
39.21
38.34
37.60
36.91
35.50
33.72
32.50
30.92
28.64
Isolation
L-I
(dB)
LO
+7dBm
82.08
75.39
67.33
61.16
53.86
50.77
48.24
48.66
48.72
43.78
38.41
33.19
29.32
26.77
21.63
18.14
16.32
14.96
13.25
12.28
VSWR
RF Port
(:1)
LO
+7dBm
2.64
1.62
1.37
1.27
1.29
1.34
1.40
1.48
1.68
1.93
2.10
2.36
2.71
2.92
3.32
3.56
3.69
3.73
3.75
3.83
VSWR
LO Port
(:1)
LO
+7dBm
2.43
2.43
2.37
2.46
2.38
2.33
2.28
2.29
2.29
2.33
2.41
2.48
2.69
2.80
3.09
3.20
3.18
3.19
3.12
2.98
RF
5.00
10.00
20.00
50.00
100.00
149.68
200.00
246.13
342.58
439.03
500.00
583.71
680.16
750.00
873.07
1000.00
1114.19
1210.65
1355.32
1500.00
Suggested Layout,
Tolerance to be within
±.002
Outline Dimensions (
inch
)
mm
A
.400
10.16
H
.420
10.67
B
.31
7.87
J
.120
3.05
C
.200
5.08
K
.060
1.52
D
.10
2.54
L
.100
2.54
E
.010
0.25
M
.020
0.51
F
.100
2.54
G
.050
1.27
wt
grams
0.55
Demo Board MCL P/N: TB-44+
Suggested PCB Layout (PL-083)
Electrical Schematic
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
TM
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. B
M102713
LRMS-5
DJ/FL/CP/AM
070521
Page 1 of 2

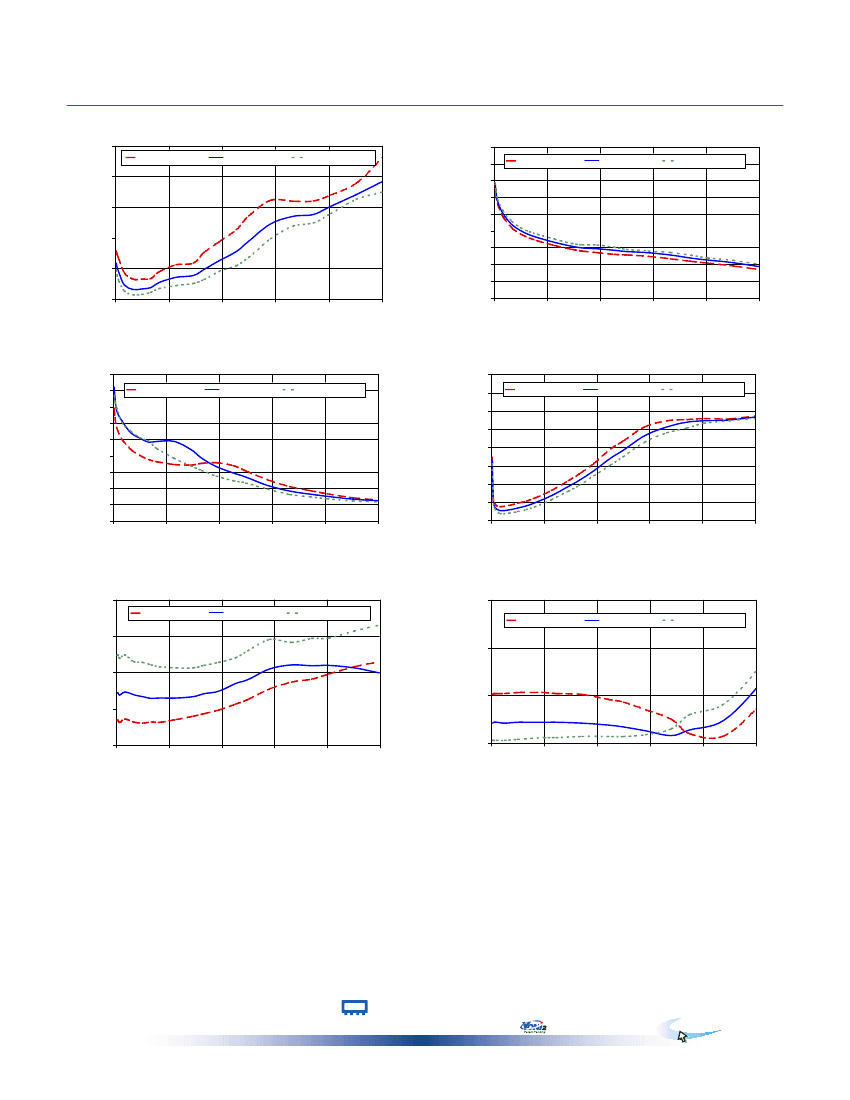

Performance Charts
