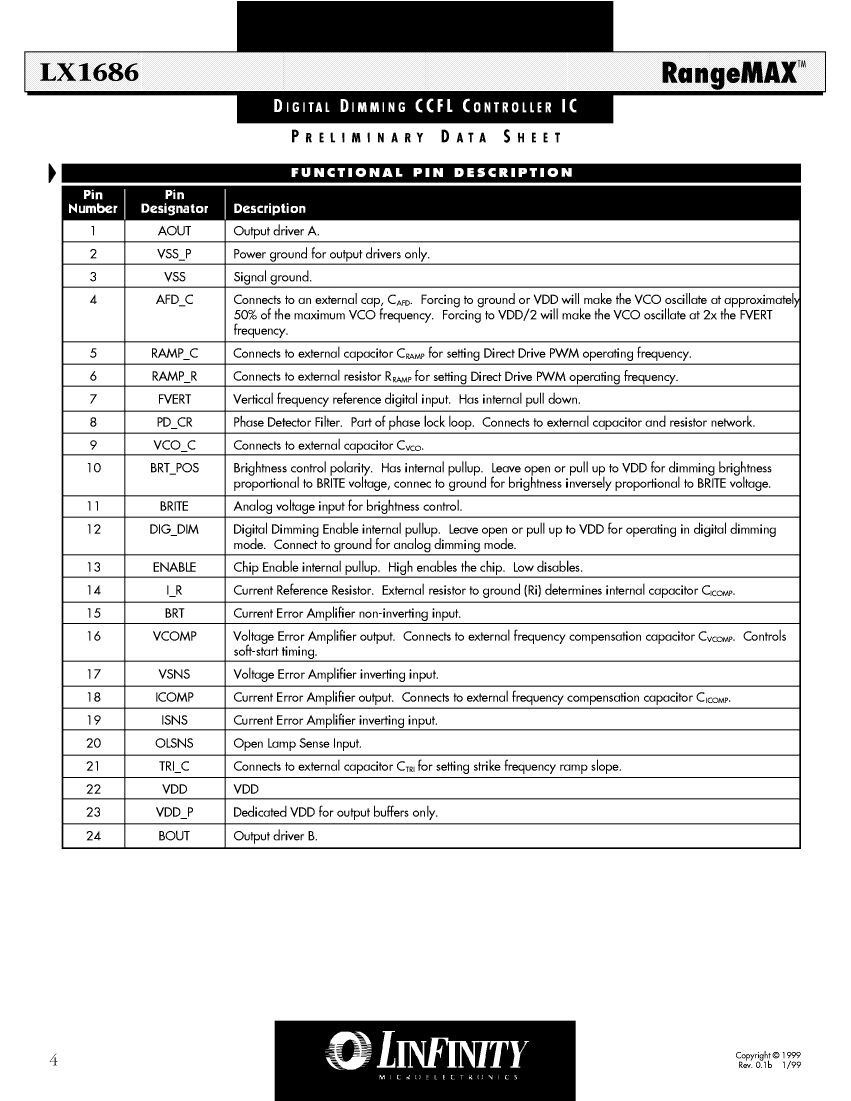

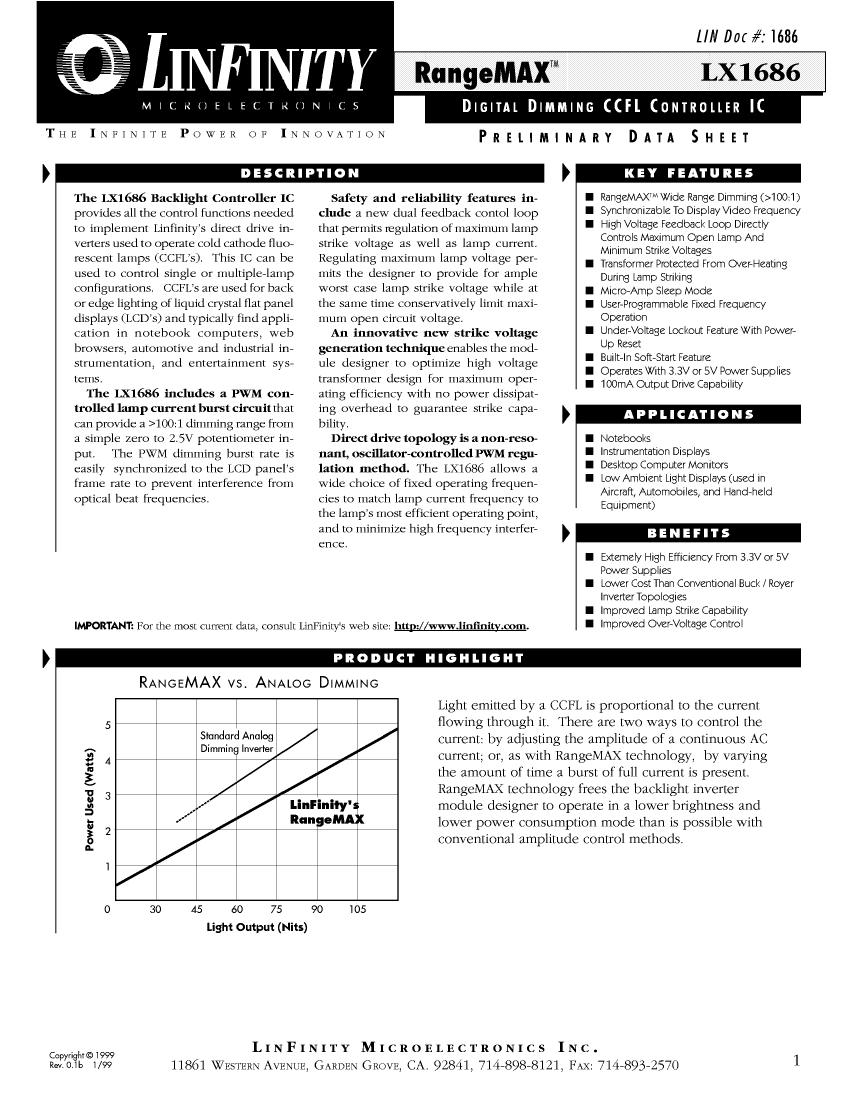

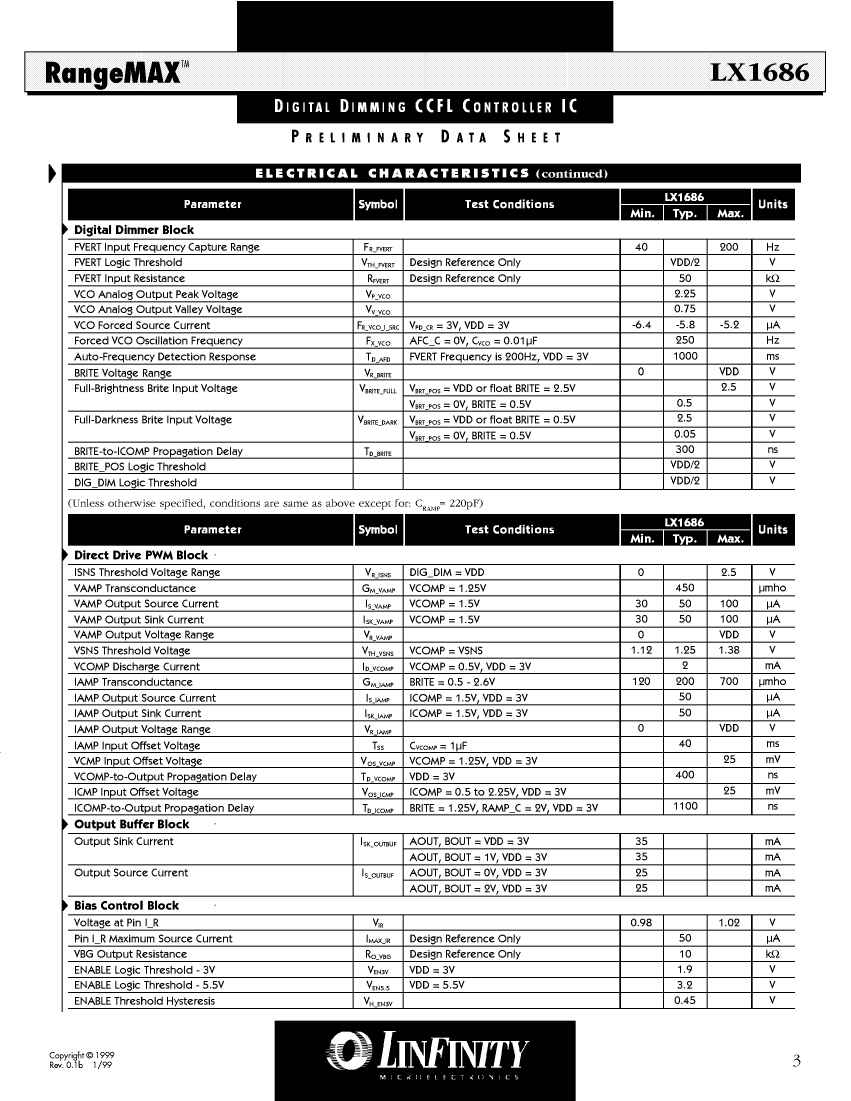

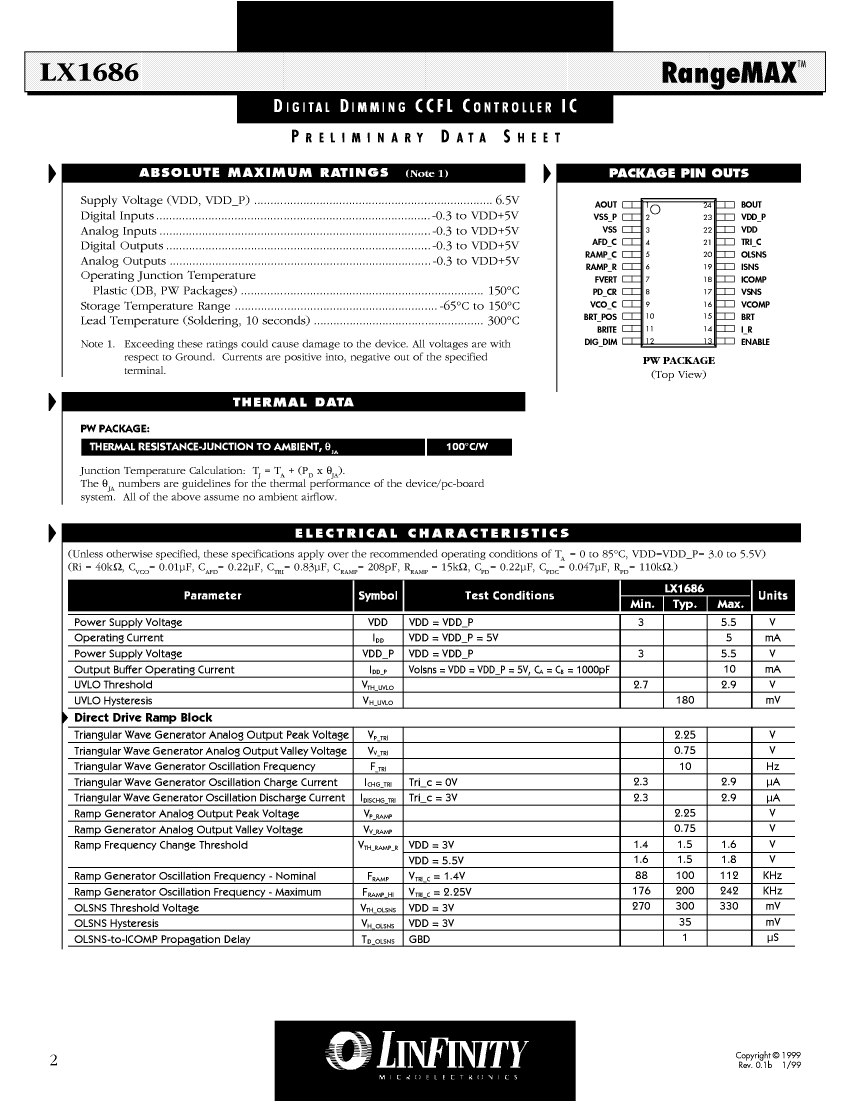

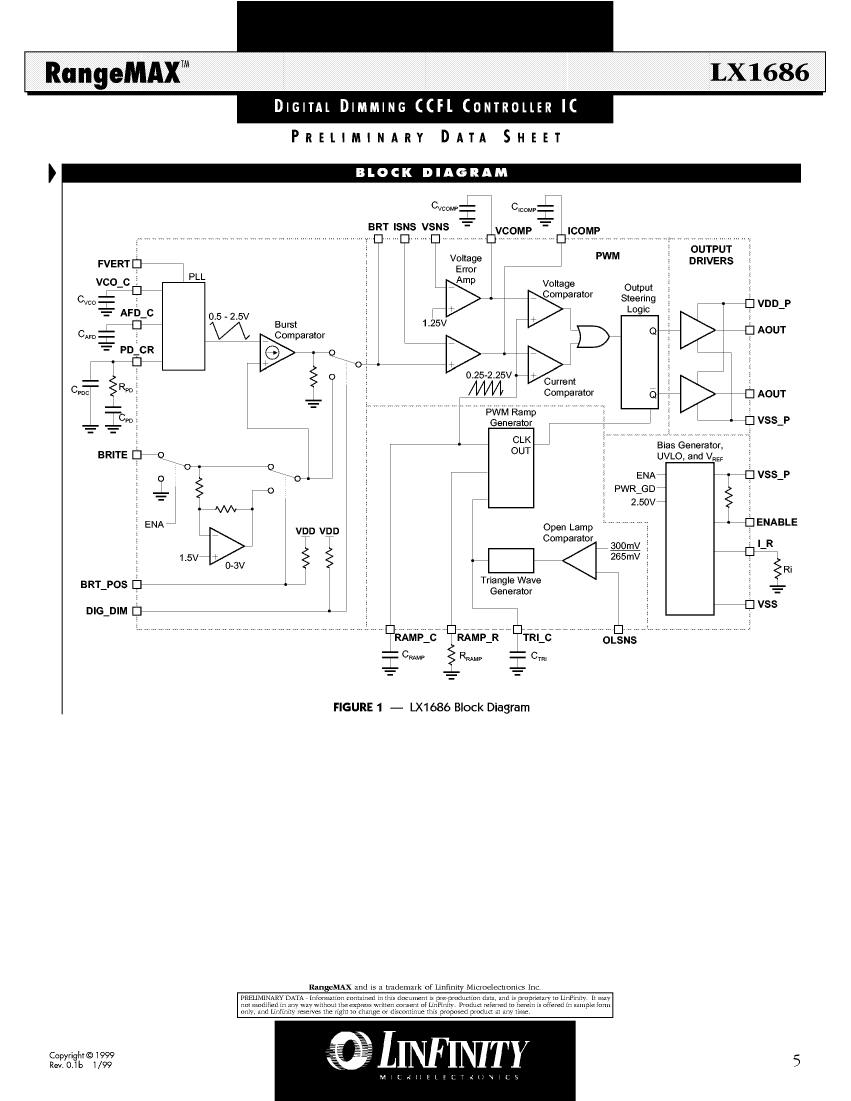

LX1686PW

Description
Fluorescent Light Controller, Voltage-mode, 242kHz Switching Freq-Max, BICMOS, PDSO24, PLASTIC, PW, 24 PIN
CategoryPower/power management    The power supply circuit
File Size331KB,5 Pages
ManufacturerLinfinity Microelectronics
Download Datasheet Parametric Compare View All

LX1686PW Overview

Fluorescent Light Controller, Voltage-mode, 242kHz Switching Freq-Max, BICMOS, PDSO24, PLASTIC, PW, 24 PIN

LX1686PW Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLinfinity Microelectronics
package instructionPLASTIC, PW, 24 PIN
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesFLUORESCENT LIGHT CONTROLLER
control modeVOLTAGE-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage5.5 V
Minimum input voltage3 V
Nominal input voltage3 V
JESD-30 codeR-PDSO-G24
JESD-609 codee0
Number of functions1
Number of terminals24
Maximum operating temperature85 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP24,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
surface mountYES
Switch configurationPUSH-PULL
Maximum switching frequency242 kHz
technologyBICMOS
Temperature levelOTHER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL

LX1686PW Related Products

LX1686PW
Description Fluorescent Light Controller, Voltage-mode, 242kHz Switching Freq-Max, BICMOS, PDSO24, PLASTIC, PW, 24 PIN
Is it Rohs certified? incompatible
Maker Linfinity Microelectronics
package instruction PLASTIC, PW, 24 PIN
Reach Compliance Code unknown
Analog Integrated Circuits - Other Types FLUORESCENT LIGHT CONTROLLER
control mode VOLTAGE-MODE
Control Technology PULSE WIDTH MODULATION
Maximum input voltage 5.5 V
Minimum input voltage 3 V
Nominal input voltage 3 V
JESD-30 code R-PDSO-G24
JESD-609 code e0
Number of functions 1
Number of terminals 24
Maximum operating temperature 85 °C
Package body material PLASTIC/EPOXY
encapsulated code TSSOP
Encapsulate equivalent code TSSOP24,.25
Package shape RECTANGULAR
Package form SMALL OUTLINE
Certification status Not Qualified
surface mount YES
Switch configuration PUSH-PULL
Maximum switching frequency 242 kHz
technology BICMOS
Temperature level OTHER
Terminal surface Tin/Lead (Sn/Pb)
Terminal form GULL WING
Terminal pitch 0.635 mm
Terminal location DUAL
