BA159G: Description1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric Compare View All

BA159G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BA159G	-	-	View	Buy Now

BA159G Overview

1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41

BA159G Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.25 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

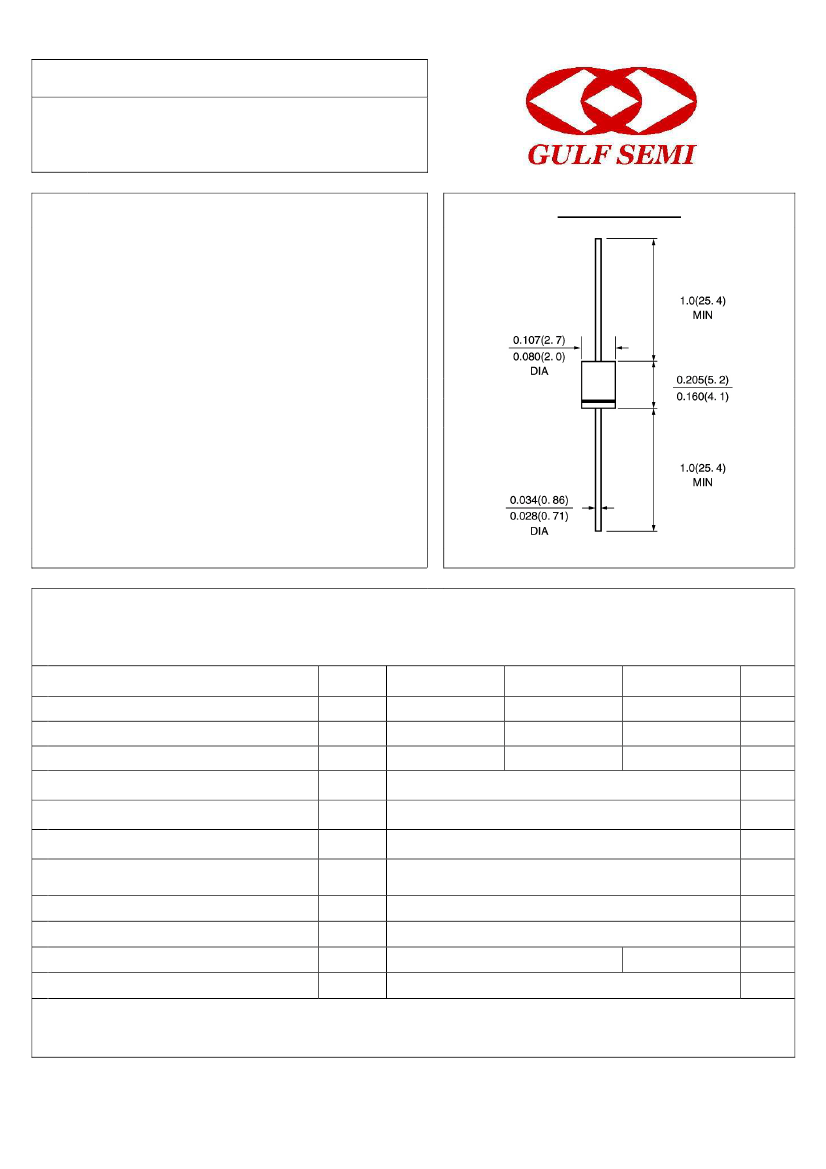

BA157G THRU BA159G

GLASS PASSIVATED

FAST RECOVERY RECTIFIER

VOLTAGE: 400 TO 1000V

CURRENT: 1.0A

FEATURE

Molded case feature for auto insertion

High current capability

Low leakage current

Fast switching capability

High temperature soldering guaranteed

250°C /10sec/0.375" lead length at 5 lbs tension

Glass Passivated chip

DO - 41\DO- 204AL

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

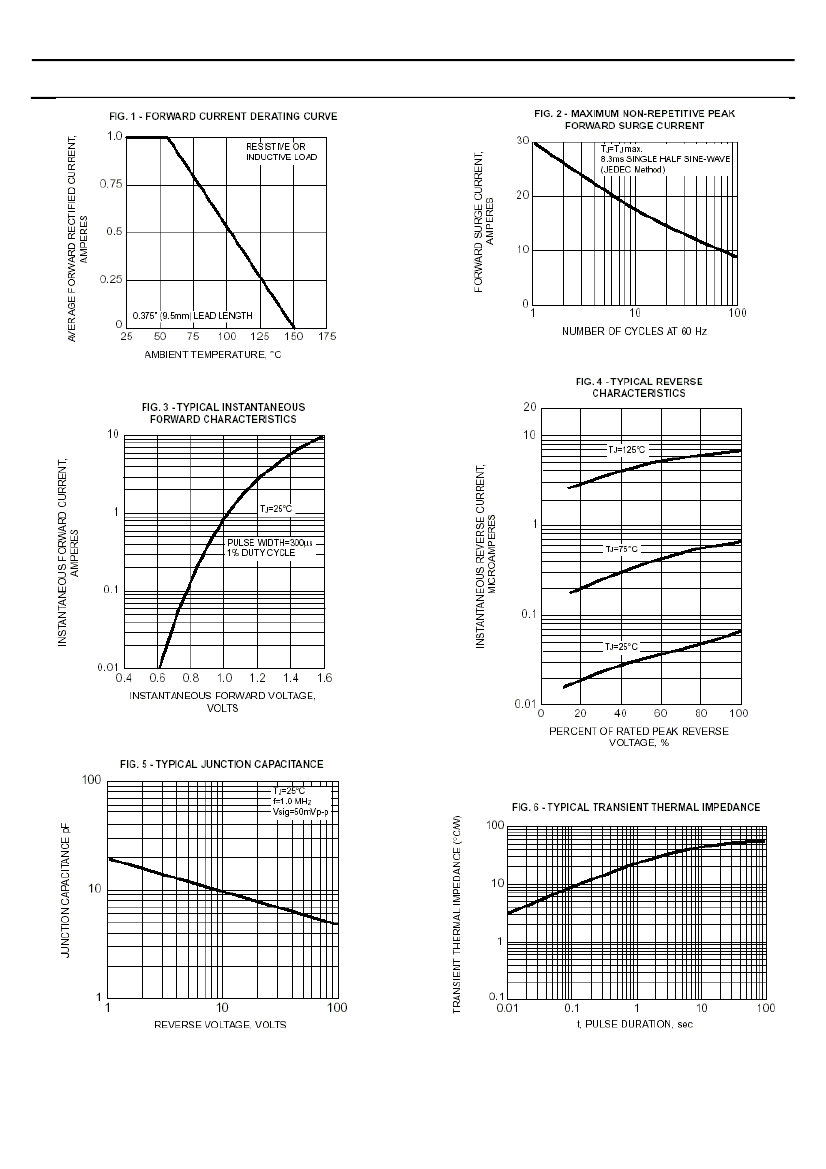

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified Current

3/8" lead length at Ta =55°

C

Peak Forward Surge Current 8.3ms single

Half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

Rated forward current

Maximum DC Reverse Current

Ta =25°

C

At rated DC blocking voltage

Ta =125°

C

Typical Junction Capacitance

Typical Thermal Resistance

(Note 1)

(Note 2)

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Cj

Rth(ja)

Trr

Tstg, Tj

150

-55 to +150

BA157G

400

280

400

BA158G

600

420

600

1.0

30.0

1.25

5.0

100.0

15.0

55

250

BA159G

1000

700

1000

units

V

A

V

µA

pF

°

C/W

nS

°

C

Maximum Reverse Recovery Time (Note 3)

Storage and Operating Junction Temperature

Note:

1. Measured at 1.0 MHz and applied voltage of 4.0Vdc

2. Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, P.C.B. mounted

Test Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

Rev.A1

www.gulfsemi.com
